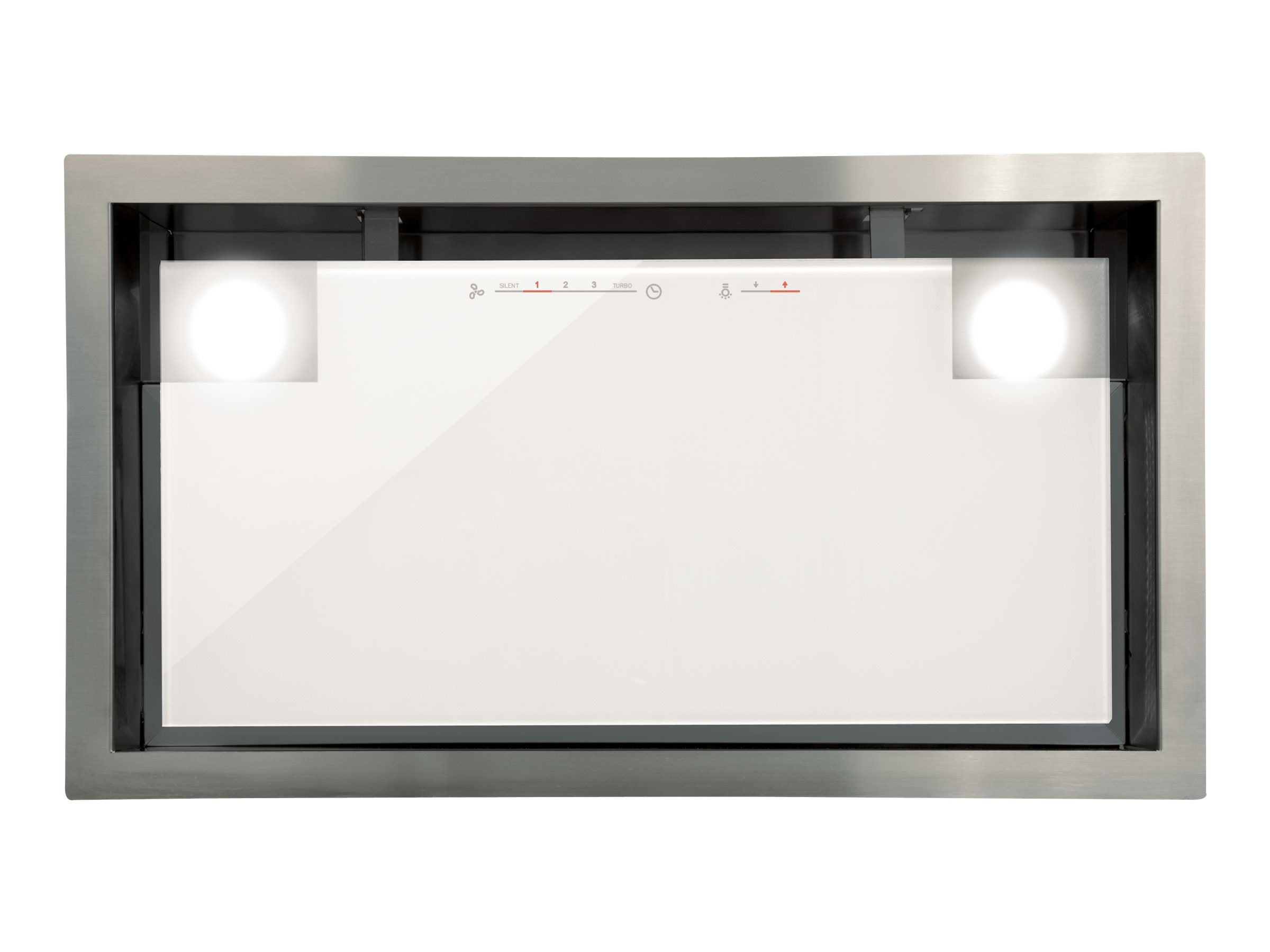

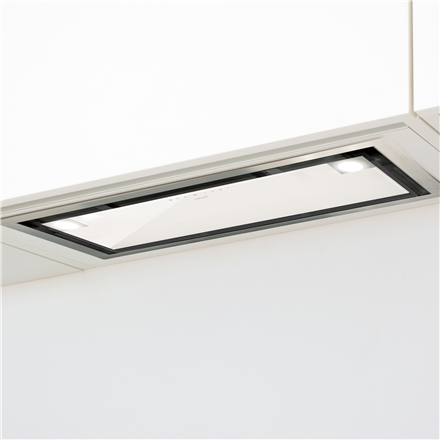

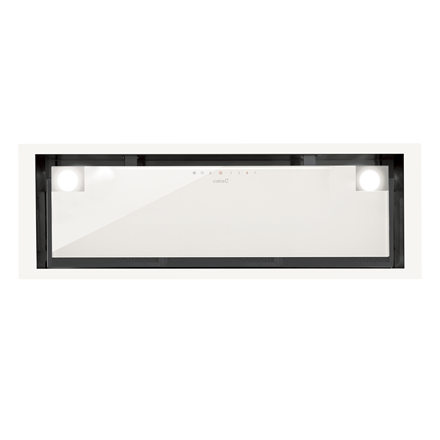

The CATA GC DUAL A 75 XGWH is a stylish white glass canopy hood that combines efficient performance with modern design. Featuring touch control and LED lighting, it offers effective air extraction with a maximum power of 820 m³/h.

• Width: 79.2 cm
• Touch control panel with automatic shut-down timer
• LED lamp with 2 units
• Metallic grease filter, dishwasher proof and washable
• High grease filtering efficiency of 91.2%

Design

• Colour of product: White glass
• Control type: Touch control
• Lamp type: LED
• Type: Canopy
• Exhaust connection diameter: 15 cm
• Lamps quantity: 2
• Motor included: Yes
• Motor type: BT3
• Number of motors: 1

Performance

• Maximum extraction power according to EN 61591: 820 m³/h
• Airflow (Minimum speed): 340 m³/h
• Fluid Dynamic Efficiency (FDE), %: 30.2 %
• Fluid dynamic efficiency class: A
• Grease filtering efficiency (GFE), %: 91.2 %
• Grease filtering efficiency class: B
• Intensive speed: Yes
• Lighting efficiency (LE): 16.1 lux/Watt
• Lighting efficiency class: C
• Minimum distance from electric hob: 55 cm
• Minimum distance from gas hob: 65 cm
• Noise level (low speed): 50 dB
• Noise level (max): 65 dB
• Number of speeds: 4
• Pressure (Pa): 470 Pa
• Recirculation: Yes
• Type of extraction: Outlet tube to the exterior / Recirculating

Power

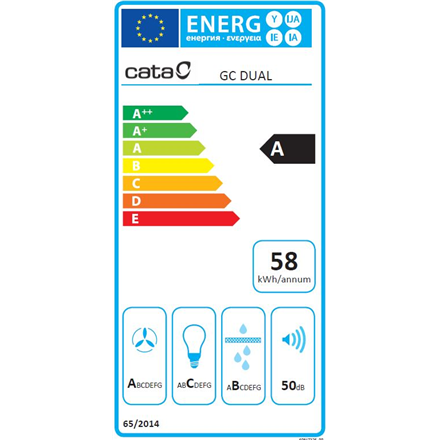

• Energy efficiency class: A
• AC input frequency: 50 Hz
• AC input voltage: 220-240 V
• Annual energy consumption: 58.3 kWh
• Auto power off: Yes
• Bulb power: 7 W
• Motor rated power: 280 W
• Power: 287 W
• Power consumption (off): 0.3 W
• Power consumption (standby): 0 W

Technical details

• Producer product family: Hood
• Producer product name: GC DUAL A 75 XGWH
• Net weight: 10.1 kg
• Warranty: 36 month(s)

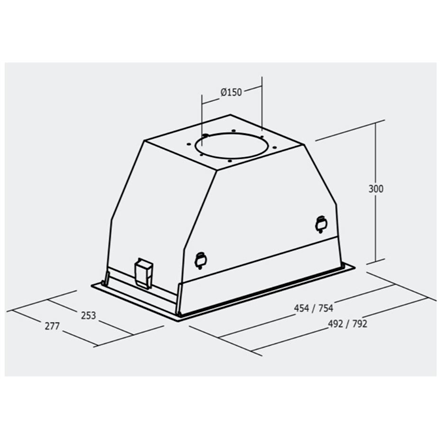

Weight & dimensions

• Width: 79.2 cm
• Depth: 27.7 cm
• Height: 30 cm
• Height (max): 30 cm
• Height (min): 30 cm

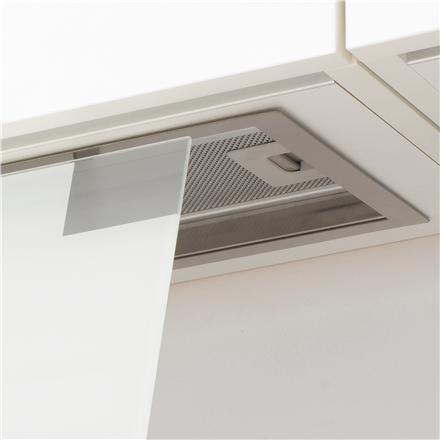

Filtering

• Carbon filter for recirculation included: No
• Dishwasher proof filter: Yes
• Filter cleaning indicator: Yes
• Grease filter type: Metallic
• Number of filters: 1 pc(s)
• Removable filter: Yes
• Washable filter: Yes

Other features

• Control panel: Touch control panel with automatic shut-down timer
• Touch control: Yes
