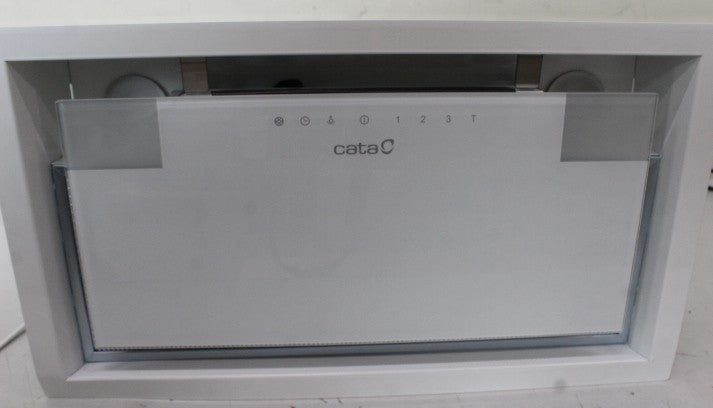

The CATA GC DUAL A 45 XGWH/D is a white glass canopy hood with a width of 45 cm, designed for effective kitchen ventilation. It features touch control for easy operation, boasting a maximum extraction power of 820 m³/h for efficient air circulation.

• Energy efficiency class A
• Touch control panel with cleaning filters indicator
• LED lighting with 2 lamps
• Dishwasher proof and removable metallic grease filter
• Extra silent BT2 motor

Design

• Colour of product: White glass
• Control type: Touch control
• Lamp type: LED
• Type: Canopy
• Exhaust connection diameter: 12.5 - 15 cm
• Lamps quantity: 2
• Motor included: Yes
• Motor type: BT2 motor. Extra silent.
• Number of motors: 1

Performance

• Maximum extraction power according to EN 61591: 820 m³/h
• Airflow (Minimum speed): 340 m³/h
• Fluid Dynamic Efficiency (FDE), %: 30.2 %
• Fluid dynamic efficiency class: A
• Grease filtering efficiency (GFE), %: 91.2 %
• Grease filtering efficiency class: B
• Intensive speed: Yes
• Lighting efficiency (LE): 16.1 lux/Watt
• Lighting efficiency class: C
• Minimum distance from electric hob: 55 cm
• Minimum distance from gas hob: 65 cm
• Noise level (low speed): 50 dB
• Noise level (max): 65 dB
• Number of speeds: 4
• Pressure (Pa): 470 Pa
• Recirculation: Yes
• Type of extraction: Outlet tube to the exterior / Recirculating

Power

• Energy efficiency class: A
• AC input frequency: 50 Hz
• AC input voltage: 220-240 V
• Annual energy consumption: 58.3 kWh
• Auto power off: Yes
• Bulb power: 7 W
• Motor rated power: 280 W
• Power: 287 W
• Power consumption (off): 0.3 W
• Power consumption (standby): 0 W

Technical details

• Producer product family: Hood
• Producer product name: GC DUAL A 45 XGWH/D
• Net weight: 8.60 kg
• Warranty: 33 month(s)

Weight & dimensions

• Width: 45 cm
• Depth: 25 cm
• Height: 30 cm
• Height (max): 30 cm
• Height (min): 30 cm

Filtering

• Carbon filter for recirculation included: No
• Dishwasher proof filter: Yes
• Filter cleaning indicator: Yes

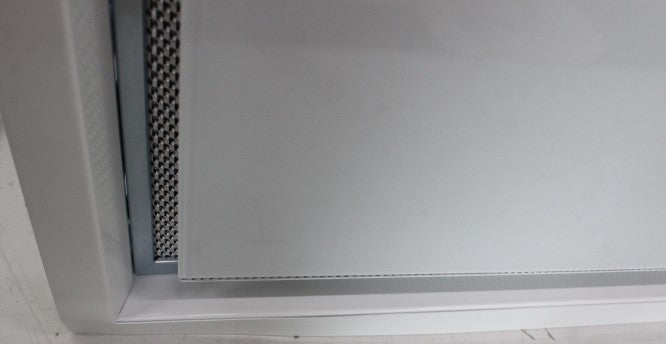

• Grease filter type: Metallic
• Number of filters: 1 pc(s)
• Removable filter: Yes
• Washable filter: Yes

Other features

• Control panel: Touch Control Panel with authomatic shut-down timer and cleaning filters indicator
• Touch control: Yes
