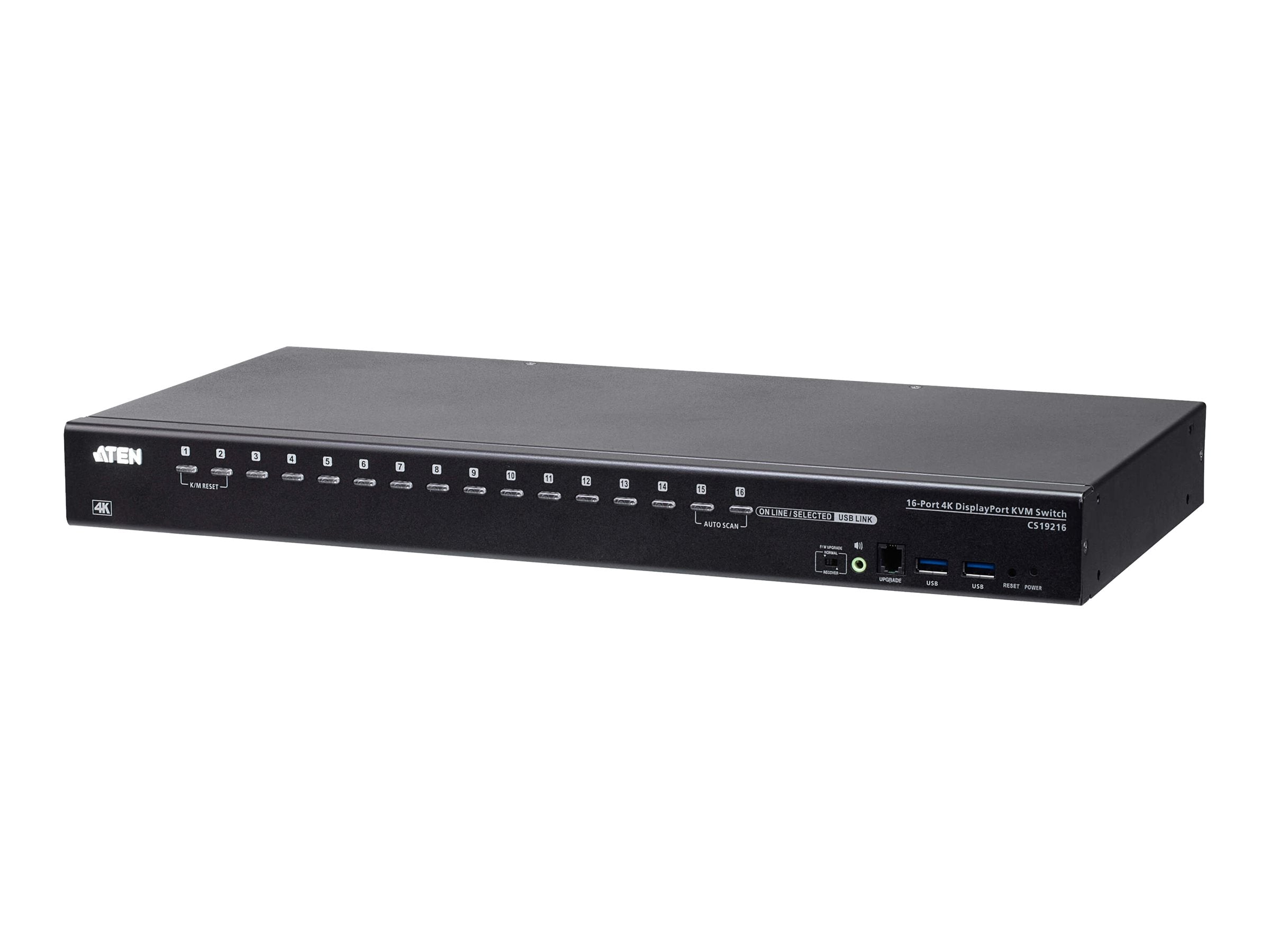

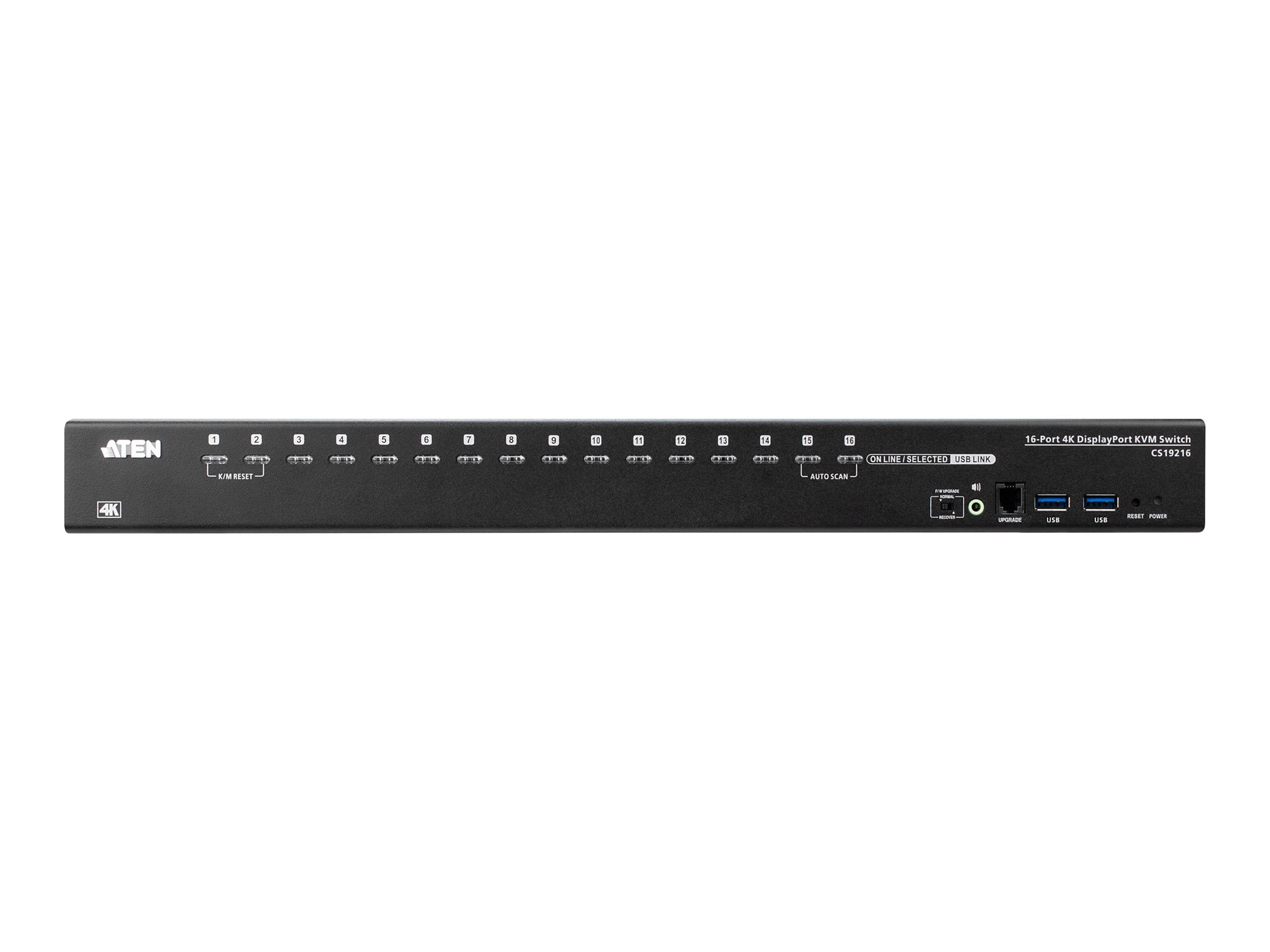

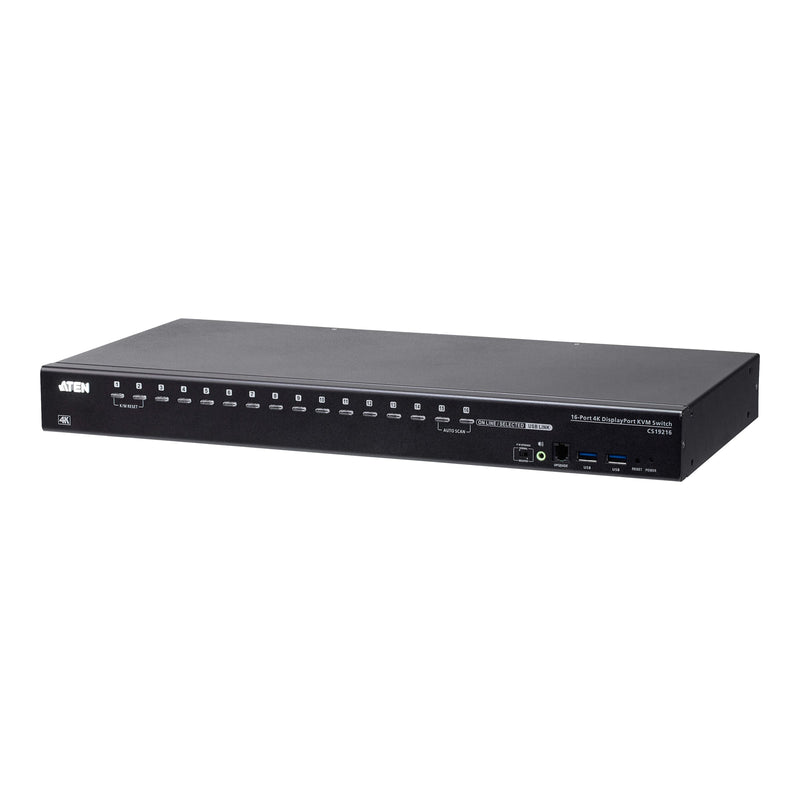

The Aten CS19216 is a 16-Port USB 3.0 DisplayPort KVMP Switch suitable for environments requiring the control of multiple computers from a single console. It is designed for users who need high-quality video and versatile connectivity options for their workstations.

  • Supports video resolutions up to 4K DCI (4096 x 2160 @ 60Hz) for crisp visuals.
  • Built-in 2-port USB 3.1 Gen 1 hub allows for fast data transfer rates of 5 Gbps.
  • Cascadable design lets you control up to 256 computers with additional units.
  • Multi-Display capability enables configuration with up to eight monitors in various display setups.
  • Video DynaSync™ technology optimizes resolution and prevents display issues when switching sources.
Specifications (3)
  • Producer product family: 16-Port USB 3.0 DisplayPort KVMP Switch
  • Producer product name: CS19216
  • Warranty: 24 month(s)
Design (1)
  • Material: Metal
Operational conditions (1)
  • Temperature range (T-T): 0-40˚C °C
Other features (1)

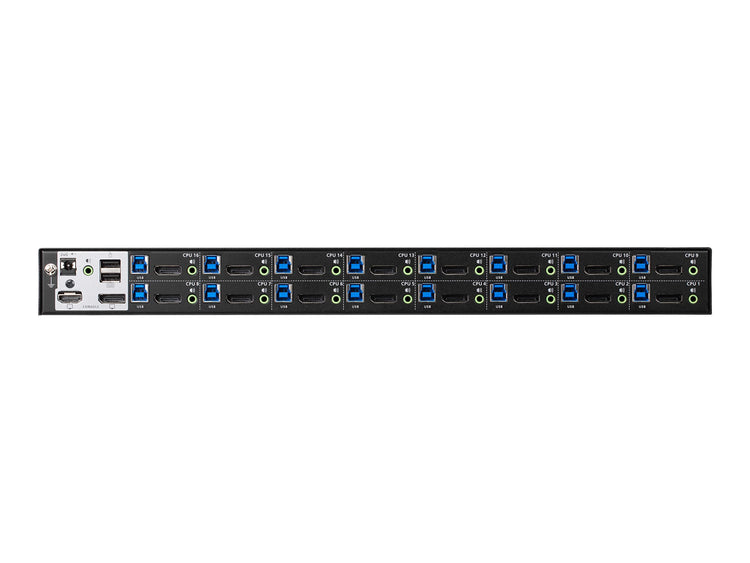

  • I/O ports: Console Ports: 1 x DisplayPort Female 1 x HDMI Female (Black), 2 x USB Type A Female, 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
Technical details (2)
  • Net weight: 3.54 kg
  • Other features: Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz) and built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates. Cascadable to two levels – controls up to 256 computers. Multi-Display feature – stack up to eight CS19216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display). Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources.
Additional specifications (49)
  • Number of computers controlled: 16
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 16
  • DisplayPort version: 1.2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 16
  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 17
  • Number of microphone inputs: 17
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,255 s
  • HDCP: Yes
  • Firmware upgradeable: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 12 V
  • Power consumption (typical): 26.66 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 432.4 mm
  • Depth: 214.3 mm
  • Height: 44 mm
  • Weight: 4.18 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 12.5 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 427 mm
  • Master (outer) case length: 519 mm
  • Master (outer) case height: 348 mm
  • Products per master (outer) case: 3 pc(s)
