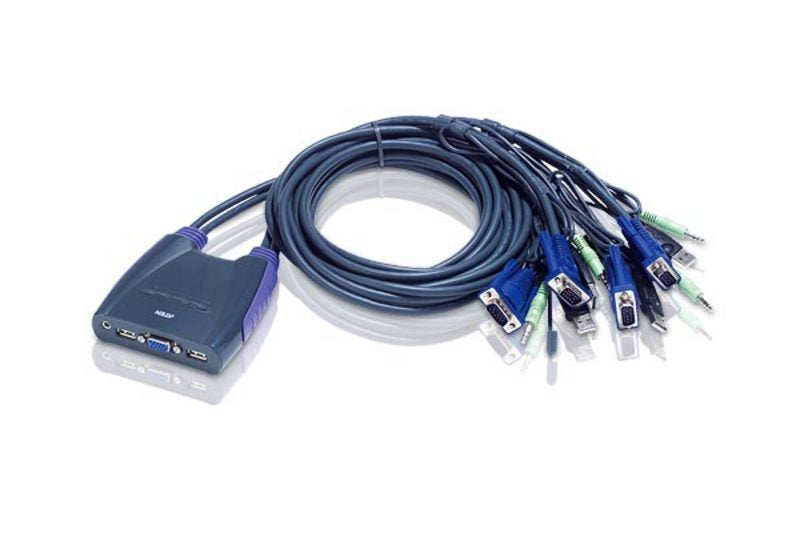

The Aten 4-Port USB VGA/Audio Cable KVM Switch allows control of up to four computers using a single set of peripherals. It features built-in cables of 0.9m and 1.2m lengths, supporting multiple platforms including Windows, Linux, and Mac.

• Superior video quality up to 2048 x 1536 pixels
• Connects four computers via VGA and USB ports
• DDC2B support for easy computer selection via hotkey
• Built-in headphone and audio jack connection
• Power efficient design with typical consumption of 0.9 W

Specifications

• Producer product name: 4-Port USB VGA/Audio Cable KVM Switch (0.9m, 1.2m)
• Warranty: 24 month(s)

Design

• Material: Plastic

Features

• Cable length: 2 x 0.9 m; 2 x 1.2 m m

Operational conditions

• Temperature range (T-T): 0 - 50°C °C

Technical details

• Net weight: 0.58 kg
• Other features: Superior video quality – up to 2048 x 1536; DDC2B Computer Selection via hotkey Multiplatform support - Windows, Linux, Mac, Sun Built-in 0.9/1.2 m cables and bus-powered design. Computer Connections - 4. Console Ports: 1 x HDB-15 Female (Blue); 2 x USB Type A Female; 1 x 3.5mm Audio Jack Female (Green); KVM Ports:4 x HDB-15 Male (Blue); 4 x USB Type A Male; 4 x 3.5mm Audio Jack Female (Green).

Additional specifications

• Number of computers controlled: 4
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: VGA
• VGA (D-Sub) ports quantity: 4
• Console ports: 3.5mm headphone, USB A, VGA (D-Sub)
• Console USB ports quantity: 2
• USB 2.0 Type-A hub ports quantity: 4
• Audio connections: Yes
• HD type: QXGA
• Maximum resolution: 2048 x 1536 pixels
• Scan interval: 1,5,99 s
• DDC2B support: Yes
• Product colour: Blue
• Housing material: Plastic
• LED indicators: Yes
• Hot keys: Yes
• Built-in display: No
• Power source: DC
• Input voltage: 5 V
• Power consumption (typical): 0.9 W
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Storage relative humidity (H-H): 0 - 80%
• Width: 94.1 mm
• Depth: 97.2 mm
• Height: 26 mm
• Weight: 580 g
• Quick installation guide: Yes
• Manual: Yes
• Master (outer) case net weight: 2.9 kg
• Harmonized System (HS) code: 85176200
• Master (outer) case width: 232 mm
• Master (outer) case length: 500 mm
• Master (outer) case height: 283 mm
• Products per master (outer) case: 5 pc(s)
