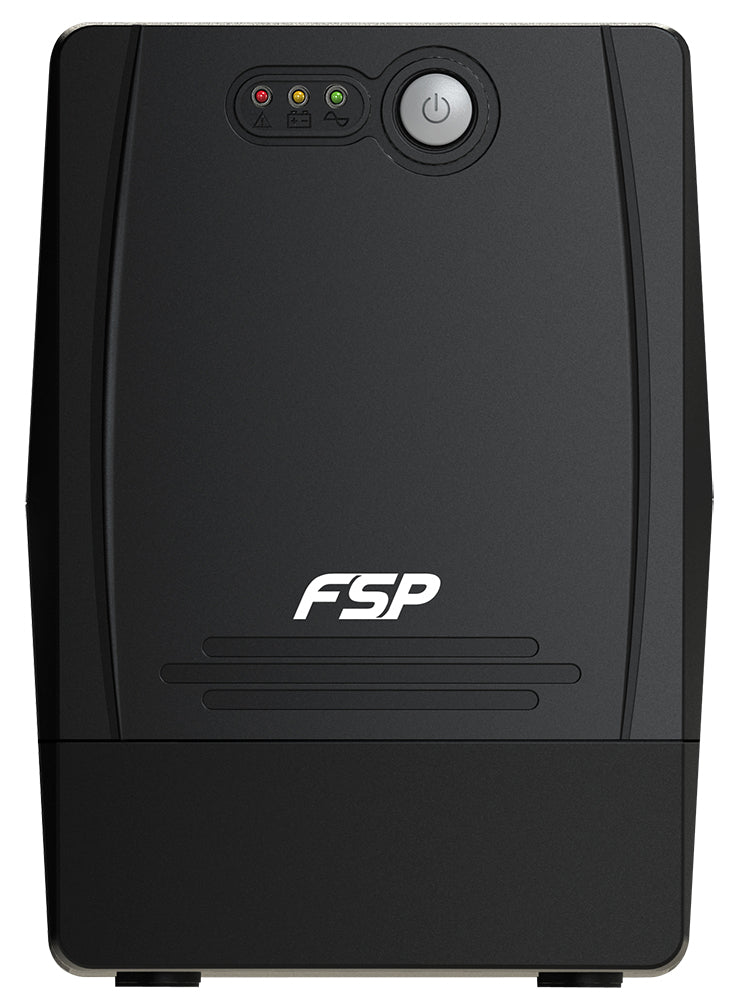

The FSP FP 1000 is a line-interactive uninterruptible power supply (UPS) designed to provide reliable power protection for your devices. With a capacity of 1000 VA and four Type F (Schuko) AC outlets, it ensures stable power delivery with an output frequency of 60/50 Hz.

• Capacity: 1000 VA
• Input voltage: 110 / 120 VAC or 220 / 230 / 240 VAC
• Features audible battery replacement alarms
• Operating temperature range: 0 - 40 °C
• Dimensions: 320 x 130 x 182 mm

Specifications

• Producer product name: FP 1000

Performance

• Capacity: 1000 VA
• Audible alarm(s): Yes
• Noise level (max): 40 dB
• Power protection features: Overcharge, Overload
• Response time: 6 ms
• UPS topology: Line-Interactive
• Waveform: Sine

Power

• AC input voltage: 110 / 120 VAC or 220 / 230 / 240 VAC V
• Input operation voltage (max): 290 V
• Input operation voltage (min): 162 V
• Output frequency regulation: 60 / 50 Hz
• Output power: 600 W
• Output power capacity: 1000 VA
• Power supply input frequency: 50/60 Hz

Battery

• Battery recharge time: 6 h
• Battery replacement alarms: Audible
• Battery type: 7 AH
• Number of batteries supported: 2

Design

• Form factor: Mini tower

Features

• Alarm function: Sounding every 0,5 sec
• Colour of product: Black

Indication

• Battery low indication: Sounding every sec

Operational conditions

• Operating relative humidity (H-H): 0 - 90 %
• Operating temperature (T-T): 0 - 40 °C

Other features

• Dimensions (WxDxH): 320 x 130 x 182 mm mm
• Nominal output voltage: 220 V

Ports & interfaces

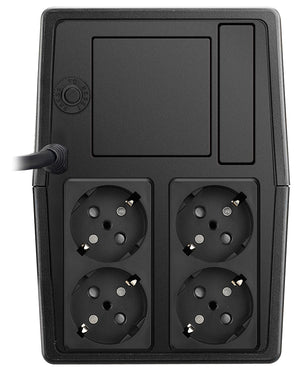

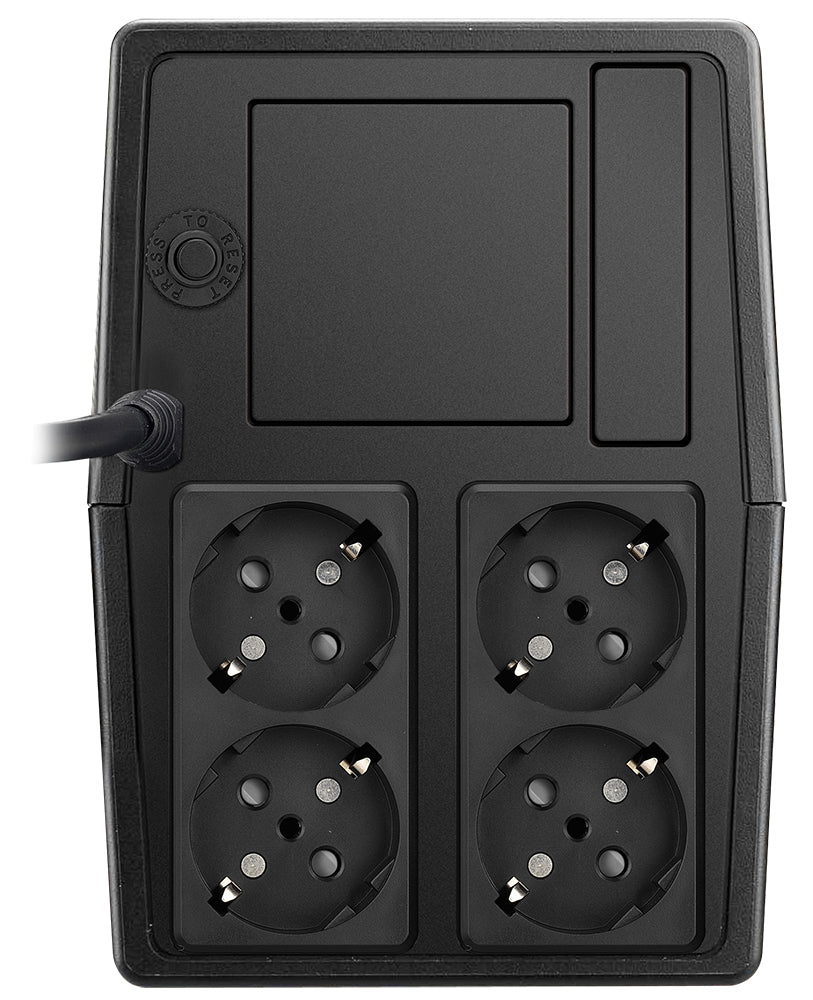

• AC outlet types: Type F (Schuko)
• AC outlets quantity: 4
• Connector(s): 4 x schuko outlets
• Number of Schuko outputs: 4

Technical details

• Net weight: 7.447 kg
• Warranty: 24 month(s)

Weight & dimensions

• Depth: 32 cm
• Height: 18.2 cm
• Package depth: 39 cm
• Package height: 27.5 cm
• Package width: 19 cm
• Weight: 8.2 g
• Width: 13 cm
