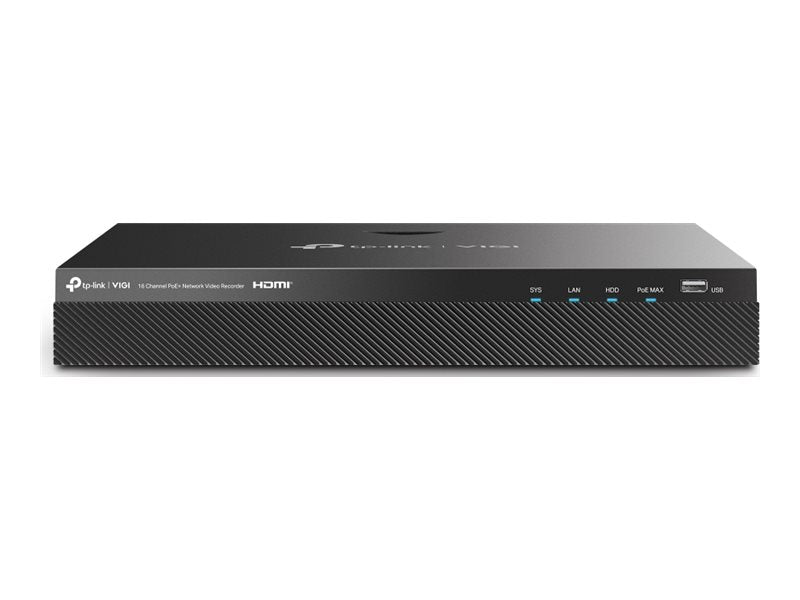

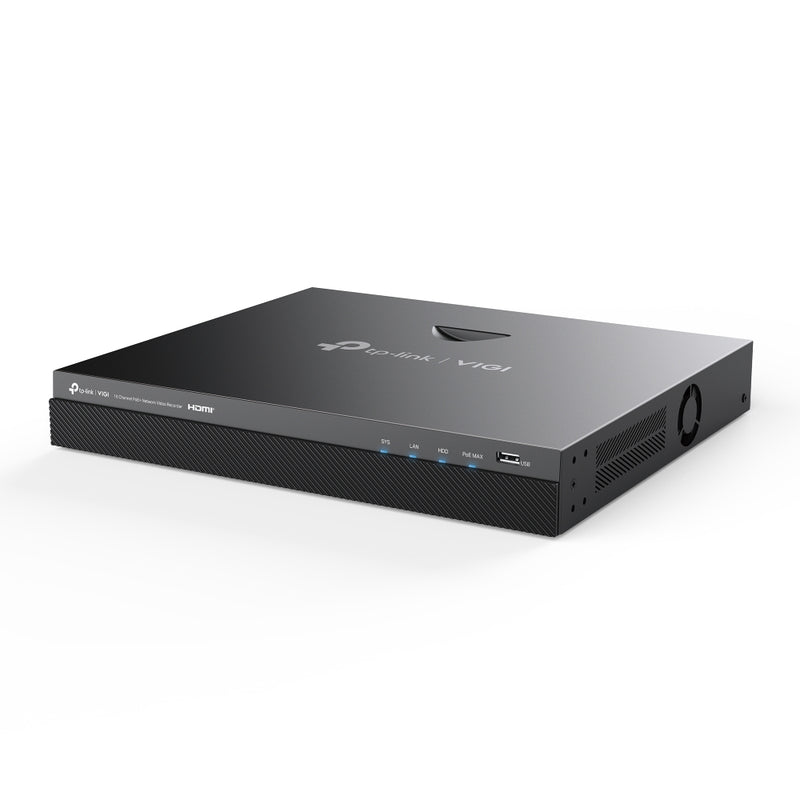

The TP-LINK VIGI NVR2016H-16MP is a PoE+ network video recorder designed for users who need to manage multiple surveillance cameras. With the ability to support up to 16 channels, it is suitable for both residential and commercial security applications.
- Capture high-definition video with a maximum resolution of 3840 x 2160 pixels.

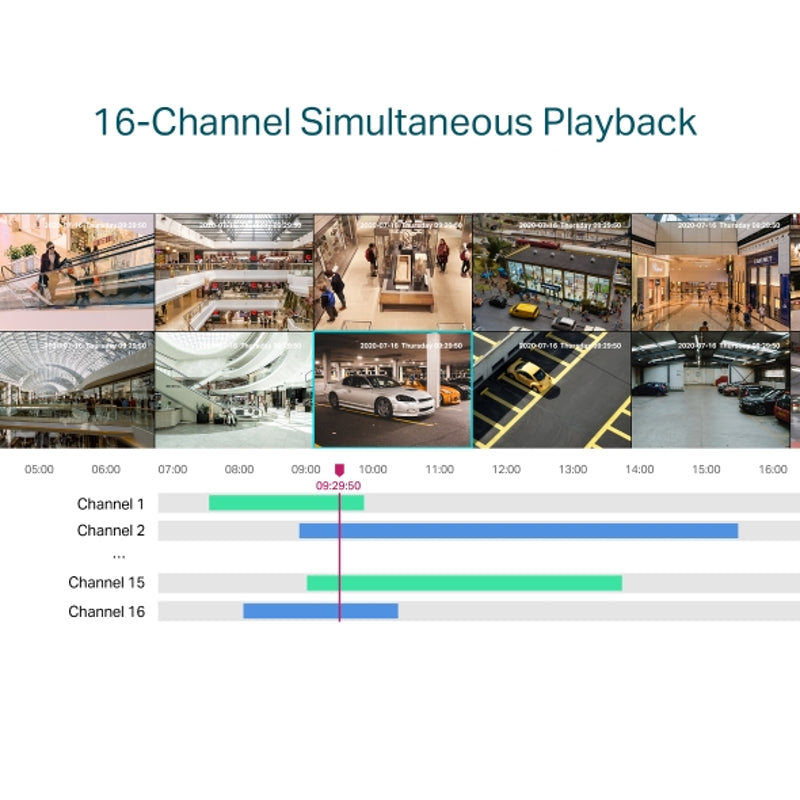

- Record and playback from up to 16 channels simultaneously for comprehensive coverage.
- Utilize built-in motion detection for enhanced security monitoring.
- Store significant video footage with support for up to 10 TB across two SATA connectors.
- Easily manage playback with various modes including digital zoom and fast play options.
Specifications (1)
- Video input channels: 16 Channel
Other features (1)
- Number of SATA connectors: 2
Technical details (4)
- Producer product family: PoE+ Network Video Recorder
- Producer product name: VIGI NVR2016H-16MP
- Net weight: 3.99 kg
- Warranty: 36 month(s)
Performance (1)
- Capacity: Up to 10 TB
Additional specifications (51)
- Number of simultaneously playbacked channels: 16 channels
- Video recording modes: 720p, 1080p
- Maximum resolution: 3840 x 2160 pixels
- Supported resolutions: HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
- Video motion detection: Yes
- Audio formats supported: G.711 A-law, G.711 μ-law, G.726
- Video formats supported: H.264, H.264+, H.265, H.265+
- Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
- Playback controls: Yes
- Maximum frame rate: 30 fps
- Input bandwidth: 80 Mbit/s
- Output bandwidth: 60 Mbit/s
- Recording modes: Manual, Schedule
- Wi-Fi: No
- HDD capacity: 0 GB
- Number of HDDs supported: 2
- Maximum storage capacity: 10 TB
- HDD interface: SATA

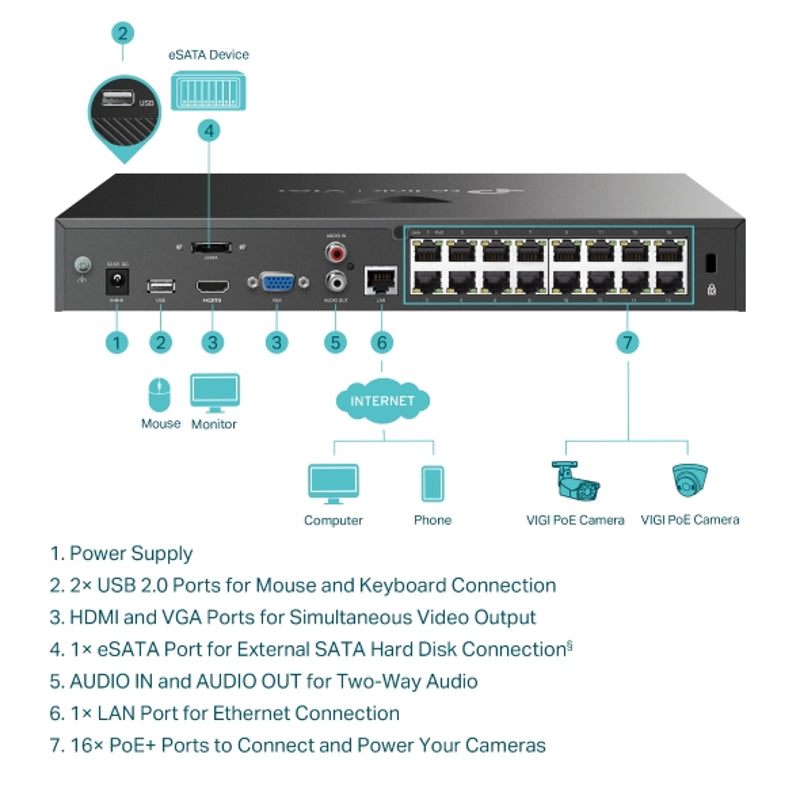

- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet (PoE): Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Power over Ethernet (PoE) ports quantity: 16
- HDMI ports quantity: 1
- VGA (D-Sub) output ports: 1
- USB 2.0 ports quantity: 2
- eSATA ports quantity: 1
- Internal SATA ports quantity: 2
- eSATA: Yes
- Line-in: Yes
- Audio output: 1
- DC-in jack: Yes
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Supported network protocols: UPnP (Plug and Play), NTP (Network Timing)
- Reset button: Yes
- Product colour: Black
- Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
- Power consumption (max): 40 W
- Output current: 2.43 A
- Output voltage: 53.5 V
- Total Power over Ethernet (PoE) budget: 140 W
- Operating temperature (T-T): -10 - 55 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage temperature (T-T): -40 - 70 °C
- Width: 330 mm
- Depth: 285 mm
- Height: 45 mm
- Weight: 2.1 kg
- Package weight: 4.1 kg
- Cables included: AC
- AC adapter included: Yes
- Quick installation guide: Yes
Caractéristiques
The TP-LINK VIGI NVR2016H-16MP is a PoE+ network video recorder designed for users who need to manage multiple surveillance cameras. With the ability to support up to 16 channels, it is suitable for both residential and commercial security applications.
- Capture high-definition video with a maximum resolution of 3840 x 2160 pixels.
- Record and playback from up to 16 channels simultaneously for comprehensive coverage.
- Utilize built-in motion detection for enhanced security monitoring.
- Store significant video footage with support for up to 10 TB across two SATA connectors.
- Easily manage playback with various modes including digital zoom and fast play options.
Specifications (1)
- Video input channels: 16 Channel
Other features (1)
- Number of SATA connectors: 2
Technical details (4)
- Producer product family: PoE+ Network Video Recorder
- Producer product name: VIGI NVR2016H-16MP
- Net weight: 3.99 kg
- Warranty: 36 month(s)
Performance (1)
- Capacity: Up to 10 TB
Additional specifications (51)
- Number of simultaneously playbacked channels: 16 channels
- Video recording modes: 720p, 1080p
- Maximum resolution: 3840 x 2160 pixels
- Supported resolutions: HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
- Video motion detection: Yes
- Audio formats supported: G.711 A-law, G.711 μ-law, G.726
- Video formats supported: H.264, H.264+, H.265, H.265+
- Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
- Playback controls: Yes
- Maximum frame rate: 30 fps
- Input bandwidth: 80 Mbit/s
- Output bandwidth: 60 Mbit/s
- Recording modes: Manual, Schedule
- Wi-Fi: No
- HDD capacity: 0 GB
- Number of HDDs supported: 2
- Maximum storage capacity: 10 TB
- HDD interface: SATA
- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet (PoE): Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Power over Ethernet (PoE) ports quantity: 16
- HDMI ports quantity: 1
- VGA (D-Sub) output ports: 1
- USB 2.0 ports quantity: 2
- eSATA ports quantity: 1
- Internal SATA ports quantity: 2
- eSATA: Yes
- Line-in: Yes
- Audio output: 1
- DC-in jack: Yes
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Supported network protocols: UPnP (Plug and Play), NTP (Network Timing)
- Reset button: Yes
- Product colour: Black
- Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
- Power consumption (max): 40 W
- Output current: 2.43 A
- Output voltage: 53.5 V
- Total Power over Ethernet (PoE) budget: 140 W
- Operating temperature (T-T): -10 - 55 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage temperature (T-T): -40 - 70 °C
- Width: 330 mm
- Depth: 285 mm
- Height: 45 mm
- Weight: 2.1 kg
- Package weight: 4.1 kg
- Cables included: AC
- AC adapter included: Yes
- Quick installation guide: Yes
TP-LINK VIGI NVR2016H-16MP — PoE+ Network Video Recorder, 16 Channel
- Prix régulier
- €882,87
- Prix de vente
- €882,87
- Prix régulier
-
Taxe incluse.
Before placing and paying for your order, we’ll confirm the item’s current availability to help avoid possible cancellations and refunds.
