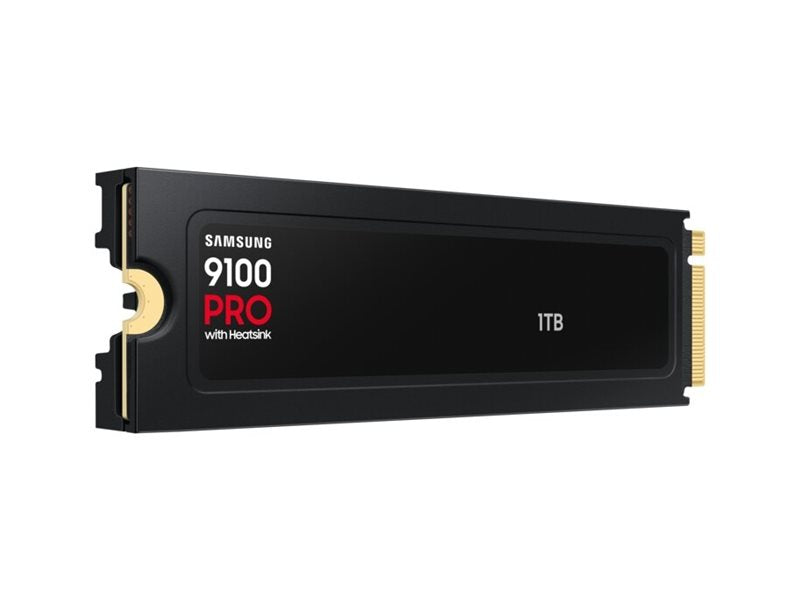

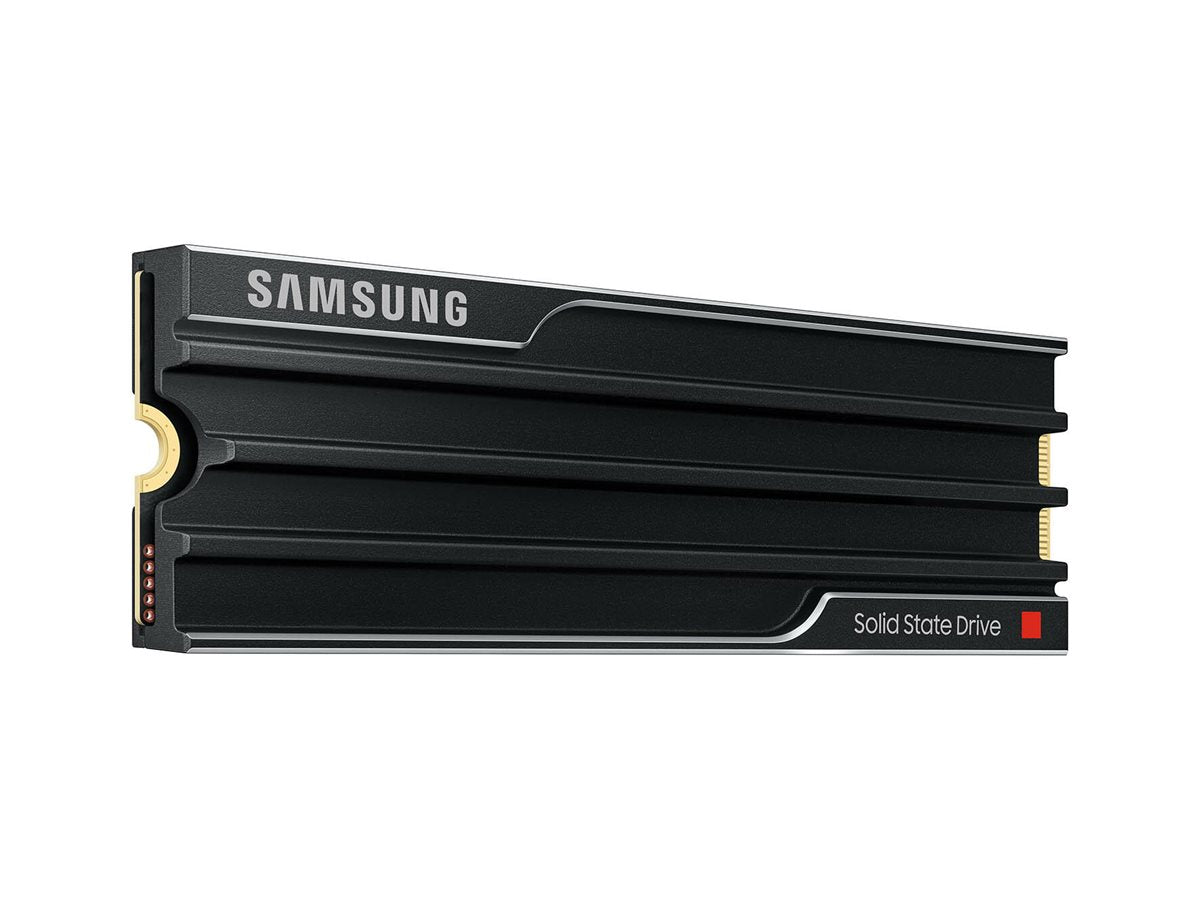

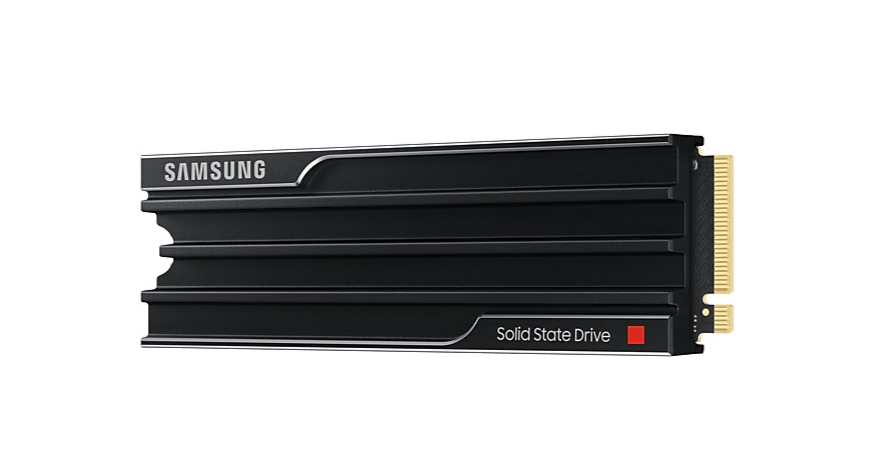

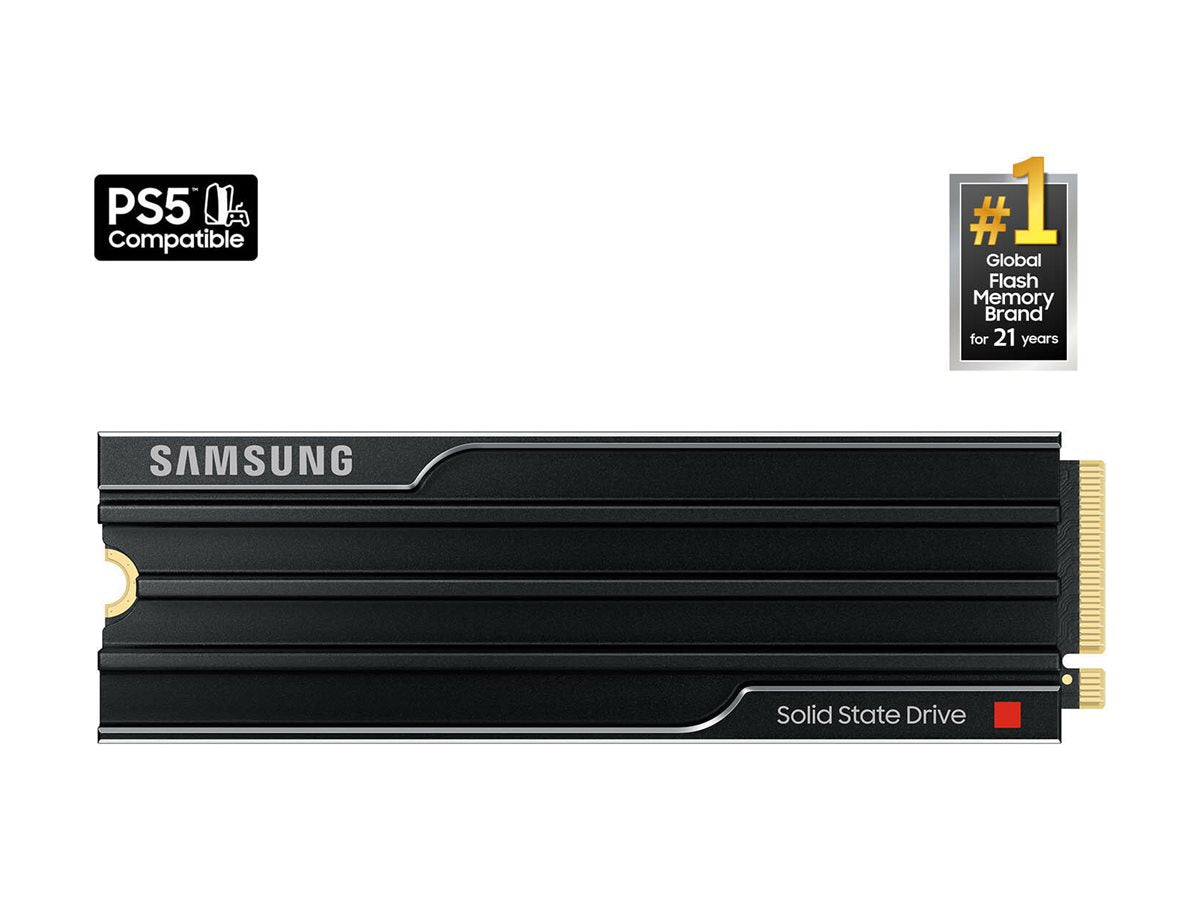

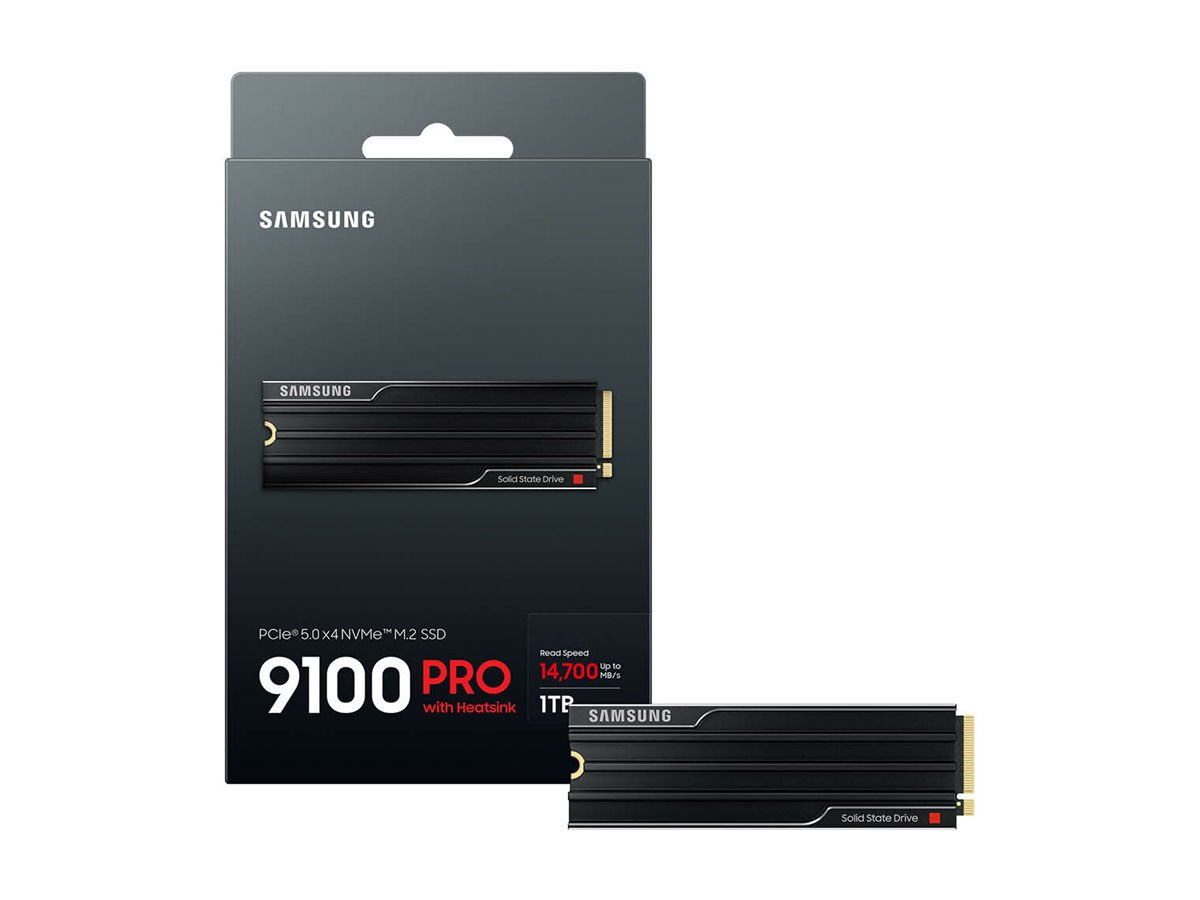

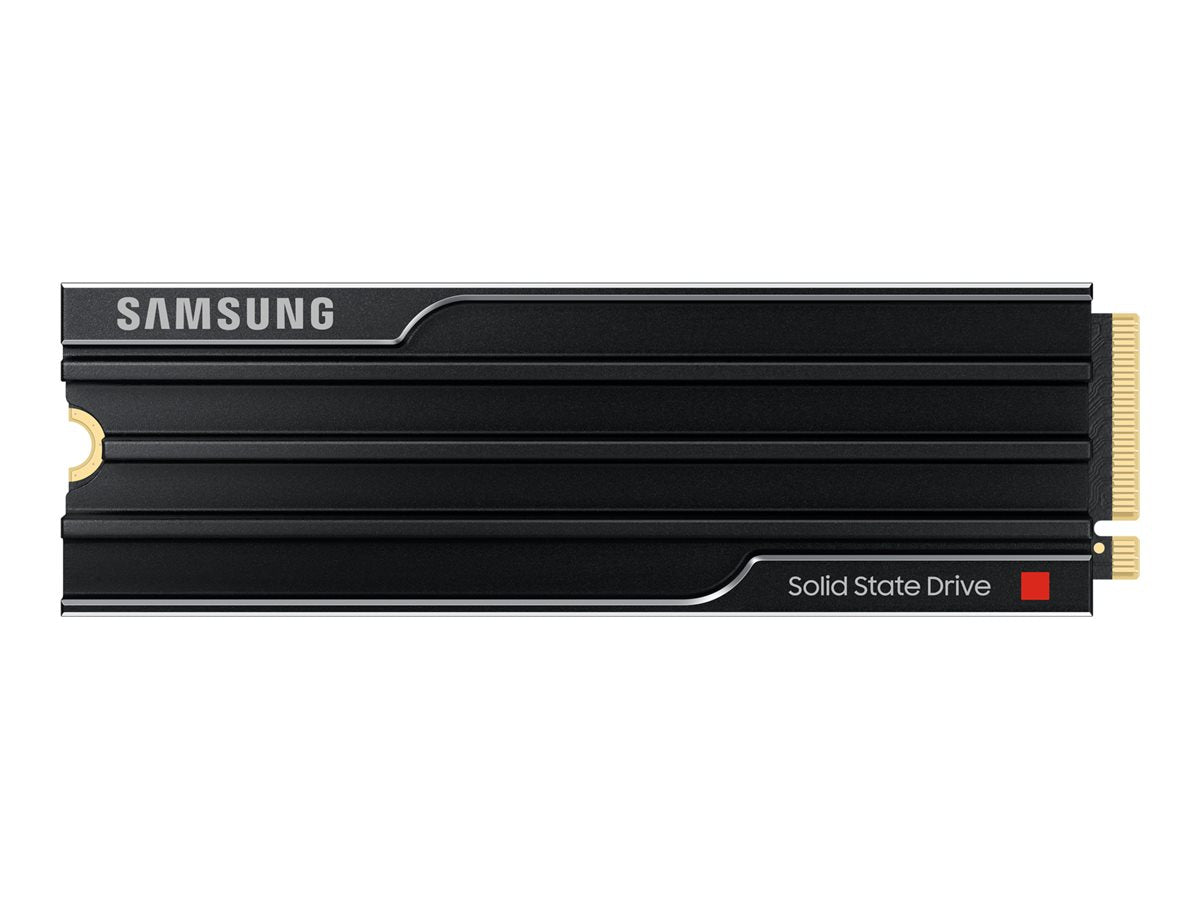

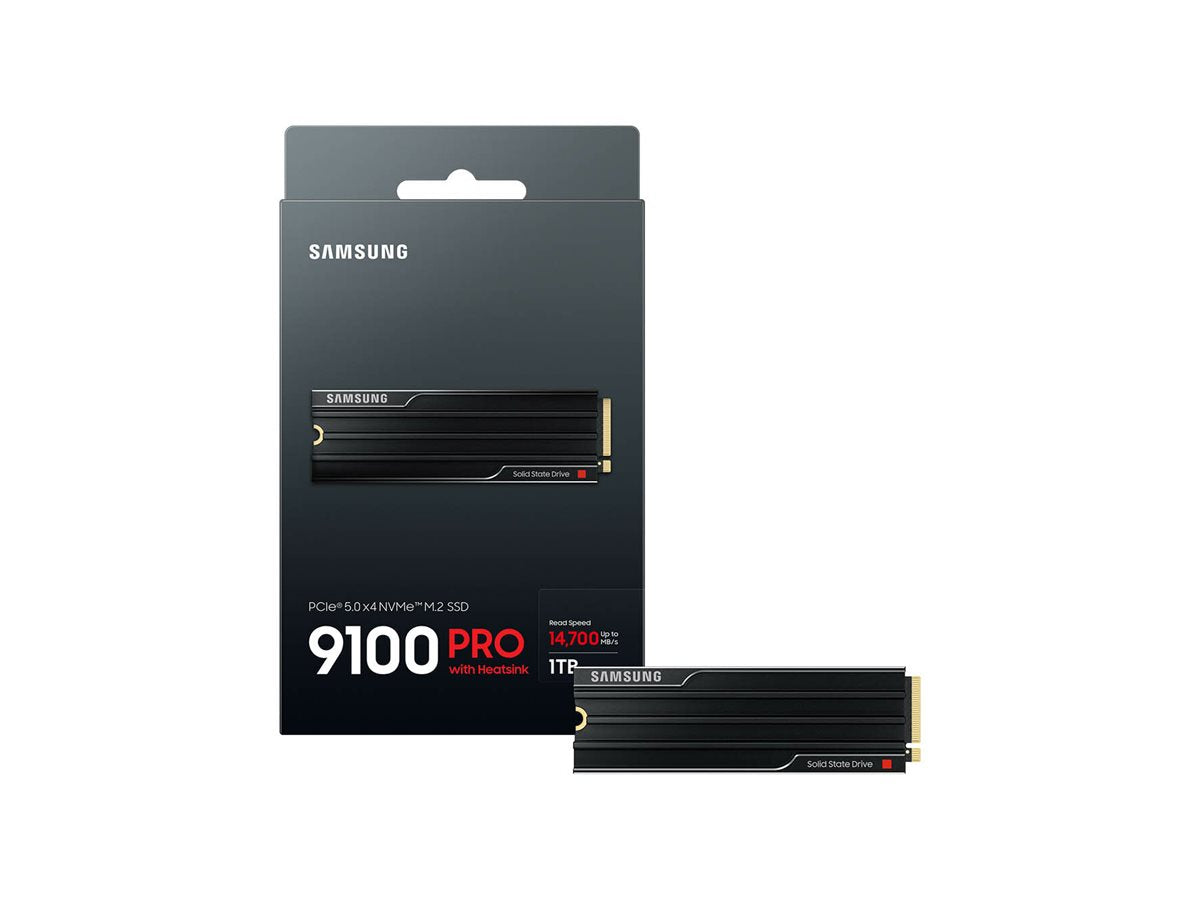

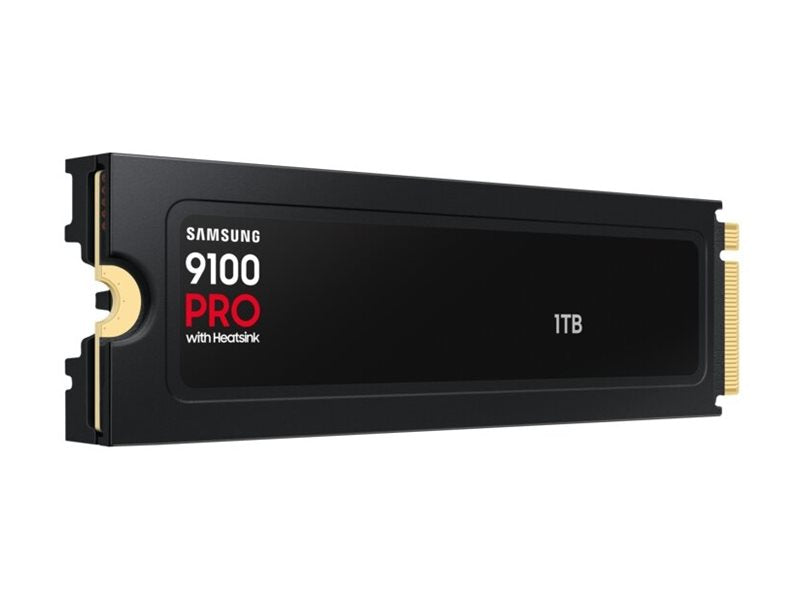

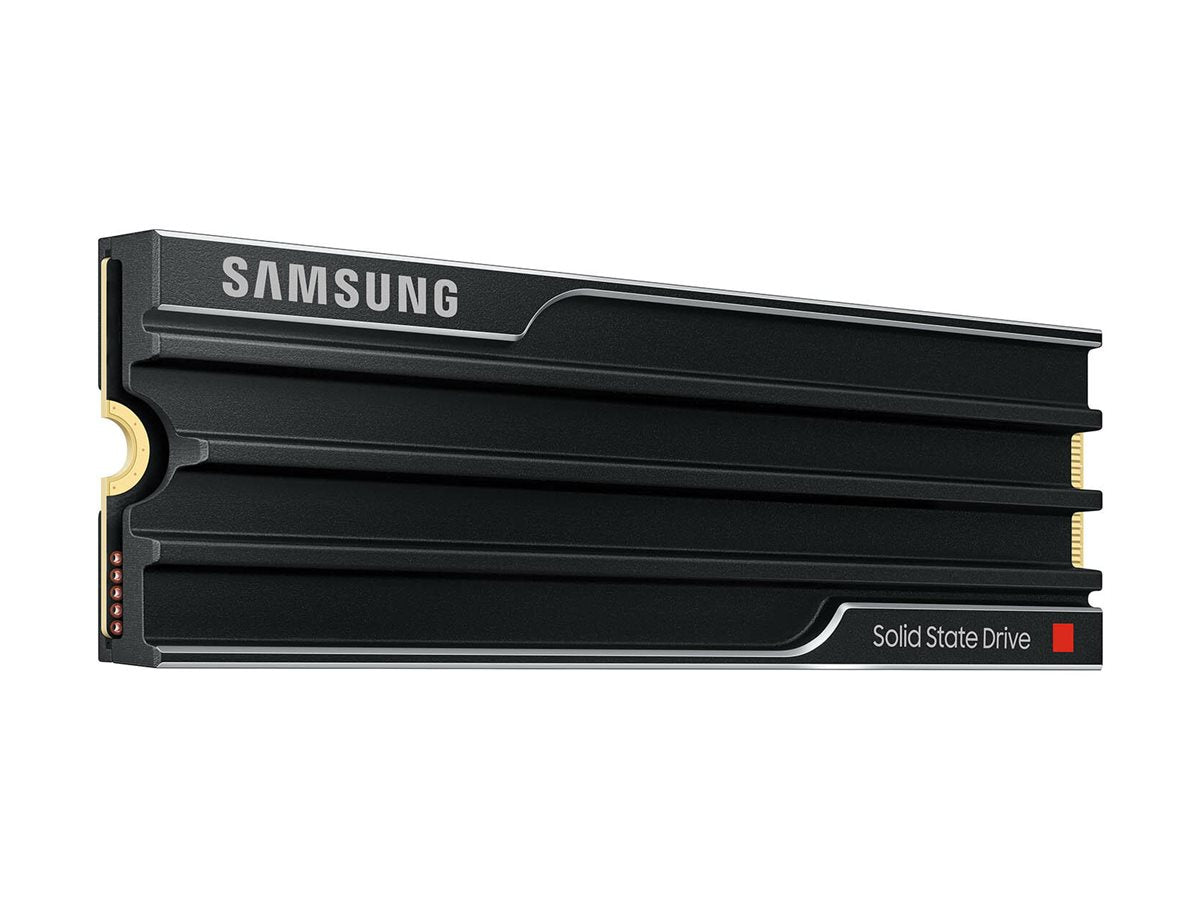

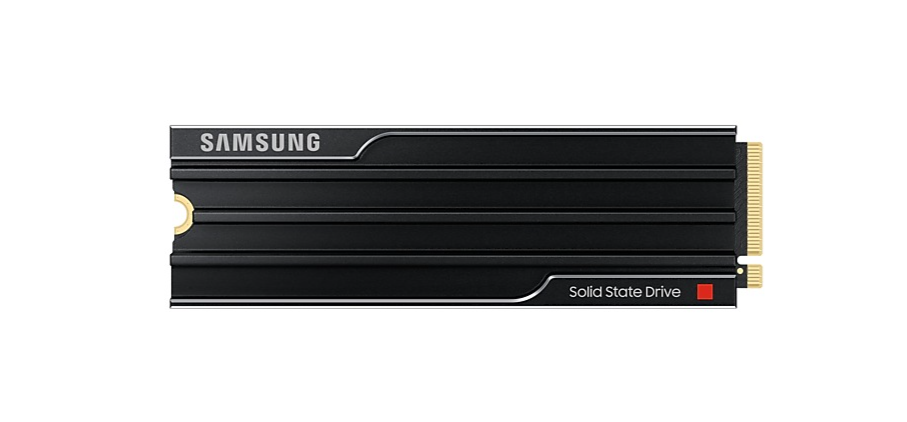

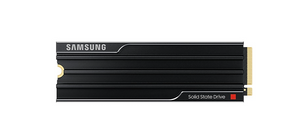

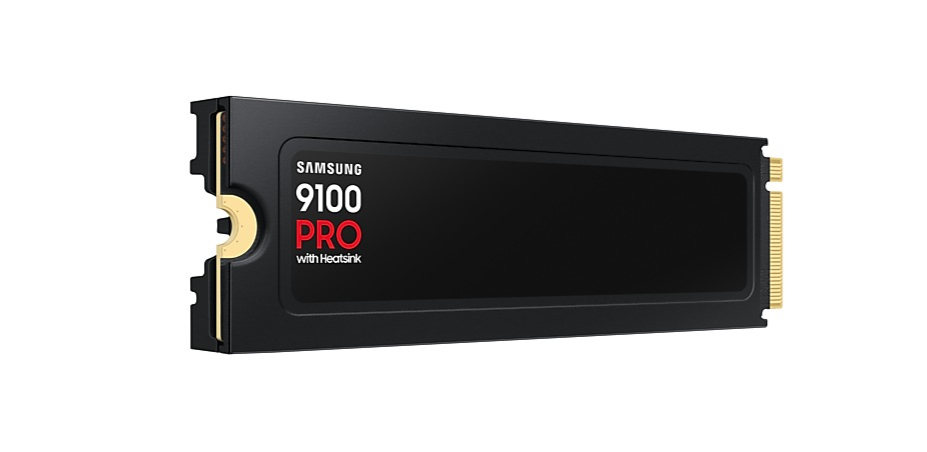

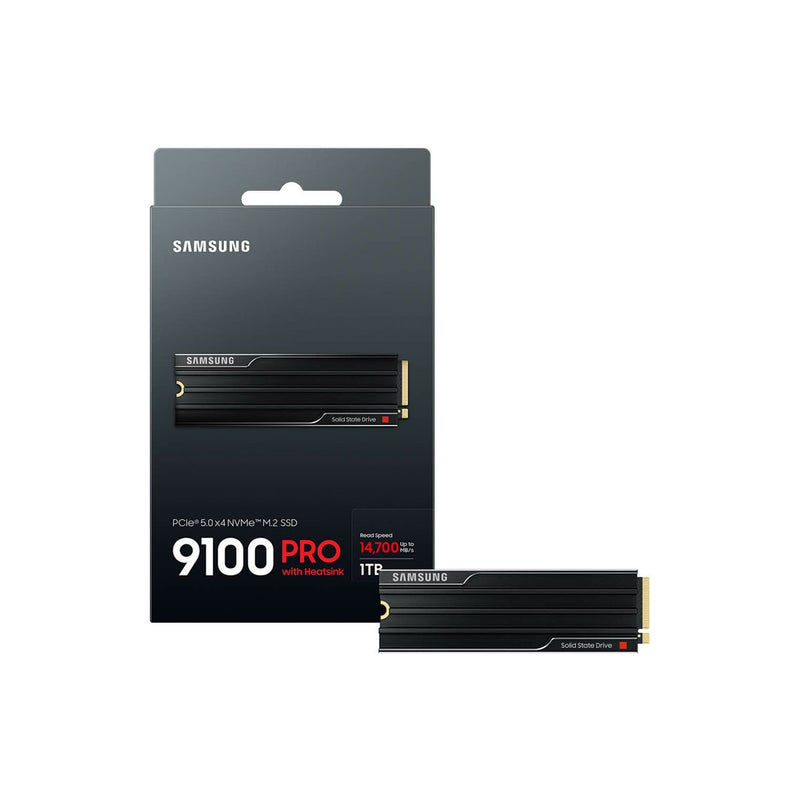

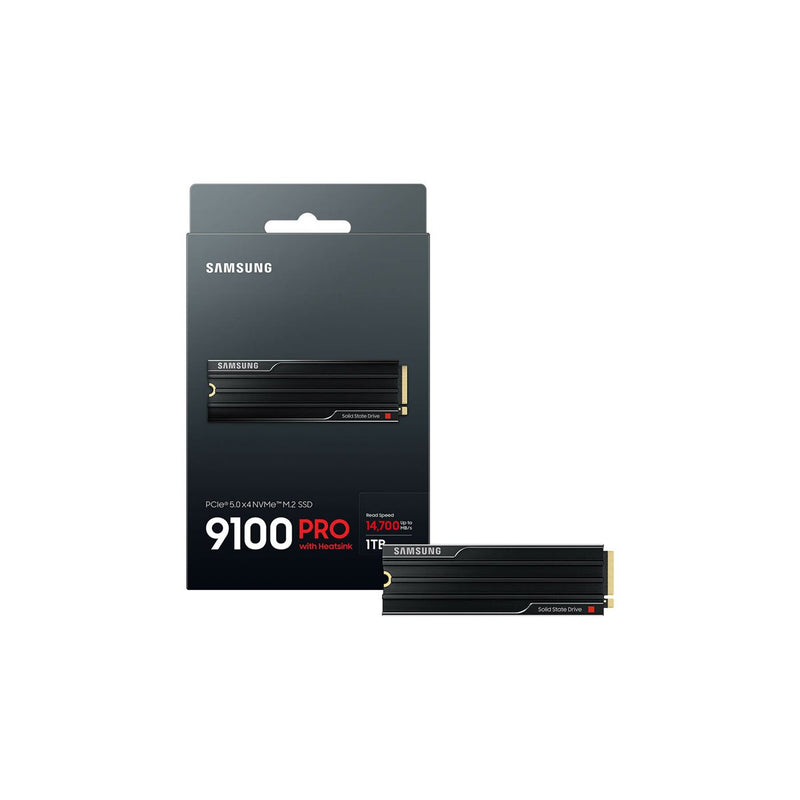

The Samsung 9100 PRO With Heatsink is a high-performance solid-state drive that provides a storage capacity of 1000 GB. Designed in the M.2 2280 form factor, it features a PCIe 5.0 NVMe interface, delivering impressive read speeds of 14800 MB/s and write speeds of 13400 MB/s.

• SSD form factor: M.2 2280
• Read speed of 14800 MB/s and write speed of 13400 MB/s
• Uses PCIe 5.0 NVMe interface for fast data transfer
• Supports random read speeds of 1850000 IOPS and random write speeds of 2600000 IOPS
• Equipped with hardware encryption and 256-bit AES security algorithms

Specifications

• Warranty: 60 month(s)

Design

• SSD form factor: M.2 2280

Performance

• Read speed: 14800 MB/s
• Solid-state drive capacity: 1000 GB
• Solid-state drive interface: PCIe 5.0 NVMe
• Write speed: 13400 MB/s

Technical details

• Net weight: 0.03 kg
• Producer product name: 9100 PRO With Heatsink

Additional specifications

• NVMe version: 2.0
• Security algorithms: 256-bit AES
• SSD capacity: 1 TB
• Interface: PCI Express 5.0
• NVMe: Yes
• Memory type: V-NAND TLC
• Component for: PC/Game console
• Hardware encryption: Yes
• M.2 SSD size: 2280 (22 x 80 mm)
• Random read (4KB): 1850000 IOPS
• Random write (4KB): 2600000 IOPS
• PCI Express interface data lanes: x4
• DevSlp (device sleep) support: Yes
• S.M.A.R.T. support: Yes
• TRIM support: Yes
• Mean time between failures (MTBF): 1500000 h
• Operating voltage: 3.3 V
• Power consumption (read): 7.6 W
• Power consumption (write): 7.2 W
• Average power consumption (read): 7.6 W
• Average power consumption (write): 7.2 W
• Power consumption (idle): 0.004 W
• Power consumption DevSlp (device sleep): 3.3 mW
• Width: 80.2 mm
• Depth: 8.88 mm
• Height: 80.2 mm
• Weight: 30 g
• Operating temperature (T-T): 0 - 70 °C
• Operating shock: 1500 G
• Warranty period: 5 year(s)
