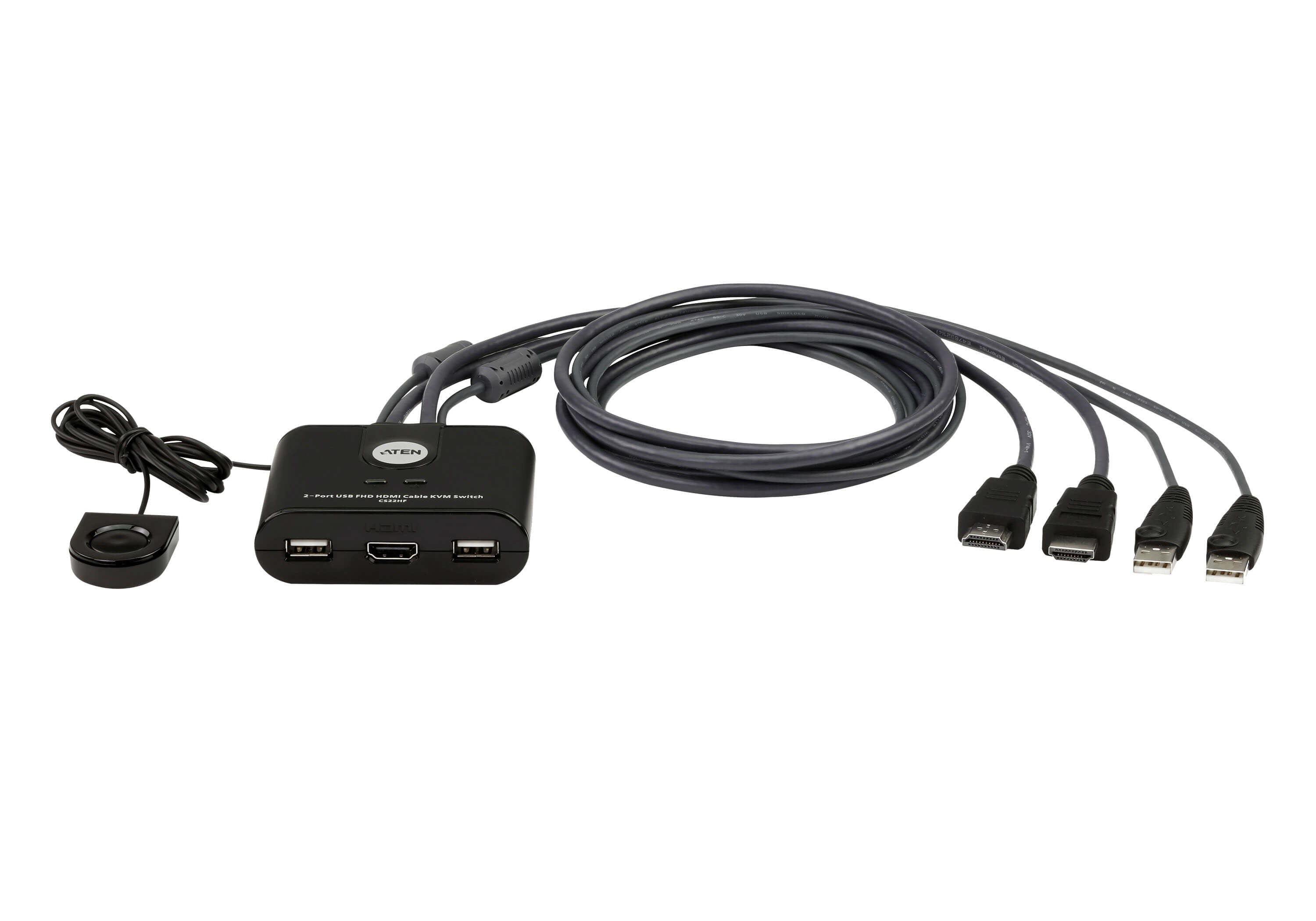

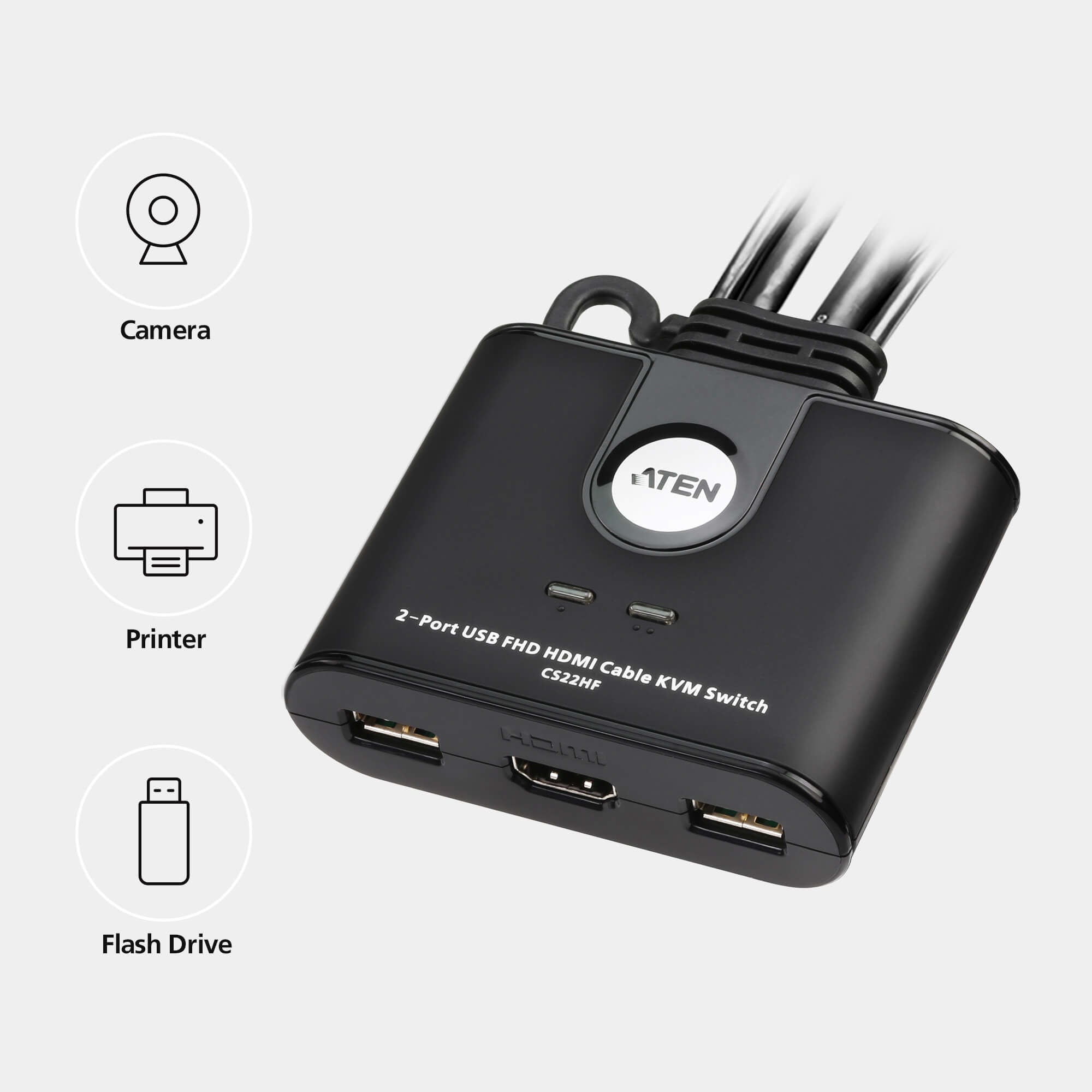

The Aten CS22HF is a 2-Port USB FHD HDMI Cable KVM Switch, allowing one console to control two computers using USB and HDMI interfaces. It supports video resolutions of up to 1920 x 1200 at 60 Hz, ensuring superior image quality for various tasks.

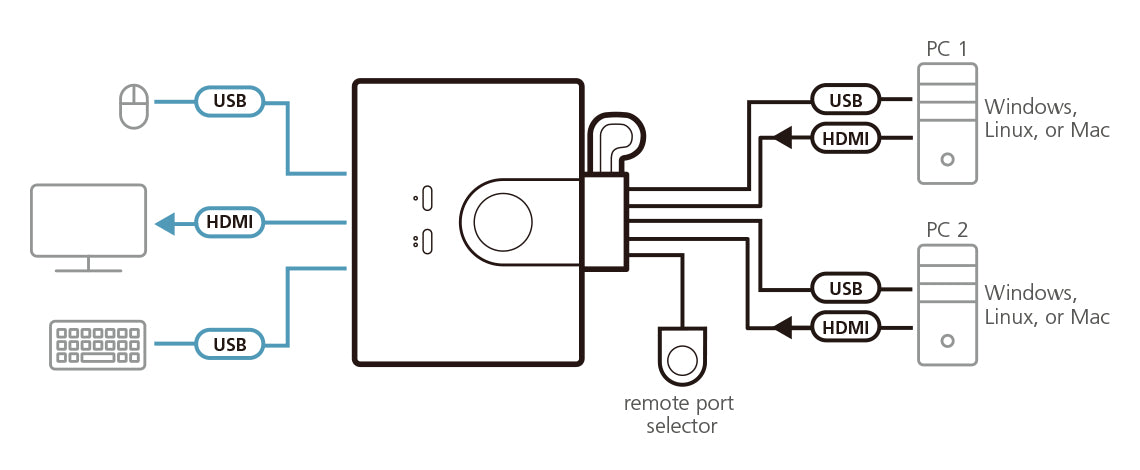

• Controls two computers with a single KVM console
• Supports Full HD video up to 1920 x 1200 @ 60 Hz
• Features 1 x HDMI female and 2 x USB Type A female console ports
• Includes 2 x HDMI male and 2 x USB Type A male KVM ports
• Operating temperature range: 0 to 50 °C, relative humidity: 0 - 80%

Specifications

• Producer product family: 2-Port USB FHD HDMI Cable KVM Switch
• Producer product name: CS22HF
• Warranty: 24 month(s)

Operational conditions

• Operating relative humidity (H-H): 0 - 80% RH, Non-Condensing %
• Operating temperature (T-T): 0 to 50 °C

Other features

• Dimensions (WxDxH): 6.65x8.24x2.52 cm

Technical details

• Net weight: 0.26 kg
• Other features: One KVM console controls two computers with USB and HDMI interface. Superior video quality – up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. Console Ports: 1 x HDMI Female, 2 x USB Type A Femal. KVM Ports: 2 x HDMI Male, 2 x USB Type A Male

Additional specifications

• Number of computers controlled: 2
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: HDMI
• HDMI ports quantity: 1
• Console ports: HDMI, USB A
• USB connector type: USB Type-A
• DC-in jack: Yes
• HD type: Full HD
• Maximum resolution: 1920 x 1200 pixels
• Video bandwidth: 60 Hz
• HDCP: Yes
• Rack mounting: No
• Product colour: Black
• Housing material: Plastic
• Cable length: 1.2 m
• Remote switch cable length: 1.8 m
• LED indicators: Yes
• Built-in display: No
• Input voltage: 5 V
• Power consumption (typical): 1.518 W
• Windows operating systems supported: Yes
• Linux operating systems supported: Yes
• Mac operating systems supported: Yes
• Storage temperature (T-T): -20 - 60 °C
• Storage relative humidity (H-H): 0 - 80%
• Width: 66.5 mm
• Depth: 82.4 mm
• Height: 25.2 mm
• Weight: 260 g
• Packaging content: 1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch 1x user instructions
• Harmonized System (HS) code: 85176200
• Master (outer) case width: 328 mm
• Master (outer) case length: 389 mm
• Master (outer) case height: 330 mm
• Master (outer) case volume: 42192.1 cm³
• Products per master (outer) case: 20 pc(s)
• Country of origin: Taiwan
