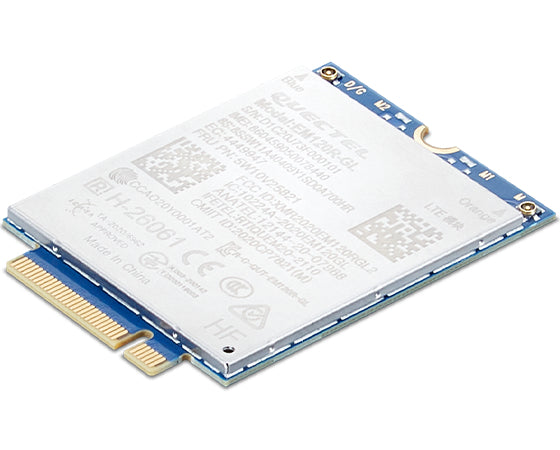

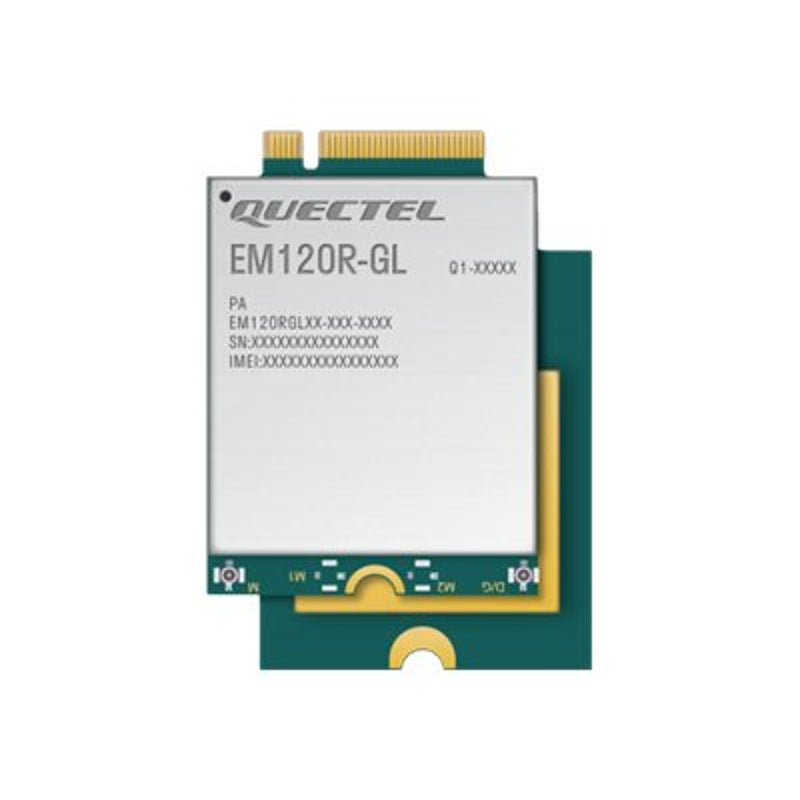

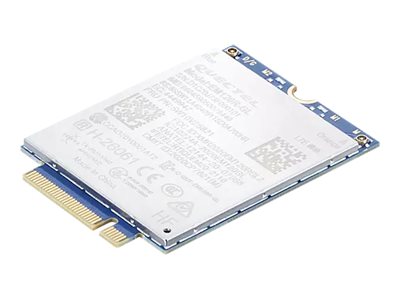

The Lenovo WWAN Module is designed for users looking to enhance connectivity in their laptops. This internal module provides reliable mobile broadband access for select Lenovo ThinkPad models.

  • Supports a maximum data transfer rate of 600 Mbit/s, allowing for swift internet connectivity.
  • Designed to fit the M.2 host interface, ensuring easy installation in compatible laptops.
  • Operates effectively within a wide temperature range of -25 to 75 °C, catering to various environmental conditions.
  • Complies with multiple standards such as CE and FCC, ensuring a level of quality and reliability.
  • Lightweight at 6.2 g, it won’t add significant bulk to your device.
Specifications (3)
  • Producer product family: WWAN Module
  • Producer product name: TP QUECTEL SDX24 EM120R-GL CAT12 PCIE
  • Warranty: 12 month(s)
Other features (1)
  • Dimensions (WxDxH): 42 x 30 x 2.3 mm
Weight & dimensions (1)
  • Weight: 6.2 g
Performance (2)
  • Compatible products: ThinkPad L14 Gen 2 20X1, 20X2, 20X5, 20X6; L15 Gen 2 20X3, 20X4, 20X7; P14s Gen 2 20VX, 20VY, 21A0; P15s Gen 2 20W6, 20W7; T14 Gen 2 20W0, 20W1, 20XL; T14s Gen 2 20WM, 20WN; T15 Gen 2 20W4, 20W5; X1 Yoga Gen 6 20XY, 20Y0; X13 Gen 2 20WK, 20WL; X13 Yoga Gen 2 20W8, 20W9
  • Interface: M.2
Technical details (3)
  • Net weight: 0.023 kg
  • Other features: Compatibility standards: WHQL, JATE, CCC, IC, FCC, ANATEL, TELEC, PTCRB, GCF, KC, SRRC, NCC, RCM, ICASA, NAL, IFETEL
  • Warranty: 1 year(s)
Additional specifications (12)
  • Connectivity technology: Wired
  • Host interface: M.2
  • Maximum data transfer rate: 600 Mbit/s
  • Component for: Laptop
  • Internal: Yes
  • Certification: CE,FCC,ANATEL,TELEC&JATE,RCM SDoC,KC,NCC,IC, ICASA, IFETEL
  • Operating temperature (T-T): -25 - 75 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Width: 42 mm
  • Depth: 30 mm
  • Height: 2.3 mm
  • Harmonized System (HS) code: 85176990

Lenovo TP QUECTEL SDX24 EM120R-GL CAT12 PCIE — WWAN Module, 42 x 30 x 2.3 mm, 6.2 g

€178,55
€178,55
Sisältää ALV:n.
