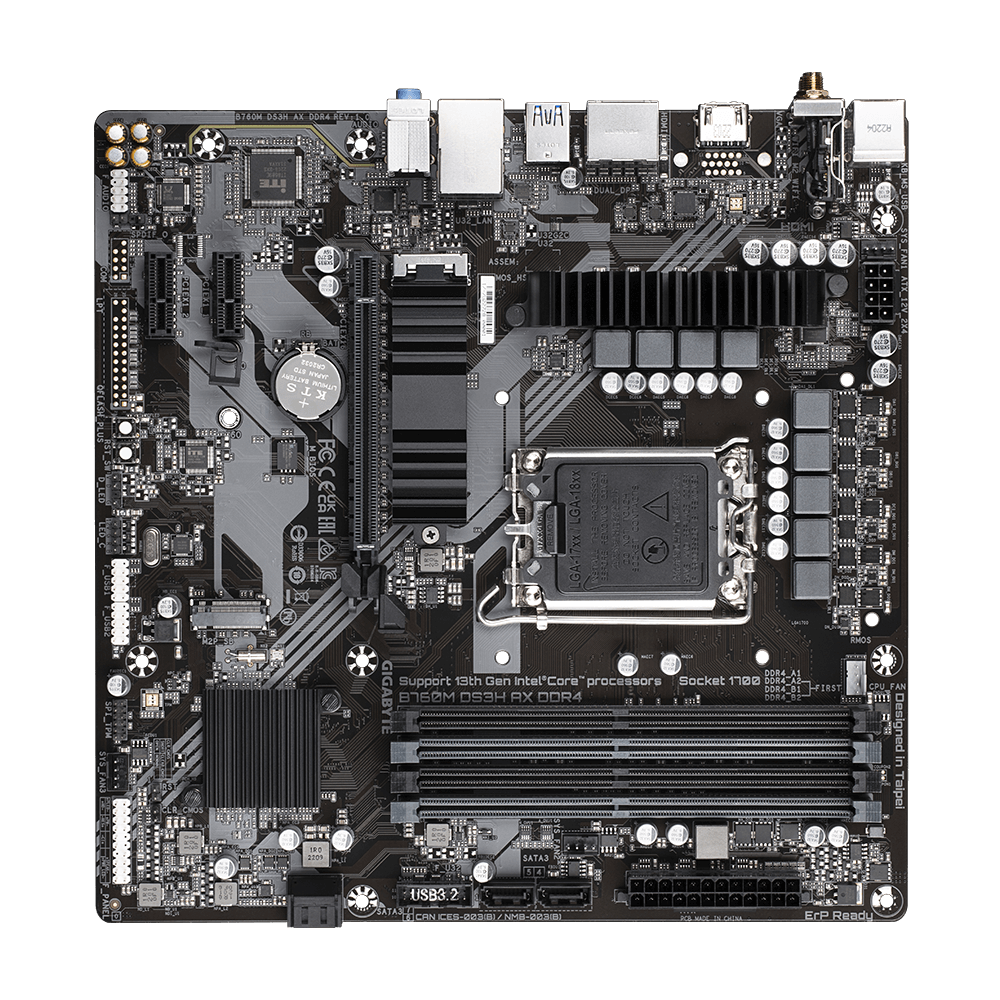

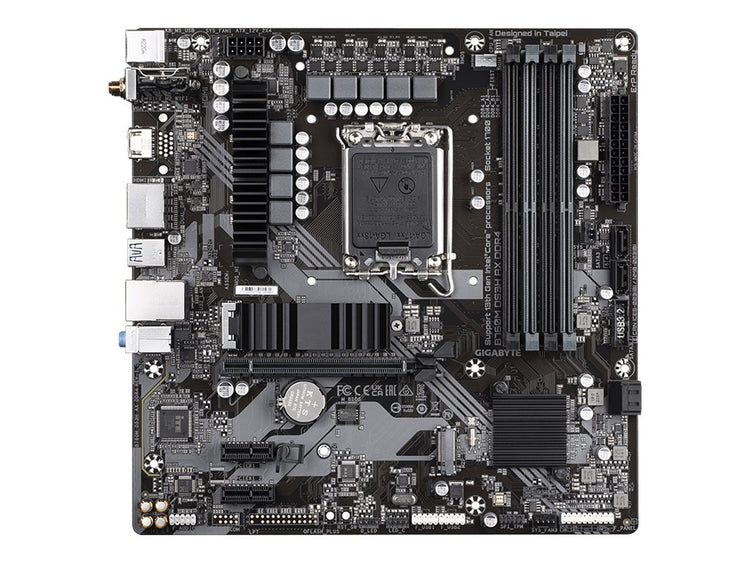

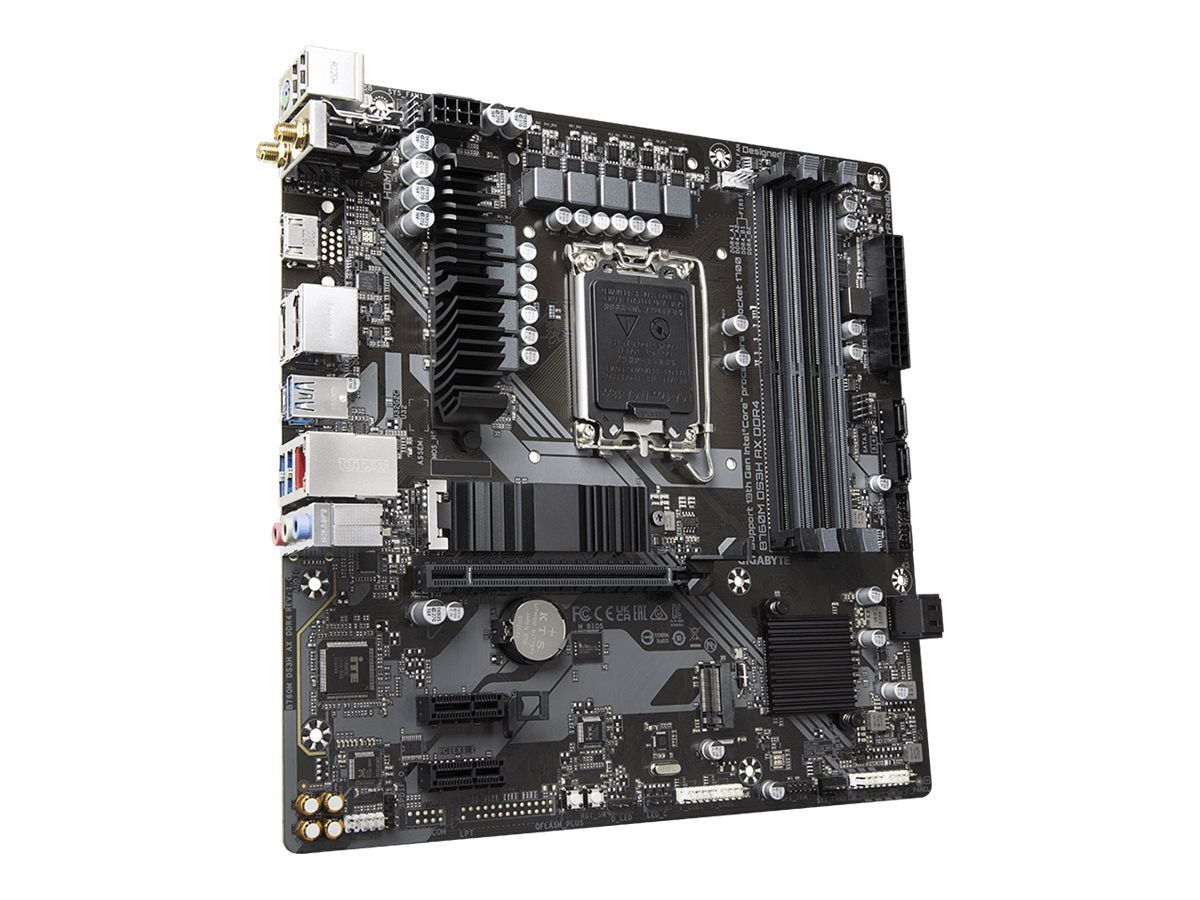

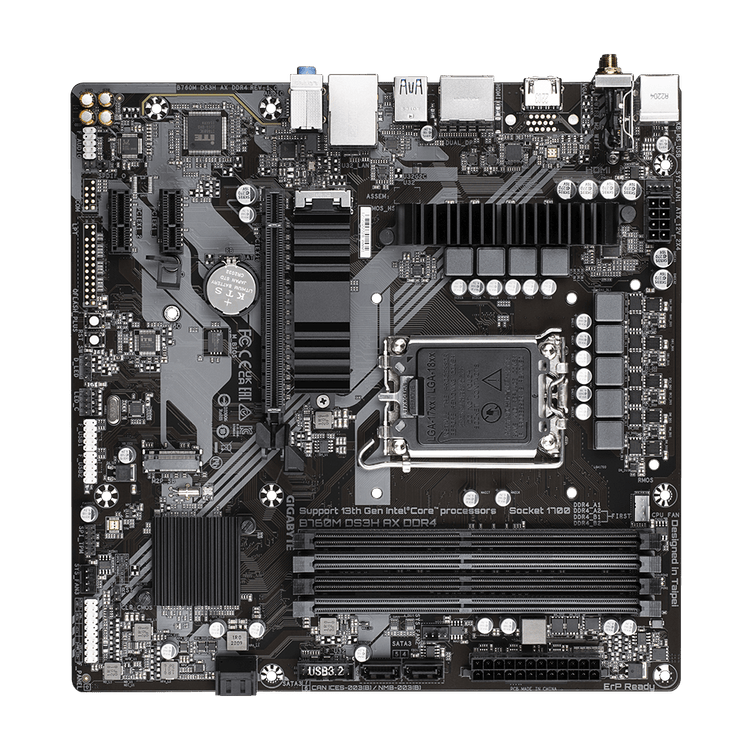

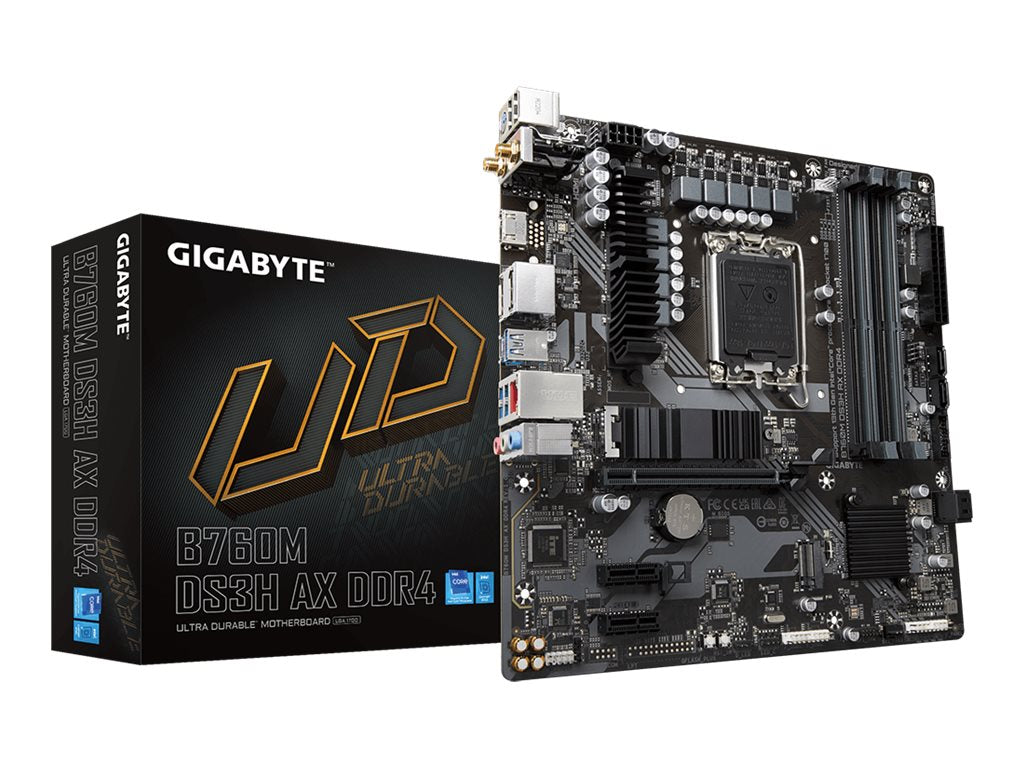

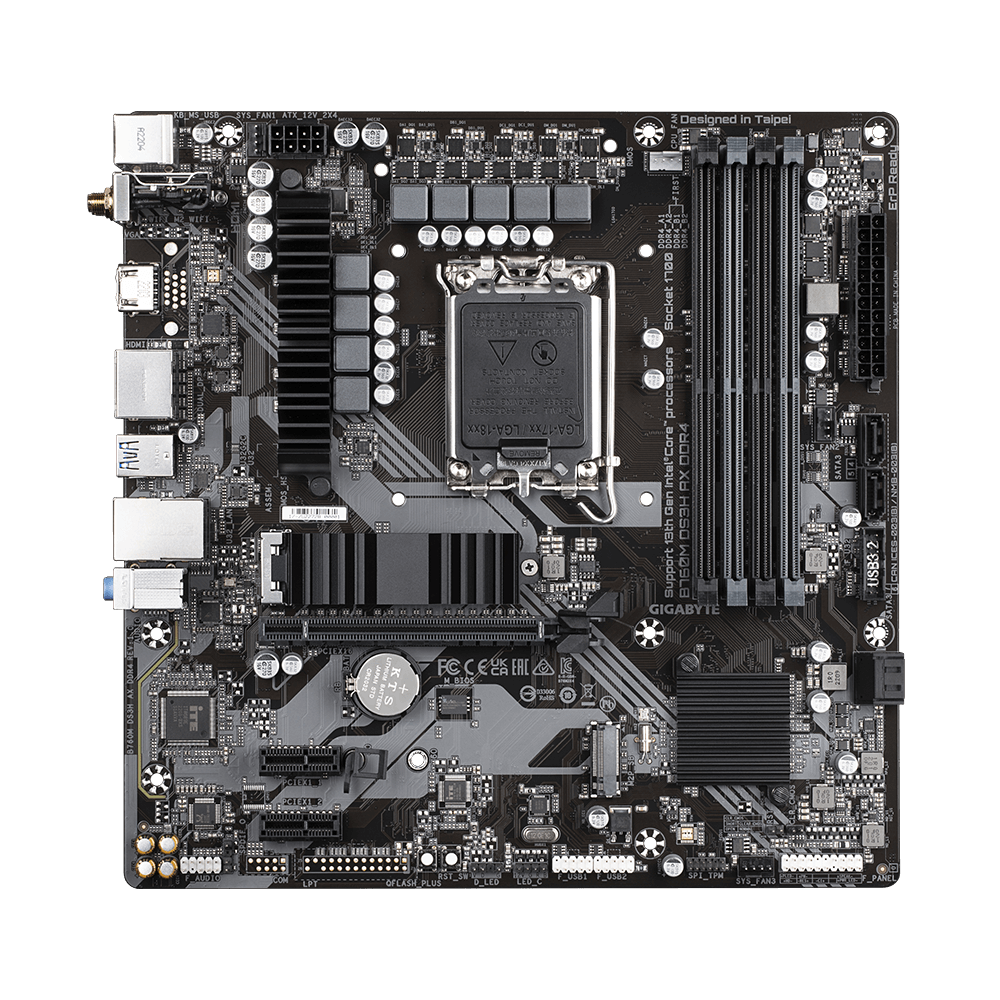

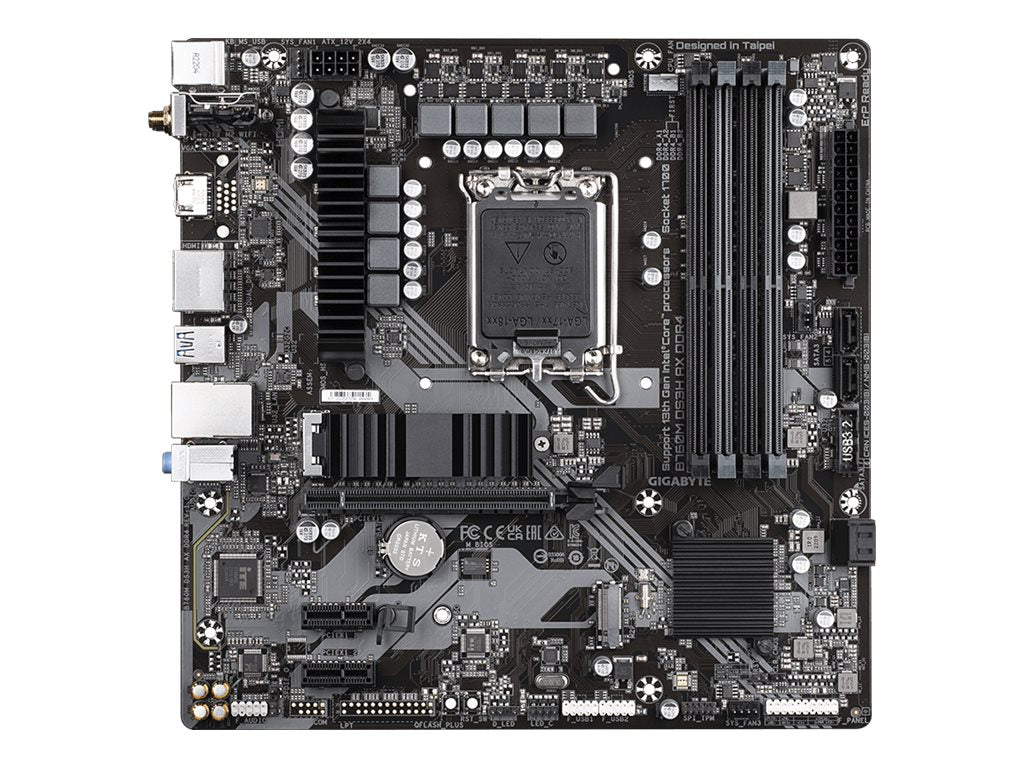

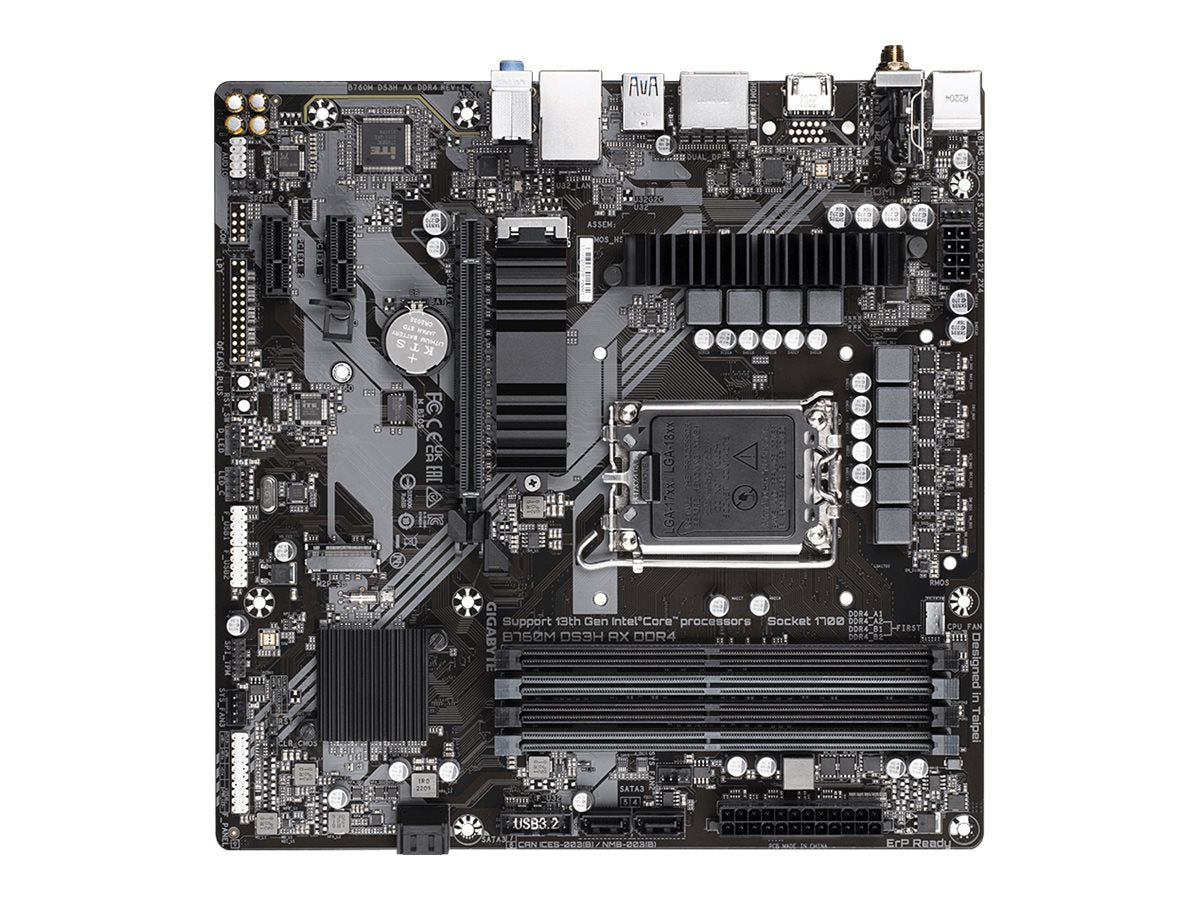

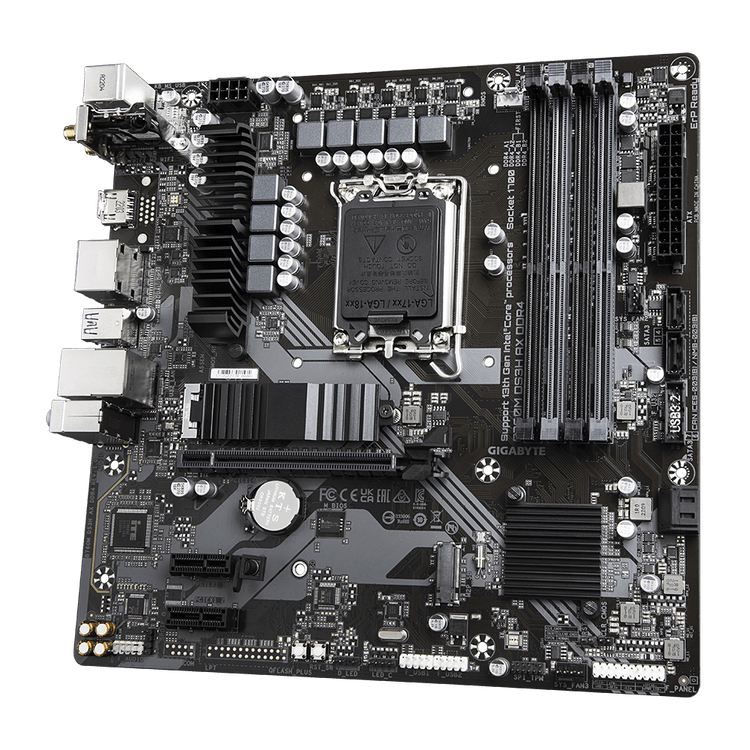

The Gigabyte B760M DS3H AX DDR4 is a Micro ATX motherboard designed for users building a system using Intel processors. It supports a variety of memory and storage configurations, making it suitable for both general computing and gaming applications.

  • Supports up to 128 GB of DDR4 memory across four DIMM slots, allowing for efficient multitasking and performance.
  • Includes four SATA connectors and supports both SATA and M.2 interfaces for flexible storage options.
  • Compatible with 13th and 12th Gen Intel Core processors, offering a broad choice of CPUs for your build.
  • Features dual-channel memory architecture, enhancing memory performance when two identical memory modules are used.
  • Supports RAID levels 0, 1, 5, and 10, providing options for data redundancy and performance improvements.
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (2)
  • Memory slots: 4
  • Supported memory types: DDR4 DIMM
Performance (2)
  • Chipset: Intel B760 Express
  • Motherboard form factor: Micro ATX
Processor (3)
  • Processor family: Intel
  • Processor socket: LGA1700
  • Compatible processor series: Supports 13th Gen Intel Core and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Technical details (2)
  • Producer product name: B760M DS3H AX DDR4 1.0 M/B
  • Net weight: 1.02 kg
Specifications (1)
  • Warranty: 36 month(s)
Additional specifications (84)
  • Processor manufacturer: Intel
  • Supported processor sockets: LGA 1700
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
  • Supported memory clock speed (max): 5333 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • Maximum resolution: 4096 x 2304 pixels
  • HDCP: Yes
  • DirectX version: 12.0
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • Number of SATA III connectors: 4
  • Total number of SATA connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • EPS power connector (8-pin): Yes
  • TPM connector: Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes

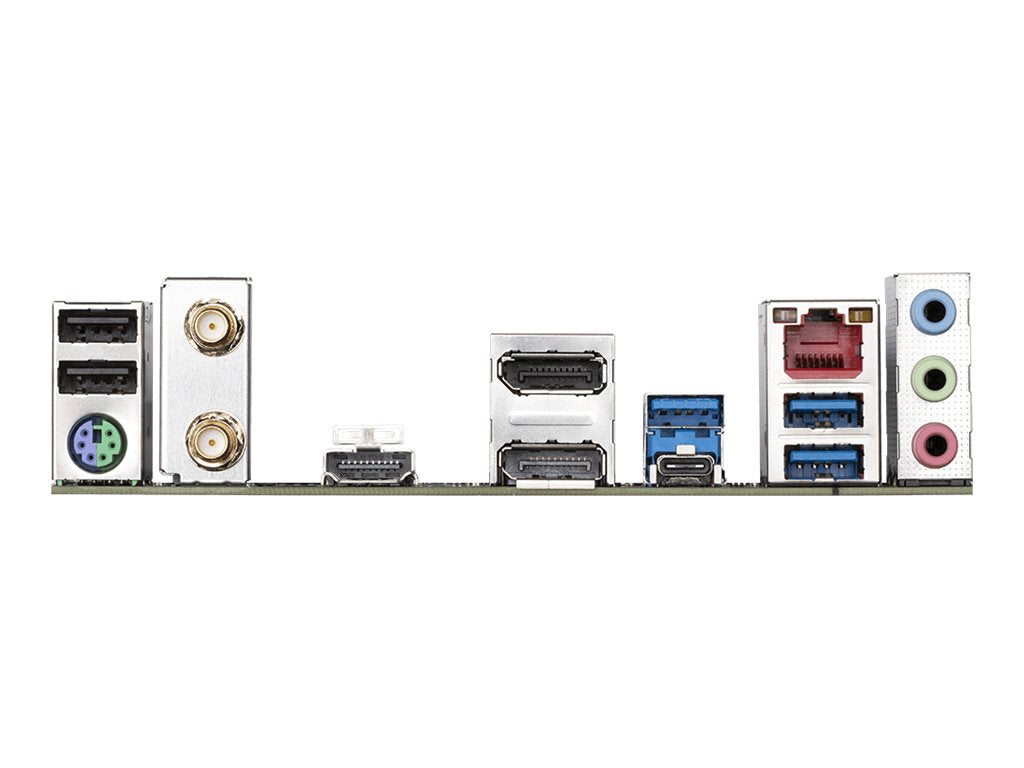

  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.0
  • DisplayPorts quantity: 2
  • DisplayPort version: 1.2
  • Headphone outputs: 3
  • Microphone in: Yes
  • WiFi-AP antenna jack: 2
  • USB connector type: USB Type-A, USB Type-C
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • WLAN controller model: RZ608
  • Bluetooth: Yes
  • Bluetooth version: 5.2
  • Motherboard chipset: Intel B760 Express
  • Audio output channels: 7.1 channels
  • Product colour: Brown
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x1 slots: 2
  • PCI Express x16 slots: 1
  • Number of M.2 (M) slots: 2
  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System Management BIOS (SMBIOS) version: 2.7
  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)
  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032
  • Width: 244 mm
  • Depth: 244 mm
  • Height: 35 mm
  • Cables included: SATA
  • Batteries included: Yes
  • Bundled software: Norton Internet Security
  • Warranty period: 3 year(s)

Gigabyte B760M DS3H AX DDR4 1.0 M/B, Processor family Intel, Processor socket LGA1700, DDR4 DIMM

€132,67
