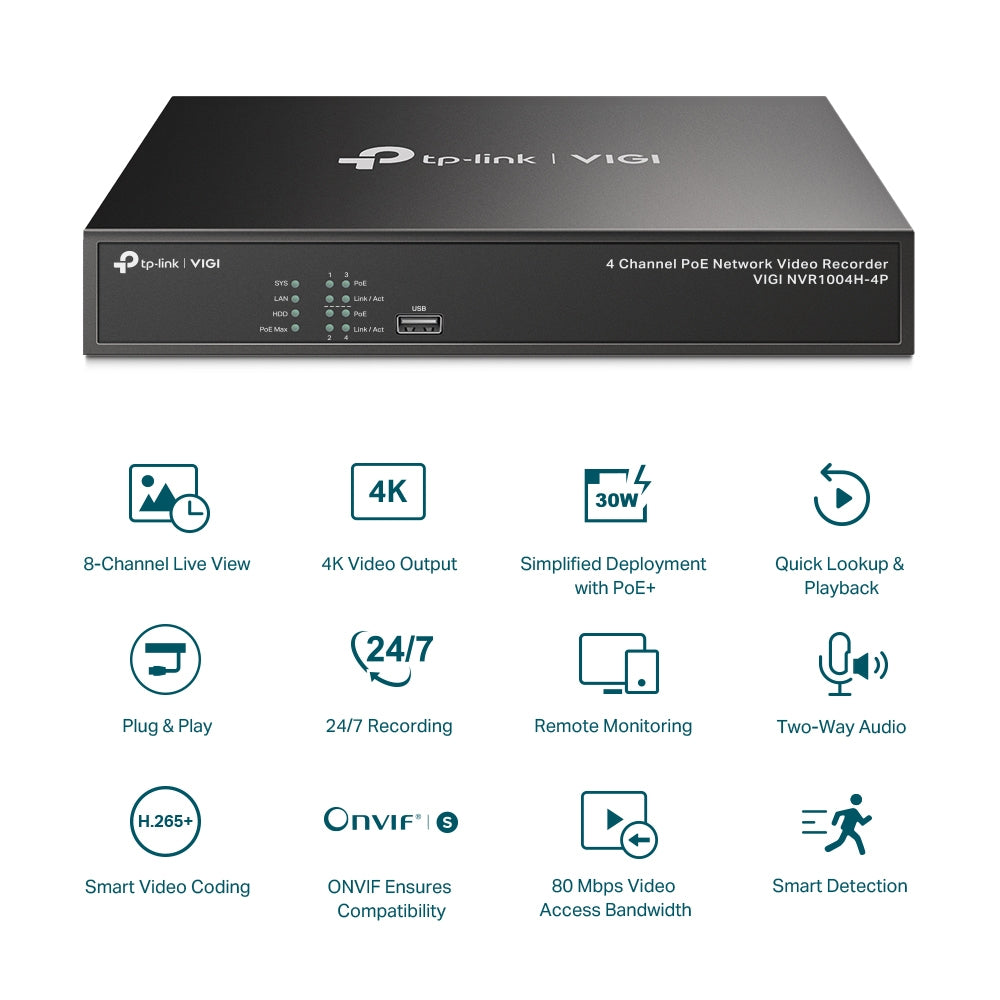

The TP-LINK VIGI NVR1004H-4P is a PoE+ Network Video Recorder designed for users who need to manage and monitor up to four video channels. It's ideal for securing homes or small businesses with features that facilitate easy surveillance and playback.

  • 24/7 continuous recording ensures you never miss an event.

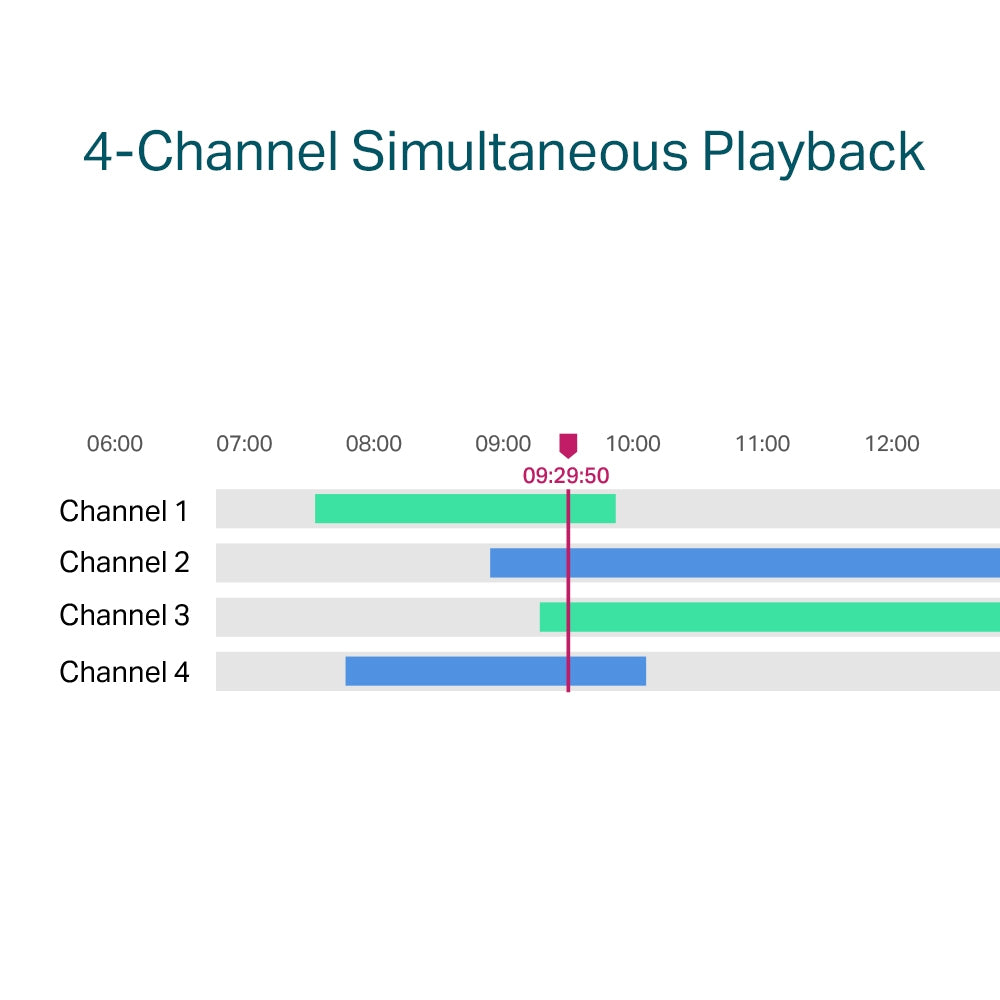

  • Four-channel simultaneous playback allows for easy viewing of multiple feeds.
  • Remote monitoring provides flexibility to access your recordings from anywhere.
  • Supports resolutions up to 3840 x 2160, ready for high-quality video capture.
  • Compatible with various video formats including H.265 for efficient storage.
Specifications (4)
  • Producer product family: PoE+ Network Video Recorder
  • Producer product name: VIGI NVR1004H-4P
  • Video input channels: 4-Channel
  • Warranty: 36 month(s)
Other features (1)
  • Number of SATA connectors: 1
Technical details (2)
  • Net weight: 0.67 kg
  • Other features: 24/7 Continuous Recording. 4-Channel Simultaneous Playback. Remote Monitoring. Onvif Ensure Compatibility. Two-Way Audio. 80 Mbps Video Access Bandwidth
Additional specifications (31)
  • Alarm input channels: 4
  • Alarm output channels: 1
  • Video recording modes: 720p, 1080p, 2160p
  • Maximum resolution: 3840 x 2160 pixels
  • Supported resolutions: 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
  • Resolution at capture speed: 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps

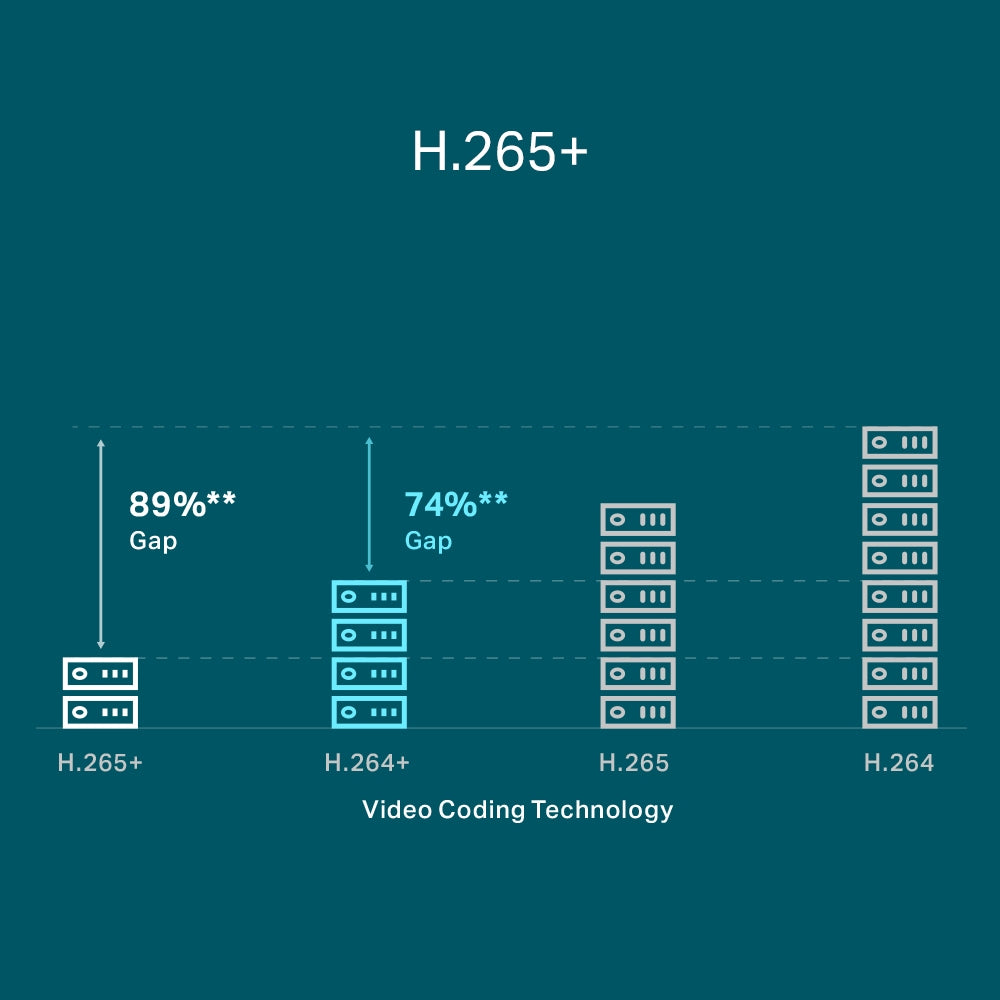

  • Video formats supported: H.264, H.264+, H.265, H.265+
  • Input bandwidth: 80 Mbit/s
  • Output bandwidth: 60 Mbit/s
  • Wi-Fi: No
  • HDD capacity: 0 GB
  • Maximum storage capacity: 10 TB
  • HDD interface: SATA

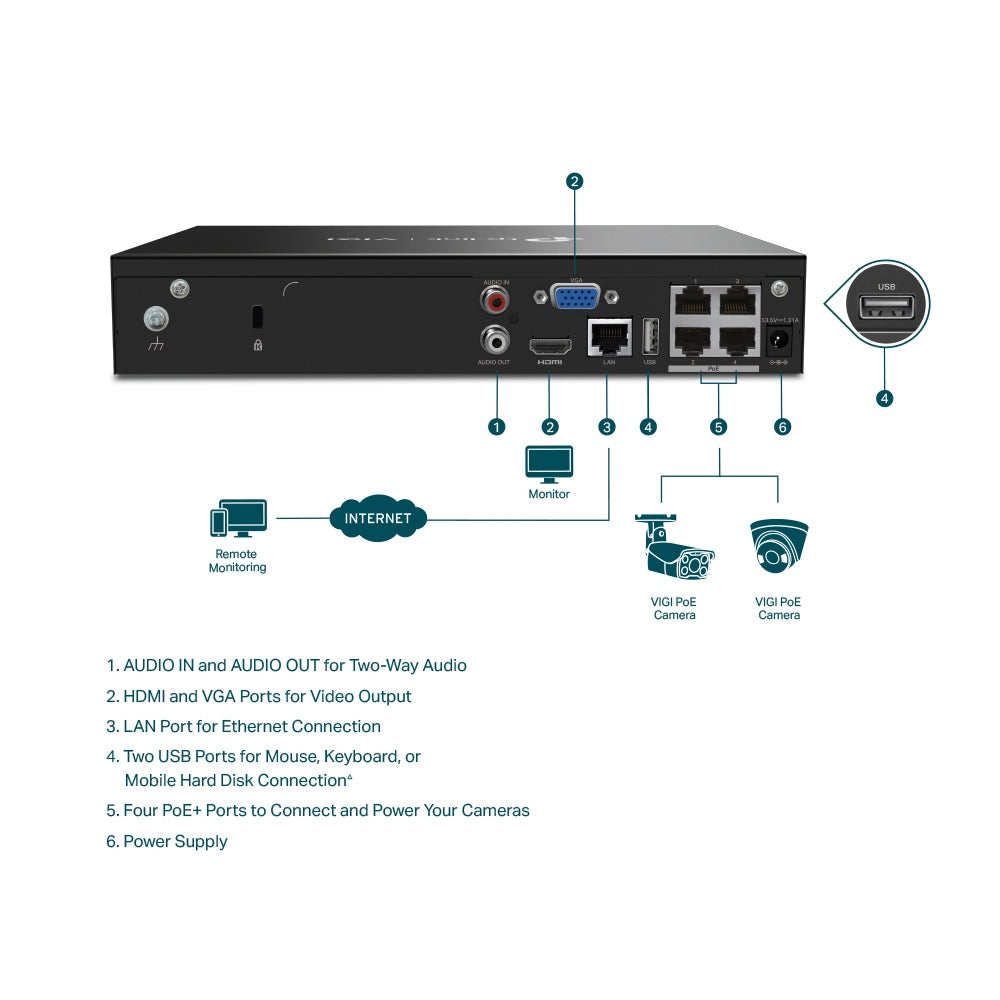

  • Ethernet LAN (RJ-45) ports: 1

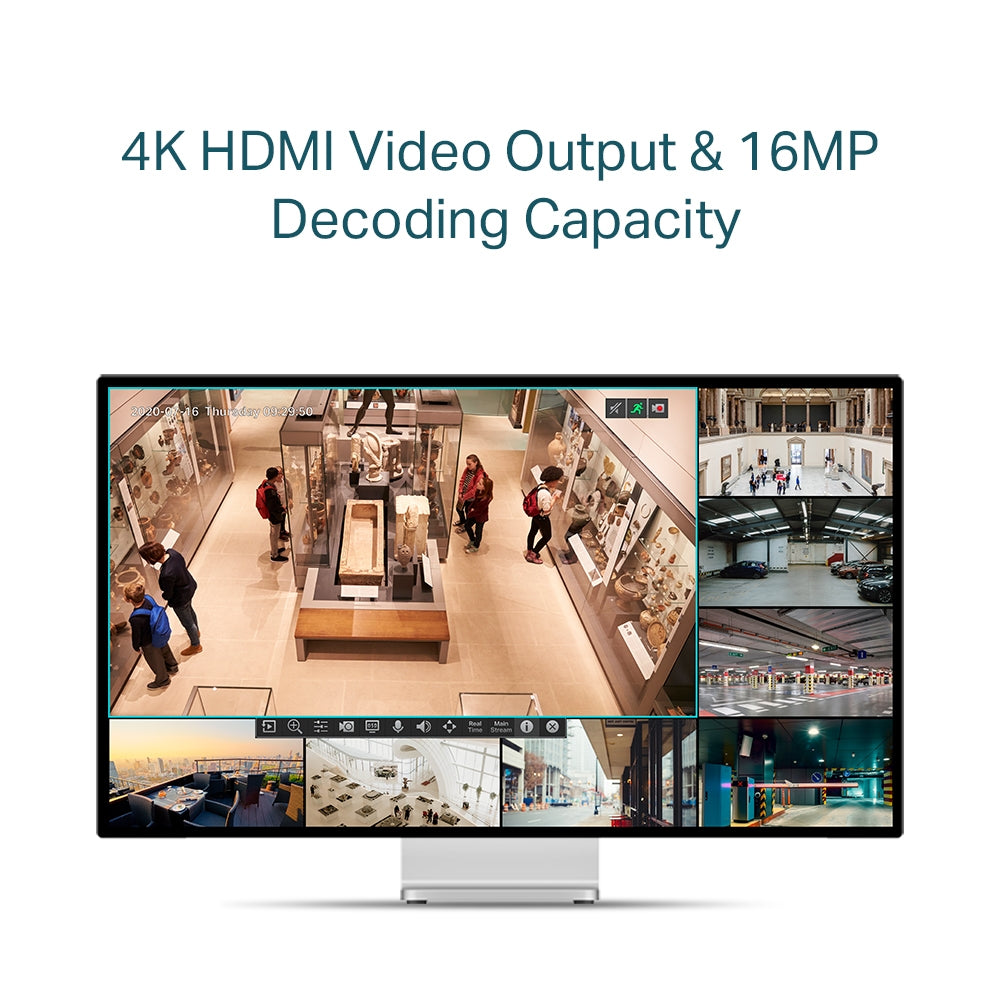

  • HDMI output: Yes
  • HDMI ports quantity: 1
  • VGA (D-Sub) output ports: 1
  • USB 2.0 ports quantity: 2
  • Audio RCA inputs: 1
  • Audio RCA outputs: 1
  • Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP
  • LED indicators: Yes
  • Product colour: Black
  • Power consumption (typical): 4.25 W
  • Output current: 1.31 A
  • Output voltage: 53.5 V
  • Total Power over Ethernet (PoE) budget: 53 W
  • Operating temperature (T-T): -10 - 55 °C
  • Width: 246.2 mm
  • Depth: 148.2 mm
  • Height: 45 mm
Eigenschaften

The TP-LINK VIGI NVR1004H-4P is a PoE+ Network Video Recorder designed for users who need to manage and monitor up to four video channels. It's ideal for securing homes or small businesses with features that facilitate easy surveillance and playback.

  • 24/7 continuous recording ensures you never miss an event.
  • Four-channel simultaneous playback allows for easy viewing of multiple feeds.
  • Remote monitoring provides flexibility to access your recordings from anywhere.
  • Supports resolutions up to 3840 x 2160, ready for high-quality video capture.
  • Compatible with various video formats including H.265 for efficient storage.
Specifications (4)
  • Producer product family: PoE+ Network Video Recorder
  • Producer product name: VIGI NVR1004H-4P
  • Video input channels: 4-Channel
  • Warranty: 36 month(s)
Other features (1)
  • Number of SATA connectors: 1
Technical details (2)
  • Net weight: 0.67 kg
  • Other features: 24/7 Continuous Recording. 4-Channel Simultaneous Playback. Remote Monitoring. Onvif Ensure Compatibility. Two-Way Audio. 80 Mbps Video Access Bandwidth
Additional specifications (31)
  • Alarm input channels: 4
  • Alarm output channels: 1
  • Video recording modes: 720p, 1080p, 2160p
  • Maximum resolution: 3840 x 2160 pixels
  • Supported resolutions: 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
  • Resolution at capture speed: 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
  • Video formats supported: H.264, H.264+, H.265, H.265+
  • Input bandwidth: 80 Mbit/s
  • Output bandwidth: 60 Mbit/s
  • Wi-Fi: No
  • HDD capacity: 0 GB
  • Maximum storage capacity: 10 TB
  • HDD interface: SATA
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI output: Yes
  • HDMI ports quantity: 1
  • VGA (D-Sub) output ports: 1
  • USB 2.0 ports quantity: 2
  • Audio RCA inputs: 1
  • Audio RCA outputs: 1
  • Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP
  • LED indicators: Yes
  • Product colour: Black
  • Power consumption (typical): 4.25 W
  • Output current: 1.31 A
  • Output voltage: 53.5 V
  • Total Power over Ethernet (PoE) budget: 53 W
  • Operating temperature (T-T): -10 - 55 °C
  • Width: 246.2 mm
  • Depth: 148.2 mm
  • Height: 45 mm

TP-LINK VIGI NVR1004H-4P — PoE+ Network Video Recorder, 4-Channel

€189,71
€189,71
Steuer enthalten.
