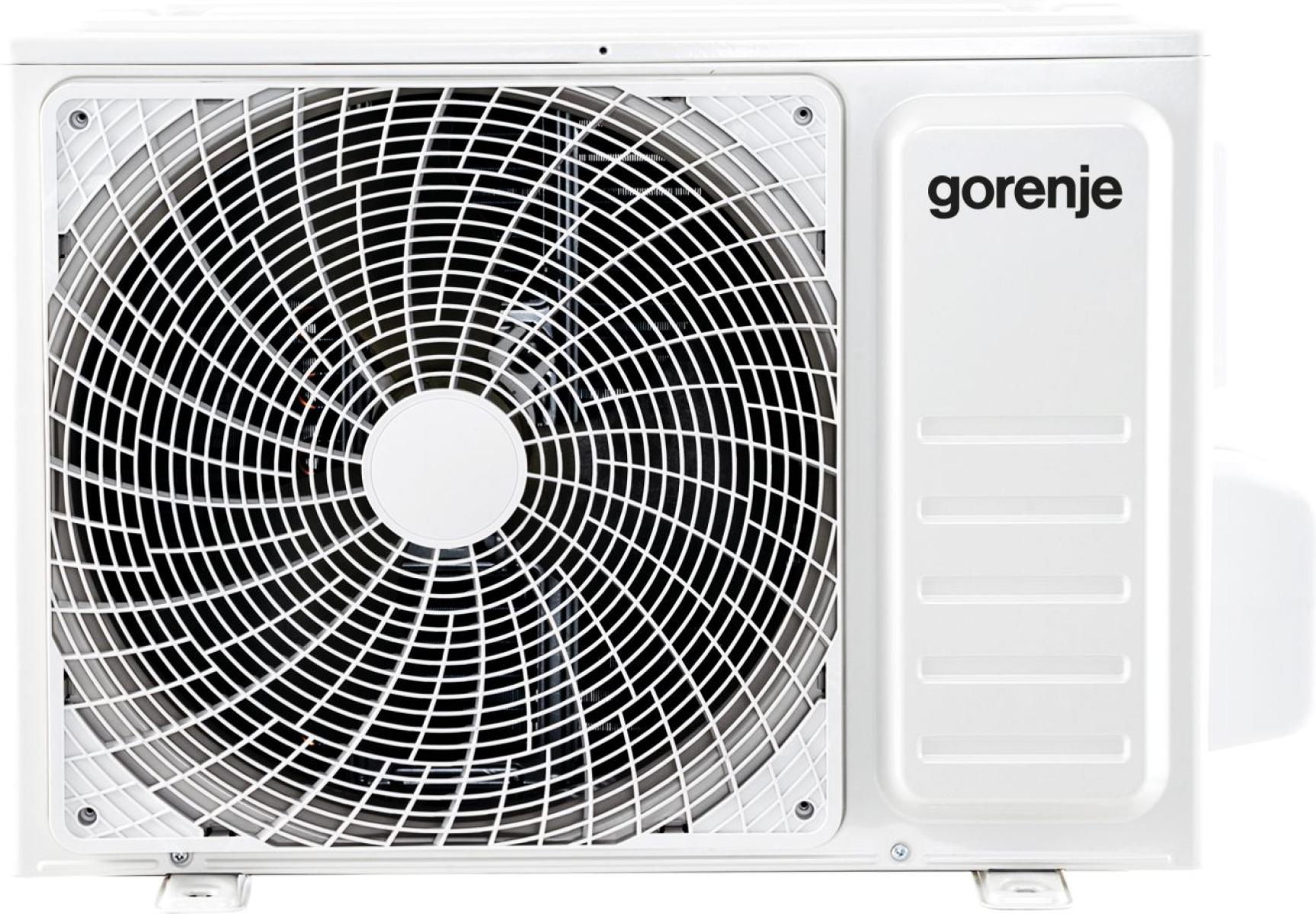

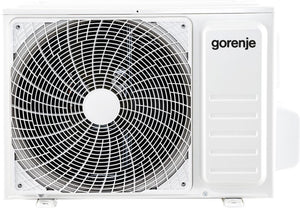

The Gorenje 20011521 PANDORA35 TE01 is an outdoor air conditioning unit designed for efficient climate control. With a compact size and a range of operating temperatures, this unit is suitable for both cooling and heating applications.

• Dimensions: 660 x 483 x 240 mm
• Energy efficiency classes: A+ for heating and A++ for cooling
• Airflow capacity of 1600 m³/h
• Cooling capacity ranges from 1200 to 4100 Watts
• Heating capacity ranges from 1600 to 4300 Watts

Technical details

• Producer product family: Air Conditioner, Outdoor unit
• Producer product name: 20011521 PANDORA35 TE01
• Current rating: 8 A
• Gas Pipe: 3/8 "
• Limit of elevation difference H: 10 m
• Limit of tubing length: 20 m
• Liquid Pipe: 1/4 "
• Net weight: 22.50 kg
• Required amount of additional refrigerant: 20 g/m
• Type: T1, H/P, INVERTER

Specifications

• Dimensions (WxHxD): 660 x 483 x 240 mm

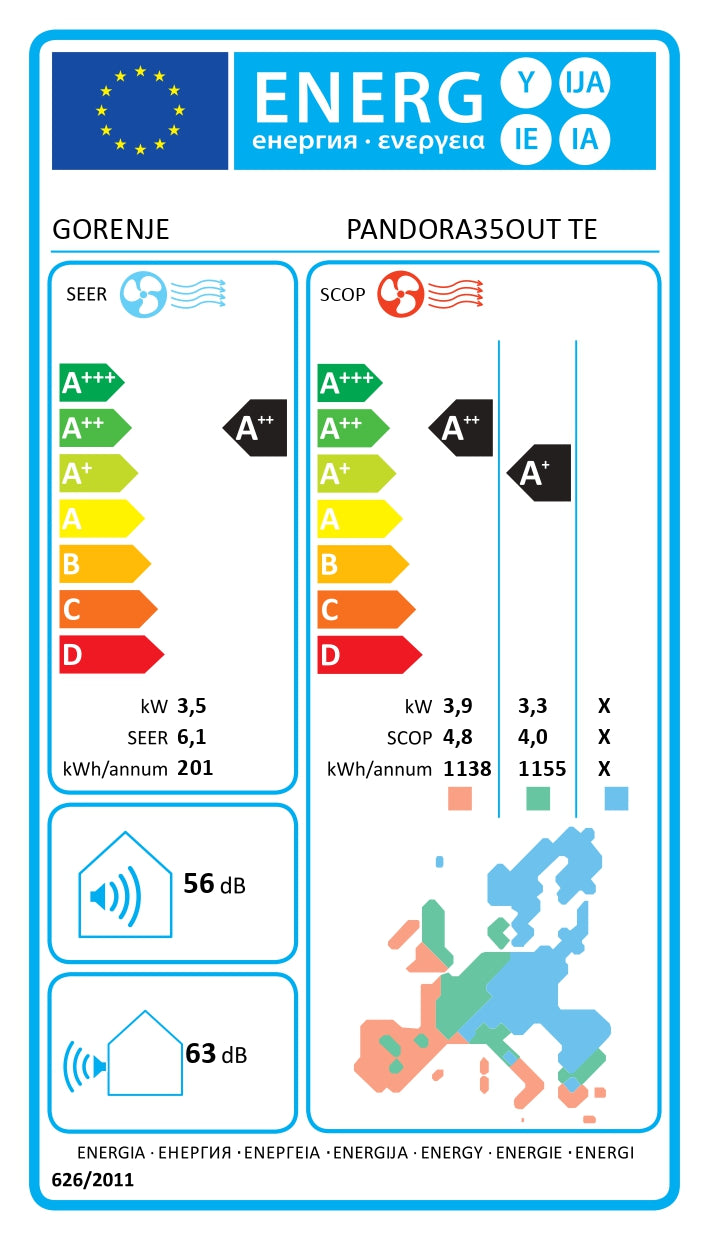

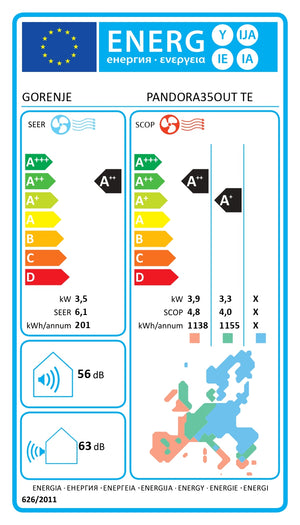

• Energy efficiency class (heating average): A+
• Sound pressure level: 54 dB
• Warranty: 36 month(s)

Operational conditions

• Operating temperature (cooling) (T-T): -15 to 43 °C
• Operating temperature (heating) (T-T): -20 to 24 °C

Performance

• Airflow: 1600 m³/h
• Cooling Capacity: 3500 (1200-4100) Watt
• COP for Heating: 3.90 W/W
• EER for Cooling: 3.50 W/W
• Electrical power cooling: 1000 (190-1500) Watt
• Electrical power heating: 1025 (190-1500) Watt
• Heating Capacity: 4000 (1600-4300) Watt
• Refrigerant: R32
• SCOP (Heatling Average): 4
• SCOP (Heatling Warmer): 5.1
• SEER: 6.1

Power

• Annual energy consumption (cooling): 201 kWh
• Annual energy consumption (heating) (Average heating season): 878
• Energy efficiency class (cooling): A++

Power supply

• Rated Current (Cooling): 4.4 A
• Rated Current (Heating): 4.5 A

Sound emission

• Sound power level: 63 dB

System

• Compressor MFG: RECHI
• Compressor type: Rotary
