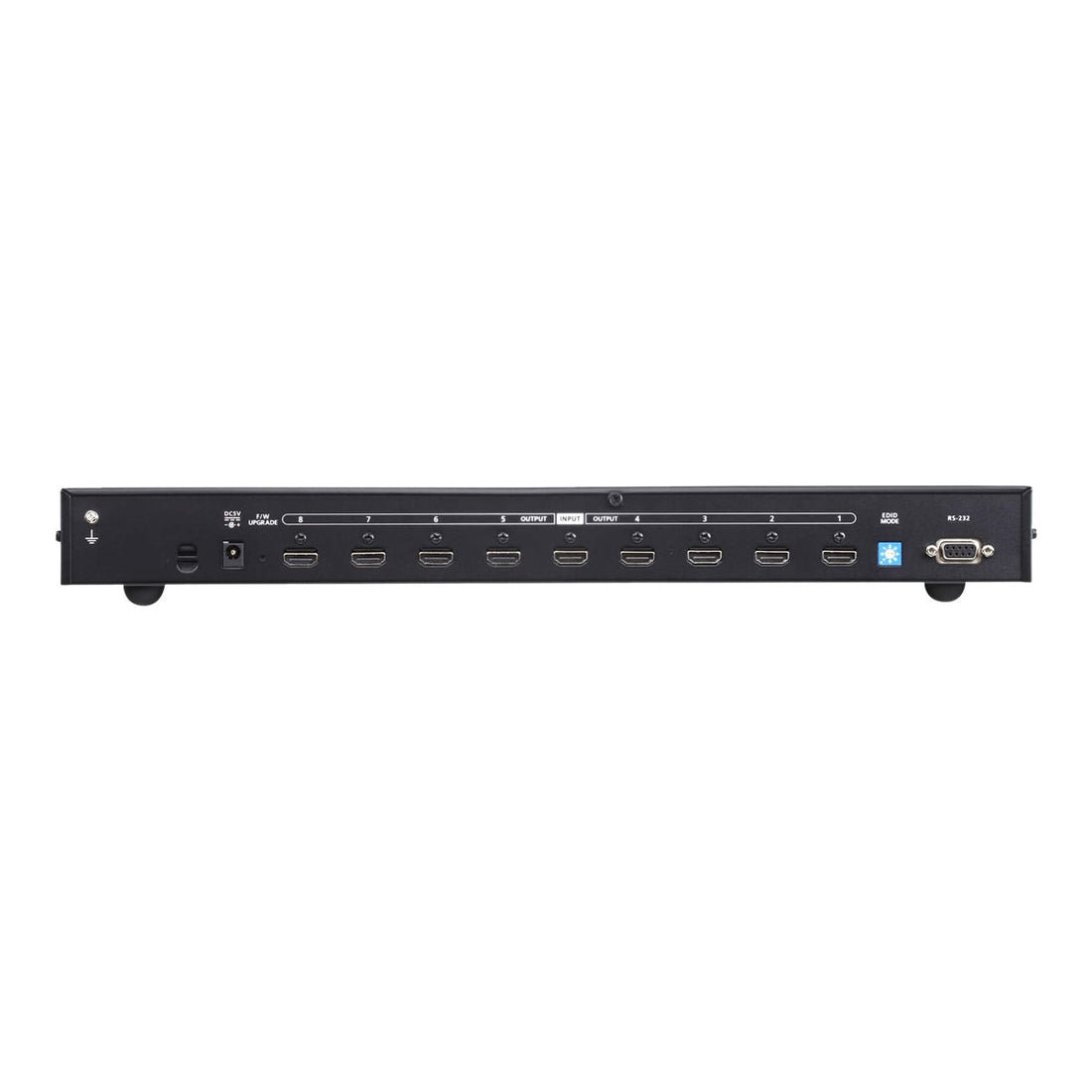

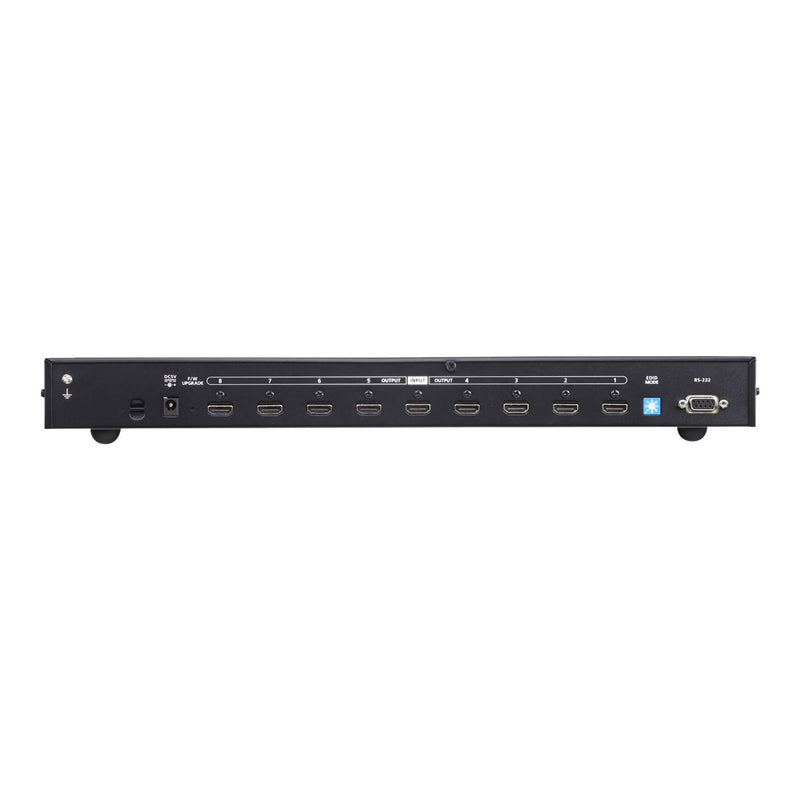

The Aten 8-Port True 4K HDMI Splitter (VS0108HB) allows you to share one HDMI source with up to eight displays, supporting an impressive maximum resolution of 4096 x 2160 pixels. The device utilizes HDMI 2.0 technology and features both plug and play functionality and HDCP compliance, ensuring seamless operation.

• Supports up to 4K Ultra HD resolution at 60 Hz
• Eight HDMI output ports for multiple displays
• Metal housing for durability
• Maximum operating distance of 3 meters
• Compatible with DTS-HD Master Audio and Dolby TrueHD

Specifications

• Warranty: 24 month(s)

Technical details

• Net weight: 2.58 kg
• Producer product family: 8-Port True 4K HDMI Splitter
• Producer product name: VS0108HB

Additional specifications

• Video port type: HDMI
• Video out: 8x HDMI
• HDMI version: 2.0
• Video ports quantity: 9
• DC-in jack: Yes
• Product colour: Black
• Housing material: Metal
• Maximum resolution: 4096 x 2160 pixels
• HD type: 4K Ultra HD
• 3D: Yes
• Maximum operating distance: 3 m
• Maximum refresh rate: 60 Hz
• Bandwidth: 600 MHz
• HDCP version: 2.2
• Rack mounting: Yes
• HDCP: Yes
• Plug and Play: Yes
• LED indicators: Yes
• Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
• Output voltage: 5 V
• Power consumption (typical): 11.95 W
• Width: 157.8 mm
• Depth: 437.2 mm
• Height: 44 mm
• Weight: 2.58 kg
• Cables included: AC
• AC adapter included: Yes
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Compliance certificates: RoHS
• Master (outer) case net weight: 7.74 kg
• Harmonized System (HS) code: 85176990
• Master (outer) case width: 420 mm
• Master (outer) case length: 565 mm
• Master (outer) case height: 258 mm
• Products per master (outer) case: 3 pc(s)
