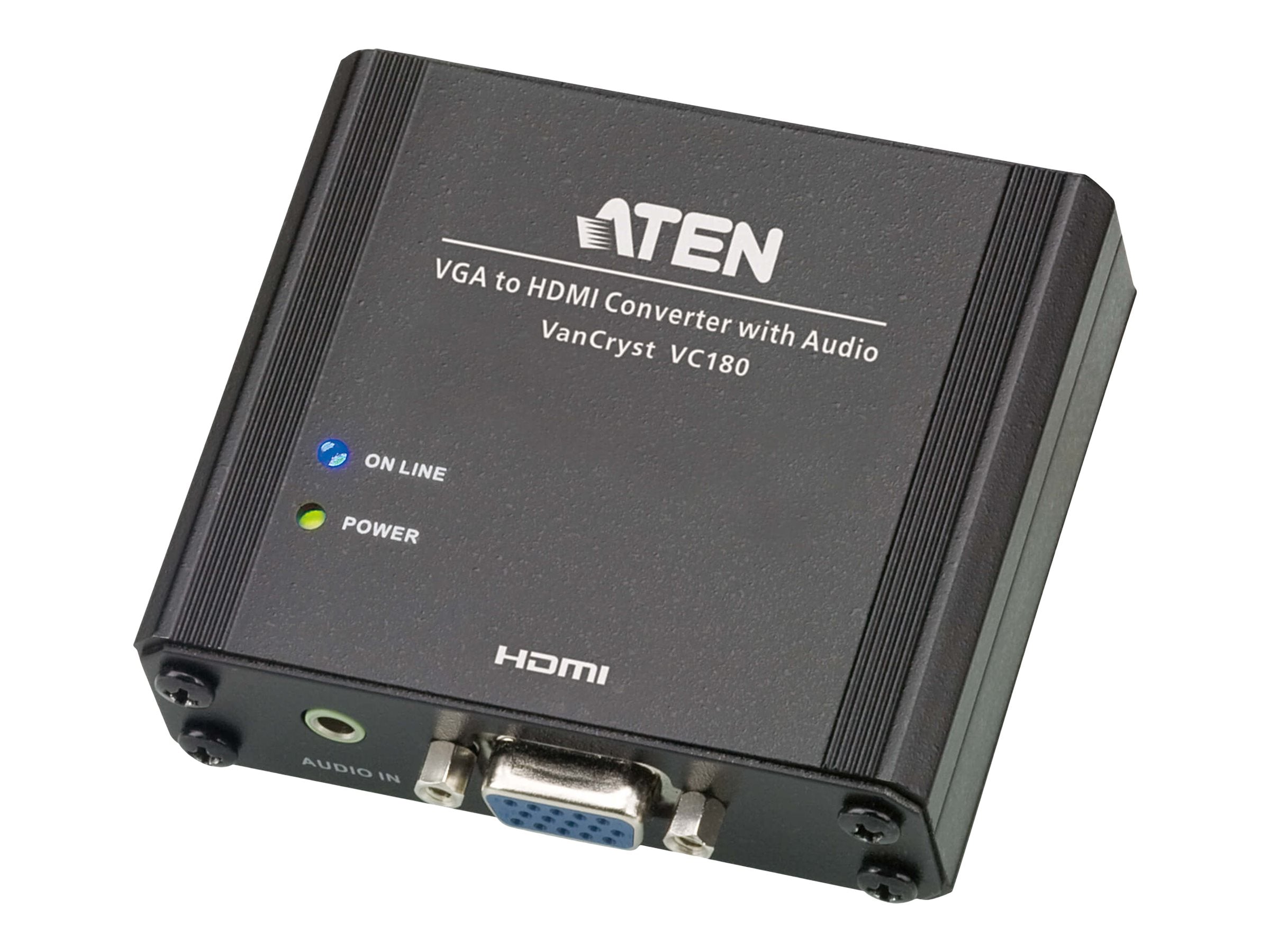

The Aten VGA/Audio to HDMI Converter VC180-AT-G enables you to connect VGA video and audio to an HDMI display. It supports a maximum video resolution of 1920 x 1080 pixels and is designed with LED indicators for easy monitoring.

• Converts VGA and audio signals to HDMI
• Supports video resolutions up to 1920 x 1080 pixels
• Compact dimensions: 79 mm wide, 78.1 mm deep, and 24.4 mm high
• Metal housing for durability
• Operating temperature range: 0 - 50 °C

Specifications

• Warranty: 24 month(s)

Technical details

• Net weight: 0.16 kg
• Producer product family: VGA/Audio to HDMI Converter
• Producer product name: VC180-AT-G

Additional specifications

• Internal: No
• LED indicators: Yes
• Product colour: Black
• Housing material: Metal
• Maximum video resolution: 1920 x 1080 pixels
• Video resolutions: 1920 x 1080 pixels
• Supported video modes: 1080p
• Supported aspect ratios: 16:9
• Bandwidth: 165 MHz
• Host interface: VGA (D-Sub)
• Output interface: HDMI
• DC-in jack: Yes
• Input voltage: 5 V
• Power consumption (typical): 2.62 W
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Storage relative humidity (H-H): 0 - 80%
• Width: 79 mm
• Depth: 78.1 mm
• Height: 24.4 mm
• Weight: 220 g
• Master (outer) case net weight: 4.4 kg
• Harmonized System (HS) code: 85176990
• Master (outer) case width: 315 mm
• Master (outer) case length: 490 mm
• Master (outer) case height: 338 mm
• Products per master (outer) case: 20 pc(s)
