Über

Eigenschaften

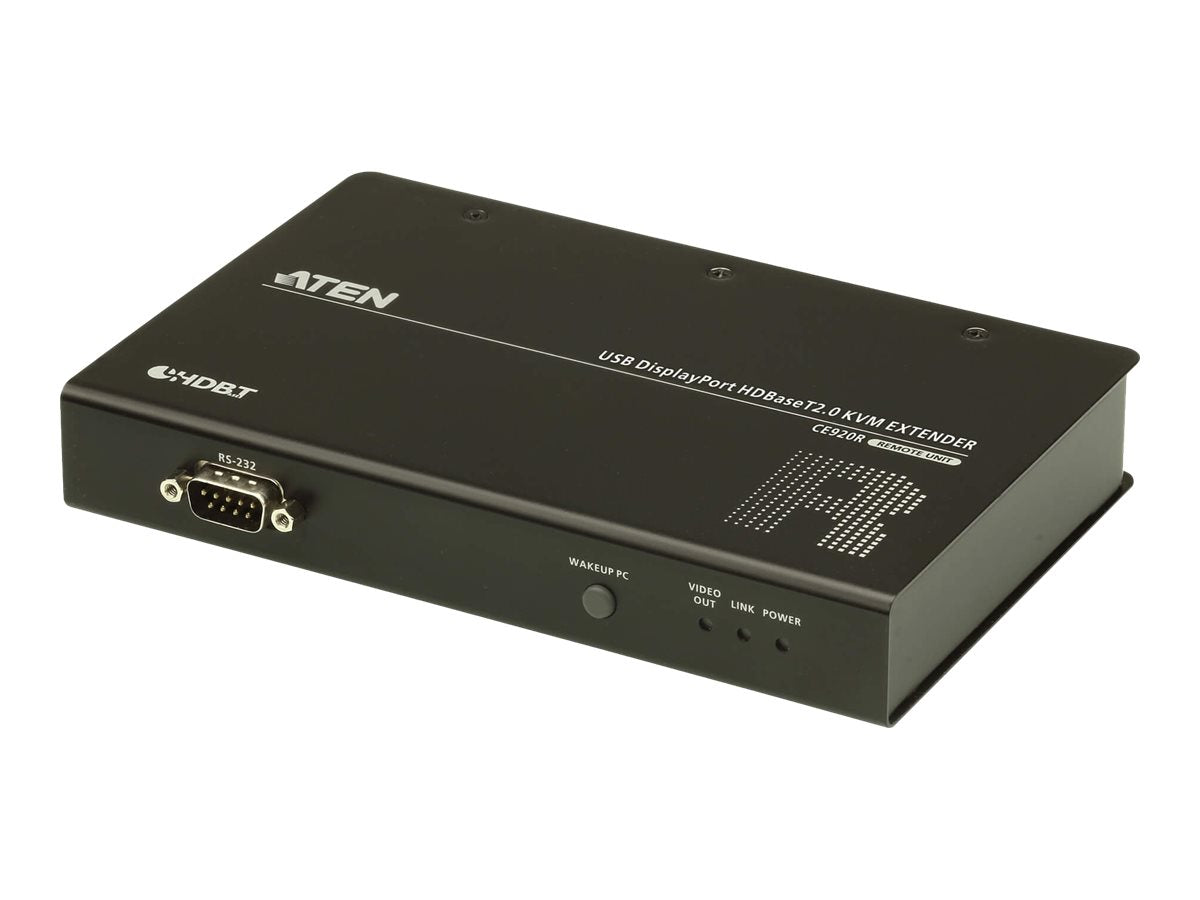

The Aten USB DisplayPort HDBaseT KVM Extender is designed for users needing to extend video, audio, and USB signals over long distances. It is suitable for businesses or home offices where devices are located far from the display or peripherals.

  • Extends video, audio, and USB signals up to 150 meters using a single Cat6 cable.
  • Supports high-resolution video up to 4096 x 2160 pixels for clear image quality.
  • Features enhanced bit error detection to minimize signal interference during transmission.
  • Includes multiple USB ports for connecting keyboard and mouse, supporting a variety of peripherals.
  • Compact and rack-mountable design allows for easy integration into existing setups.
Specifications (4)
  • Producer product family: KVM Extenders
  • Producer product name: USB DisplayPort HDBaseT
  • Cable: 1 x USB Type-A to Type-B Cable; 1 x DisplayPort Cable
  • Warranty: 24 month(s)
Other features (1)

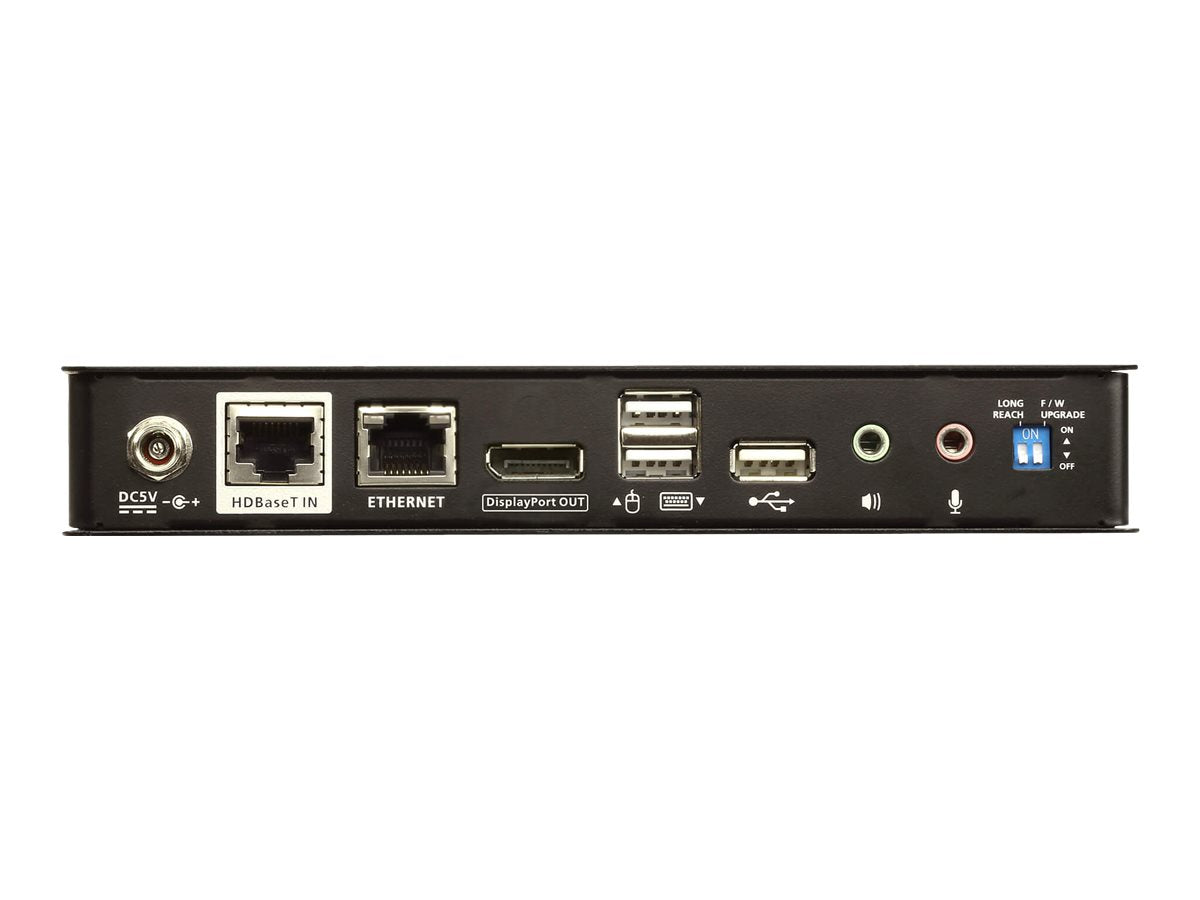

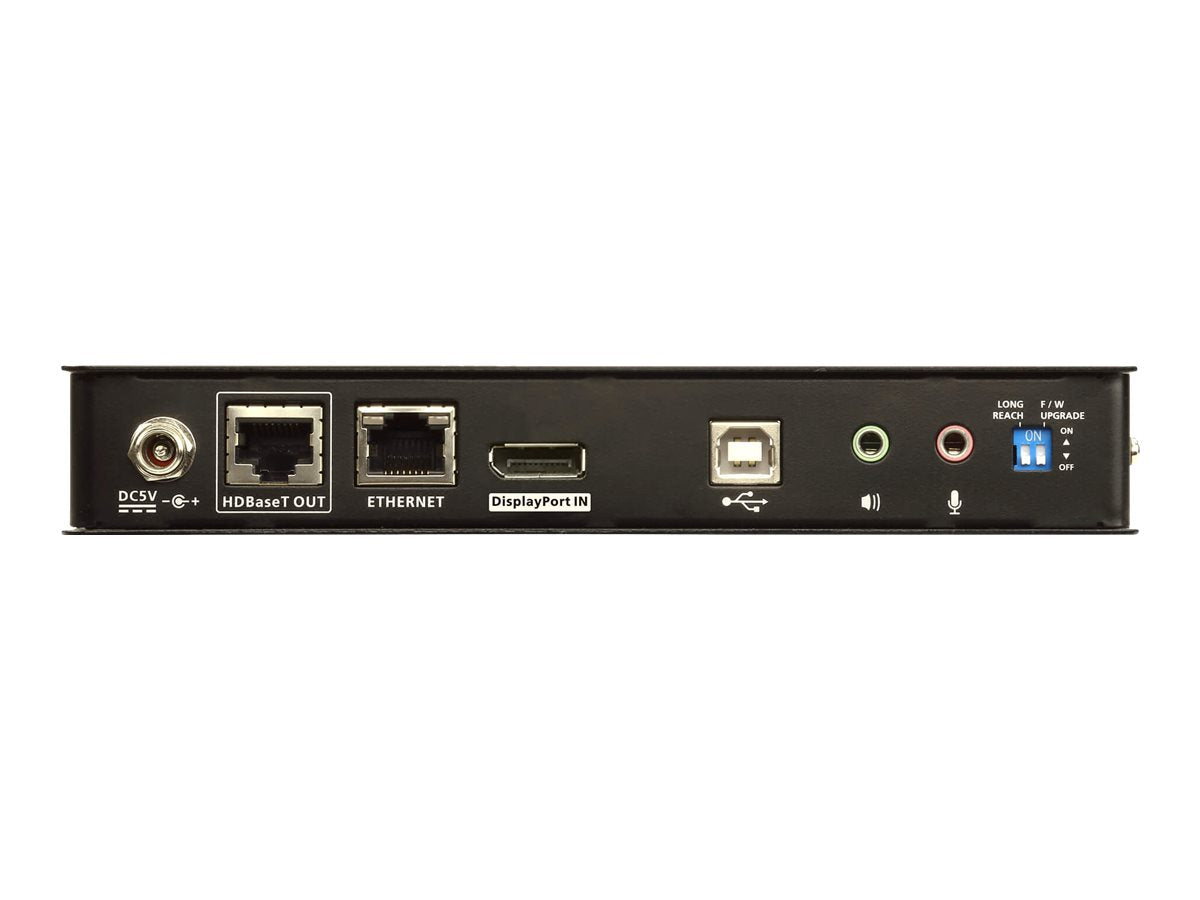

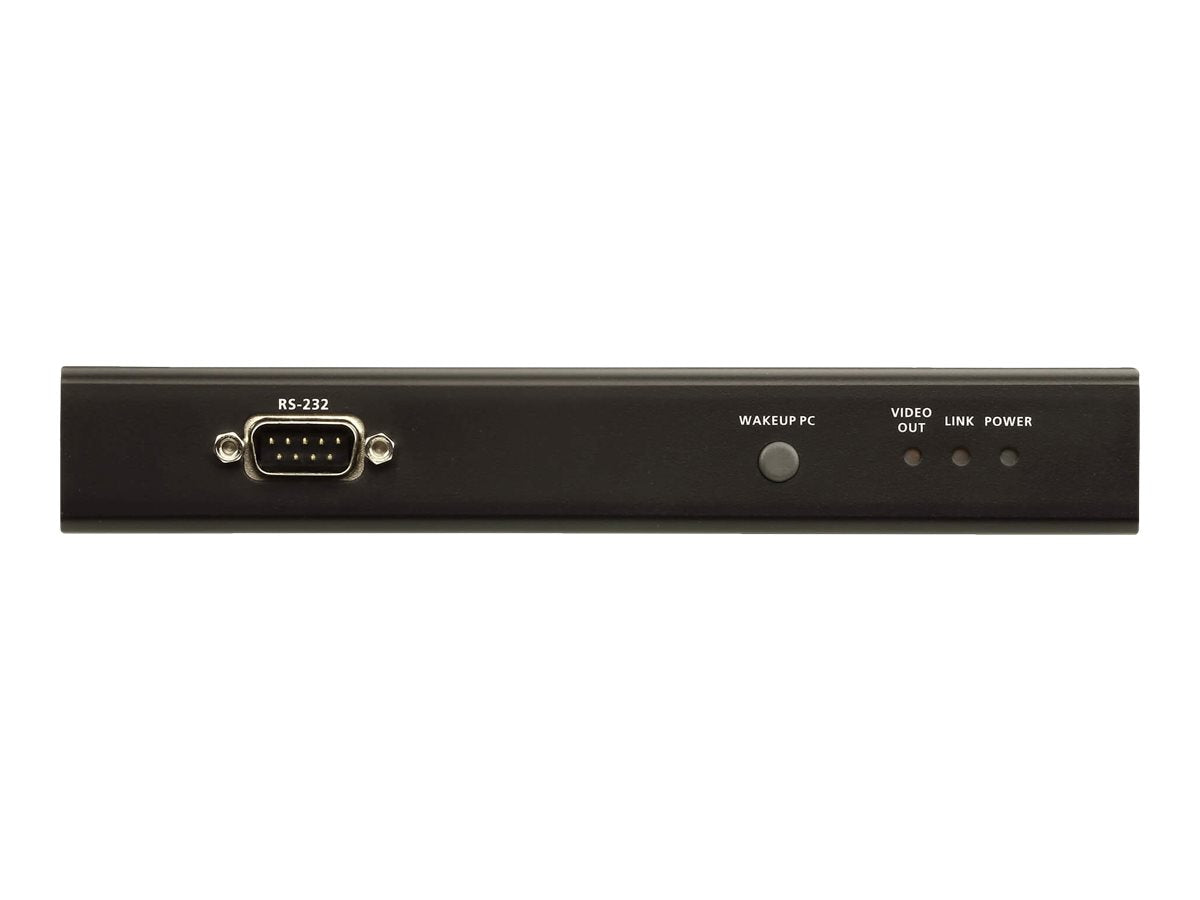

  • I/O ports: Console Ports: 1 x DisplayPort Female (Black); 3 x USB Type A Female; 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink); 1 x RJ-45 Female (Black); KVM Ports: 1 x DisplayPort Female (Black); 1 x USB Type B Female (White); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink); 1 x RJ-45 Female (Black)
Technical details (2)
  • Net weight: 0.63 kg
  • Other features: Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable; Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions; Status detection and LED indication for HDBaseT™ signal transmission on remote unit
Additional specifications (45)
  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Rack mounting: Yes
  • Maximum digital resolution: 4096 x 2160 pixels
  • Product colour: Black
  • Material: Metal
  • LED indicators: Yes
  • Certification: RoHS
  • Transmitter video port type: DisplayPort
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: DisplayPort
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • USB 2.0 ports quantity: 4
  • USB data transfer rates: 480 Mbit/s
  • PC Audio in: Yes
  • PC Audio out: Yes
  • AC adapter output voltage: 5 V
  • Power consumption (transmitter) (max): 3.99 W
  • Power consumption (receiver) (max): 6.74 W
  • Transmitter width: 18.2 cm
  • Transmitter depth: 12.2 cm
  • Transmitter height: 2.87 cm
  • Transmitter weight: 630 g
  • Receiver width: 18.2 cm
  • Receiver depth: 12.2 cm
  • Receiver height: 2.87 cm
  • Receiver weight: 640 g
  • AC adapter included: Yes
  • Cables included: DisplayPort
  • Manual: Yes
  • Mounting bracket(s) included: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Weight: 1.95 kg
  • Master (outer) case net weight: 9.75 kg
  • Harmonized System (HS) code: 84733080
  • Master (outer) case width: 342 mm
  • Master (outer) case length: 512 mm
  • Master (outer) case height: 232 mm
  • Products per master (outer) case: 5 pc(s)
Eigenschaften

The Aten USB DisplayPort HDBaseT KVM Extender is designed for users needing to extend video, audio, and USB signals over long distances. It is suitable for businesses or home offices where devices are located far from the display or peripherals.

  • Extends video, audio, and USB signals up to 150 meters using a single Cat6 cable.
  • Supports high-resolution video up to 4096 x 2160 pixels for clear image quality.
  • Features enhanced bit error detection to minimize signal interference during transmission.
  • Includes multiple USB ports for connecting keyboard and mouse, supporting a variety of peripherals.
  • Compact and rack-mountable design allows for easy integration into existing setups.
Specifications (4)
  • Producer product family: KVM Extenders
  • Producer product name: USB DisplayPort HDBaseT
  • Cable: 1 x USB Type-A to Type-B Cable; 1 x DisplayPort Cable
  • Warranty: 24 month(s)
Other features (1)
  • I/O ports: Console Ports: 1 x DisplayPort Female (Black); 3 x USB Type A Female; 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink); 1 x RJ-45 Female (Black); KVM Ports: 1 x DisplayPort Female (Black); 1 x USB Type B Female (White); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink); 1 x RJ-45 Female (Black)
Technical details (2)
  • Net weight: 0.63 kg
  • Other features: Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable; Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions; Status detection and LED indication for HDBaseT™ signal transmission on remote unit
Additional specifications (45)
  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Rack mounting: Yes
  • Maximum digital resolution: 4096 x 2160 pixels
  • Product colour: Black
  • Material: Metal
  • LED indicators: Yes
  • Certification: RoHS
  • Transmitter video port type: DisplayPort
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: DisplayPort
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • USB 2.0 ports quantity: 4
  • USB data transfer rates: 480 Mbit/s
  • PC Audio in: Yes
  • PC Audio out: Yes
  • AC adapter output voltage: 5 V
  • Power consumption (transmitter) (max): 3.99 W
  • Power consumption (receiver) (max): 6.74 W
  • Transmitter width: 18.2 cm
  • Transmitter depth: 12.2 cm
  • Transmitter height: 2.87 cm
  • Transmitter weight: 630 g
  • Receiver width: 18.2 cm
  • Receiver depth: 12.2 cm
  • Receiver height: 2.87 cm
  • Receiver weight: 640 g
  • AC adapter included: Yes
  • Cables included: DisplayPort
  • Manual: Yes
  • Mounting bracket(s) included: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Weight: 1.95 kg
  • Master (outer) case net weight: 9.75 kg
  • Harmonized System (HS) code: 84733080
  • Master (outer) case width: 342 mm
  • Master (outer) case length: 512 mm
  • Master (outer) case height: 232 mm
  • Products per master (outer) case: 5 pc(s)

Aten USB DisplayPort HDBaseT — KVM Extenders

€1.173,03
€1.173,03
Steuer enthalten.
