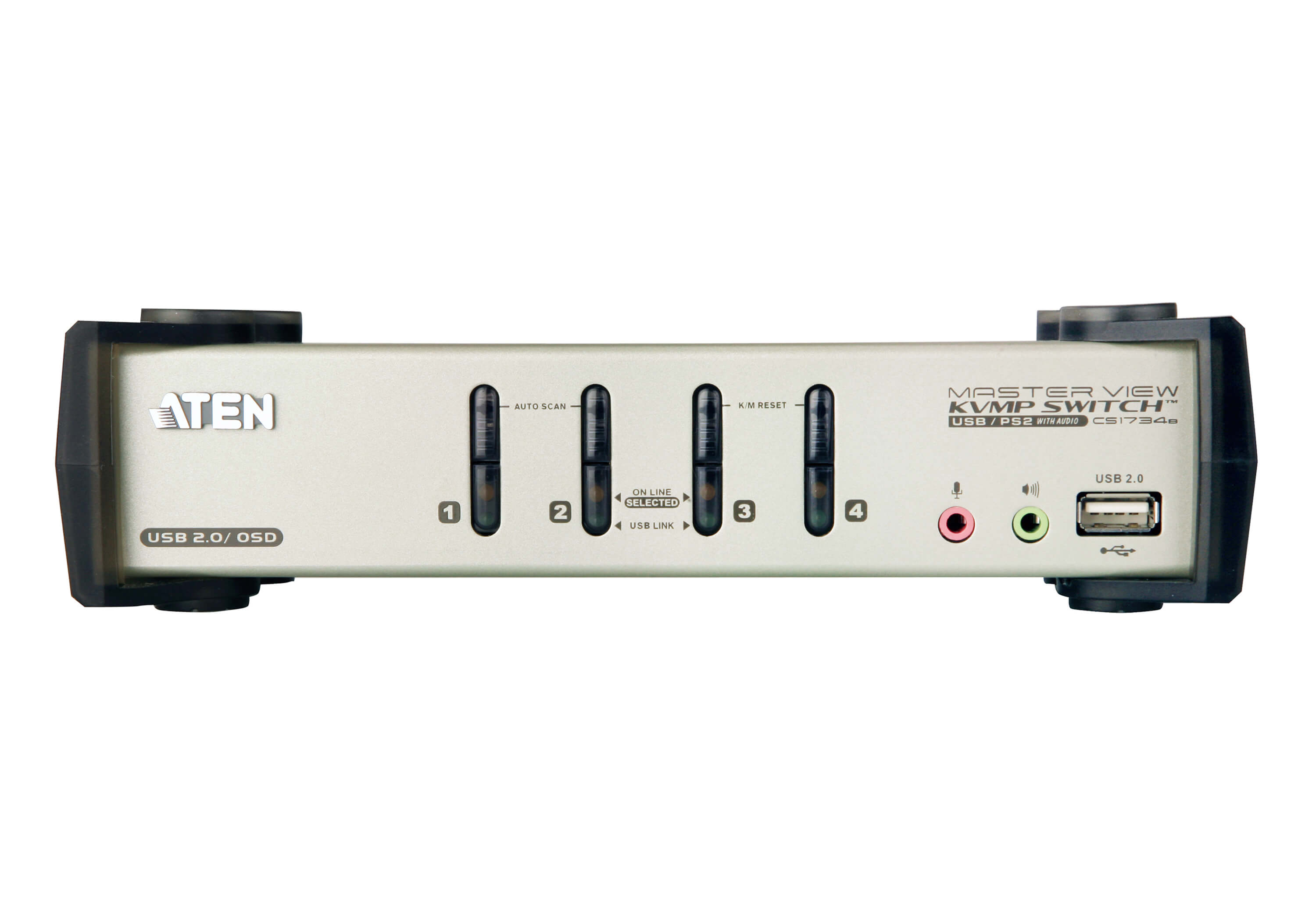

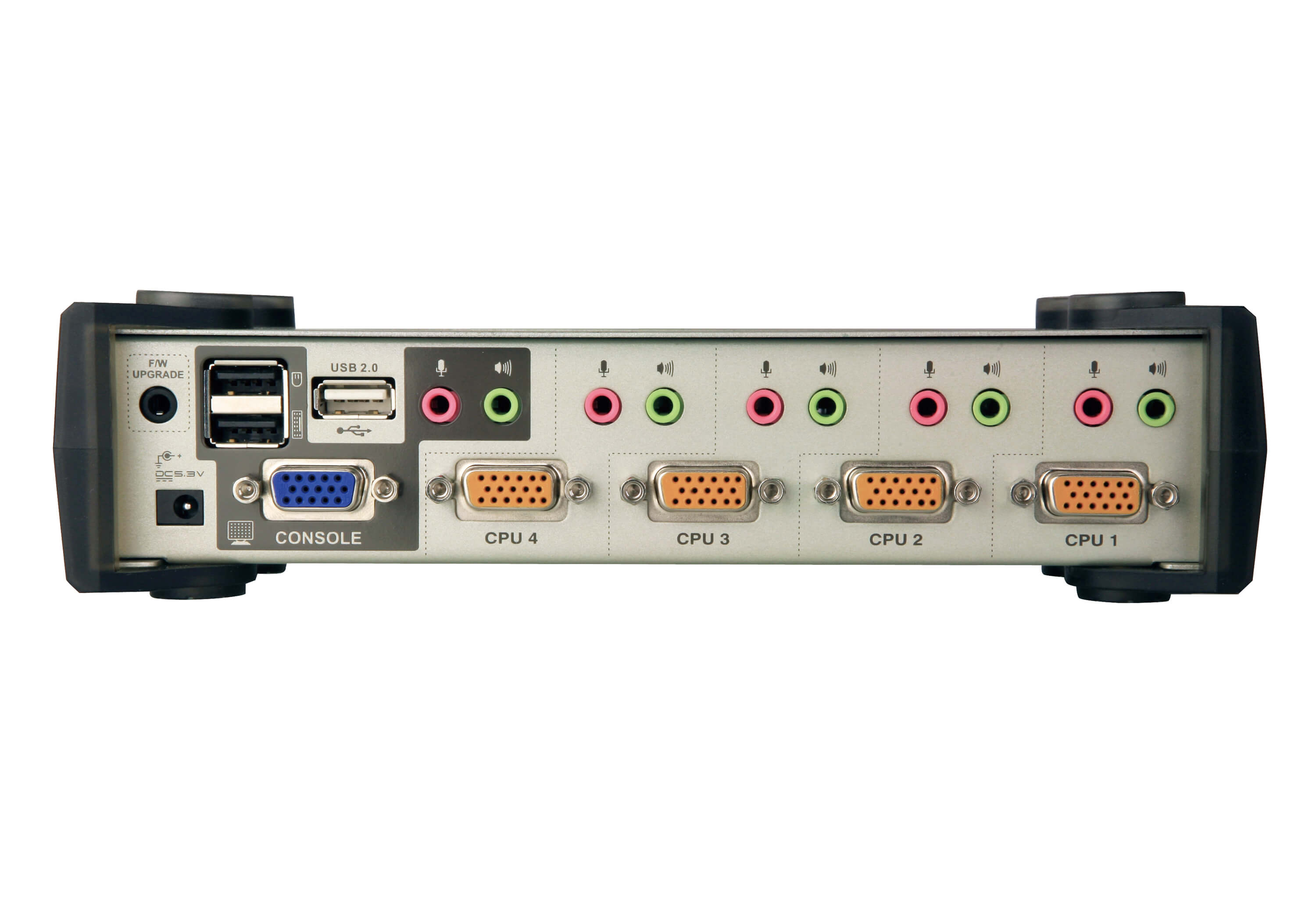

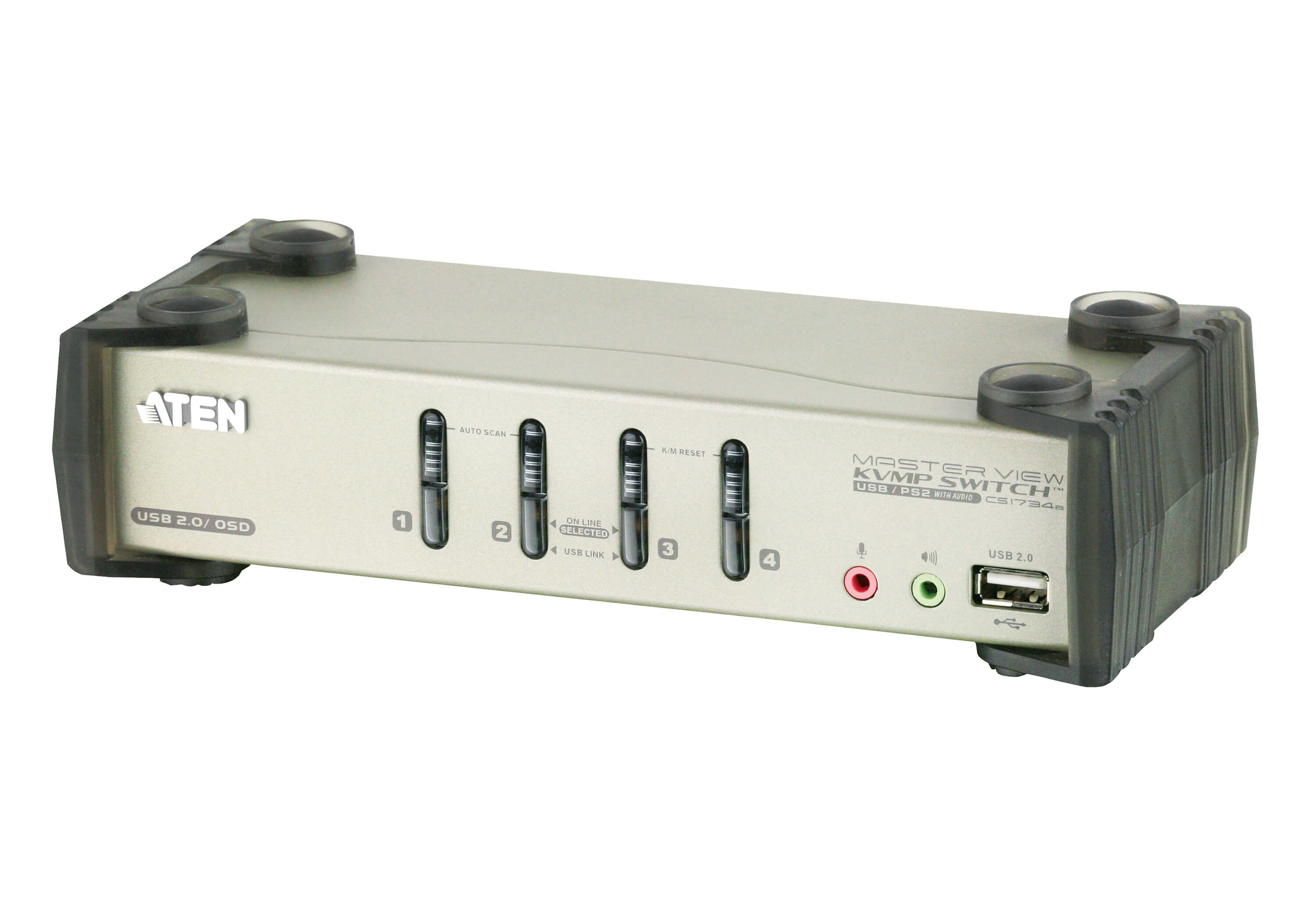

The Aten CS1734B is a versatile 4-Port PS/2-USB VGA/Audio KVMP switch that allows you to control up to four computers from a single console. With easy access through push buttons or hot keys and an On Screen Display (OSD), this device makes switching seamless and efficient.

• Supports up to 4 computers with VGA and audio connections
• Features 2 USB hub ports and additional console USB ports
• Maximum resolution of 2048 x 1536 pixels for high-quality video
• Includes 6 headphone outputs and 6 microphone inputs
• Durable metal housing and firmware upgradeable for longevity

Technical details

• Net weight: 1.834 kg
• Producer product family: 4-Port PS/2-USB VGA/Audio KVMP Switch with OSD
• Producer product name: CS1734B

Additional specifications

• Number of computers controlled: 4
• Keyboard port type: USB, PS/2
• Mouse port type: USB, PS/2
• Video port type: VGA
• VGA (D-Sub) ports quantity: 1
• Console ports: 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
• Console USB ports quantity: 2
• USB hub: Yes
• USB 2.0 Type-A hub ports quantity: 2
• Audio connections: Yes
• Headphone outputs: 6
• Number of microphone inputs: 6
• HD type: QXGA
• Maximum resolution: 2048 x 1536 pixels
• Video bandwidth: 60 Hz
• Scan interval: 1,255 s
• DDC2B support: Yes
• Firmware upgradeable: Yes
• Product colour: Black, Metallic
• Housing material: Metal
• Push button: Yes
• Hot keys: Yes
• Built-in display: No
• On Screen Display (OSD): Yes
• Power source: DC
• Input voltage: 5 V
• Power consumption (typical): 1.02 W
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Width: 88 mm
• Depth: 210 mm
• Height: 55.5 mm
• Weight: 1.95 kg
• Cables included: KVM, USB
• Master (outer) case net weight: 9.75 kg
• Harmonized System (HS) code: 85176200
• Master (outer) case width: 292 mm
• Master (outer) case length: 517 mm
• Master (outer) case height: 194 mm
• Products per master (outer) case: 5 pc(s)
