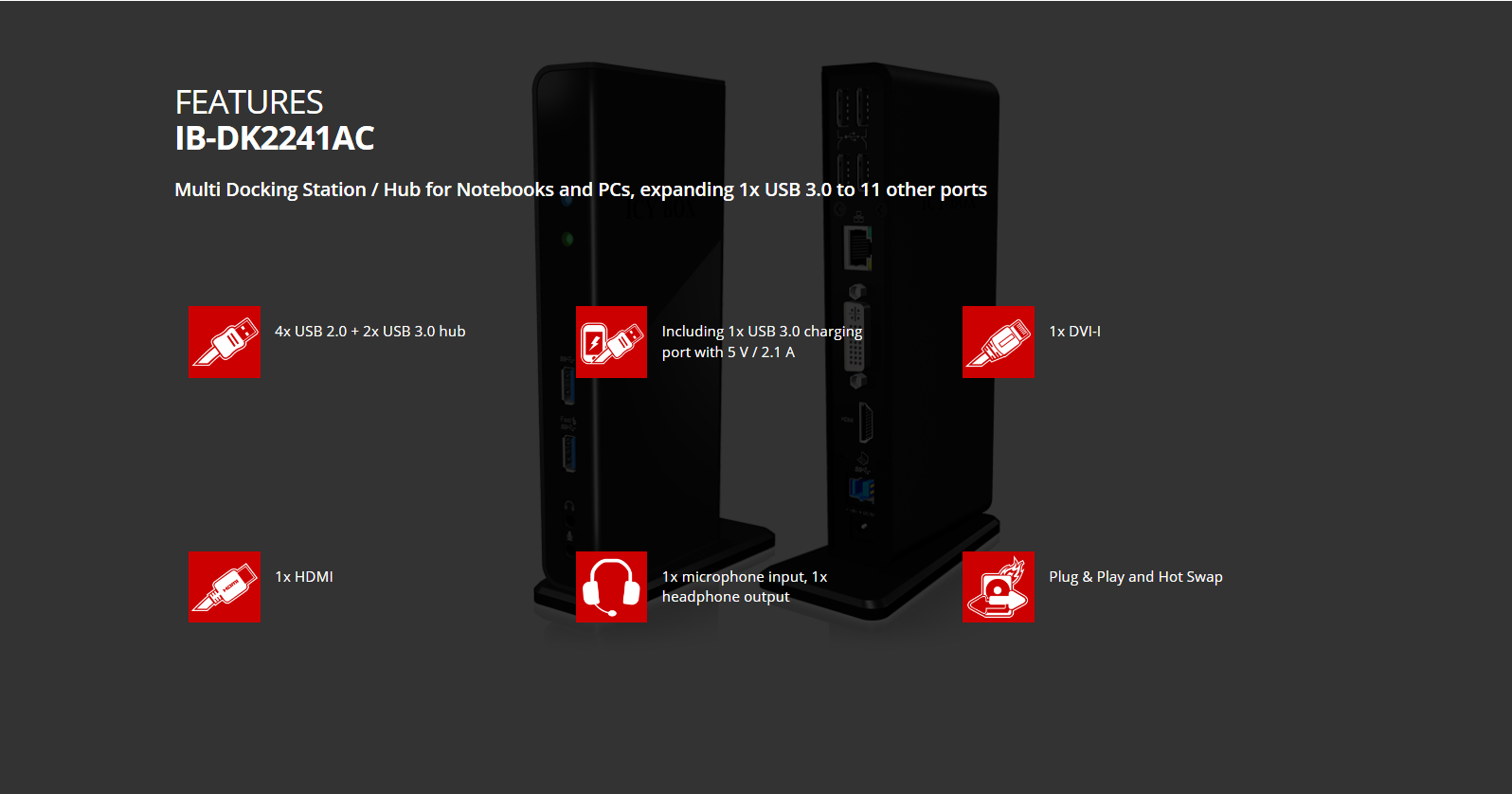

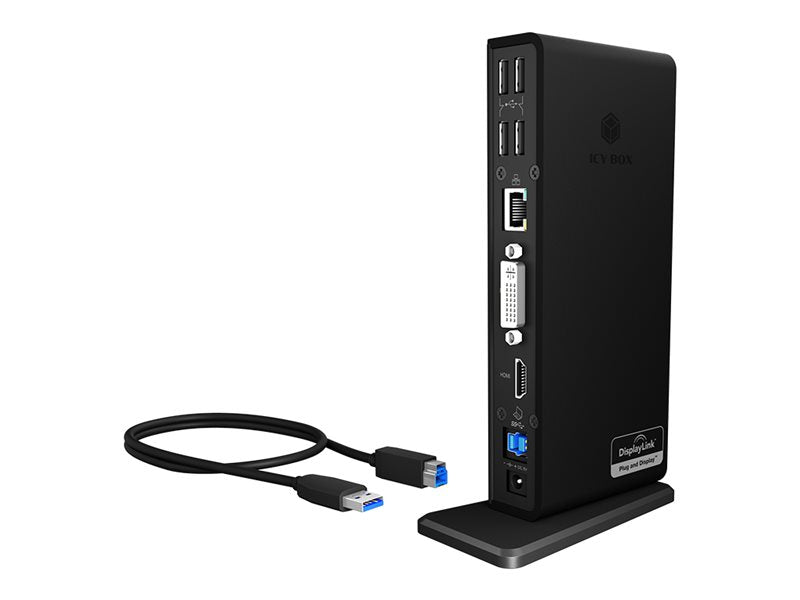

The Raidsonic ICY BOX IB-DK2241AC Multi Docking Station offers a variety of connectivity options for your devices. With multiple ports including USB 3.0, HDMI, and Gigabit LAN, it supports dual displays and provides a convenient solution for enhancing your workstation.

• USB 3.0 Type-B input and two USB 3.0 Type-A outputs
• Supports HDMI and DVI-I outputs, with a maximum resolution of 2048x1152 pixels
• Includes 4 USB 2.0 ports for additional device connectivity
• Hot Plug support allows you to connect and disconnect devices without restarting

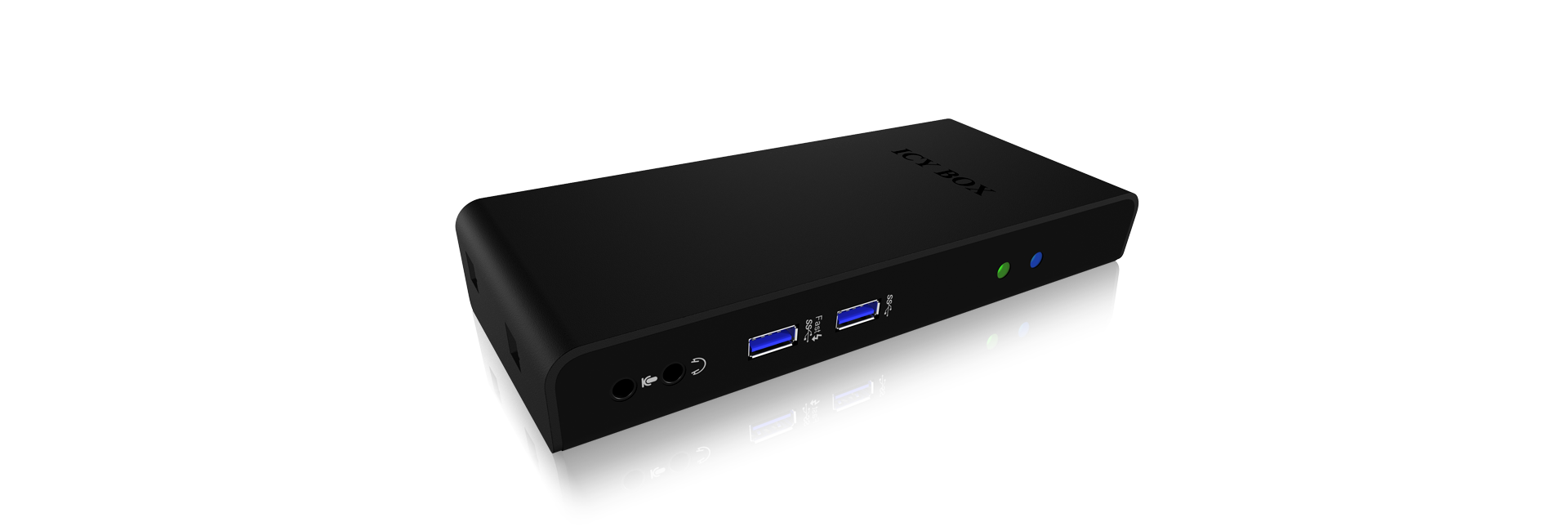

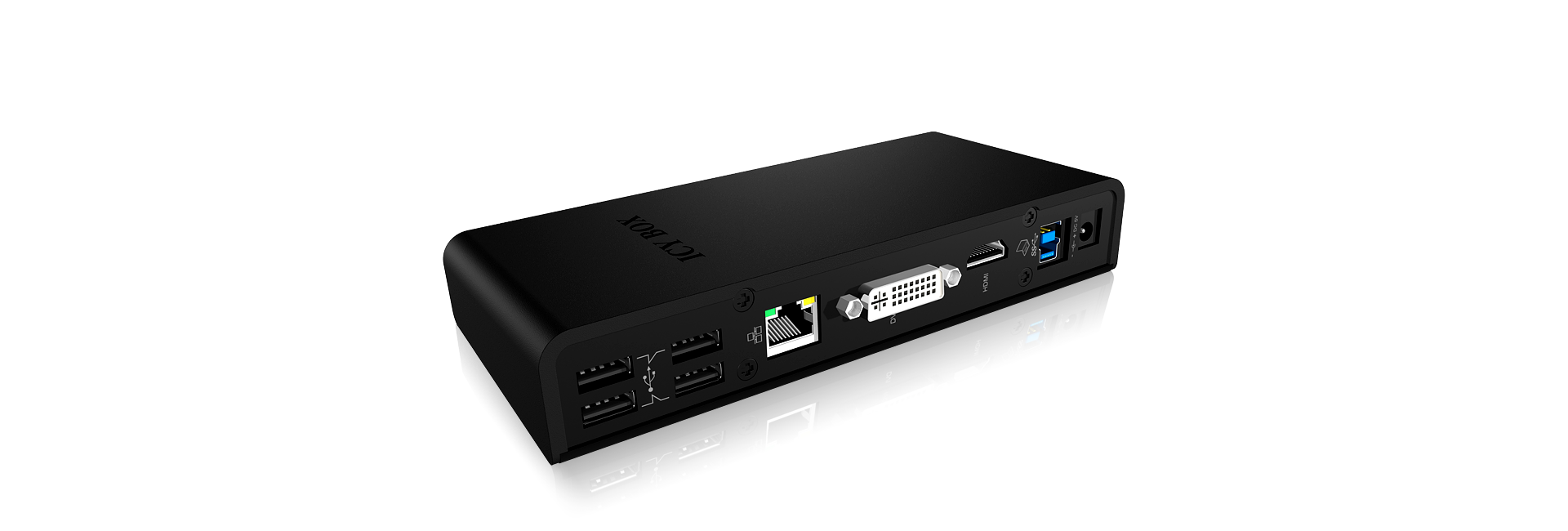

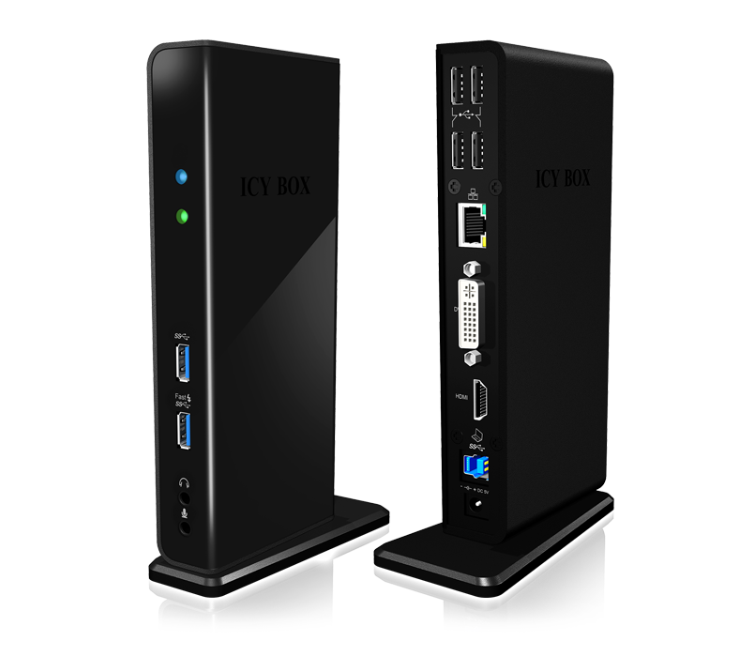

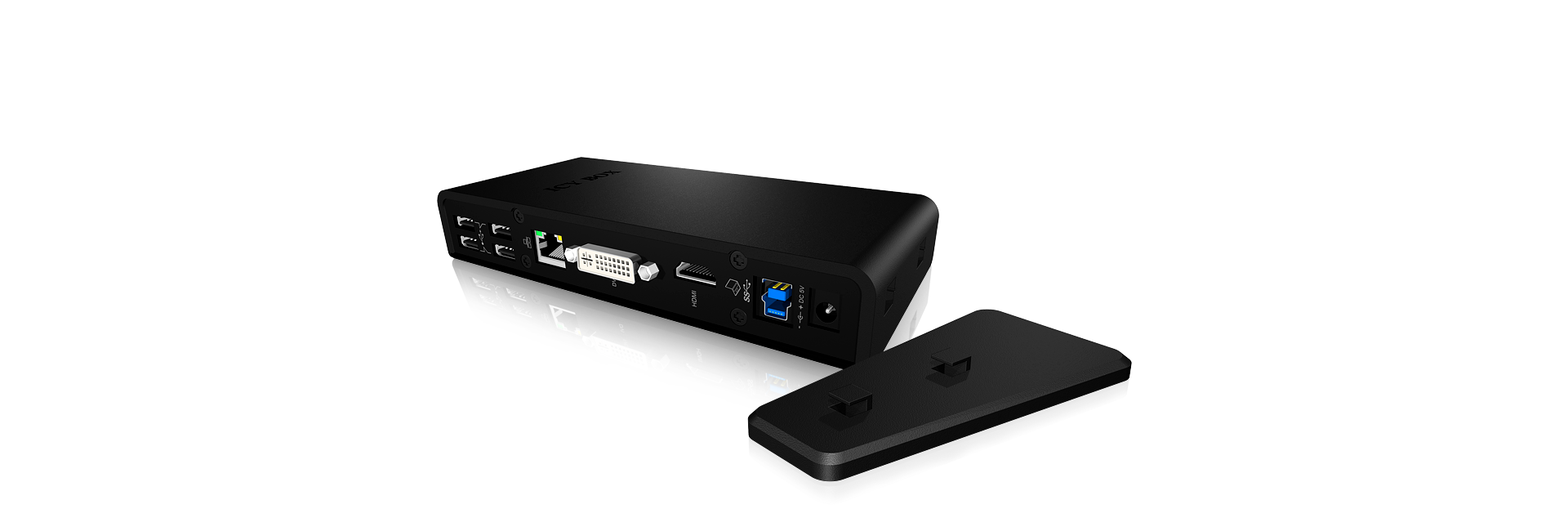

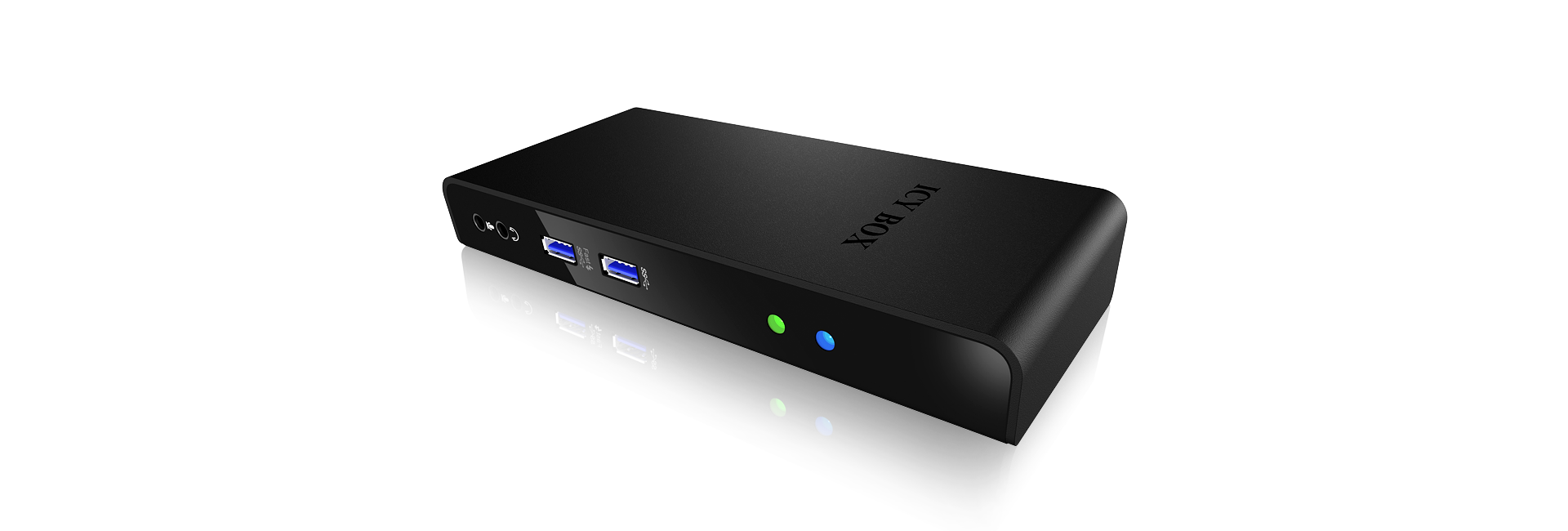

• Vertical and horizontal positioning options for customizable setup

Specifications

• Producer product family: ICY BOX
• Producer product name: IB-DK2241AC Multi Docking Station

Technical details

• Type: USB-A Dock
• Warranty: 12 month(s)
• Net weight: 0.585 kg

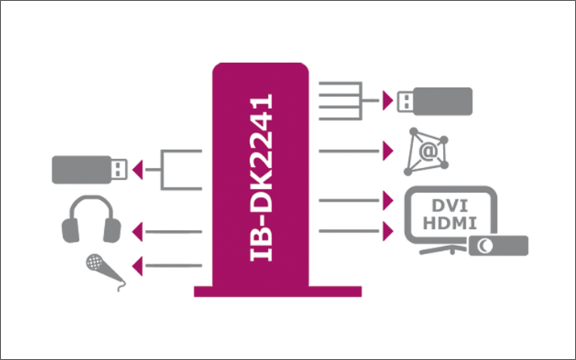

• Other features: Extends 1x USB 3.0 to 11 further interfaces

Other features

• I/O ports: Input: (to Notebook / PC): USB 3.0 type-B female Output: 2x USB 3.0 type-A female Including 1x USB 3.0 5 V charger for Smartphone / Tablet 1x Microphone 3.5 mm jack 1x Earphone 3.5 mm jack 1x HDMI® Connector 1x DVI-I (Dual-Link) 24+5 female 1x Gigabit LAN RJ45 female 4x USB 2.0 type A female • Including DVI to VGA adapter • HDMI® and DVI ports support: mirroring and extending of the display, Resolution up to 2048x1152 Pixel • USB 3.0 backwards compatible with USB 2.0 • Vertical (with stand foot) and horizontal settable • Plug & Play and Hot Swap • Power adapter (100 – 240V), 5 V/4 A, 20 W

Additional specifications

• Connectivity technology: Wired
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• DVI-I ports quantity: 1
• Microphone in: Yes
• Headphone outputs: 1
• Headphone connectivity: 3.5 mm
• DC-in jack: Yes
• Ethernet LAN: Yes
• Ethernet LAN (RJ-45) ports: 1
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Card reader integrated: No
• Data transfer rate: 5 Gbit/s
• HD type: 2K
• Maximum digital resolution: 2048 x 1152 pixels
• Number of displays supported: 2
• Hot-Plug support: Yes
• Product colour: Black
• LED indicators: Yes
• Plug and Play: Yes
• Charging function: Yes
• Housing material: Acrylonitrile butadiene styrene (ABS), Metal, Polycarbonate (PC)
• Country of origin: China
• Brand compatibility: Any brand
• Power source type: AC
• AC input voltage: 100-240 V
• Output voltage: 5 V
• Output current: 4 A
• Power consumption (max): 20 W
• Wireless charging: No
• Windows operating systems supported: Yes
• Mac operating systems supported: Yes
• Width: 183 mm
• Depth: 80 mm
• Height: 30 mm
• Weight: 223 g
• Cables included: USB
• AC adapter included: Yes
• Manual: Yes
• Products per master (outer) case: 10 pc(s)
• Master (outer) case width: 215 mm
• Master (outer) case length: 357 mm
• Master (outer) case height: 330 mm
• Harmonized System (HS) code: 84718000
• Number of microphone inputs: 1
