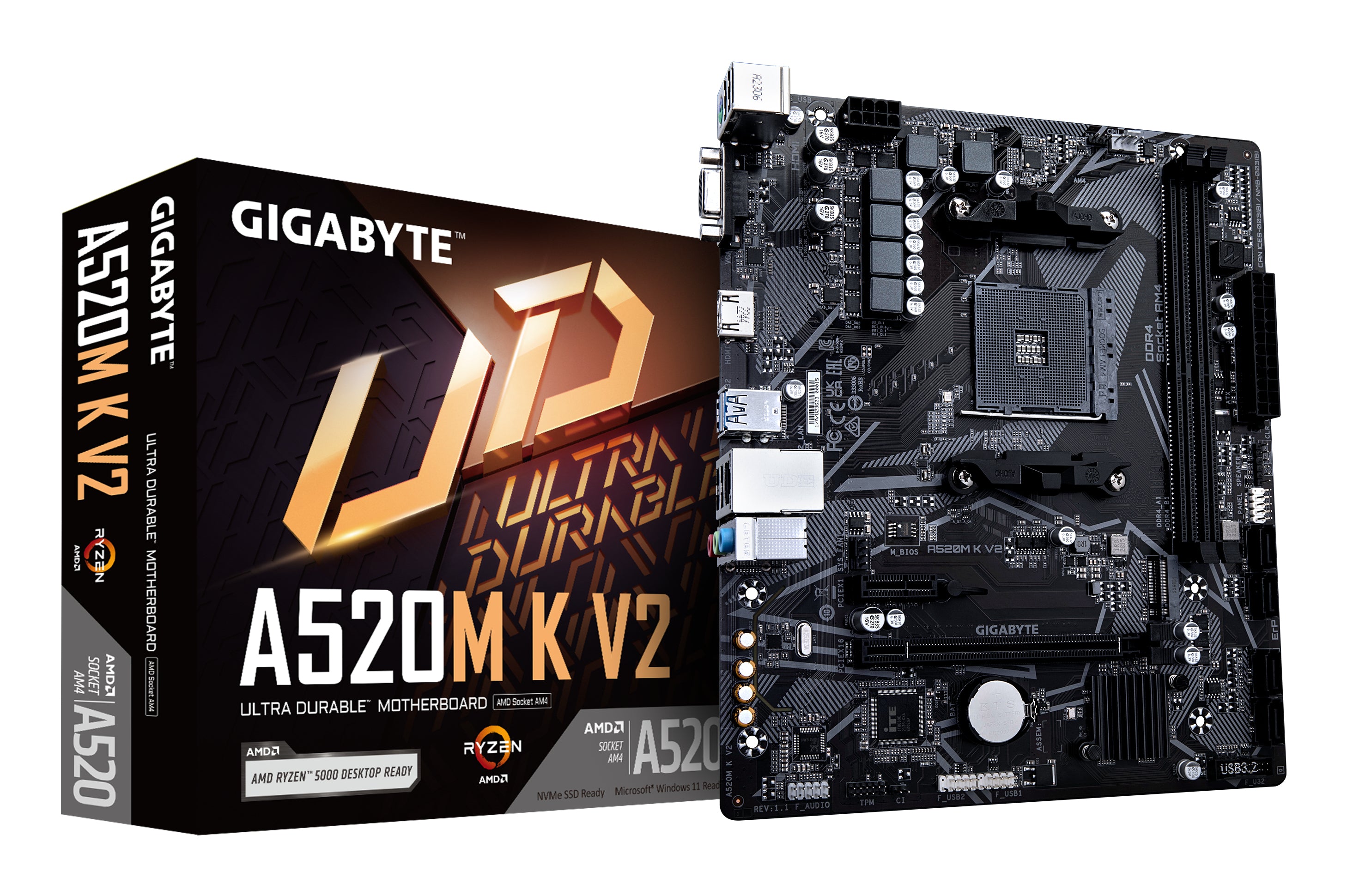

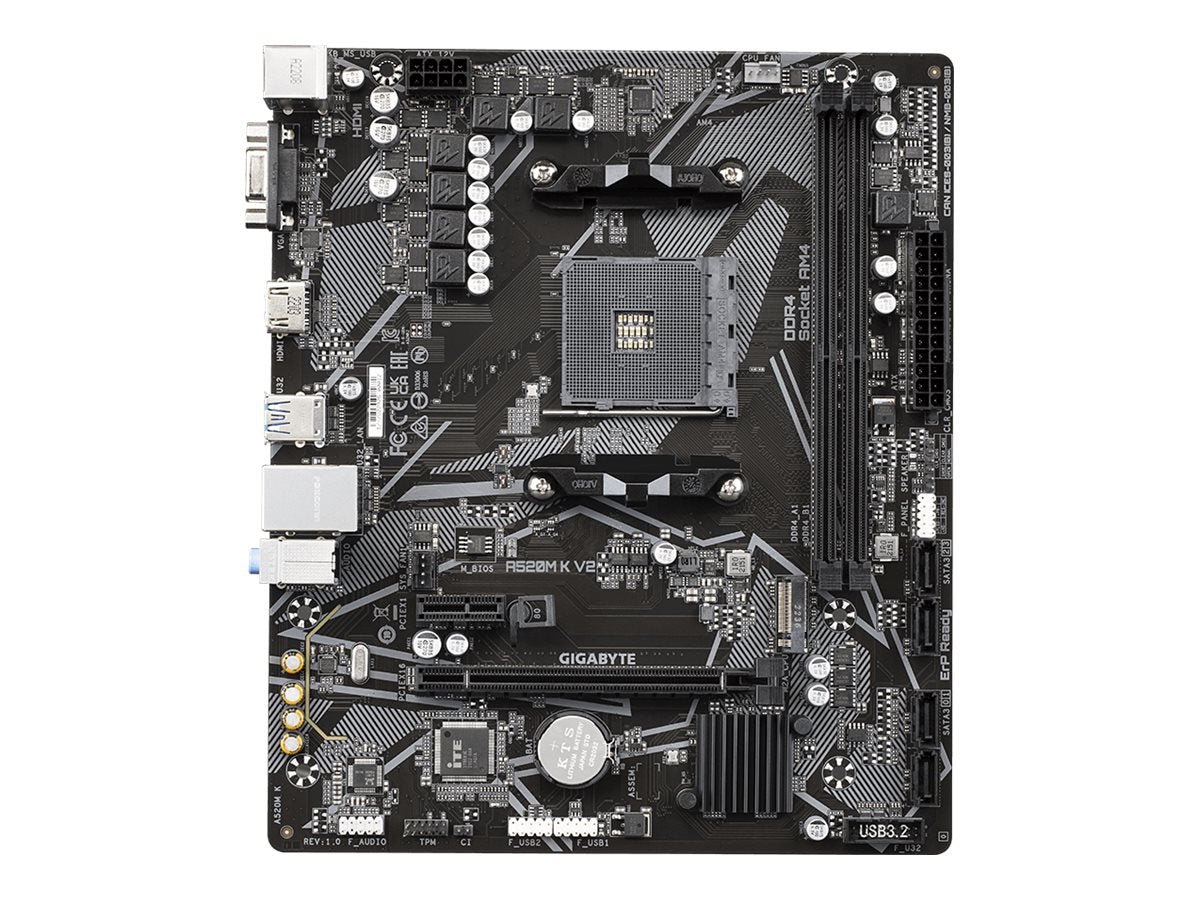

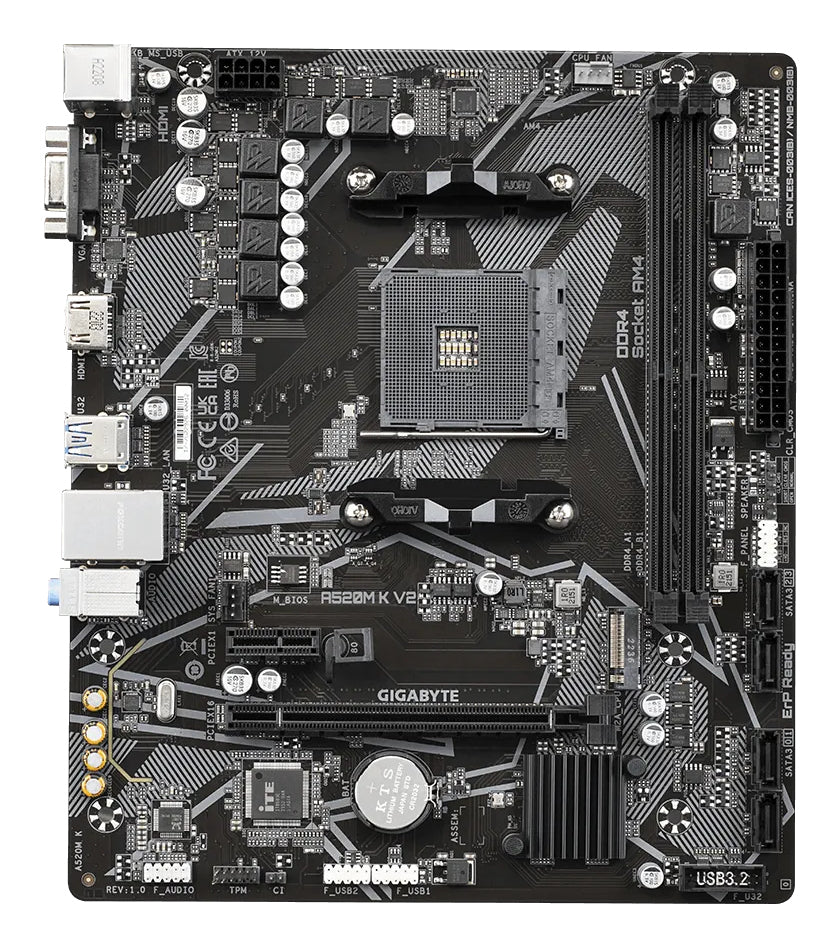

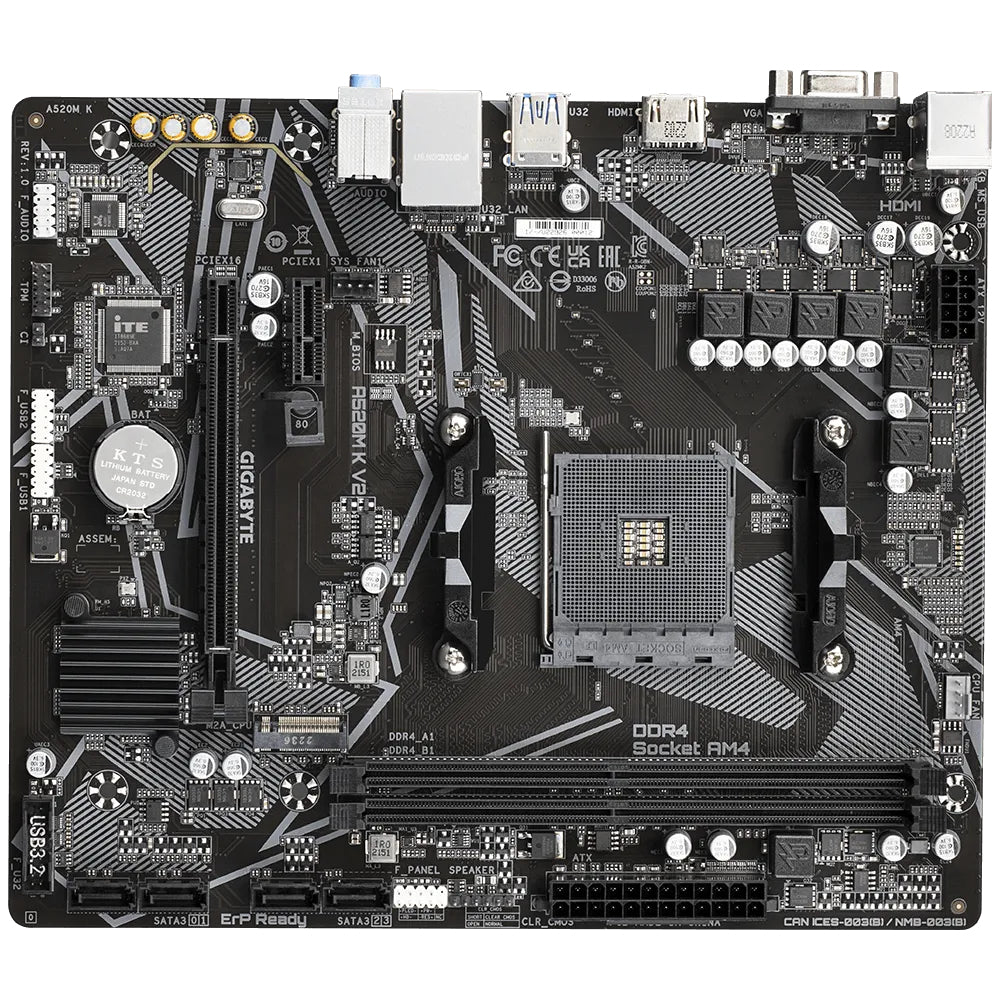

The Gigabyte A520M K V2 1.0 M/B is a Micro ATX motherboard designed for AMD processors featuring the AM4 socket. It supports dual-channel DDR4 DIMM memory with 2 slots and offers various storage options including SATA and M.2 interfaces.

• Chipset: AMD A520
• Number of SATA connectors: 4
• Supports up to 64 GB of DDR4 memory
• Compatible with AMD Ryzen 3000, 4000, 5000 series processors
• RAID support for levels 0, 1, and 10

Internal I/O

• Number of SATA connectors: 4
• Supported hard disk drive interfaces: SATA, M.2

Memory

• Memory slots: 2
• Supported memory types: DDR4 DIMM

Performance

• Chipset: AMD A520
• Motherboard form factor: Micro ATX

Processor

• Processor family: AMD
• Processor socket: AM4
• Compatible processor series: Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors​

Technical details

• Producer product name: A520M K V2 1.0 M/B
• Net weight: 0.80 kg

Specifications

• Warranty: 36 month(s)

Additional specifications

• Processor manufacturer: AMD
• Supported processor sockets: Socket AM4
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Supported memory clock speeds: 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
• Supported memory clock speed (max): 5100 MHz
• Maximum internal memory: 64 GB
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, SATA III
• Number of storage drives supported: 5
• RAID support: Yes
• RAID levels: 0, 1, 10
• Parallel processing technology support: Not supported
• Maximum resolution: 4096 x 2160 pixels
• HDCP: Yes
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Chassis intrusion connector: Yes
• EPS power connector (8-pin): Yes
• TPM connector: Yes
• 12V power connector: Yes

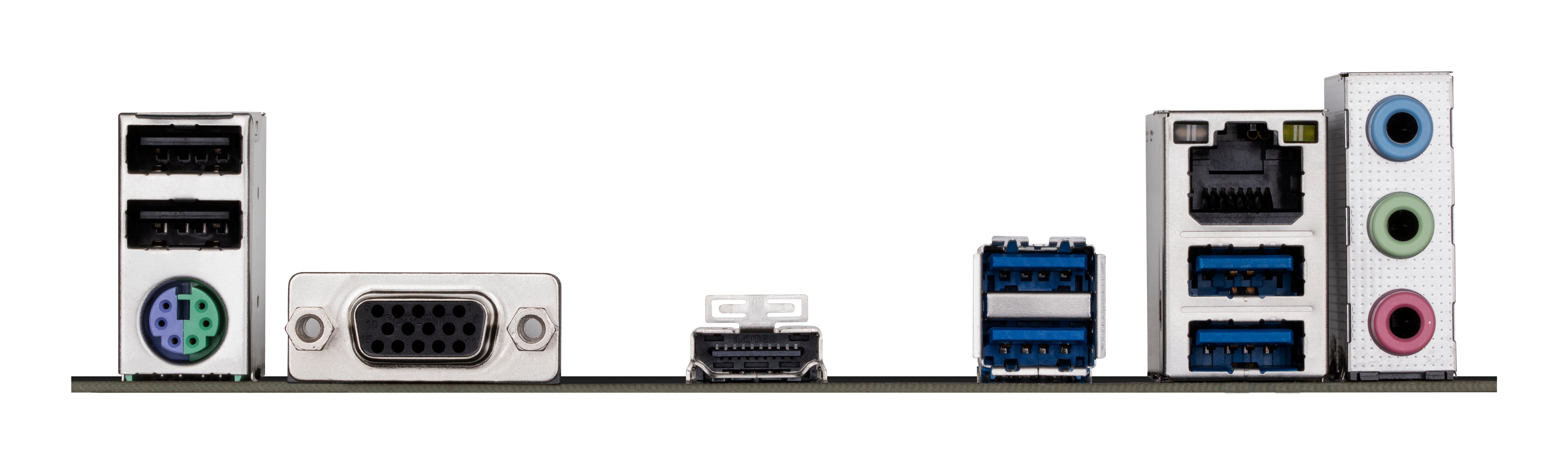

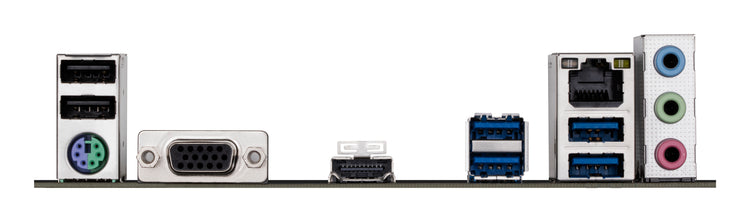

• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Headphone outputs: 3
• Microphone in: Yes
• USB connector type: USB Type-A
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Wi-Fi: No
• Motherboard chipset: AMD A520
• Audio output channels: 7.1 channels
• PC health monitoring: Fan, Temperature, Voltage
• Component for: PC
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10 x64, Windows 11 x64
• PCI Express x1 slots: 1
• PCI Express x16 slots: 1
• Number of M.2 (M) slots: 1
• BIOS type: UEFI AMI
• BIOS memory size: 128 Mbit
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Country of origin: China
• Products per shipping (inner) case: 1 pc(s)
• Battery weight: 3 g
• Lithium weight per battery: 0.07 g
• Number of battery cells: 1
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Battery type: CR2032
• Width: 233 mm
• Depth: 198 mm
• Height: 35 mm
• Cables included: SATA
• Batteries included: Yes
• Bundled software: Norton Internet Security
• Warranty period: 3 year(s)
