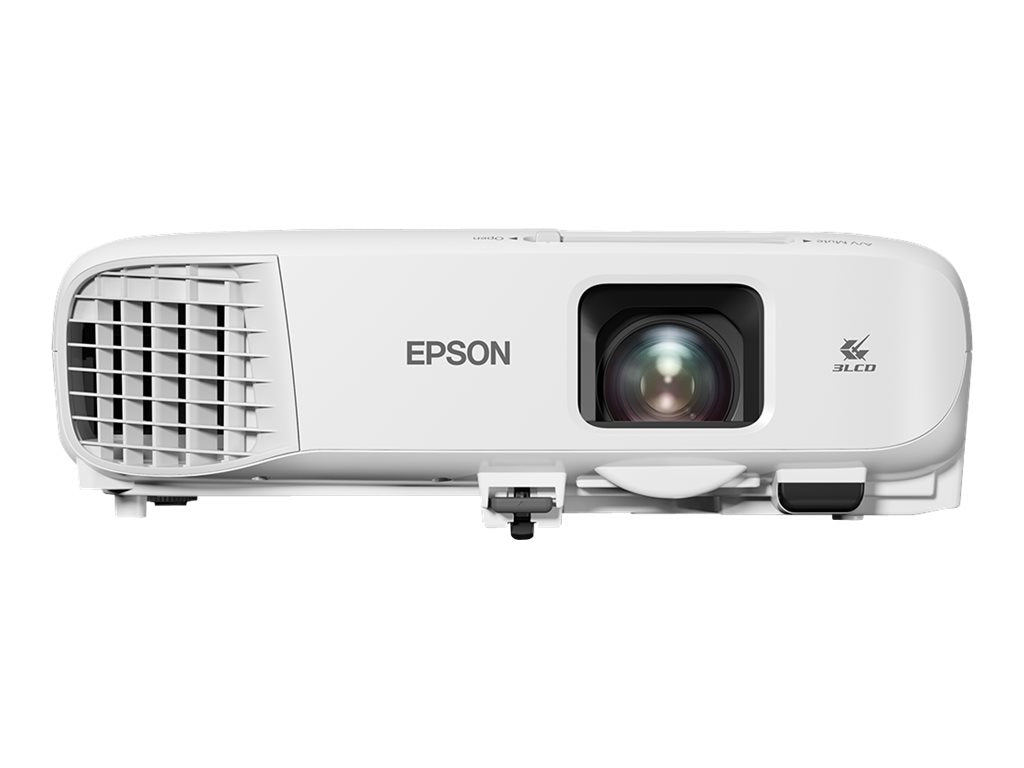

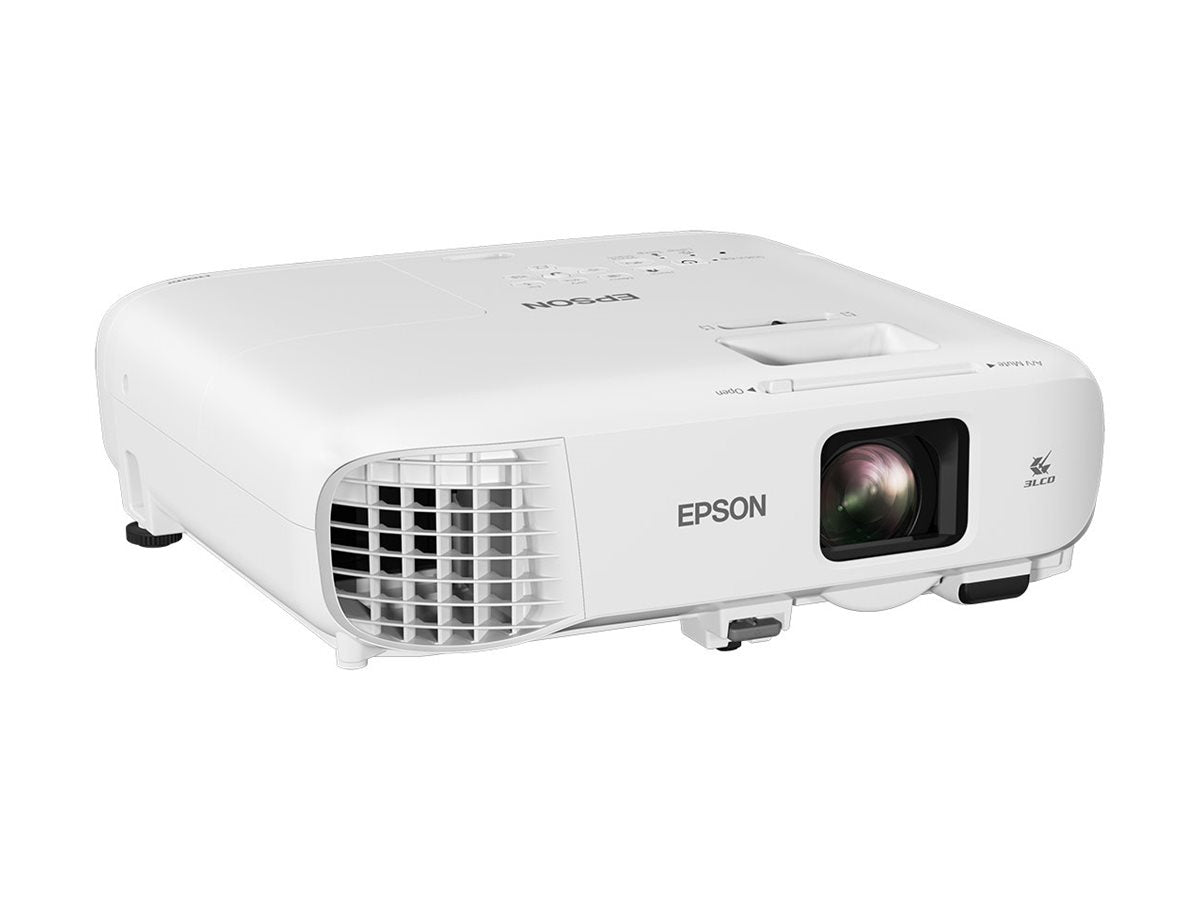

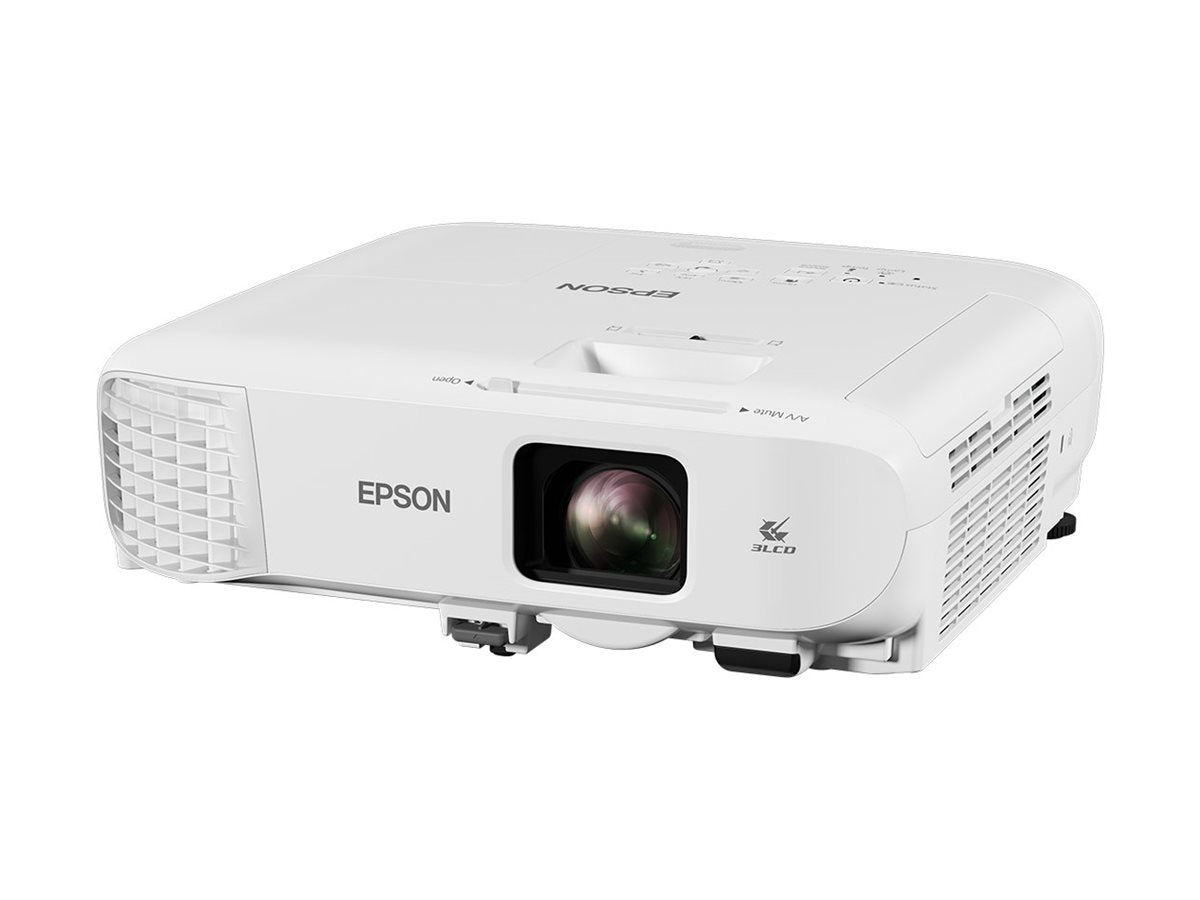

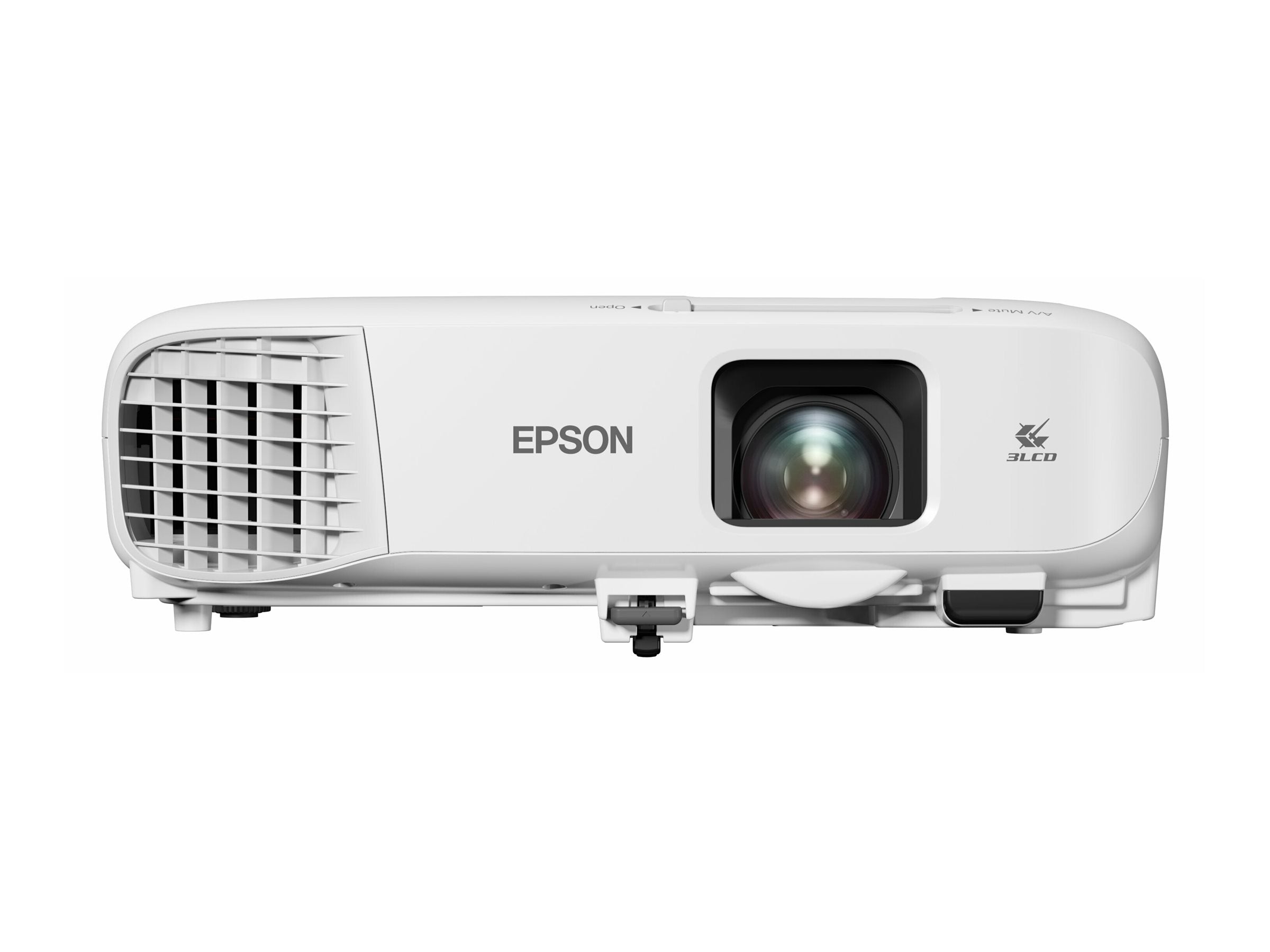

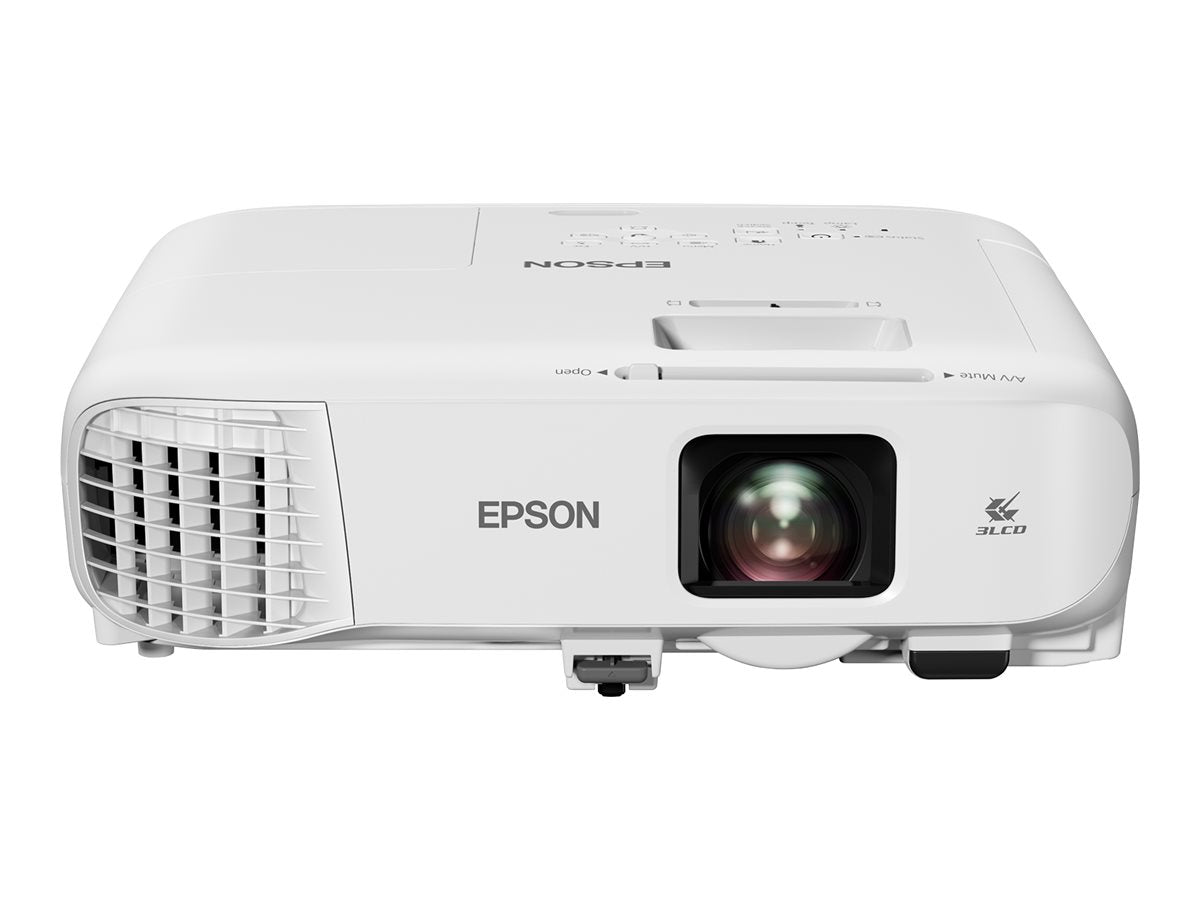

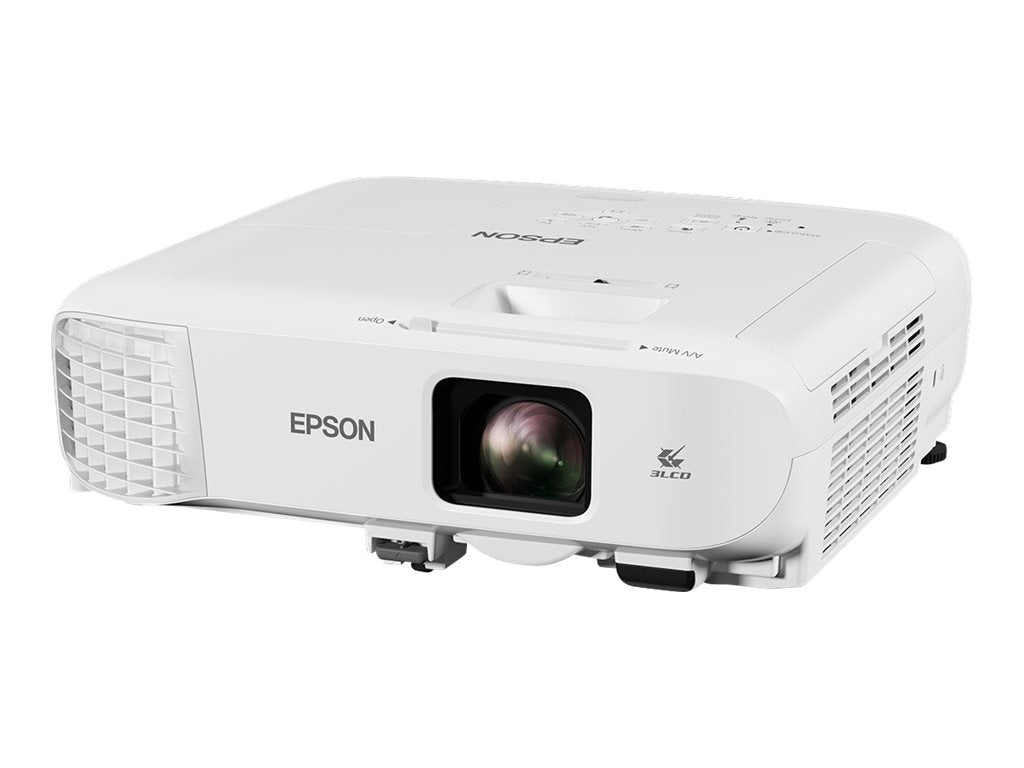

The Epson EB-982W is a 3LCD projector designed for versatile presentations with a native resolution of WXGA (1280x800) and a brightness of 4200 ANSI lumens. It features robust connectivity options including HDMI, VGA, and USB, making it suitable for a variety of setups.

• Maximum resolution of WXGA (1280x800)
• Brightness of 4200 ANSI lumens, ideal for well-lit environments
• Versatile connectivity with HDMI, VGA, and USB ports
• Manual zoom ratio of 1 - 1.6 for flexible image sizes
• Contrast ratio of 16000:1 for improved image quality

Specifications

• Producer product name: EB-982W
• Warranty: 36 month(s)

Design

• Colour of product: White
• Producer product family: 3LCD projector

Technical details

• Brightness: 4200 ANSI lumens
• Lamp warranty: 12 month(s)
• Maximum resolution: WXGA (1280x800)
• Contrast ratio: 16000:1
• Net weight: 3.85 kg
• Other features: Collaborative features: iProjection App, split-screen function, moderator function

Lens system

• Lens type: Optical
• Throw ratio: 1.38-2.24:1

Other features

• Aspect ratio: 16:10

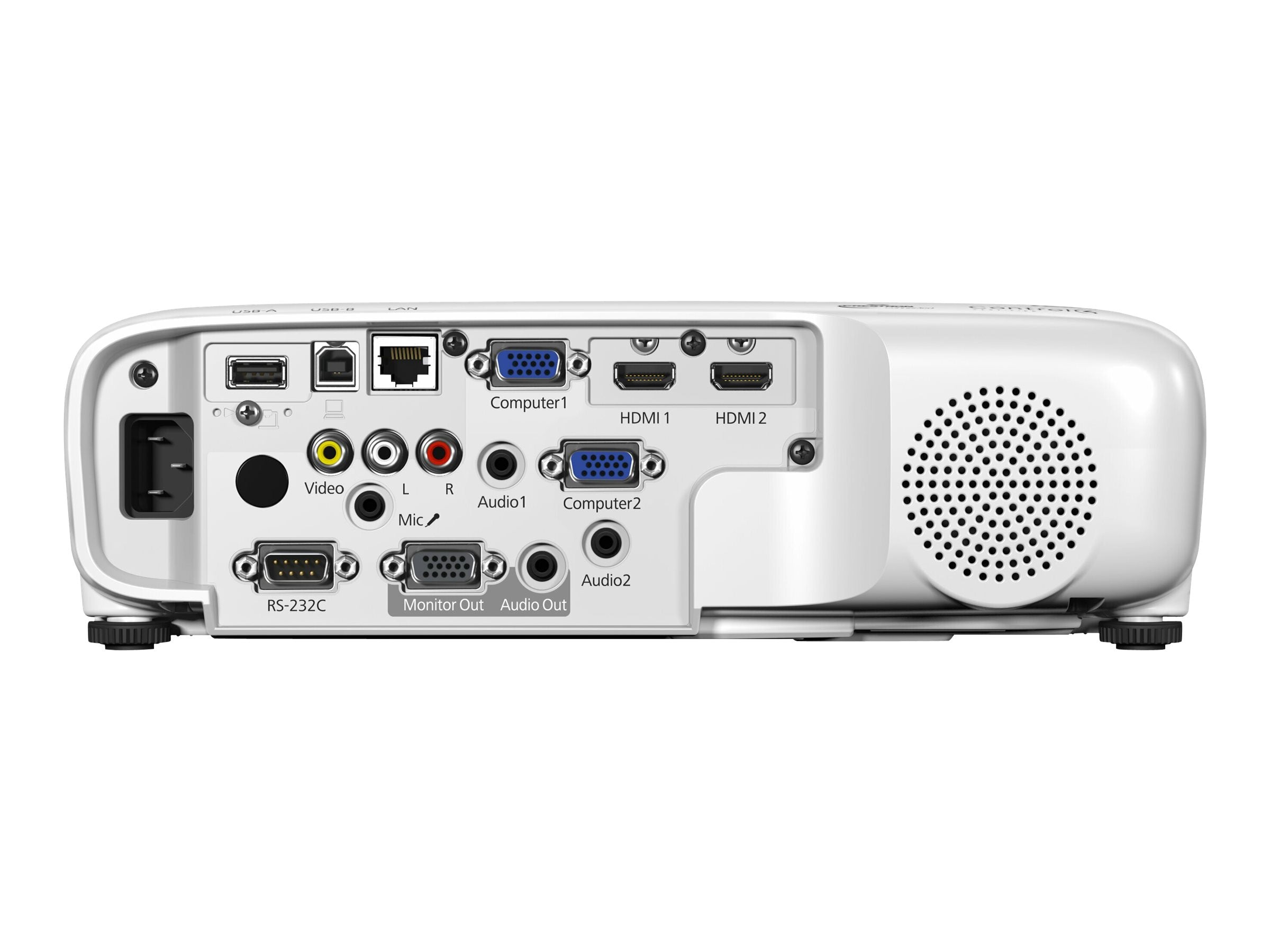

• Connectivity technology: USB 2.0 Type A, USB 2.0 Type B, RS-232C, Wired Network, Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in (2x), Composite in, Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in

Performance

• Light source: Lamp
• Noise level (economic mode): 28 dB
• Noise level (max): 37 dB

Projector

• Projection distance (tele): 1.4-13.7 m
• Projection distance (wide): 0.9-8.5 m
• Zoom ratio: Manual, Factor: 1 - 1.6

Additional specifications

• Screen size compatibility: 584.2 - 7112 mm (23 - 280")
• Projector brightness: 4200 ANSI lumens
• Projection technology: 3LCD
• Projector native resolution: WXGA (1280x800)
• Contrast ratio (typical): 16000:1
• Native aspect ratio: 16:10
• Number of colours: 1.07 billion colours
• Projector brightness (economic mode): 2600 ANSI lumens
• Vertical scan range: 100 - 120 Hz
• Keystone correction, horizontal: -30 - 30°
• Keystone correction, vertical: -30 - 30°
• Matrix size: 1.5 cm (0.59")
• Light source type: Lamp
• Service life of light source: 6500 h
• Service life of light source (economic mode): 17000 h
• Lamp type: UHE
• Lamp power: 230 W
• Focal length range: 18.2 - 29.2 mm
• Aperture range (F-F): 1.51 - 1.99
• Zoom capability: Yes
• Zoom type: Manual
• Full HD: No
• 3D: No
• Video processing: 10 bit
• Video colour modes: Blackboard, Cinema, Dynamic, Sports, sRGB
• USB 2.0 ports quantity: 1
• USB 2.0 Type-B ports quantity: 1
• Serial interface type: RS-232C
• VGA (D-Sub) ports quantity: 2
• HDMI ports quantity: 2
• Composite video in: 1
• DVI port: No
• Ethernet LAN: Yes
• Ethernet LAN (RJ-45) ports: 1
• Noise level: 37 dB
• Country of origin: Philippines
• Password protection: Yes
• Built-in speaker(s): Yes
• RMS rated power: 16 W
• Market positioning: Portable
• Product type: Standard throw projector
• Product colour: White
• Placement: Ceiling, Desktop
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Power source: AC
• Power consumption (typical): 327 W
• Power consumption (standby): 0.3 W
• Power consumption (economy mode): 225 W
• AC input voltage: 100-240 V
• AC input frequency: 50 - 60 Hz
• Software support: via: AMX, Crestron (Network), Control4, Extron
• Operating temperature (T-T): 5 - 35 °C
• Storage temperature (T-T): -10 - 60 °C
• Operating relative humidity (H-H): 20 - 80%
• Storage relative humidity (H-H): 10 - 90%
• Width: 309 mm
• Depth: 282 mm
• Height: 90 mm
• Weight: 3.1 kg
• Package width: 385 mm
• Package depth: 395 mm
• Package height: 175 mm
• Package weight: 4.68 kg
• Remote control included: Yes
• Batteries included: Yes
• Cables included: AC, HDMI
• Quick start guide: Yes
• WLAN adapter included: Yes
• Bundled software: EasyMP Multi PC Projection, Epson Projektor Management
• USB display function: 3 in 1: Image / Mouse / Sound
• Quantity per pack: 1 pc(s)
• Harmonized System (HS) code: 85286200
• Supported network protocols: PJLink
