Bosch GCM 18V-08N
Bosch GCM 18V-08N compound mitre saw: exploded parts diagram, 6 sheets, 169 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

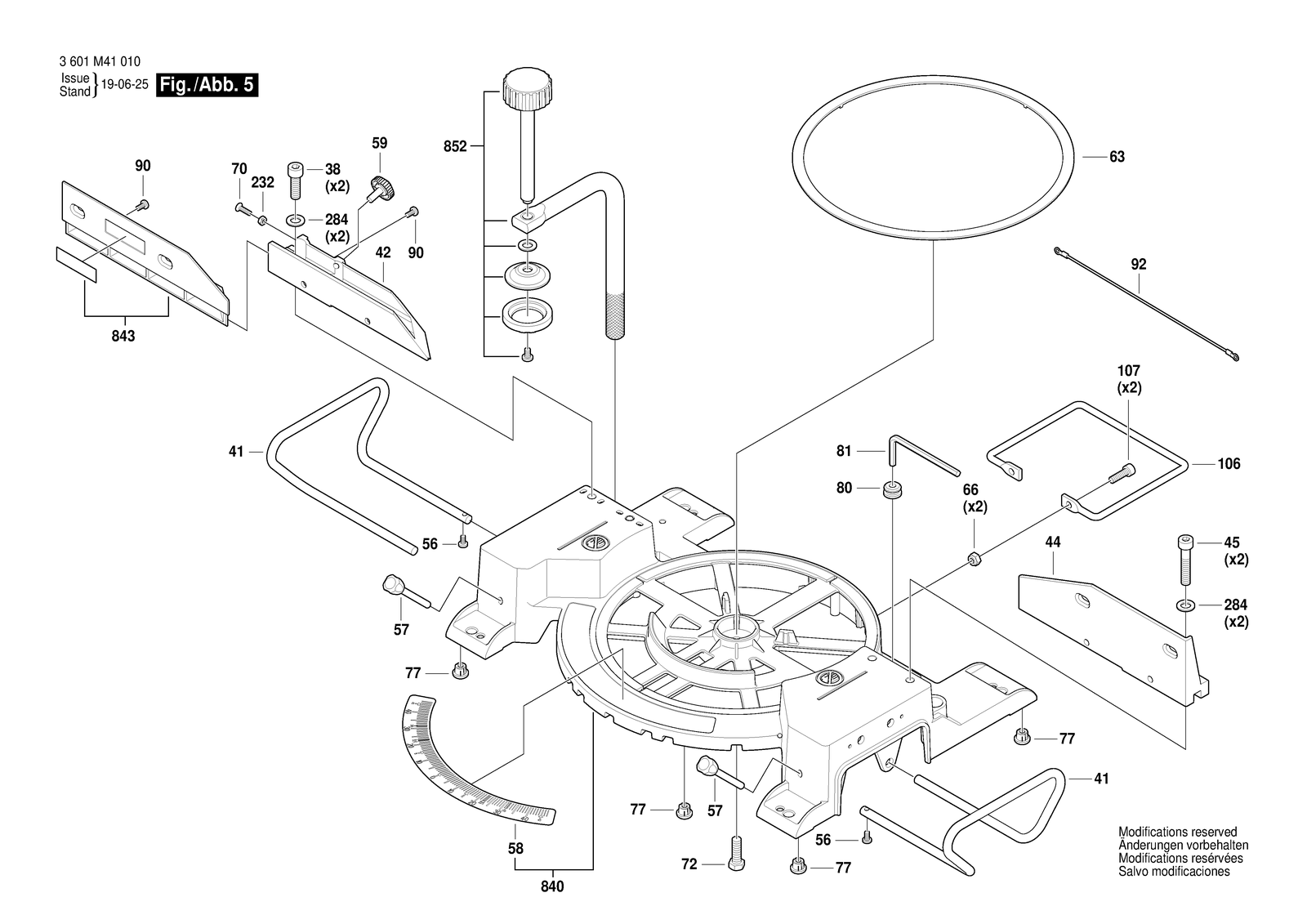

All parts of Bosch GCM 18V-08N: 169 positions on 6 sheets
Bosch GCM 18V-08N parts list (6 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | 1609B01462 | Shoulder Screw |
| 105 | 1609BP7143 | Set screw |
| 106 | 1609B05236 | Clamping Bar |
| 107 | 1609B05268 | Screw |
| 111 | 1609B01668 | Washer |
| 114 | 1609B03739 | Stop Plate |
| 118 | 1609B04134 | Wear Plate |
| 119 | 1609B03758 | Pointer |
| 120 | 1609BP7053 | Compression Spring |
| 121 | 1609BP7045 | Plain Washer |
| 122 | 1609B03749 | Hex Socket Head Cap Screw |
| 123 | 1609BP7343 | Contact strap |
| 124 | 1609B03755 | Knob |
| 125 | 1609B03762 | Rotor |
| 126 | 1609B03763 | Felt Washer |
| 127 | 1609B03769 | Bolt |
| 128 | 1609B02215 | Lever |
| 129 | 1609BP7081 | Screw |
| 130 | 1609B03773 | Friction Plate |
| 131 | 1609B01041 | Hex Nut |
| 132 | 1609B03776 | Stop bolt |
| 133 | 1609B03771 | Pivot Pin |
| 134 | 1609B06272 | Screw |
| 136 | 1609B03767 | Detent Pin |
| 137 | 1609B03757 | Clip |
| 138 | 1609B00601 | O-Ring |
| 140 | 1609B03745 | Handle Plate |
| 141 | 1609B03747 | Carrying Handle |
| 142 | 1609B03768 | Tapping Screw |
| 143 | 1609B03753 | Slide Stop |
| 144 | 1609B03752 | Special Nut |
| 145 | 1609B06667 | O-Ring Black 12,2 X 3,6 |
| 146 | 1609B00660 | Spring Washer |
| 147 | 1609B03795 | Shoulder Screw |
| 148 | 1609B00382 | Knob Red |
| 149 | 1609B00417 | Compression Spring |
| 150 | 1609B02203 | Retaining Plate |
| 151 | 1609B03766 | Retaining Plate |
| 152 | 2610027044 | Dust Extraction |
| 153 | 1609B03777 | Set screw |
| 158 | 2610027045 | Dust Extraction |
| 159 | 2610027046 | Bracket |
| 160 | 1609B01561 | Screw |
| 161 | 1609B05201 | Shoulder Screw |
| 162 | 1609B00623 | Screw |
| 164 | 1609B01690 | Screw |
| 167 | 1609B01602 | Wear Plate |
| 168 | 1609B04188 | Lower guard |
| 169 | 1609B04001 | Linkage |
| 170 | 1609B04002 | Cover |
| 171 | 1609B04004 | Spring |
| 172 | 1609BP7145 | Screw |
| 173 | 1609B05251 | Spring Clip |
| 174 | 1609B04235 | Ball Bearing |
| 176 | 1609B04163 | Screw |
| 178 | 1609B00974 | Lock Nut |
| 179 | 1609BP7134 | Tapping Screw |
| 182 | 1609B04205 | Set screw |
| 184 | 1609BT4033 | Nut |
| 185 | 1609BP7068 | Spring retaining ring |
| 186 | 1609BP7050 | Washer |
| 187 | 1609B03774 | Ball Bearing |
| 188 | 1609B03780 | Spacer |
| 189 | 1600200029 | Plain bearing |
| 190 | 1609B04017 | Deflector |
| 191 | 1609B06271 | Chip Deflector |
| 192 | 1609B04201 | Clamping Flange |
| 193 | 1609B06290 | Clamping Flange |
| 194 | 1609B05364 | Flange Bolt |
| 195 | 1609B04020 | Wheel |
| 197 | 1609B06264 | Housing Cover |
| 198 | 1609B06286 | Housing Cover |
| 199 | 2609110353 | Torx Oval-Head Screw |
| 2 | 160702266T | DC motor |
| 200 | 1609B00637 | Tapping Screw |
| 201 | 1609B00973 | Screw |
| 202 | 1609B06270 | Screw |
| 203 | 1609B00458 | Quick-Lock |
| 21 | 1609B06265 | Ribbon cable |
| 212 | 1609B04208 | Screw |
| 215 | 1609B04664 | Chip Deflector |
| 22 | 1609BP7087 | Tapping Screw |
| 225 | 1609B06301 | Cover |
| 231 | 1609B06266 | Ribbon cable |
| 232 | 1609B00691 | Nut |
| 234 | 1609B03791 | Rubber lip |
| 235 | 1609B04225 | Plain Washer |
| 236 | 1609B04220 | Rubber Strip |
| 238 | 1609B04222 | Rubber Strip |
| 239 | 1609B00633 | Screw |
| 240 | 1609B06262 | Battery Holder |
| 241 | 16072335F8 | Electronics Module |
| 242 | 1609B06832 | Cable Set |
| 244 | 1609B03361 | Screw |
| 245 | 1609280477 | Compression Spring |
| 246 | 1609B06800 | Screw |
| 247 | 1609B06267 | Cover |
| 25 | 1609B06252 | Box |
| 253 | 1609B06281 | Label |
| 257 | 1609B06316 | Label |
| 258 | 1609B06317 | Label |
| 259 | 1609B06318 | Label |
| 26 | 1609B06253 | Cover |
| 260 | 1609B06282 | Label |
| 261 | 1609B06319 | Label |
| 262 | 1609B06320 | Label |
| 28 | 1619P01642 | Compression Spring |
| 284 | 1609B00703 | Plain Washer |
| 29 | 1609B04070 | Cap |
| 30 | 1609B06268 | Locking Lever |
| 31 | 1609B06269 | Compression Spring |
| 32 | 1609B04073 | Guide Bracket |
| 38 | 1609BP7084 | Screw |
| 39 | 1609B06570 | Cover |
| 4 | 2607202382 | Switch |
| 41 | 1609B06291 | Extension |
| 42 | 1609B06259 | Mitre Fence |
| 44 | 1609B06261 | Mitre Fence |
| 45 | 1609B02206 | Screw |
| 46 | 1609B05238 | Table |
| 51 | 1609B03746 | End cap |
| 52 | 1609B06251 | Handle |
| 56 | 1609B00780 | Screw |
| 57 | 1609BP7326 | Knob |
| 58 | 1609B03708 | Scale |
| 59 | 1609B05382 | Knurled Screw |
| 60 | 1609B05298 | Cover |
| 61 | 1609B00863 | Plain Washer |
| 62 | 1609B00717 | Pointer |
| 63 | 1609B03714 | Wear Plate |
| 66 | 1609B01949 | Nut |
| 67 | 1609B06571 | Washer |
| 70 | 1609B00682 | Screw |
| 72 | 1609B05203 | Bolt |
| 74 | 1609B00704 | Lock Nut |
| 75 | 1609B00670 | Washer |
| 77 | 1609B00705 | Rubber Bushing |
| 80 | 1609BP7098 | Rubber Ring |
| 808 | 1609BN0377 | Nameplate |
| 81 | 1609BP7026 | Hexagon Socket Screw Key |
| 822 | 1609B01726 | Laser |
| 825 | 1609B04127 | Dust-Protection Cover |
| 84 | 1609B05242 | Support Plate |
| 840 | 1609B06665 | Base |
| 843 | 1609B06578 | Mitre Fence |
| 844 | 1609B06666 | LED lamp |
| 847 | 1609B06579 | Pivot |
| 848 | 1609B06663 | Yoke |
| 849 | 1609B06664 | Arm |
| 850 | 1609B05349 | Gear cover |
| 851 | 1607A350CH | Battery Pack GBA18V80 8.0AH Procore Scm |
| 852 | 1609B04224 | Clamp |
| 853 | 2607226257 | Fast Charger Usa GAL 18V-40 120V/ 4A/ 10.8-18V |
| 854 | 1609B06278 | Dust Bag |
| 855 | 1609B06572 | Gear |
| 86 | 1609B05240 | Rod |
| 866 | 1609B04124 | Torsion Spring |
| 87 | 1609B04079 | Knob |
| 88 | 1609B05241 | Lever |
| 89 | 1609B02211 | Spring |
| 90 | 1609B01664 | Screw |
| 92 | 1609B05115 | Cable |
| 93 | 1609BP7341 | Contact strap |
| 94 | 1609B03727 | Supporting foot |
| 95 | 1609B03729 | Wear Plate |
| 96 | 1609B04108 | Pivot Shaft |
| 97 | 1609B04086 | Screw |
| 98 | 1609B03723 | Screw |
| 99 | 1609B01324 | Plain Washer |
