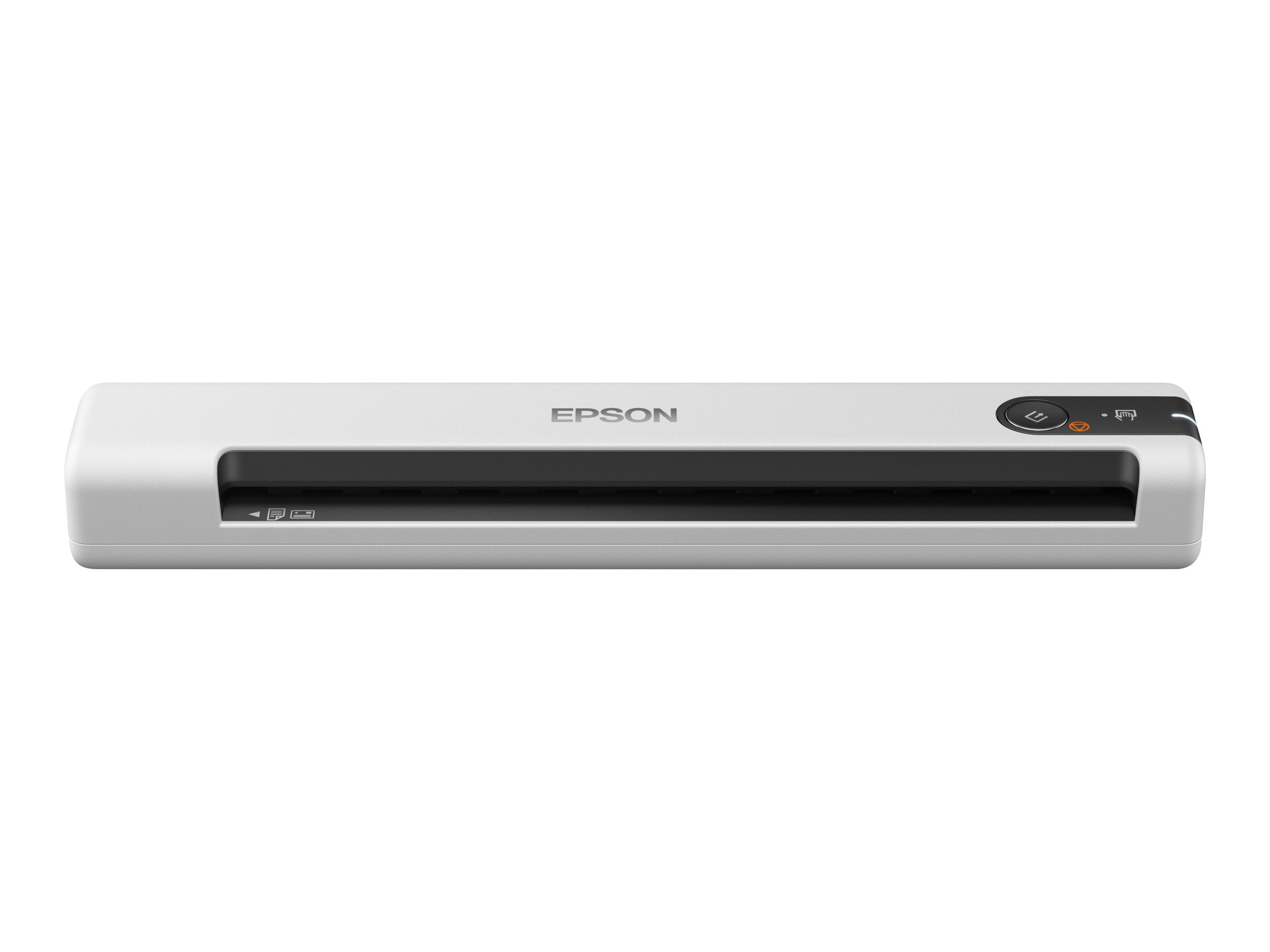

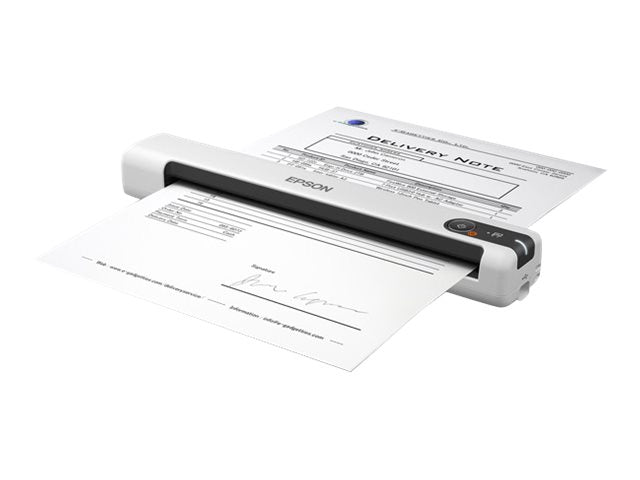

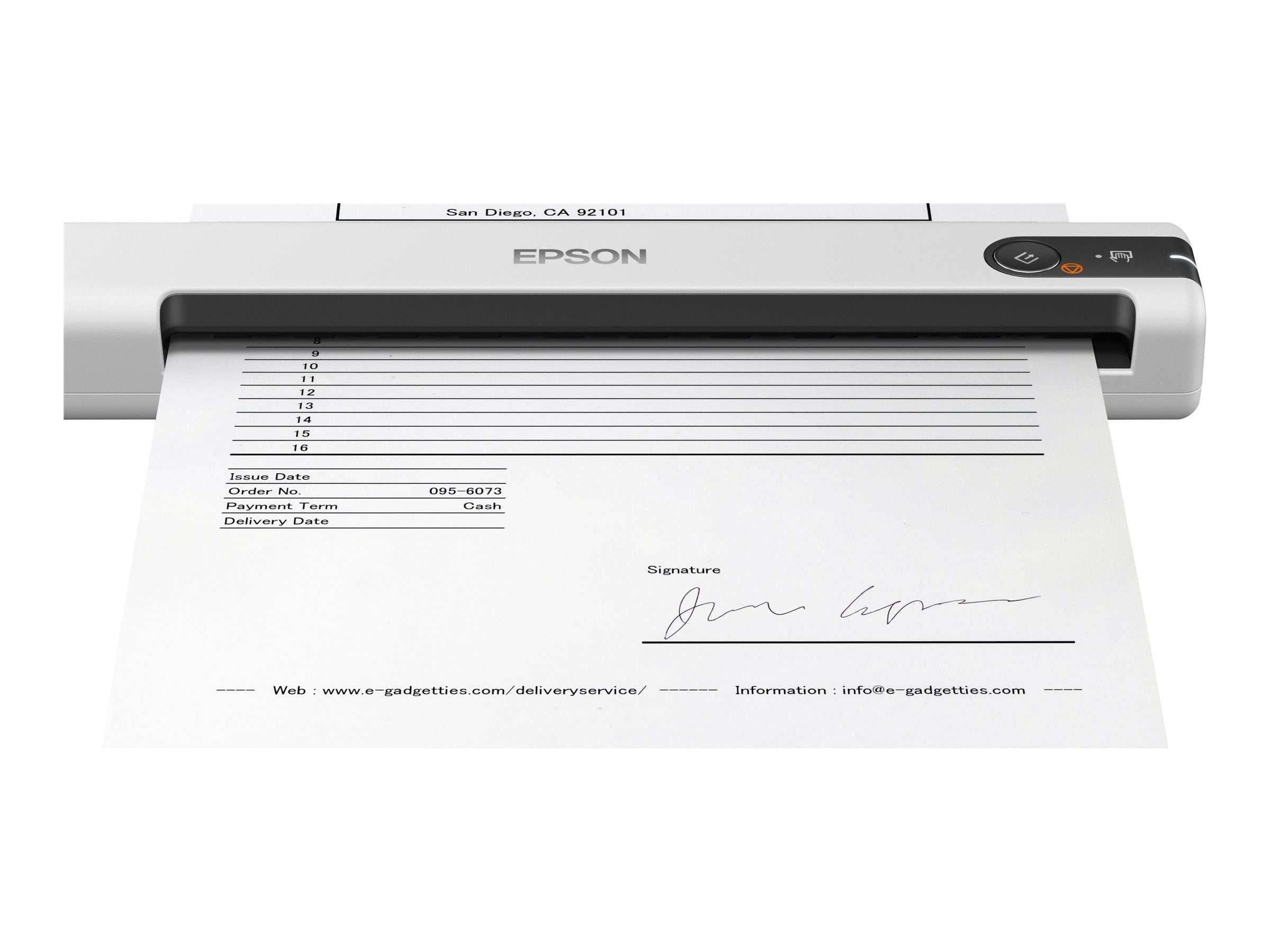

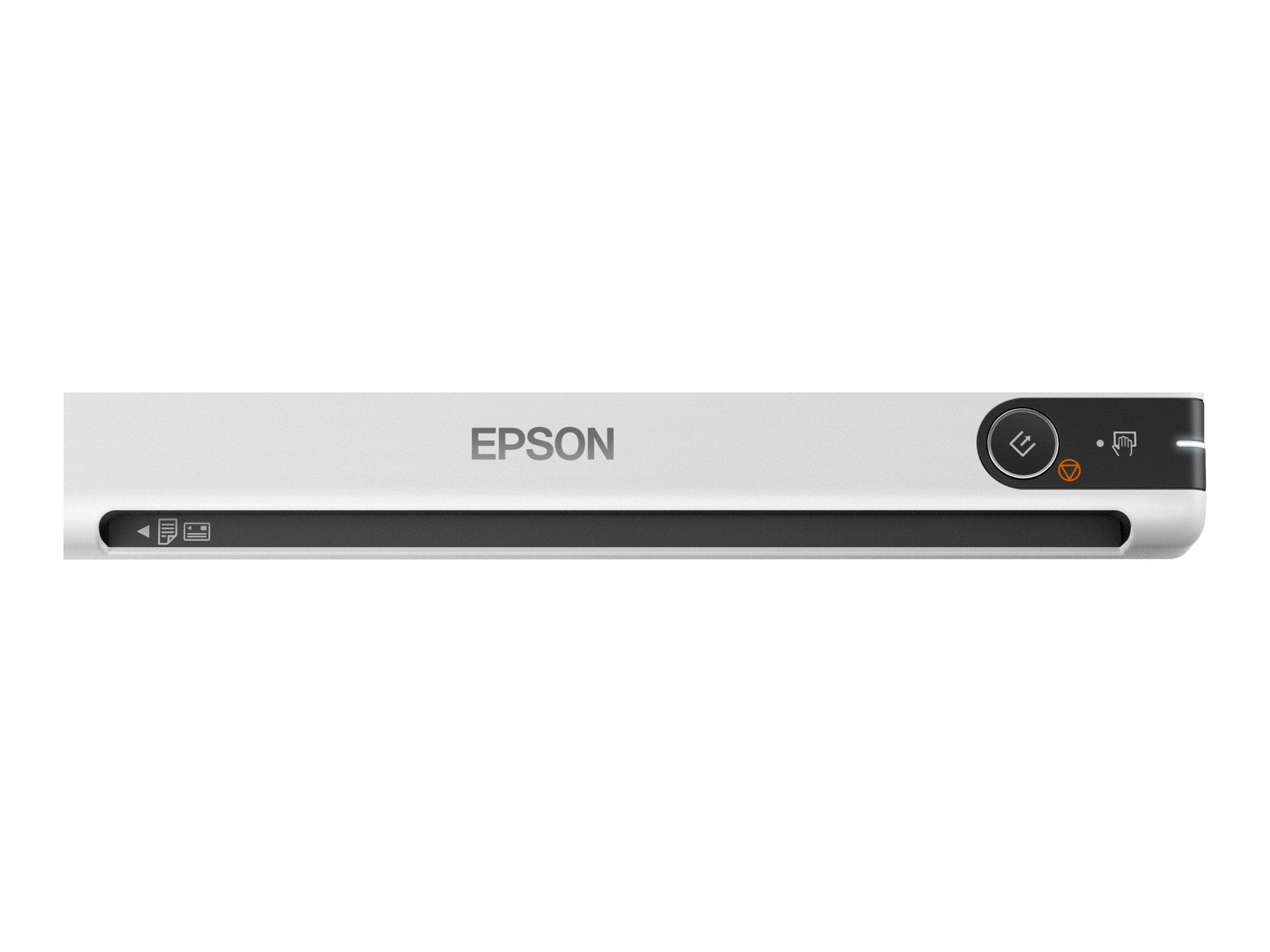

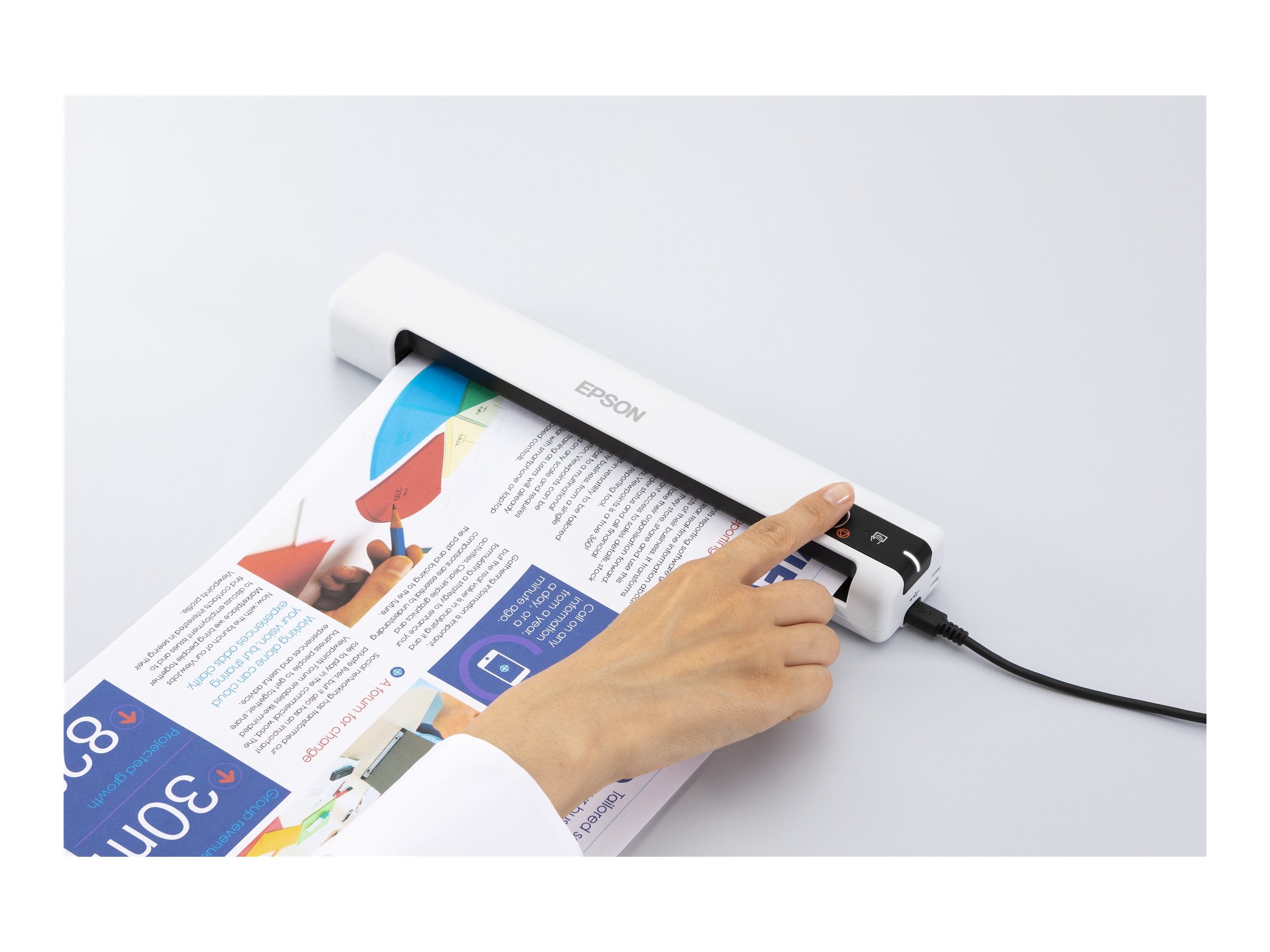

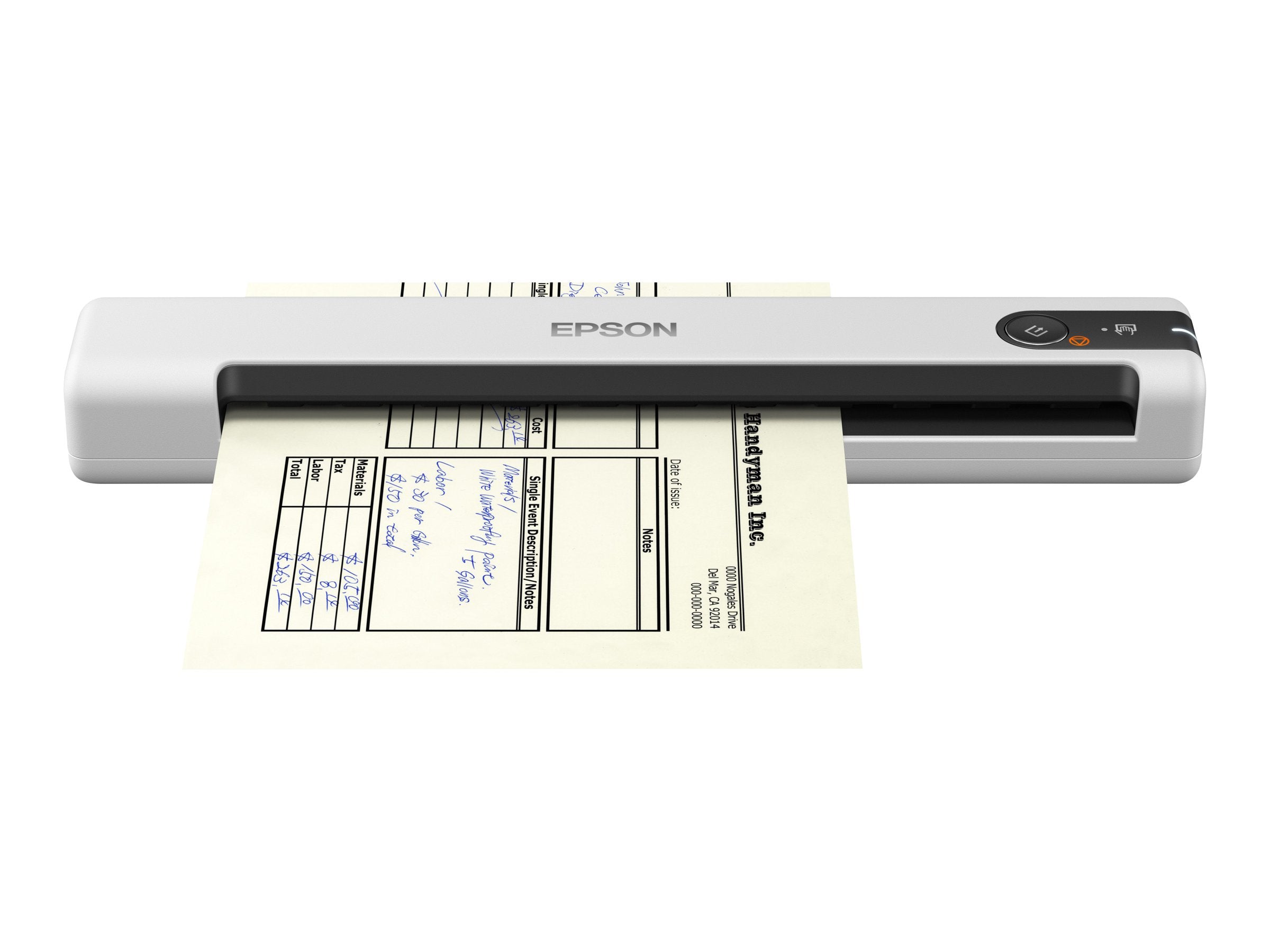

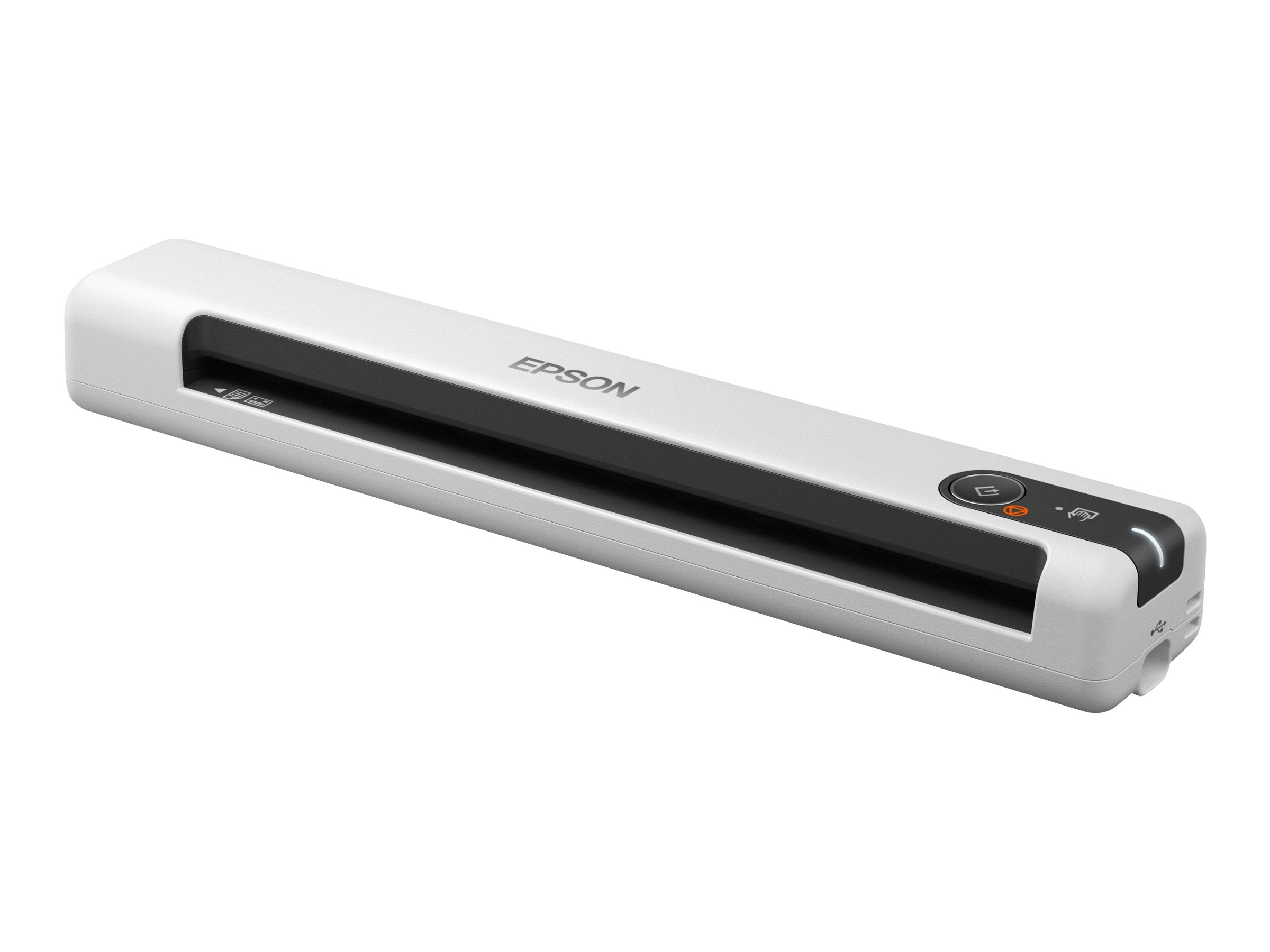

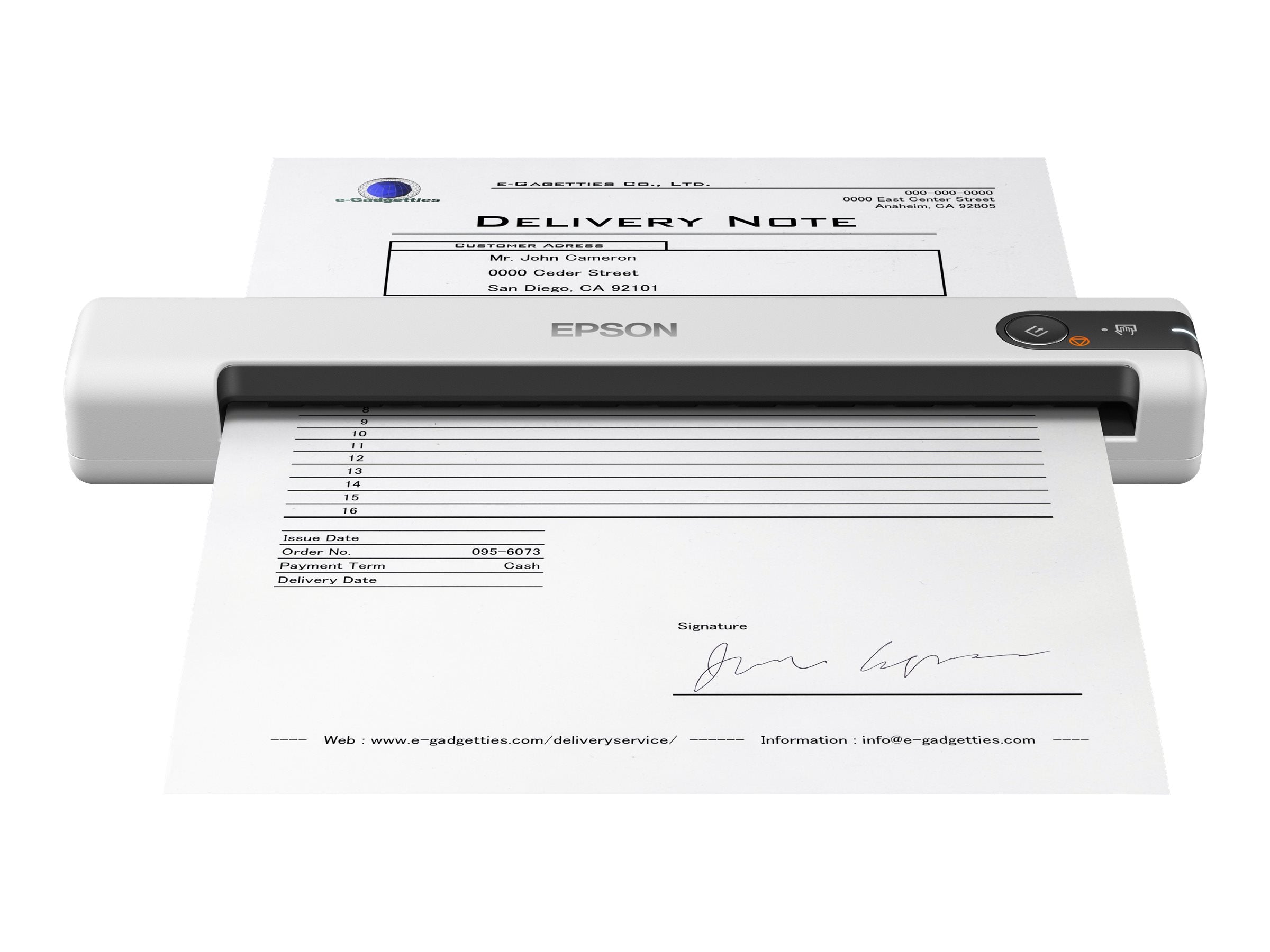

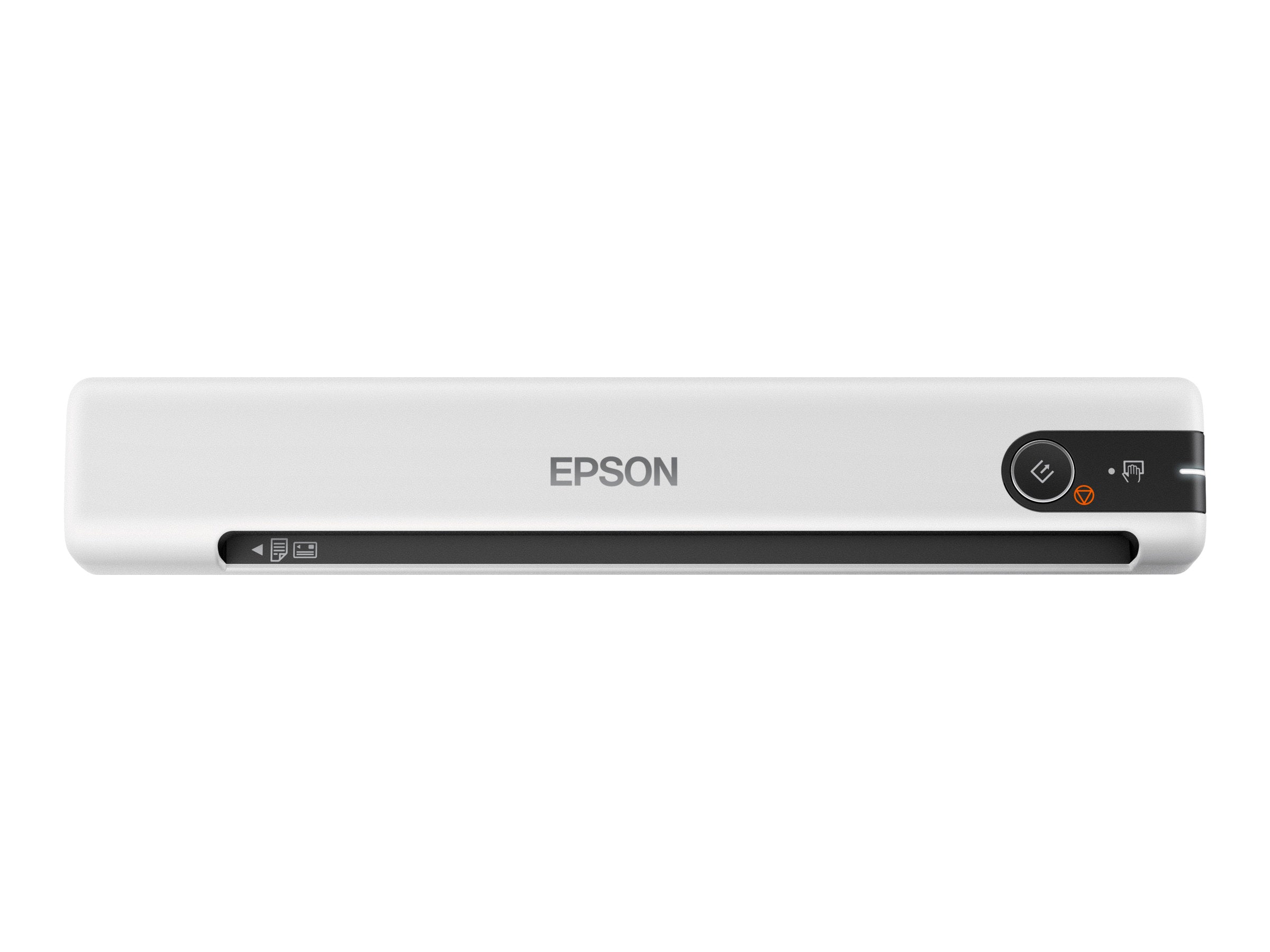

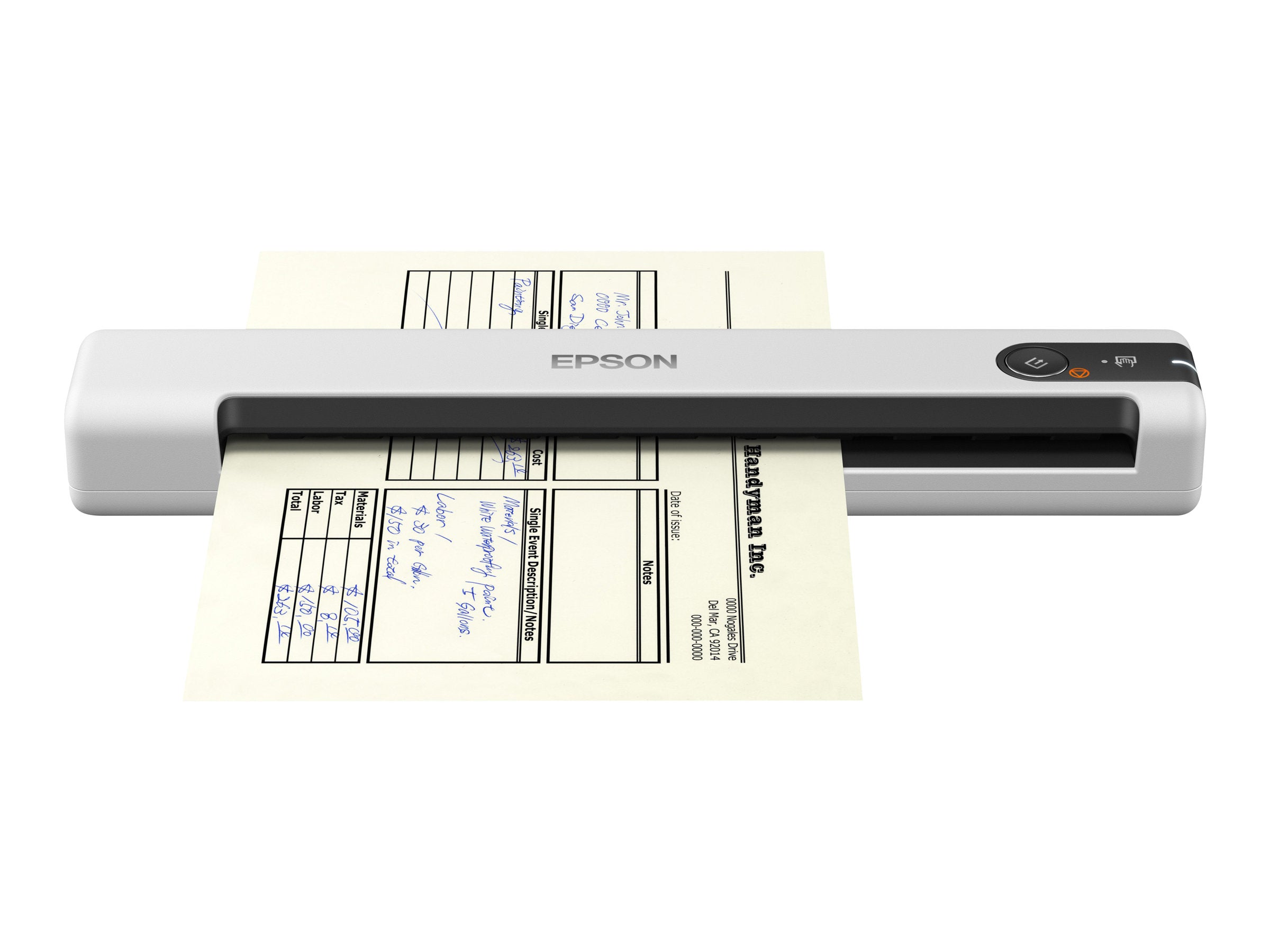

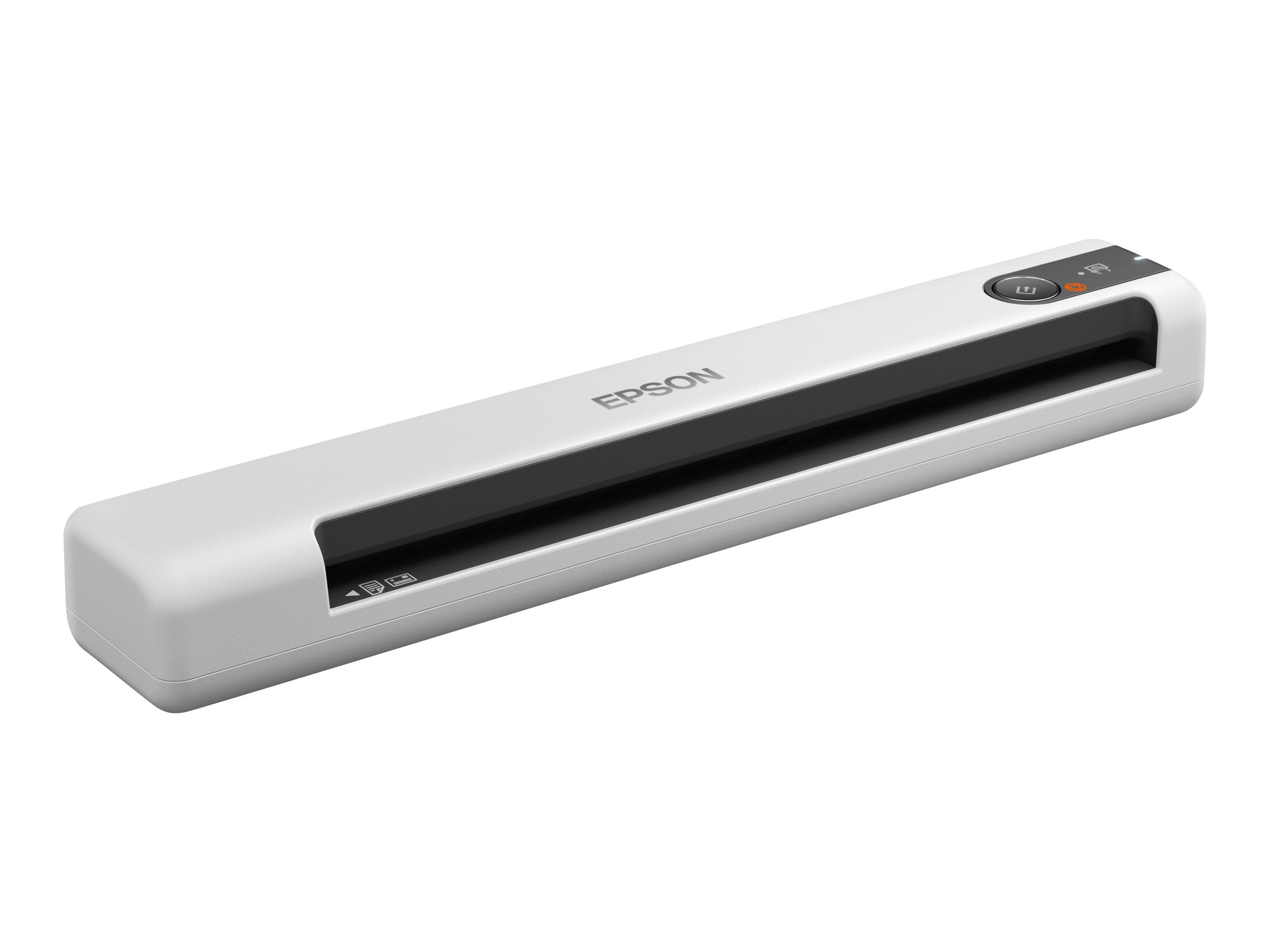

The Epson WorkForce DS-70 is a compact mobile document scanner designed for efficient color scanning. It supports A4-sized documents and offers a maximum optical resolution of 600 x 600 DPI, making it suitable for various scanning tasks.

• Compact and lightweight design at 0.414 kg
• Scans A4 documents with a maximum size of 216 x 356 mm

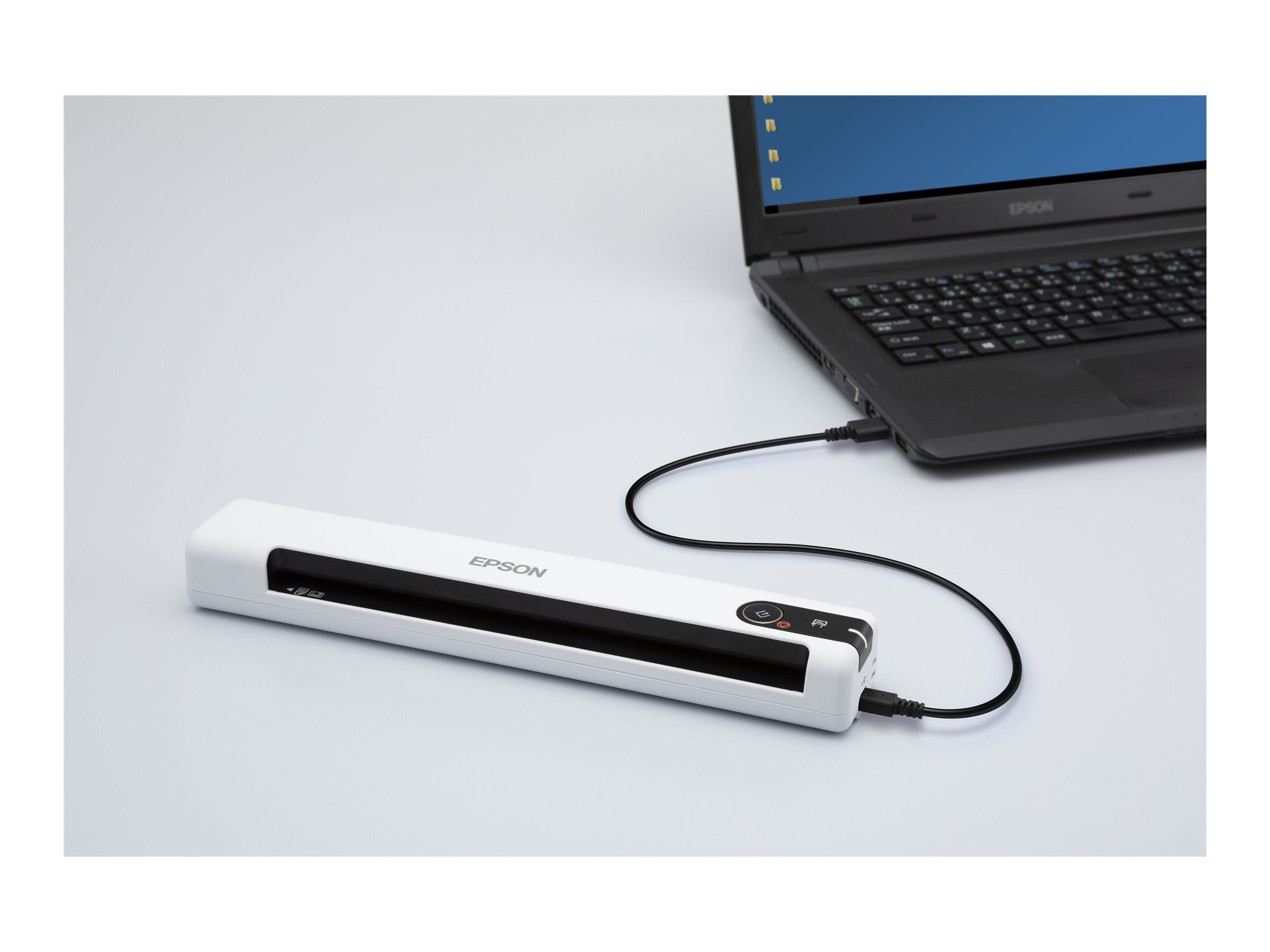

• Connects via USB 3.0 for easy transfer
• Scans documents in multiple formats including BMP, JPEG, PDF, and TIFF
• Daily duty cycle of up to 300 pages

Specifications

• Producer product family: Mobile document scanner
• Producer product name: WorkForce DS-70

Design

• Scanner type: Colour

Paper handling

• Maximum ISO A-series paper size: A4

Ports & interfaces

• Interface: USB 3.0

Scanning

• Optical scanning resolution: 600 x 600 DPI

Technical details

• Net weight: 0.414 kg
• Warranty: 12 month(s)

Additional specifications

• Maximum scan size: 216 x 356 mm
• Colour scanning: Yes
• Duplex scanning: No
• Input colour depth: 48 bit
• Output colour depth: 24 bit
• Input greyscale depth: 16 bit
• Output greyscale depth: 8 bit
• Output monochrome depth: 8 bit
• Scan speed (b/w, low res, A4): 5.5 sec/page
• Scan speed (colour, low res, A4): 5.5 sec/page
• Product colour: White
• Built-in display: No
• Sensor type: CIS
• Light source: ReadyScan LED
• Scan file formats: BMP, JPEG, PDF, PNG, TIFF
• Daily duty cycle (max): 300 pages
• Scan drivers: TWAIN, WIA, SANE, ICA
• Auto document feeder (ADF) input capacity: 1 sheets

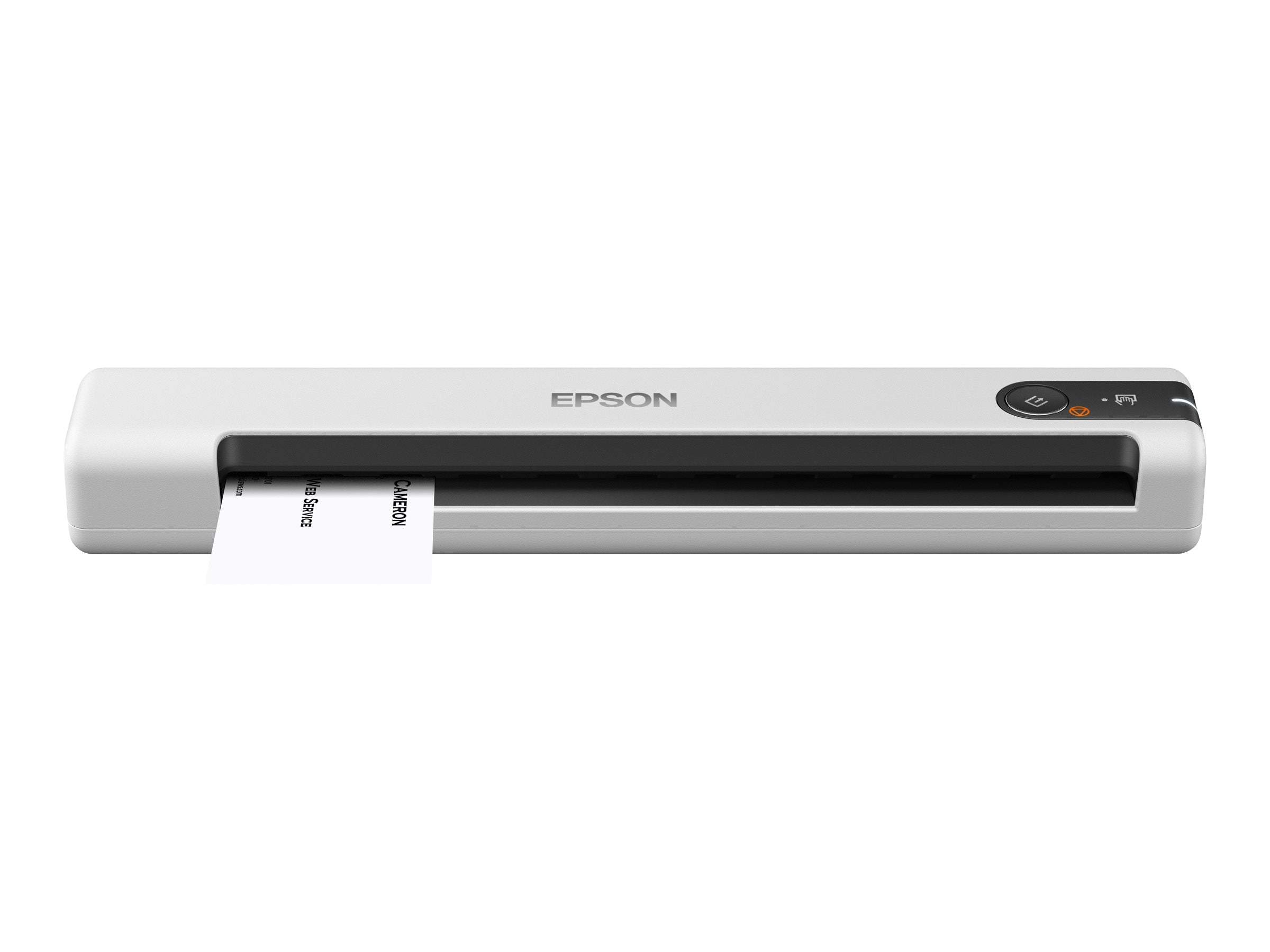

• Scanning media types supported: Business Card, Plastic Card, Post Card(JPN)
• Paper tray media weight: 35 - 270 g/m²
• Auto Document Feeder (ADF) media weight: 35 - 270 g/m²
• USB port: Yes
• USB version: 2.0
• Standard interfaces: USB 2.0
• Power supply type: USB
• Width: 272 mm
• Depth: 47 mm
• Height: 34 mm
• Weight: 270 g
• Cables included: USB
• Bundled software: Document Capture Pro 2.0, Epson Scan 2
• Compatible operating systems: Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP
• Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
• Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
• Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016
• Operating temperature (T-T): 5 - 35 °C
• Storage temperature (T-T): -25 - 60 °C
• Operating relative humidity (H-H): 10 - 85%
• Storage relative humidity (H-H): 10 - 90%
• Output resolutions: 600 dpi
• Image formats supported: BMP, JPEG, TIFF, PNG
• Country of origin: China
• Master (outer) case length: 360 mm
• Master (outer) case height: 320 mm
• Master (outer) case width: 350 mm
• Products per master (outer) case: 10 pc(s)
• Master (outer) case GTIN (EAN/UPC): 8715946662596
• Harmonized System (HS) code: 84716070
