Description

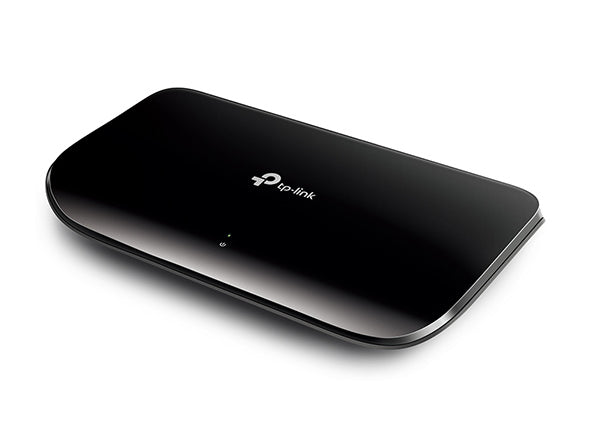

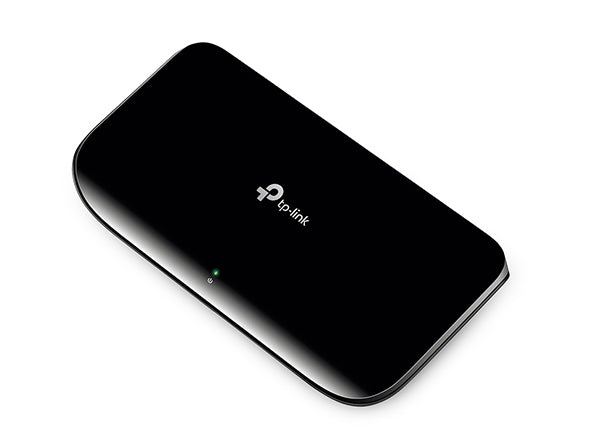

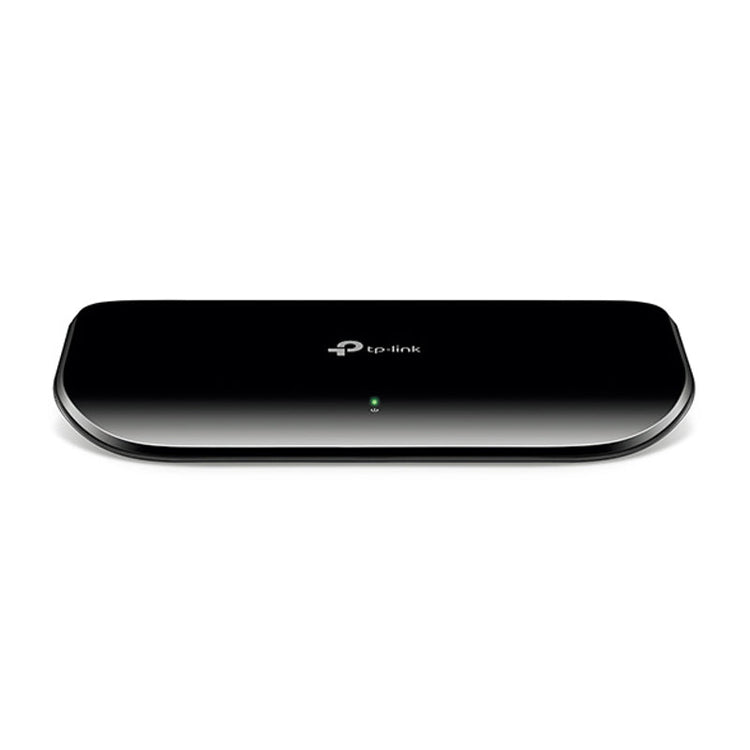

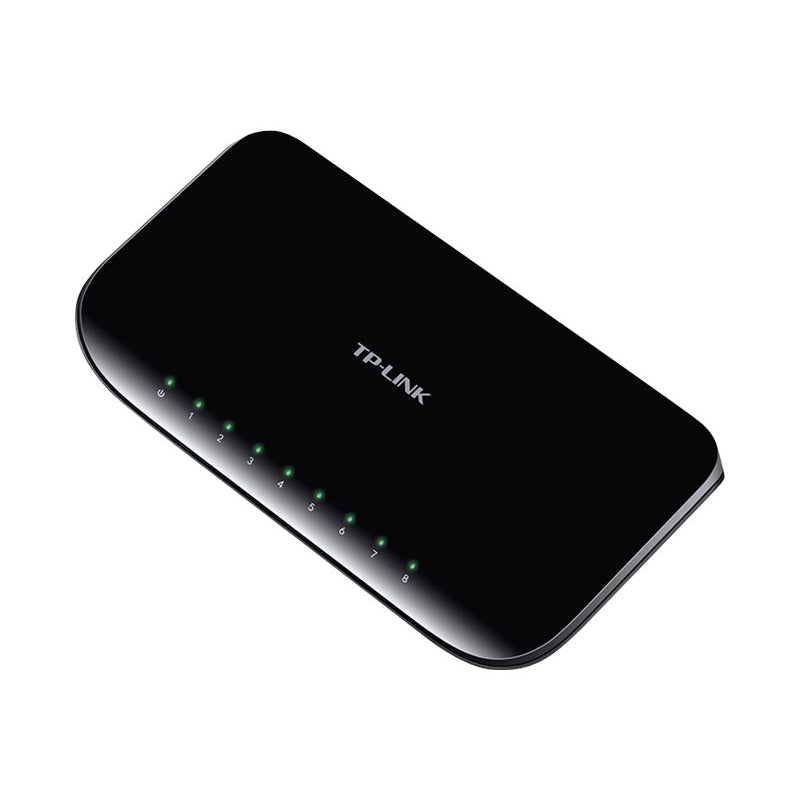

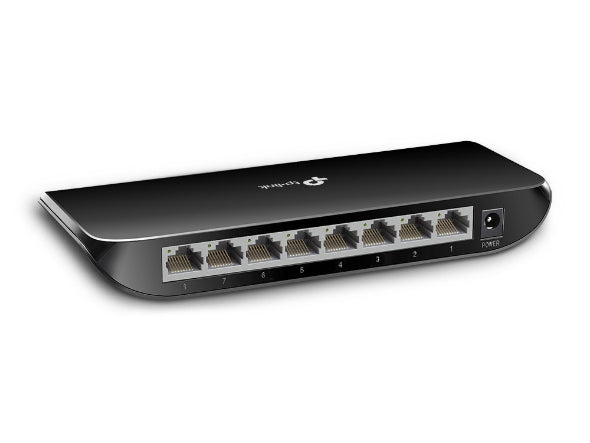

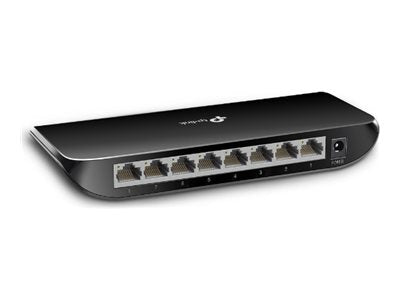

The TP-LINK TL-SG1008D is an unmanaged desktop switch designed for users who need to expand their wired network with minimal setup. With eight Gigabit Ethernet ports, this switch is suitable for connecting multiple devices in home or office environments without complicated configurations.
- Eight Gigabit Ethernet ports allow for high-speed connections to multiple devices.
- The unmanaged design ensures easy setup and use, perfect for those who want a straightforward networking solution.
- Supports a range of cable types including Cat5e, ensuring compatibility with existing installations.
- Full duplex operation maximizes data throughput for efficient communication between connected devices.
- Jumbo frames support enables improved performance in high-demand environments like media streaming or large file transfers.
Specifications (2)
- Producer product family: Switch
- Producer product name: TL-SG1008D
Design (1)
- Form factor: Desktop
Management features (1)
- Switch type: Unmanaged
Other features (1)
- Power supply type: External
Ports & interfaces (3)

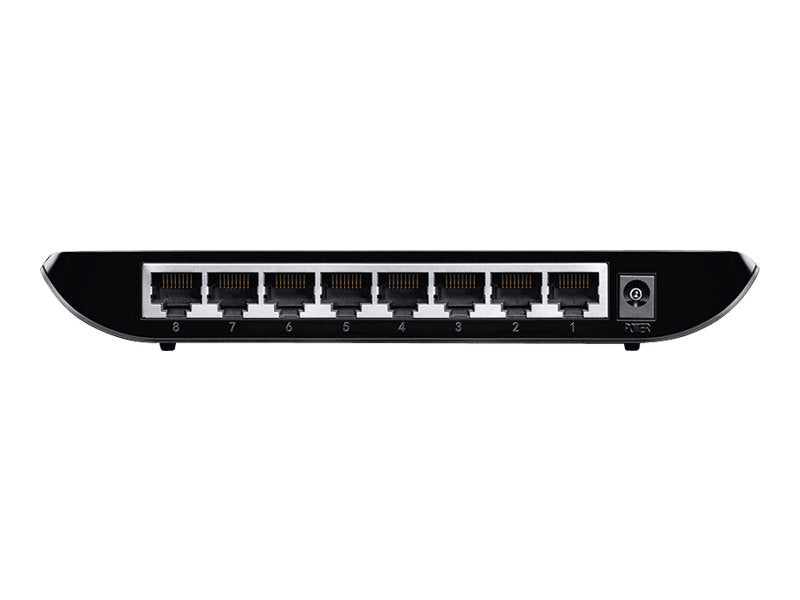

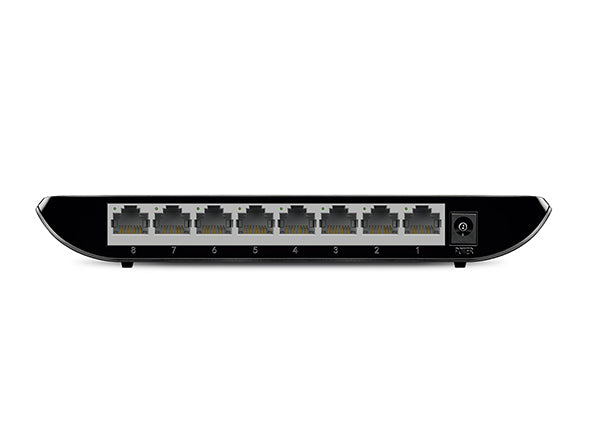

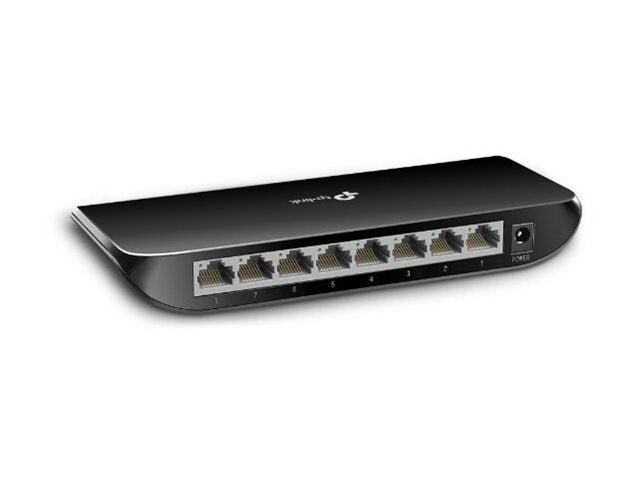

- Gigabit Ethernet (copper) ports quantity: 8
- POE: No
- Predominant port type: 1 Gbps (RJ-45)
Technical details (3)
- Warranty: 36 month(s)
- Net weight: 0.163 kg
- Other features: Plastic case
Additional specifications (52)
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,480,800,1000 Mbit/s
- Auto-negotiation: Yes
- Switching capacity: 16 Gbit/s
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 15000
- Packet forwarding rate (1 Gbps): 14880 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 1488000 pps
- Packet buffer memory: 2 MB
- Rack mounting: No
- Stackable: No
- Product colour: Black
- Housing material: Plastic

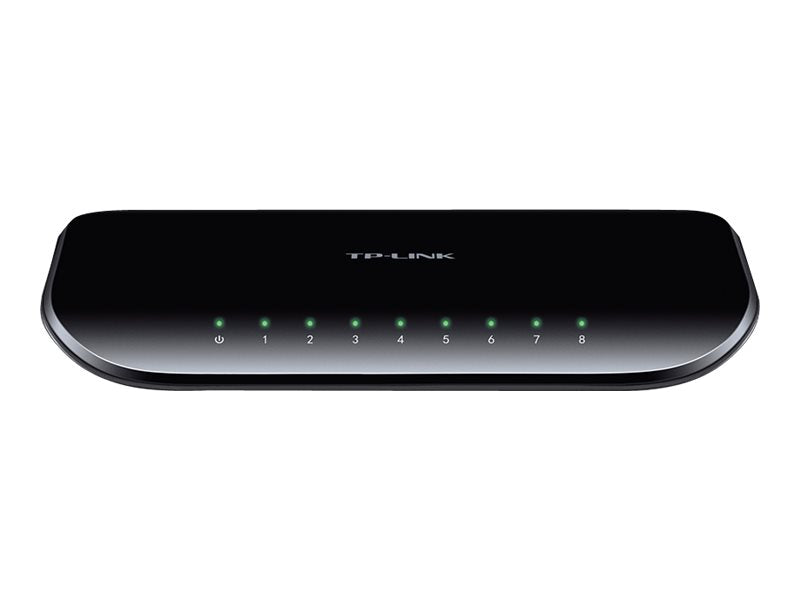

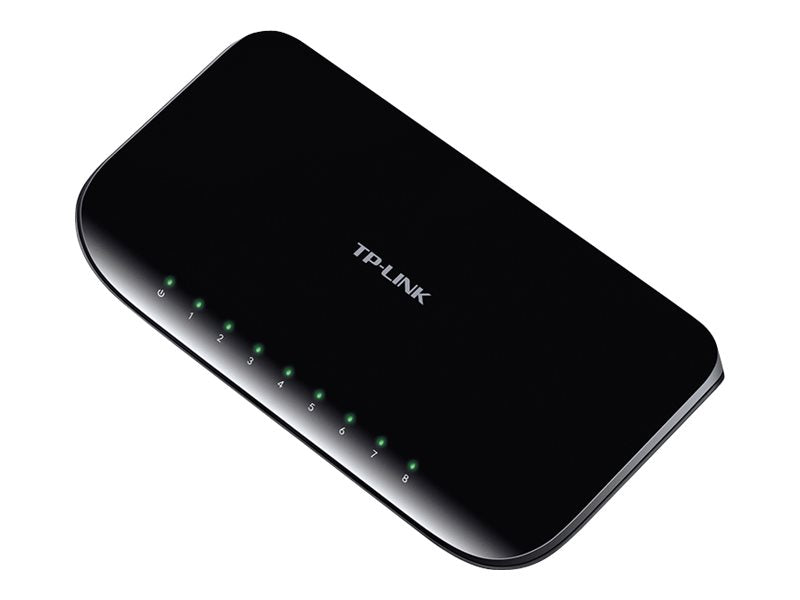

- LED indicators: Yes
- Wall mountable: Yes
- Maximum cable length: 100 m
- Fanless: Yes
- Power source: DC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- DC input voltage: 9 V
- Input current: 0.6 A
- Power consumption (typical): 4.63 W
- Power consumption (max): 3.53 W
- Power over Ethernet (PoE): No
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 15.8 BTU/h
- Width: 180 mm
- Depth: 90 mm
- Height: 25.5 mm
- Cables included: AC
- User guide: Yes
- Sustainability compliance: Yes
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
- Certification: CE, FCC, RoHS
- Harmonized System (HS) code: 85176990
Description
The TP-LINK TL-SG1008D is an unmanaged desktop switch designed for users who need to expand their wired network with minimal setup. With eight Gigabit Ethernet ports, this switch is suitable for connecting multiple devices in home or office environments without complicated configurations.
- Eight Gigabit Ethernet ports allow for high-speed connections to multiple devices.
- The unmanaged design ensures easy setup and use, perfect for those who want a straightforward networking solution.
- Supports a range of cable types including Cat5e, ensuring compatibility with existing installations.
- Full duplex operation maximizes data throughput for efficient communication between connected devices.
- Jumbo frames support enables improved performance in high-demand environments like media streaming or large file transfers.
Specifications (2)
- Producer product family: Switch
- Producer product name: TL-SG1008D
Design (1)
- Form factor: Desktop
Management features (1)
- Switch type: Unmanaged
Other features (1)
- Power supply type: External
Ports & interfaces (3)
- Gigabit Ethernet (copper) ports quantity: 8
- POE: No
- Predominant port type: 1 Gbps (RJ-45)
Technical details (3)
- Warranty: 36 month(s)
- Net weight: 0.163 kg
- Other features: Plastic case
Additional specifications (52)
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,480,800,1000 Mbit/s
- Auto-negotiation: Yes
- Switching capacity: 16 Gbit/s
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 15000
- Packet forwarding rate (1 Gbps): 14880 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 1488000 pps
- Packet buffer memory: 2 MB
- Rack mounting: No
- Stackable: No
- Product colour: Black
- Housing material: Plastic
- LED indicators: Yes
- Wall mountable: Yes
- Maximum cable length: 100 m
- Fanless: Yes
- Power source: DC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- DC input voltage: 9 V
- Input current: 0.6 A
- Power consumption (typical): 4.63 W
- Power consumption (max): 3.53 W
- Power over Ethernet (PoE): No
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 15.8 BTU/h
- Width: 180 mm
- Depth: 90 mm
- Height: 25.5 mm
- Cables included: AC
- User guide: Yes
- Sustainability compliance: Yes
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
- Certification: CE, FCC, RoHS
- Harmonized System (HS) code: 85176990
TP-LINK Switch TL-SG1008D, Unmanaged, Desktop, Power supply type External
- Regular price
- €33,47
- Sale price
- €33,47
- Regular price
-
Tax included.
