Description

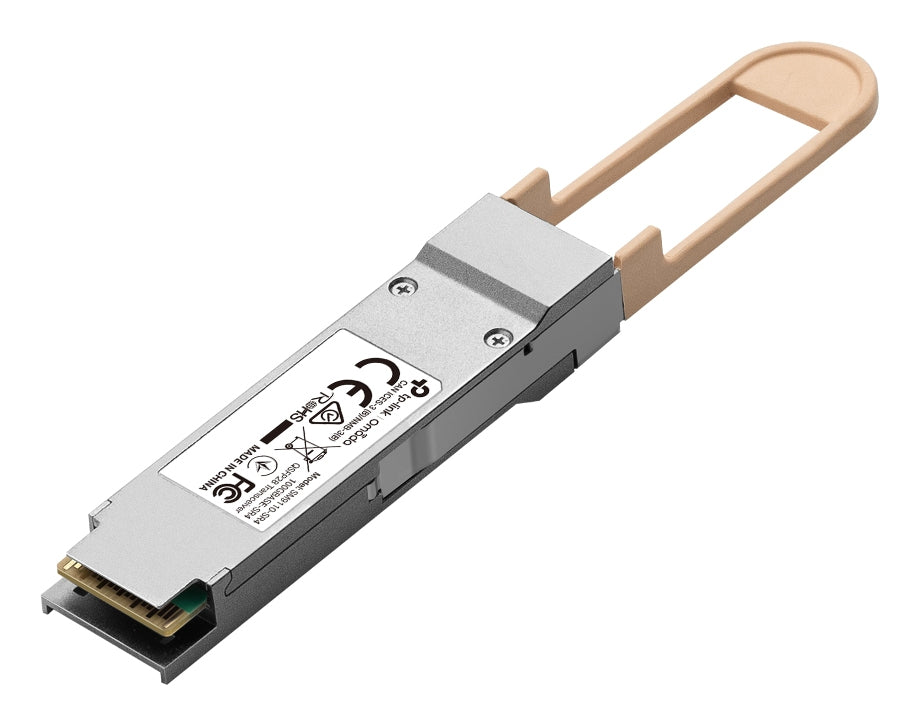

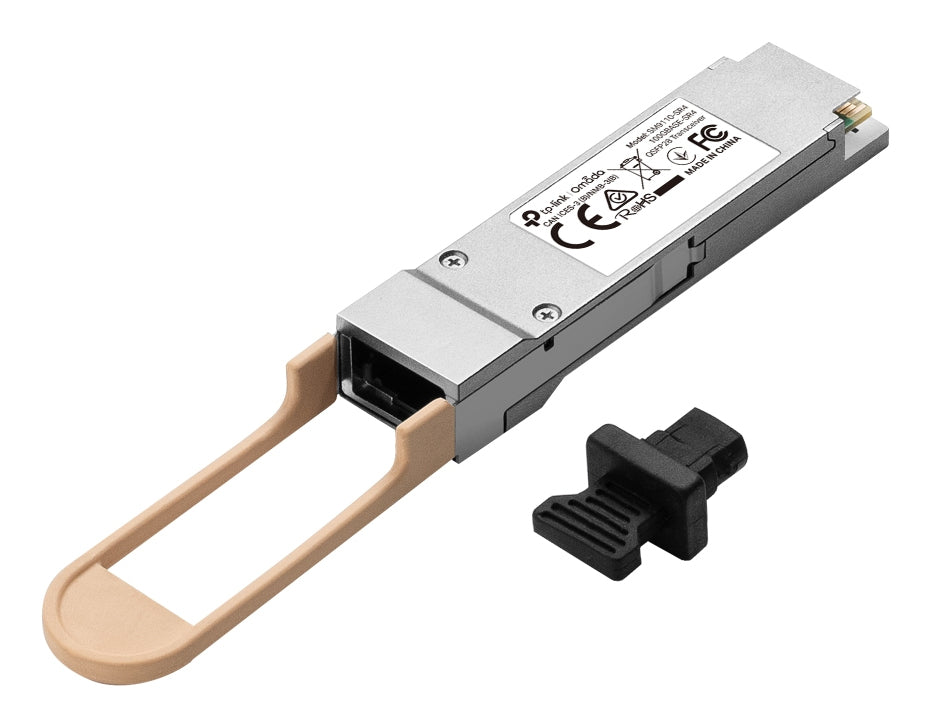

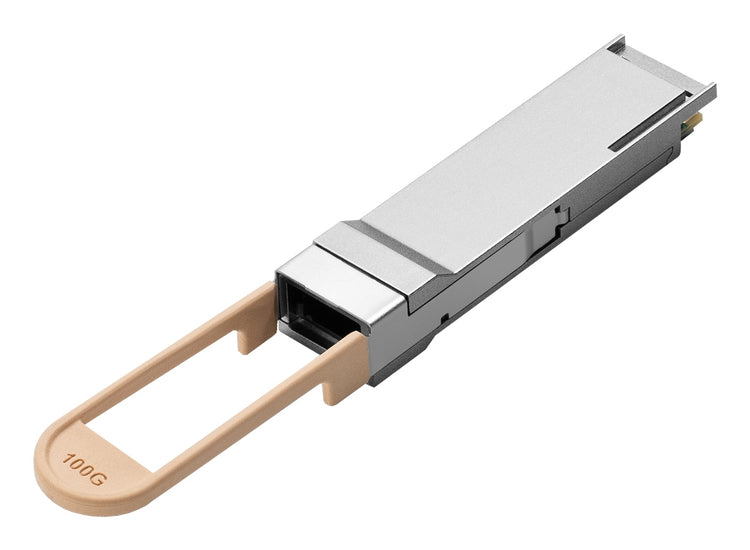

The TP-Link Omada 100GBASE-SR4 QSFP28 Transceiver is designed for users needing high-speed network connectivity. Ideal for data centers or enterprise networks, this transceiver ensures fast and reliable data transfer over multi-mode fiber cabling.

  • Supports data transfer rates up to 100 Gbit/s for efficient network performance.
  • Compatible with multi-mode fiber cables, making it suitable for short-distance transmission up to 150 meters.
  • Plug and Play functionality allows for easy installation and immediate use without additional setup.
  • Hot-swappable design means you can replace it without powering down the system, ensuring minimal disruption.
  • Digital Diagnostics Monitoring (DDM) capability allows for real-time monitoring of network performance.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 0.08 kg
Additional specifications (34)
  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 100000 Mbit/s
  • Interface type: QSFP28
  • Single-mode fiber (SMF) supported: No
  • Multi-mode fiber (MMF) supported: Yes
  • Fiber optic connector: MPO-12, MTP
  • Fiber cable diameters supported (core/cladding): 50/125 µm
  • SFP transceiver standard: SR4
  • Maximum transfer distance: 150 m
  • Wavelength: 850 nm
  • Tx power (min): -8.4 dBmW
  • Tx power (max): 2.4 dBmW
  • Ethernet interface type: 40 Gigabit Ethernet, 100 Gigabit Ethernet
  • Networking standards: IEEE 802.3ba, IEEE 802.3bm
  • Fiber ethernet cabling technology: 40GBASE, 100GBASE
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Metallic
  • Form factor: QSFP28
  • Plug and Play: Yes
  • Hot-swap: Yes
  • Input voltage: 3.3 V
  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
  • Certification: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
  • Minimum operating temperature: 0 °C
  • Maximum operating temperature: 70 °C
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 0 - 85%
  • Storage relative humidity (H-H): 0 - 85%
  • Width: 124 mm
  • Depth: 18.4 mm
  • Height: 11.7 mm
  • Quantity per pack: 1 pc(s)
  • Country of origin: China
