Bosch 1600A01AM1 Printed Circuit Board

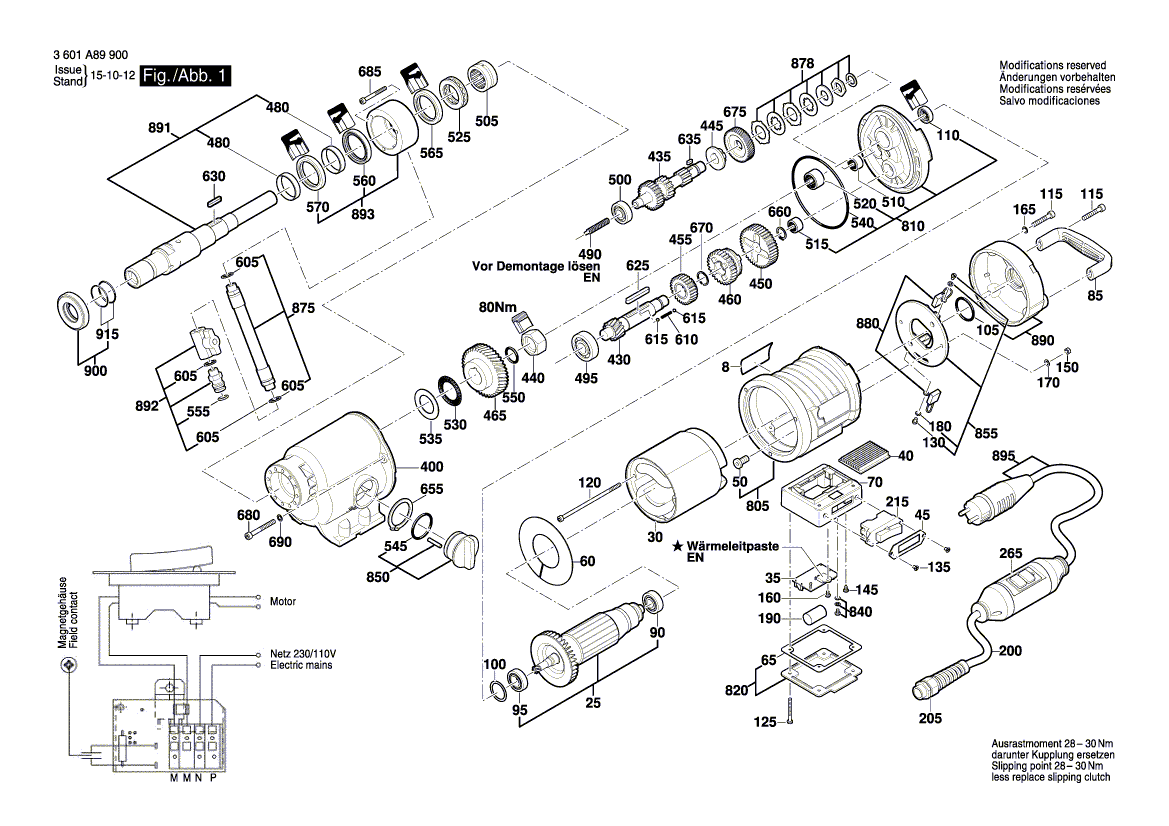

The spare part is represented in this diagram at position number 35

This part is compatible with many tools including the models listed below:

3601A89900 GDB 350 WE Diamond Drilling Machine 230 V / EU
3601A89901 GDB 350 WE Diamond Drilling Machine 230 V / EU
3601A89930 GDB 350 WE Diamond Drilling Machine 230 V / CH
3601A89931 GDB 350 WE Diamond Drilling Machine 230 V / CN
3601A89970 GDB 350 WE Diamond Drilling Machine 230 V / GB
3601A89971 GDB 350 WE Diamond Drilling Machine 230 V / GB
3601A899E0 GDB 350 WE Diamond Drilling Machine 220 V / ---
3601A899E1 GDB 350 WE Diamond Drilling Machine / ---
3601A899N0 GDB 350 WE Diamond Drilling Machine 220 V / RCH
3601A899N1 GDB 350 WE Diamond Drilling Machine 230 V / RCH
