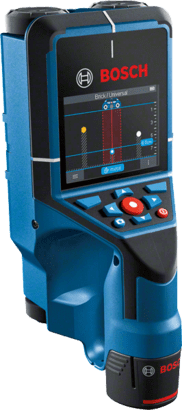

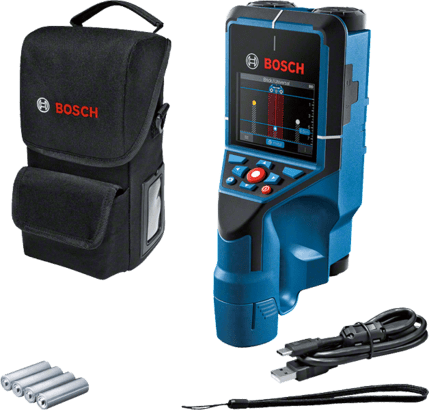

New Genuine Bosch 0601081600 Wallscanner D-tect 200 C Professional Detector

Detector

Technical data

The most important data

Battery voltage 12.0 V

Bosch Radar Technology yes

Detectable objects magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, Empty plastic pipes, water-filled plastic pipes, wooden substructures

Max. detection depth 200 mm

Detection depth, dry concrete, max. 200 mm

Detection depth, early age concrete, max. 60 mm

Detection depth, other wall types, max. 80 mm

Detection depth, wooden substructures, max. 38 mm

Accuracy* ± 5 mm* (*plus use-dependent deviation)

Views Object view, Spot view, Signal View 2D, Signal View

Wall types Brick/Universal, Concrete, Drywall, Panel Heating, Early age concrete, Horizontal coring brick, Vertical coring brick

Dust and splash protection IP 5X

Documentation via USB-C, SD-Card

Updatable yes

Material identification Live cable, Magnetic metal, Non-magnetic metal, Non-metal material

Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA), 4 x 1.2 V HR06 (AA)

Weight, approx.** 0.7 kg

Additional function Leakage detection, distance measurement

Wallscanner D-tect 200 C Professional: Further information

Product Highlights

The D-tect 200 C Professional detects all common objects and illustrates them clearly, while making documentation easy. Equipped with Bosch Radar Technology and an improved user interface, it stands for safer and more precise construction work. Multiple views allow for conveniently choosing the best option for different applications, such as Spot View, that makes detection in hard-to-reach locations especially easy. To provide solid evidence, the wallscanner´s innovative screenshot feature enables quick documentation.
Equipment & Application

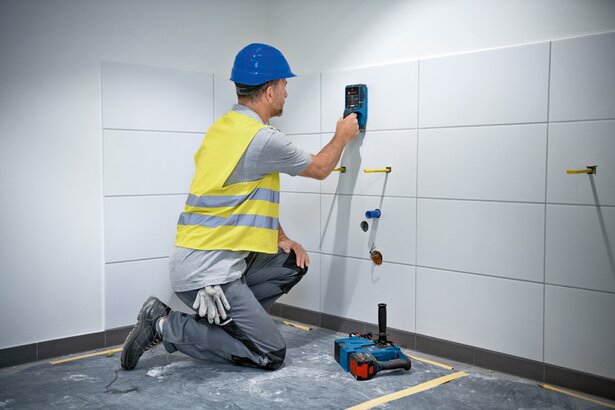

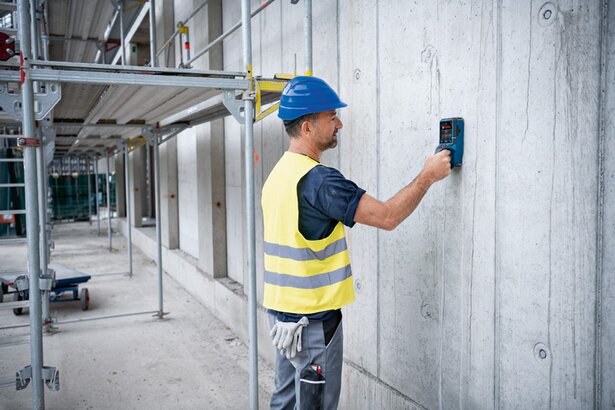

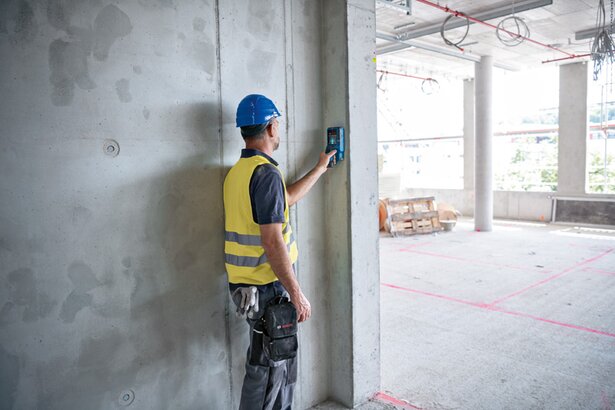

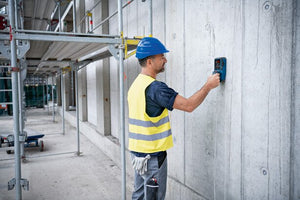

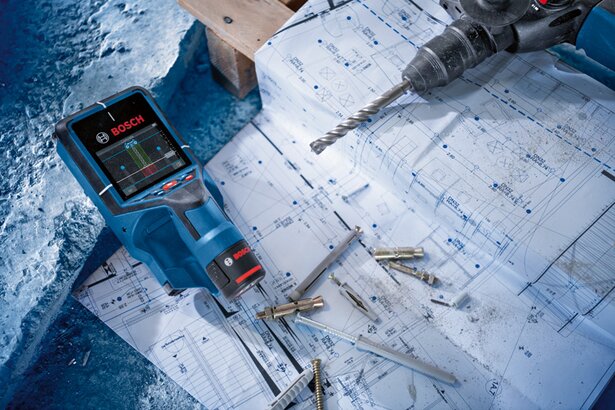

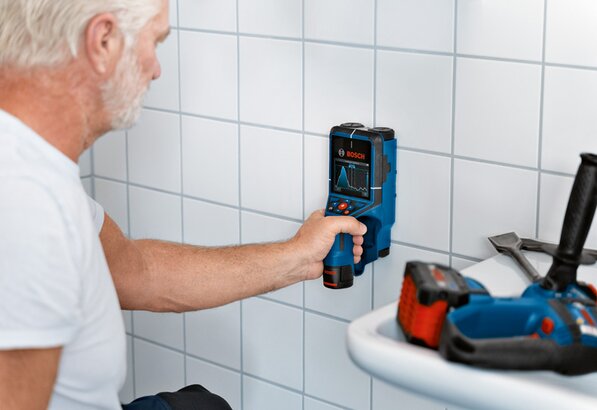

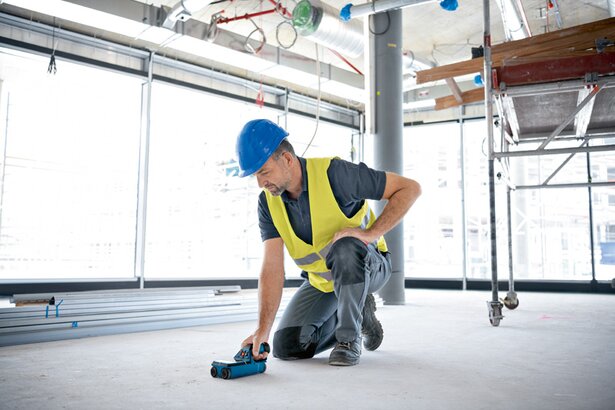

The D-tect 200 C Professional supports both indoor and outdoor jobs, prevents damage during drilling, and measures concrete coverage.

Additional Information
The wallscanner detects objects in depths up to 20 cm and indicates the object´s depth.

The wallscanner for exceptional results: top performance and easy documentation

Bosch Radar Technology and modern user interface for precision, higher safety, and clear illustration of detected objects
Multiple views flexibly offer best results in various situations

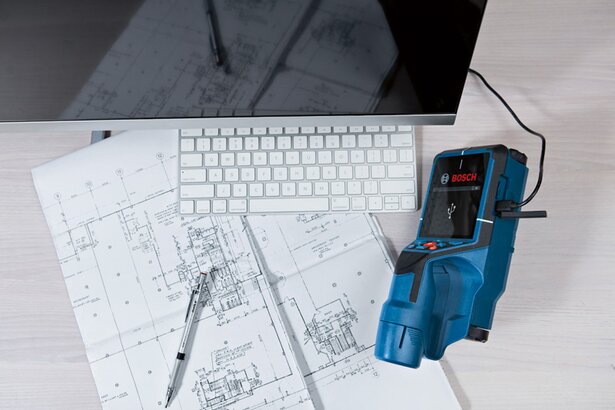

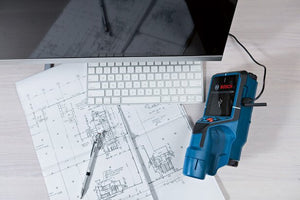

Screenshot feature supports quick and easy documentation; screenshots are downloadable via USB-C™ and SD card slot

Brand: Bosch

SKU: 0601081600

EAN: 3165140988148
