About
Description

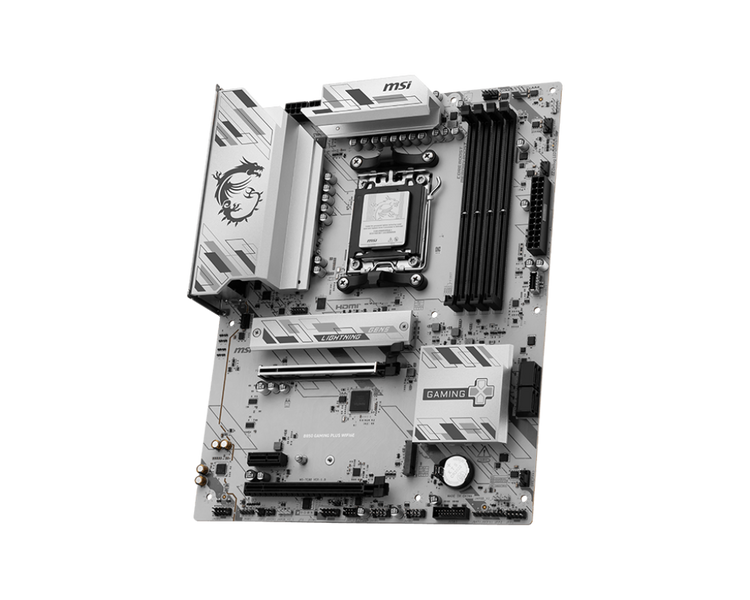

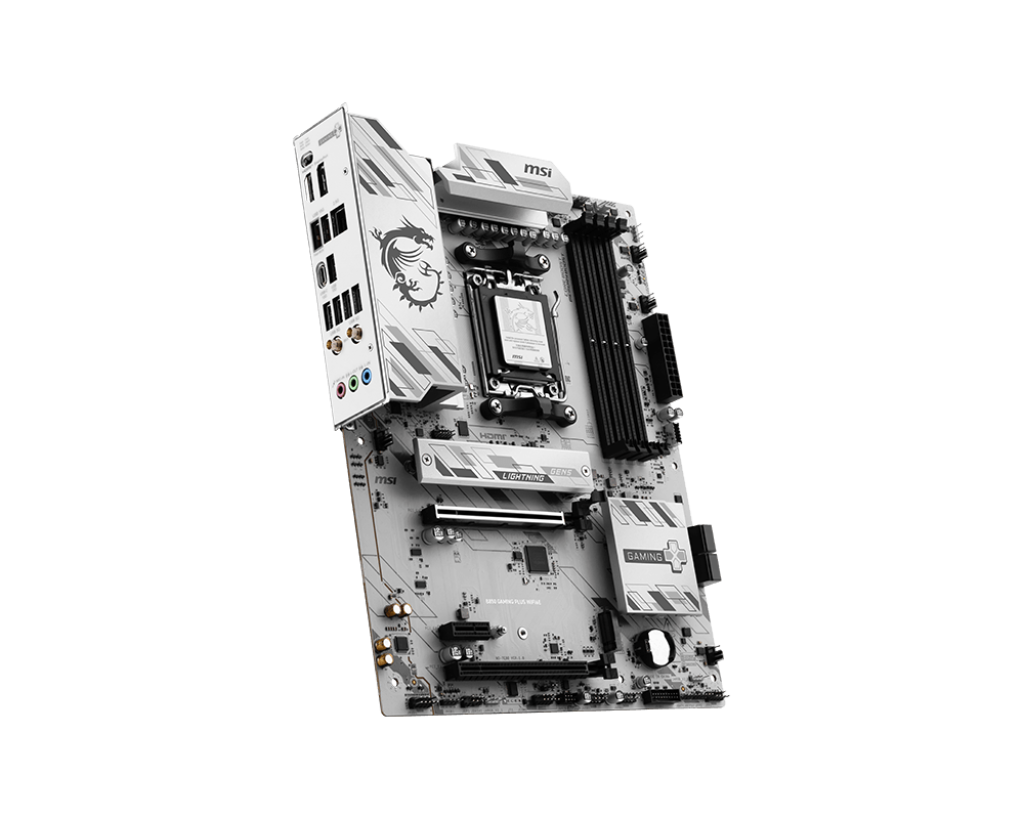

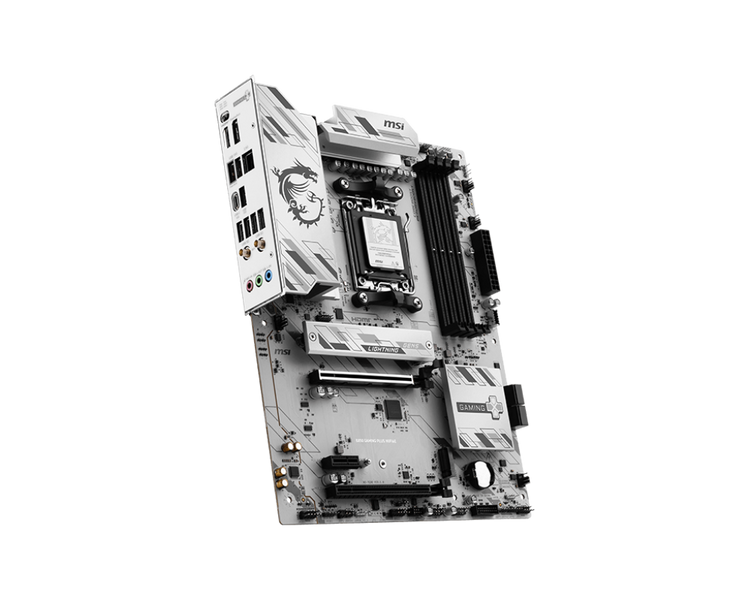

The MSI B850 GAMING PLUS WIFI6E is a motherboard designed for PC builders looking to use AMD processors. It offers advanced features for high-performance computing and gaming.
- Supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors with an AM5 socket for future-proofing your build.
- Features 4 DIMM slots that accommodate DDR5 memory with speeds up to 8200 MHz, enhancing performance for demanding applications.
- Offers multiple storage options with support for up to 7 drives, including M.2 and SATA interfaces for versatility in disk configuration.
- Includes RAID support for data redundancy and performance, allowing various RAID levels like 0, 1, 5, and 10.
- Provides 4 USB 2.0 and 4 USB 3.2 Gen 1 ports to connect your peripherals and external devices efficiently.
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: AMD
- Processor socket: AM5
Technical details (2)
- Net weight: 1.60 kg
- Producer product name: B850 GAMING PLUS WIFI6E
Additional specifications (68)
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- Maximum internal memory supported by processor: 256 GB
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800,5600,6400,8200 MHz
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory: 256 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, Micro SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- On-board graphics card: No
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- S/PDIF out connector: Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 4
- Number of water pump connectors: 1
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.2
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125D
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11 x64
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 2
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- ACPI version: 6.5
- System Management BIOS (SMBIOS) version: 3.7
- Width: 243.8 mm
- Depth: 304.8 mm
