About
Description

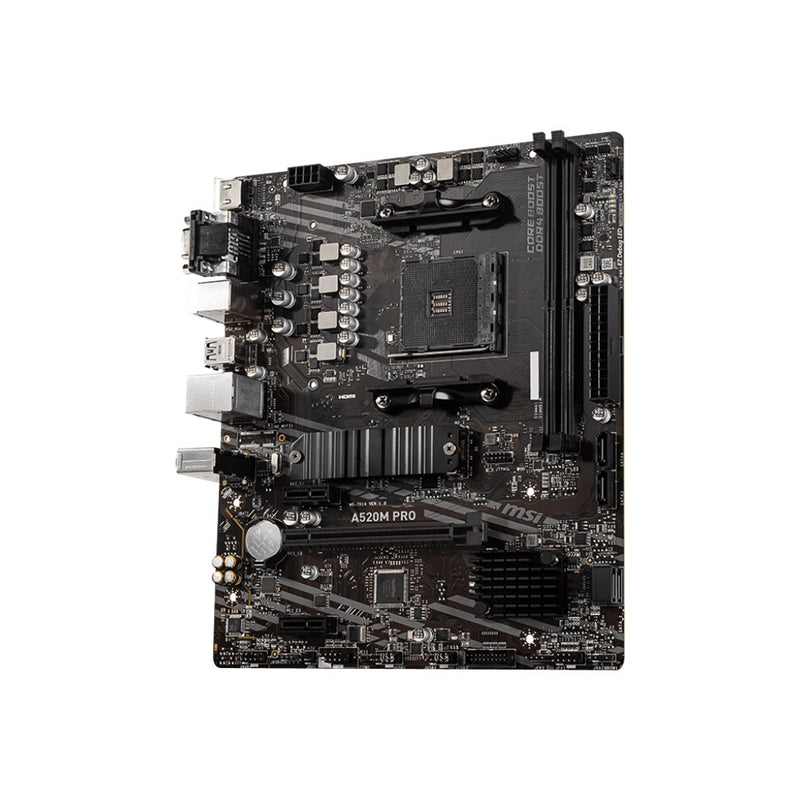

The MSI A520M PRO is a Micro ATX motherboard suitable for users looking to build or upgrade their PC with AMD processors. It supports a range of memory and storage options, making it a versatile choice for everyday computing tasks or gaming.
- Supports up to 64 GB of DDR4 memory across 2 DIMM slots, providing flexibility for multitasking.
- Compatible with 3rd Gen AMD Ryzen and AMD Ryzen 4000 G-Series processors, offering a broad selection of processing power.
- Features multiple storage options with support for up to 5 drives via PCI Express 3.0 and SATA interfaces.
- Capable of delivering video output at a maximum resolution of 4096 x 2160 pixels for high-definition displays.
- Equipped with a range of USB ports including two USB 2.0 and one USB 3.2 Gen 1 connector for easy device connections.
Memory (2)
- Memory slots: 2
- Supported memory types: DDR4
Performance (2)
- Chipset: AMD A
- Motherboard form factor: Micro ATX
Processor (3)
- Processor family: AMD
- Processor socket: AM4
- Compatible processor series: 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
Technical details (3)
- Producer product name: A520M PRO
- Net weight: 0.611 kg
- Warranty: 36 month(s)
Additional specifications (52)
- Processor manufacturer: AMD
- Maximum number of SMP processors: 1
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4466 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: No
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: PCI Express 3.0, SATA
- Number of storage drives supported: 5
- RAID levels: 0, 1, 10
- Maximum resolution: 4096 x 2160 pixels
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- Chassis intrusion connector: Yes
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek 8111H
- Wi-Fi: No
- Top Wi-Fi standard: Not available
- Motherboard chipset: AMD A520
- Audio chip: Realtek ALC892
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard chipset family: AMD
- Power source type: ATX
- Number of mounting holes: 6
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 slots: 1
- Number of M.2 (M) slots: 1
- Harmonized System (HS) code: 84733020
- Width: 244 mm
- Depth: 210 mm
- Height: 65 mm
- Weight: 698 g
Description
The MSI A520M PRO is a Micro ATX motherboard suitable for users looking to build or upgrade their PC with AMD processors. It supports a range of memory and storage options, making it a versatile choice for everyday computing tasks or gaming.
- Supports up to 64 GB of DDR4 memory across 2 DIMM slots, providing flexibility for multitasking.
- Compatible with 3rd Gen AMD Ryzen and AMD Ryzen 4000 G-Series processors, offering a broad selection of processing power.
- Features multiple storage options with support for up to 5 drives via PCI Express 3.0 and SATA interfaces.
- Capable of delivering video output at a maximum resolution of 4096 x 2160 pixels for high-definition displays.
- Equipped with a range of USB ports including two USB 2.0 and one USB 3.2 Gen 1 connector for easy device connections.
Memory (2)
- Memory slots: 2
- Supported memory types: DDR4
Performance (2)
- Chipset: AMD A
- Motherboard form factor: Micro ATX
Processor (3)
- Processor family: AMD
- Processor socket: AM4
- Compatible processor series: 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
Technical details (3)
- Producer product name: A520M PRO
- Net weight: 0.611 kg
- Warranty: 36 month(s)
Additional specifications (52)
- Processor manufacturer: AMD
- Maximum number of SMP processors: 1
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4466 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: No
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: PCI Express 3.0, SATA
- Number of storage drives supported: 5
- RAID levels: 0, 1, 10
- Maximum resolution: 4096 x 2160 pixels
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- Chassis intrusion connector: Yes
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek 8111H
- Wi-Fi: No
- Top Wi-Fi standard: Not available
- Motherboard chipset: AMD A520
- Audio chip: Realtek ALC892
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard chipset family: AMD
- Power source type: ATX
- Number of mounting holes: 6
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 slots: 1
- Number of M.2 (M) slots: 1
- Harmonized System (HS) code: 84733020
- Width: 244 mm
- Depth: 210 mm
- Height: 65 mm
- Weight: 698 g
MSI A520M PRO, Processor family AMD, Processor socket AM4, DDR4
