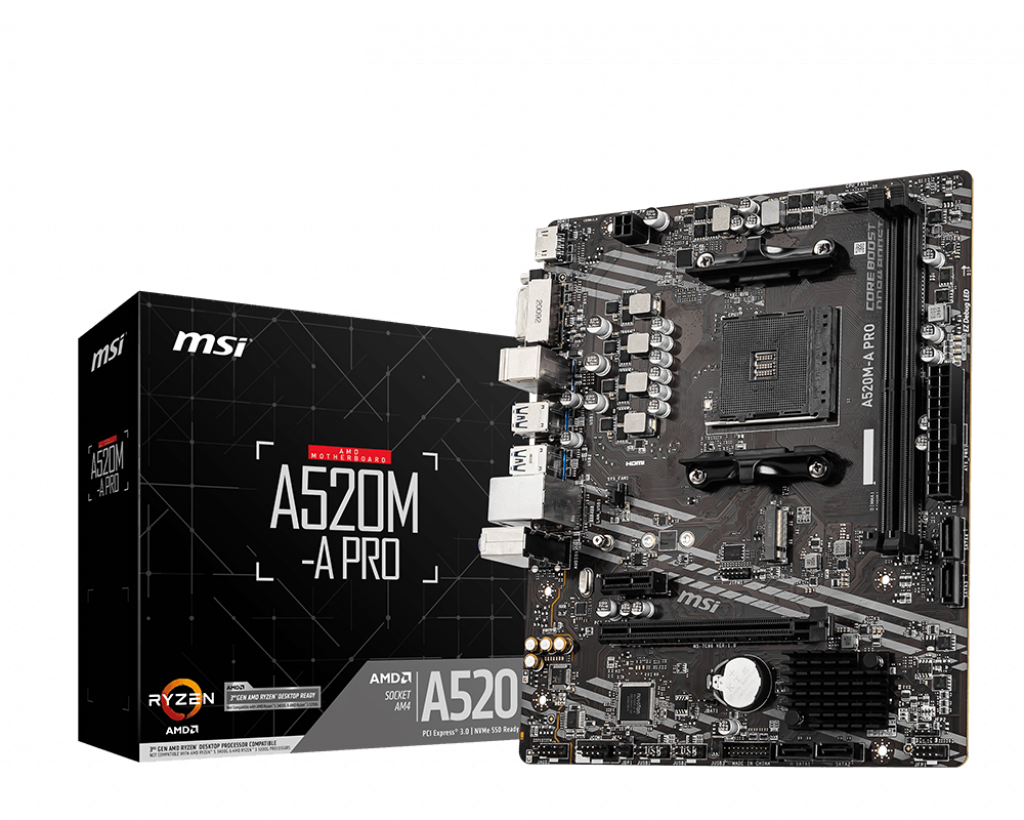

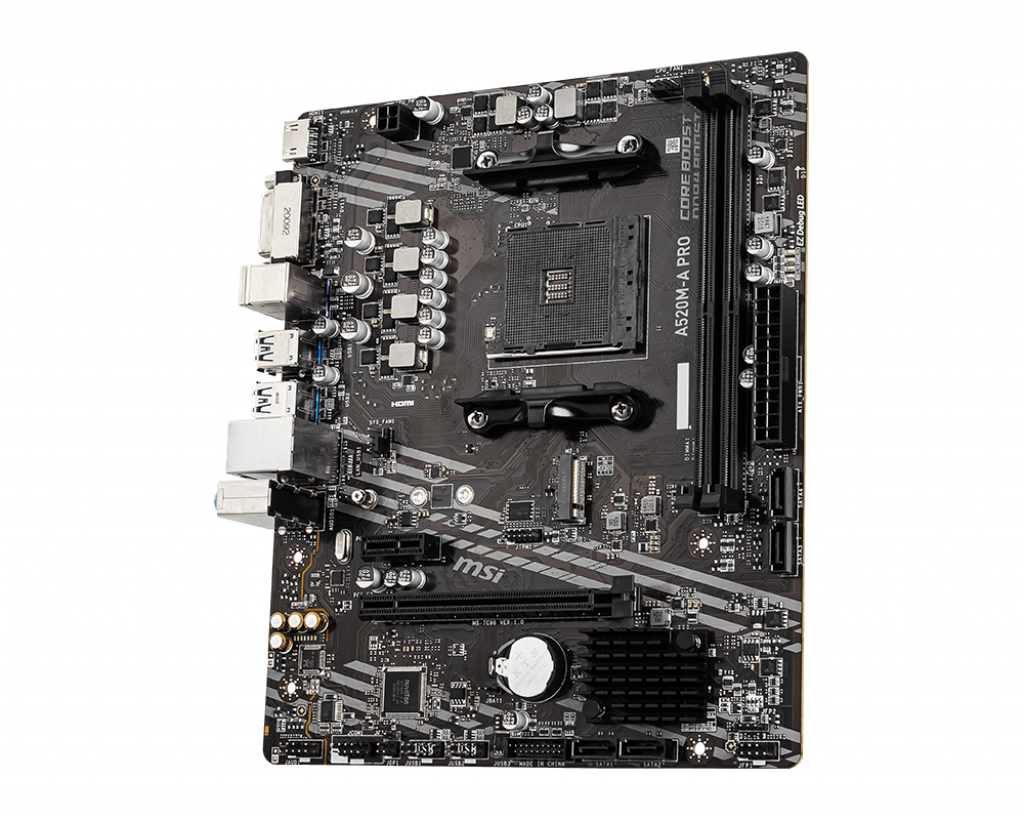

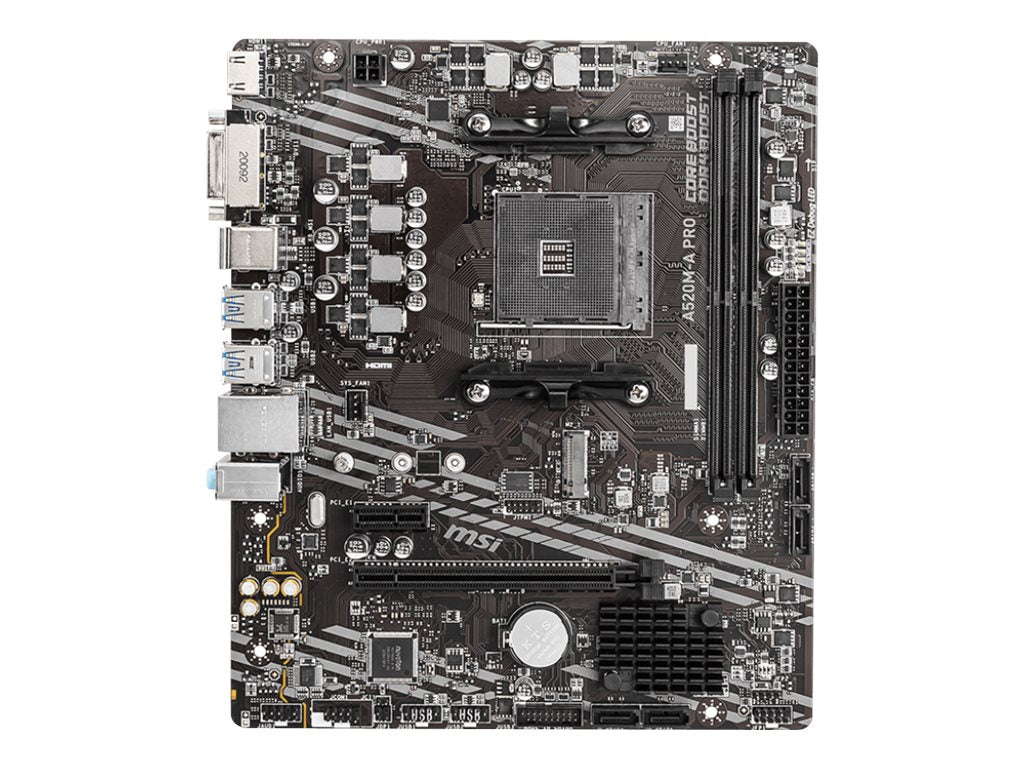

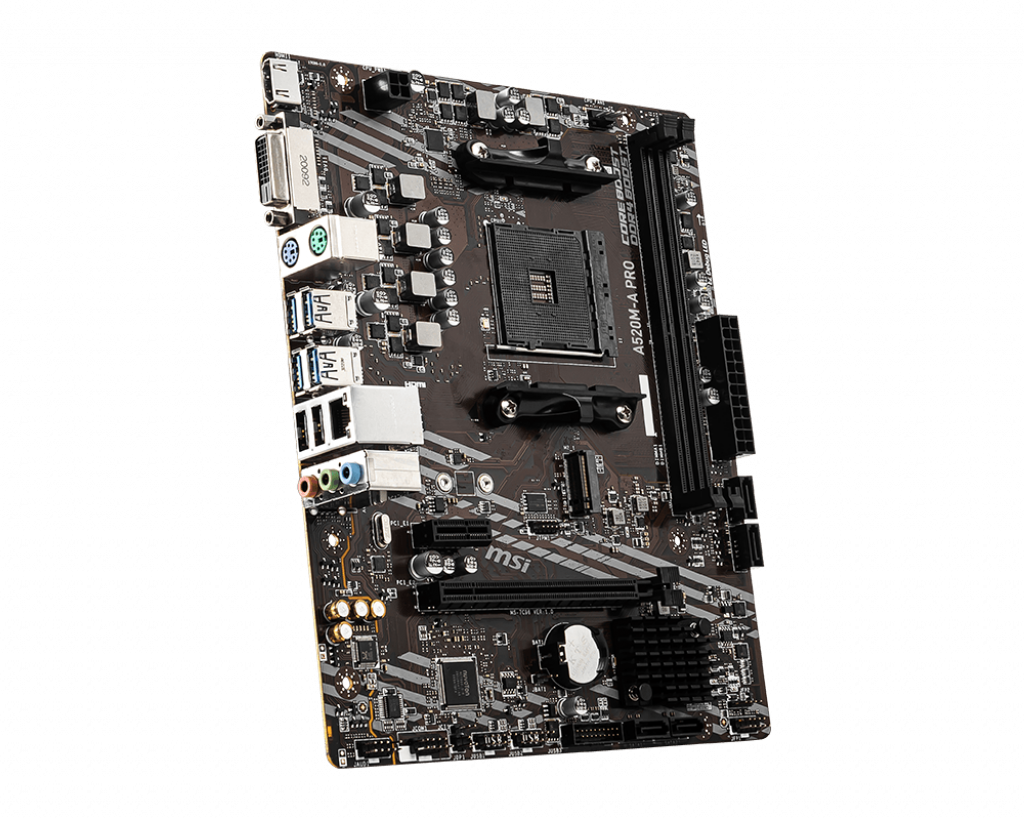

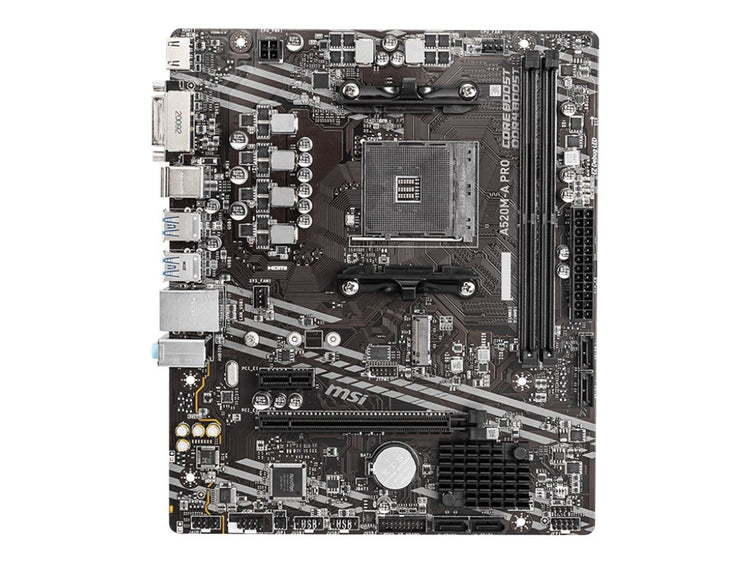

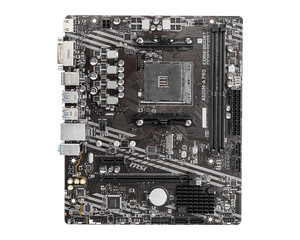

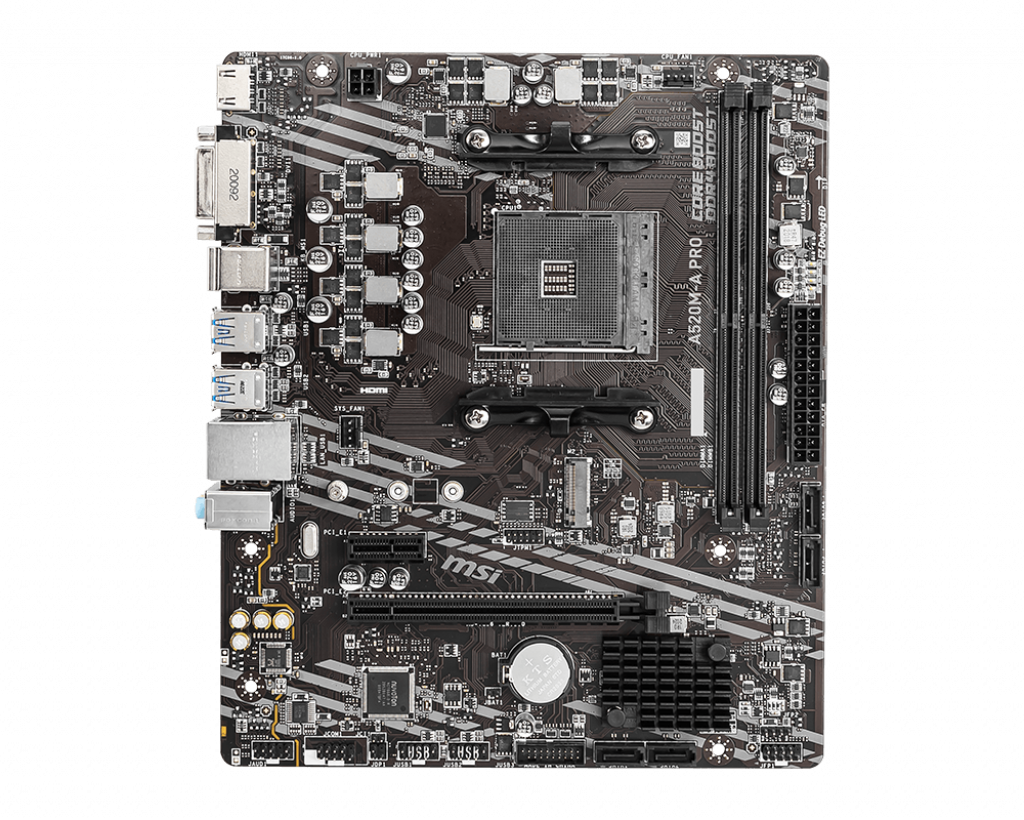

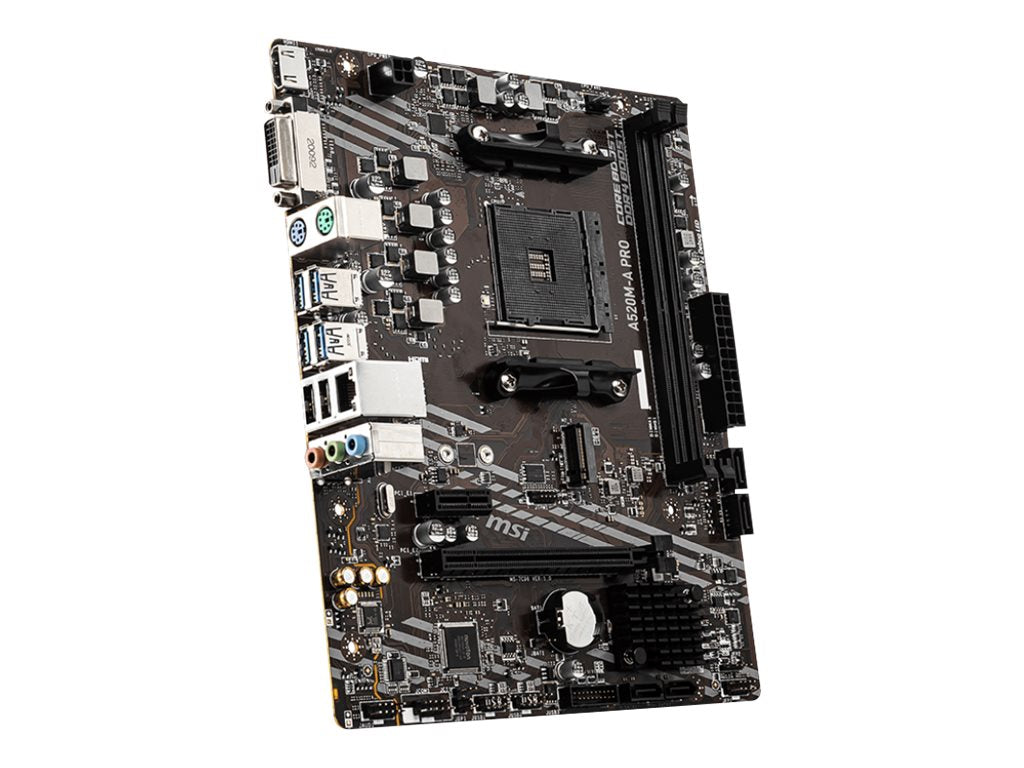

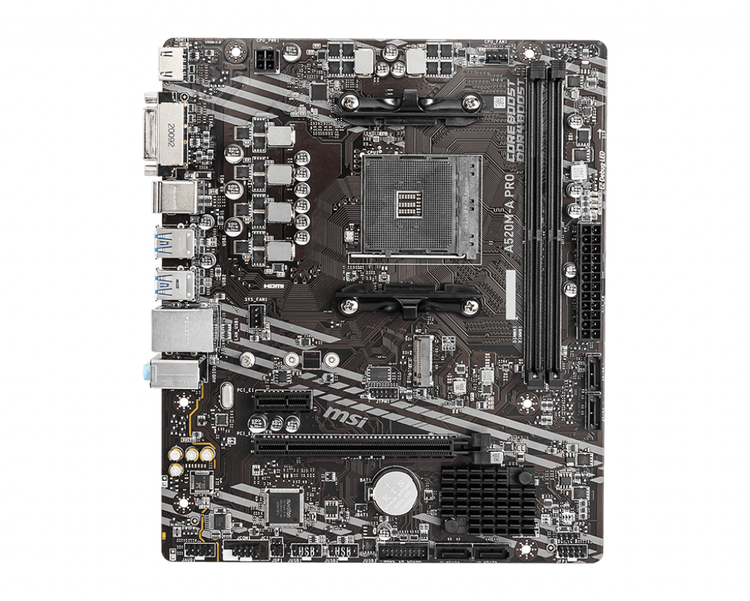

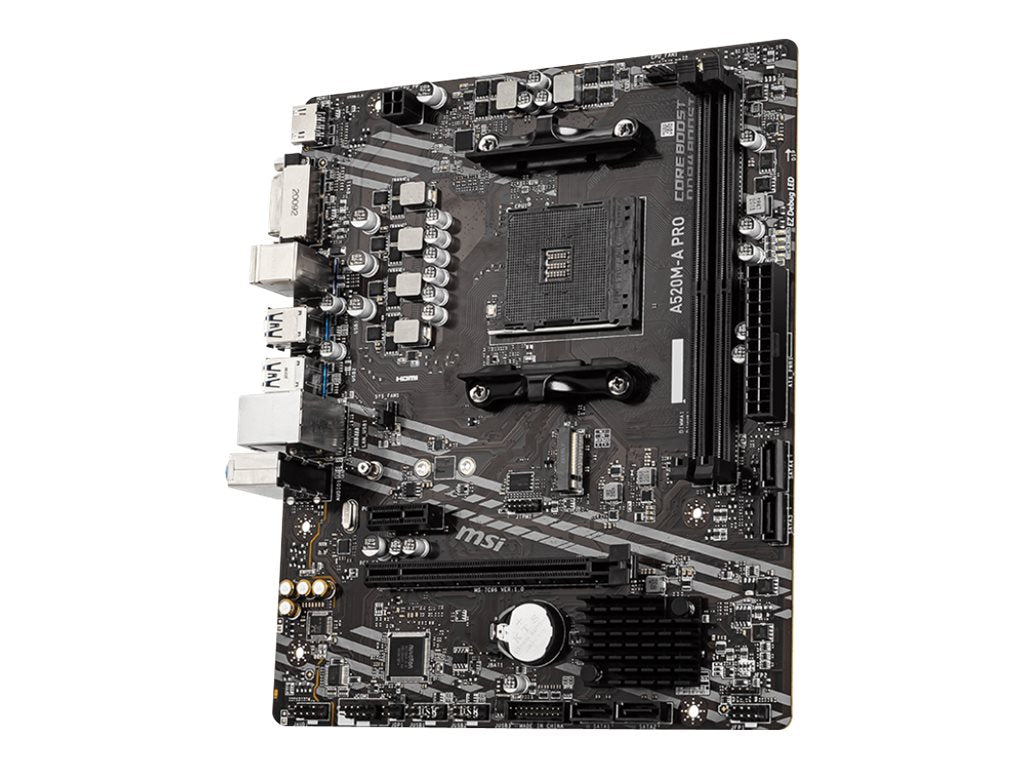

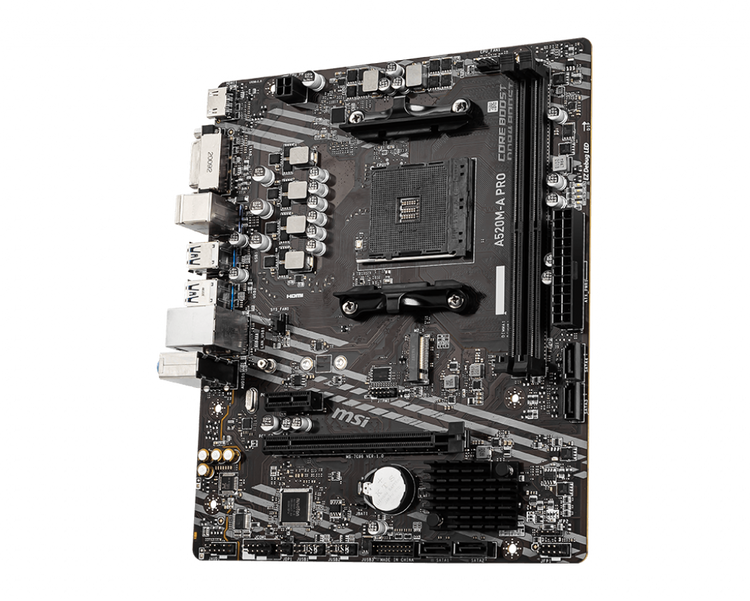

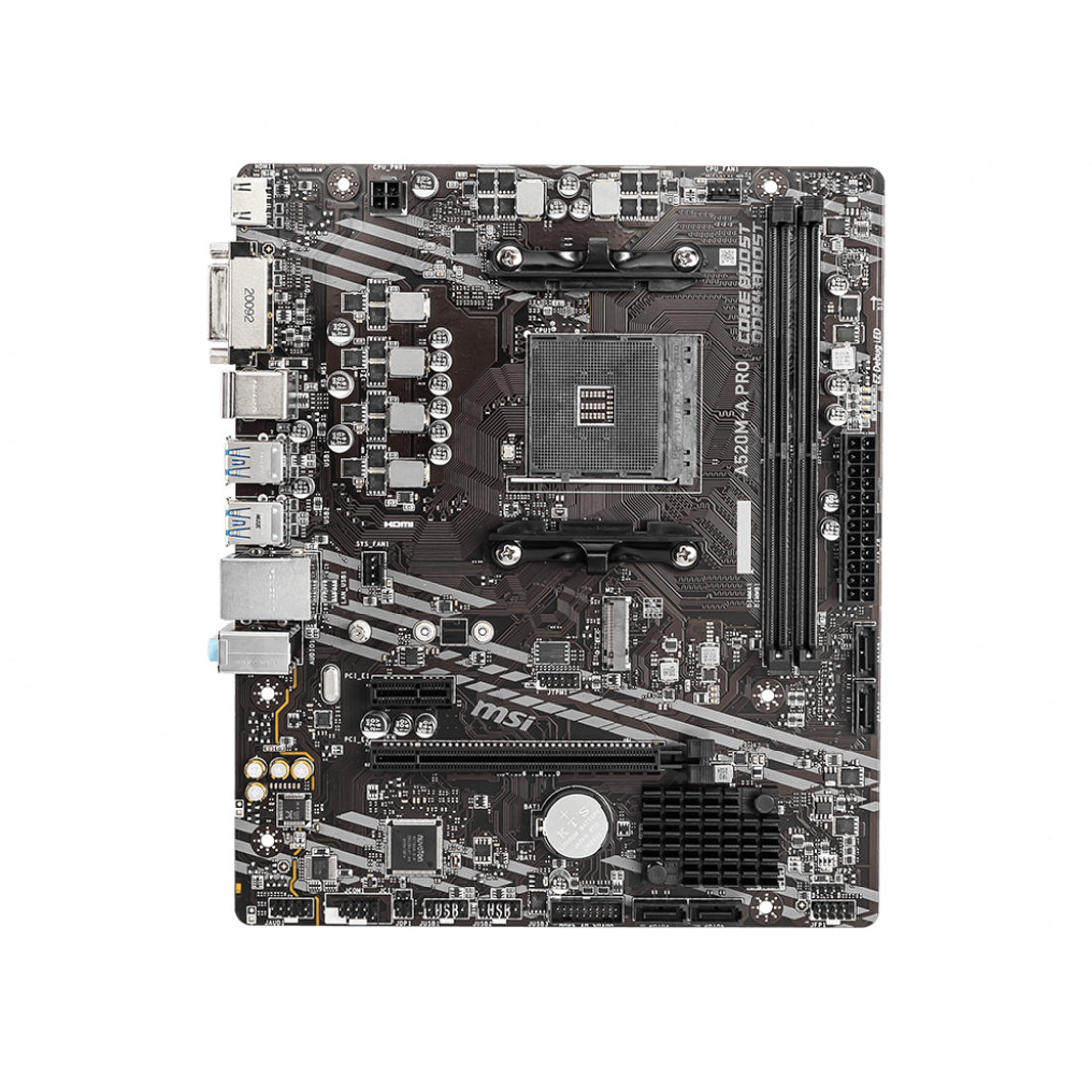

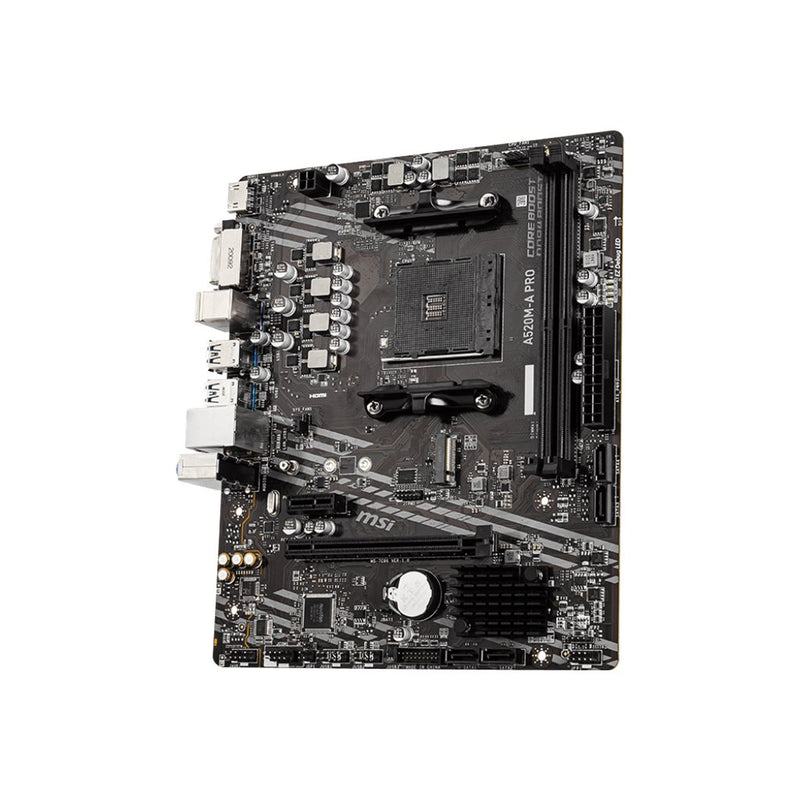

The MSI A520M-A PRO is a Micro ATX motherboard designed for users building a PC with AMD processors. It is suitable for both general use and gaming setups, supporting a variety of components and memory options.

Key features

Dimensions236 × 60 × 200 mm
Memory slots2
Supported memory typesDDR4
ChipsetAMD A
Motherboard form factorMicro ATX
Processor familyAMD
Processor socketAM4
Compatible processor series3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
Producer product nameA520M-A PRO
Warranty36 month(s)
All specifications (64)
Memory
Memory slots2
Supported memory typesDDR4
Performance
ChipsetAMD A
Motherboard form factorMicro ATX
Processor
Processor familyAMD
Processor socketAM4
Compatible processor series3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
Technical details
Producer product nameA520M-A PRO
Warranty36 month(s)
Additional specifications
Processor manufacturerAMD
Maximum number of SMP processors1
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
Maximum internal memory64 GB
Unbuffered memoryYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 3.0, SATA
Number of HDDs supported5
Number of storage drives supported5
RAID supportYes
RAID levels0, 1, 10
On-board graphics cardNo
Maximum resolution4096 x 2160 pixels
Number of displays supported2
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes

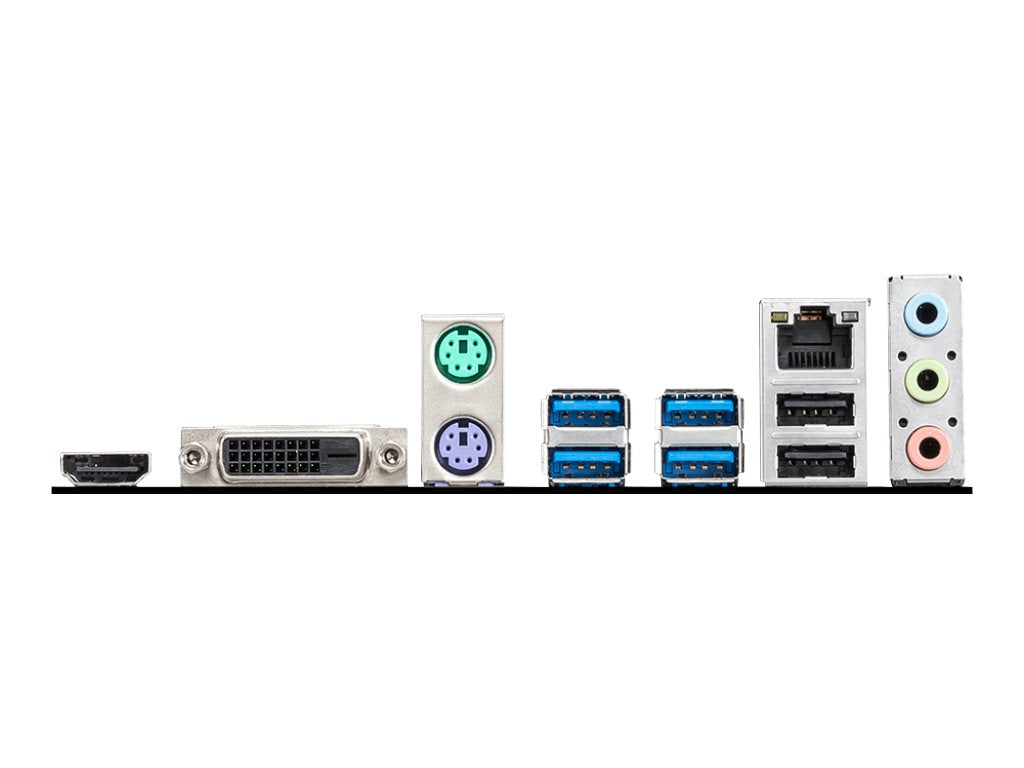

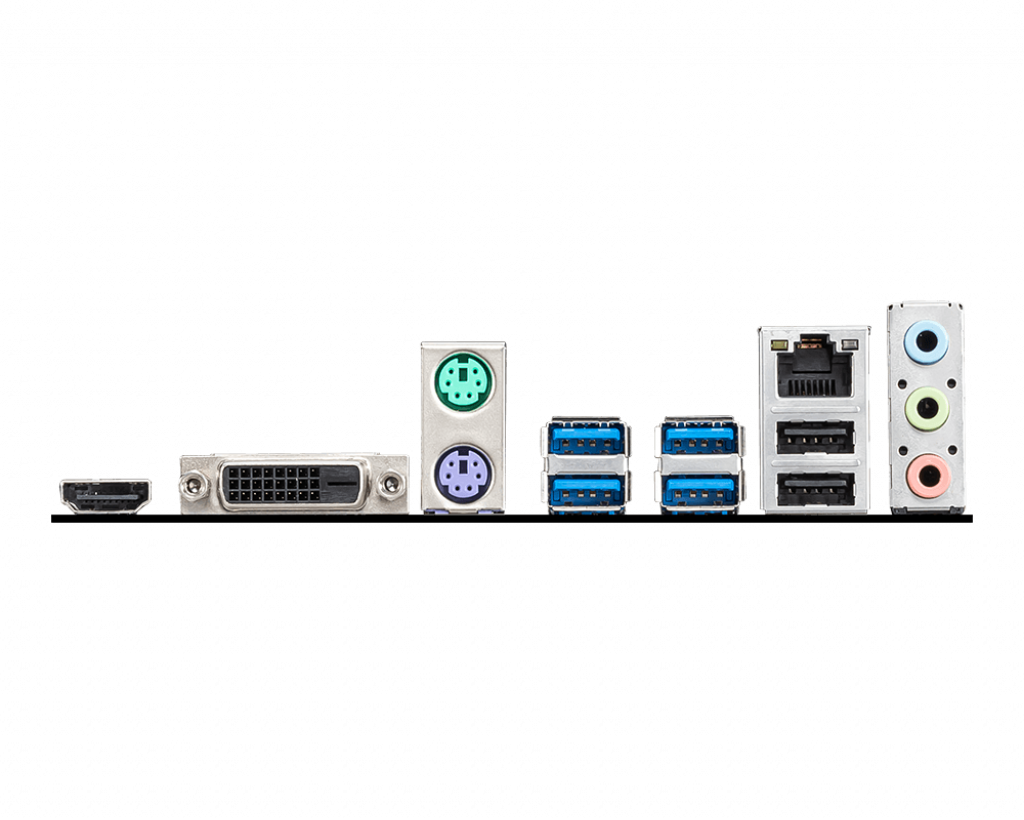

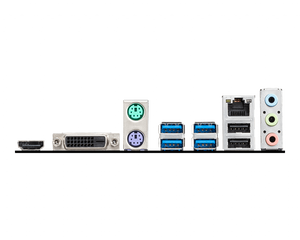

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo
Top Wi-Fi standardNot available
Motherboard chipsetAMD A520
Audio chipRealtek ALC892
Audio output channels7.1 channels
Product colourBlack
Component forPC
Motherboard chipset familyAMD
Number of mounting holes8
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1
Harmonized System (HS) code84733020
Dimensions & weight
Net weight0.445 kg
Width236 mm
Depth200 mm
Height60 mm
Weight698 g

MSI A520M-A PRO, Processor family AMD, Processor socket AM4, DDR4

€86,79
€86,79
EUR
86,79
69,99
?
Price details

MSI A520M-A PRO, Processor family AMD

Price now
€87
Price changes
VAT included.Shipping calculated at checkout.

Usually dispatched in about a weekSee delivery times

  • Equipped with 2 memory slots, allowing for dual-channel memory configuration for improved performance.
  • Supports a wide range of DDR4 memory clock speeds up to 4600 MHz, providing flexibility for memory upgrades.
  • Compatible with 3rd Gen AMD Ryzen processors and Ryzen 4000 G-Series, ensuring a solid foundation for your CPU.
  • Features RAID support for enhanced data safety and performance, accommodating multiple storage drives.
  • Allows connection of up to 2 displays with a maximum resolution of 4096 x 2160 pixels for high-quality visuals.
