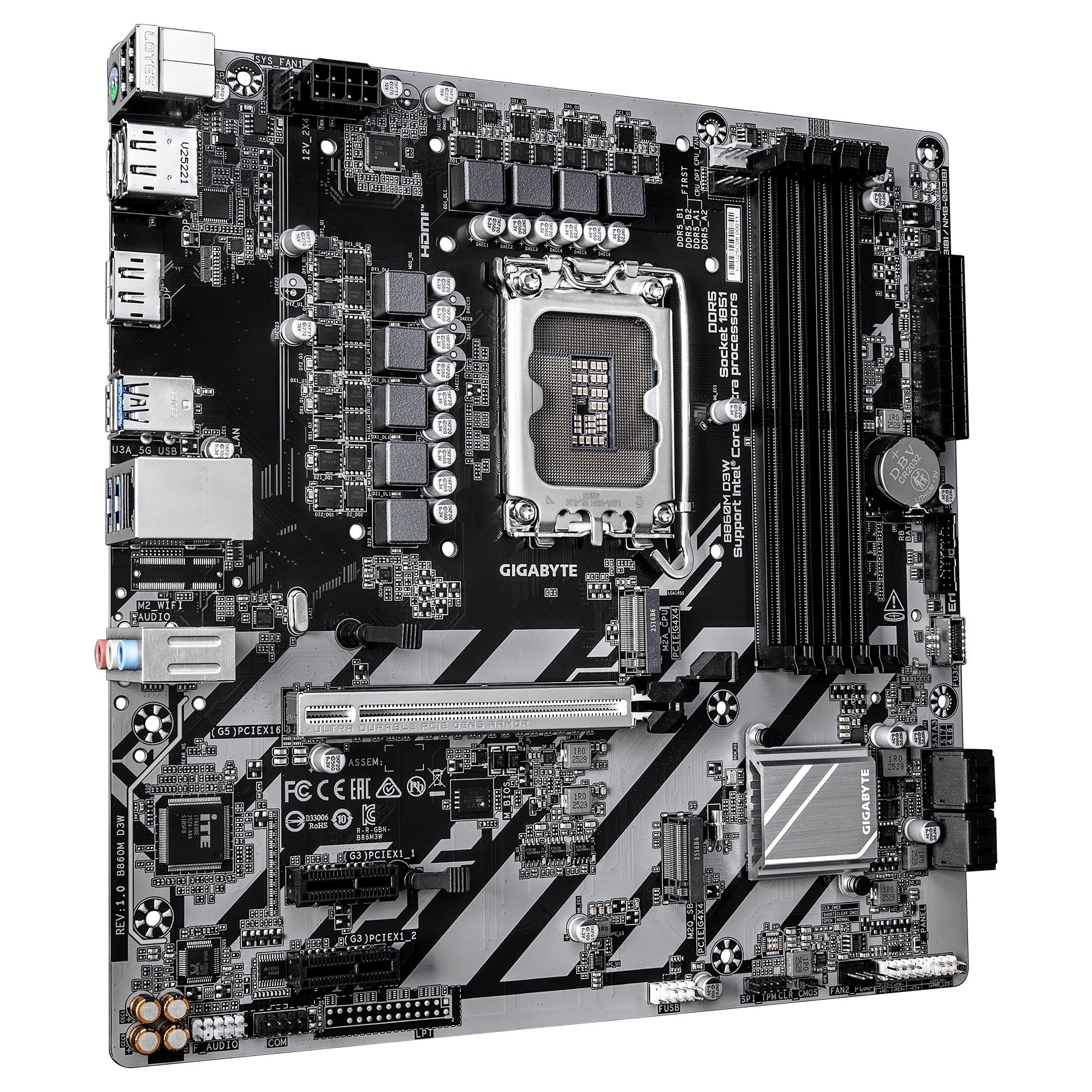

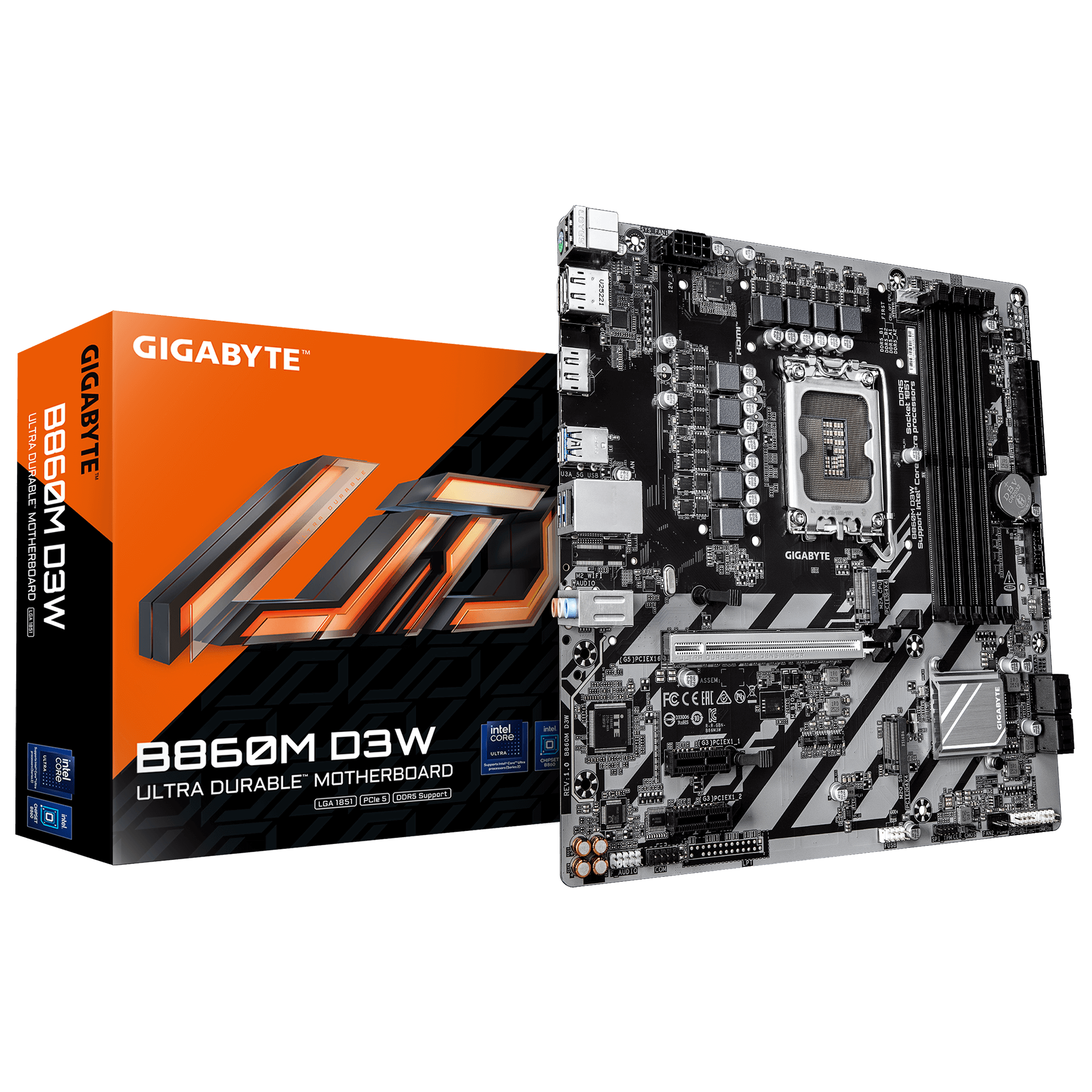

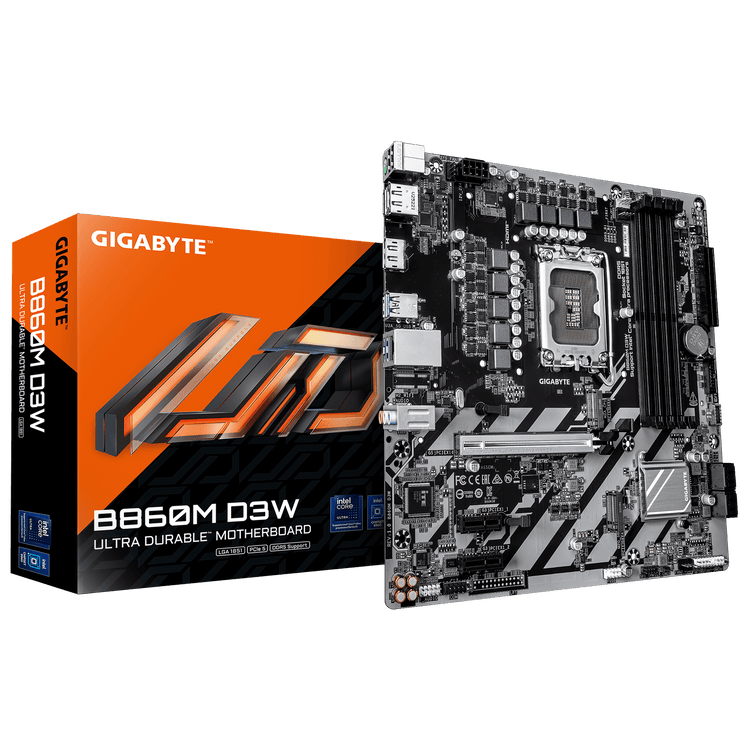

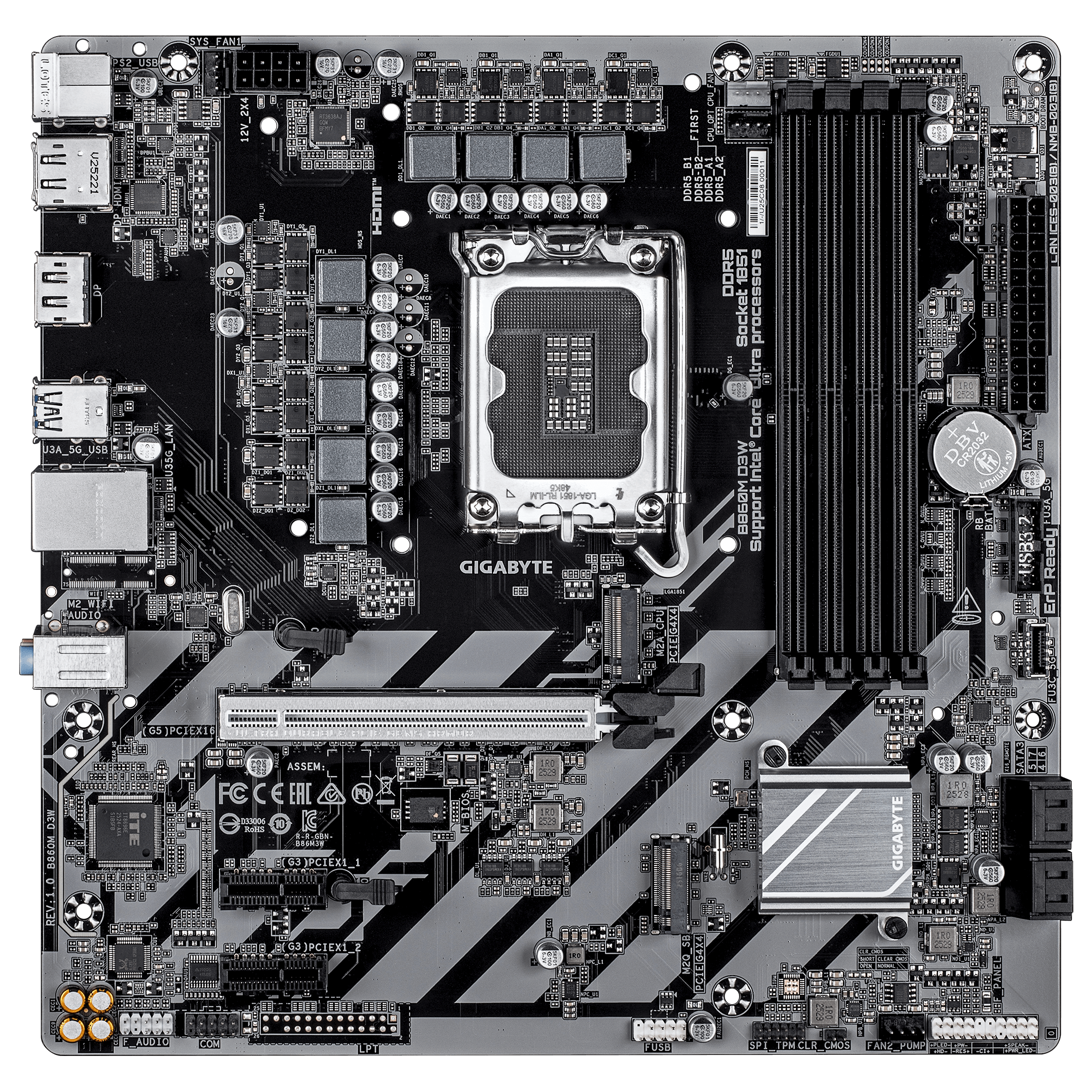

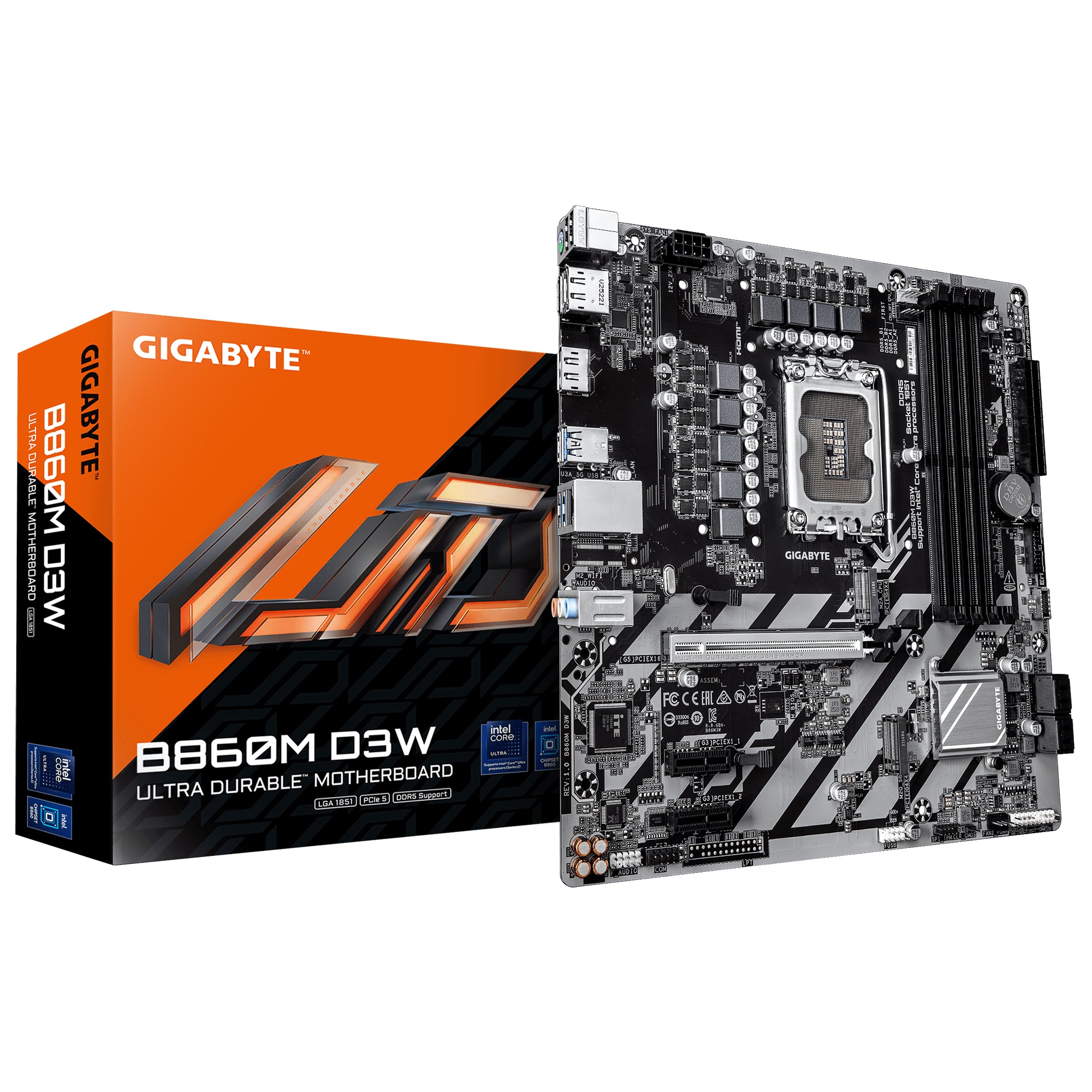

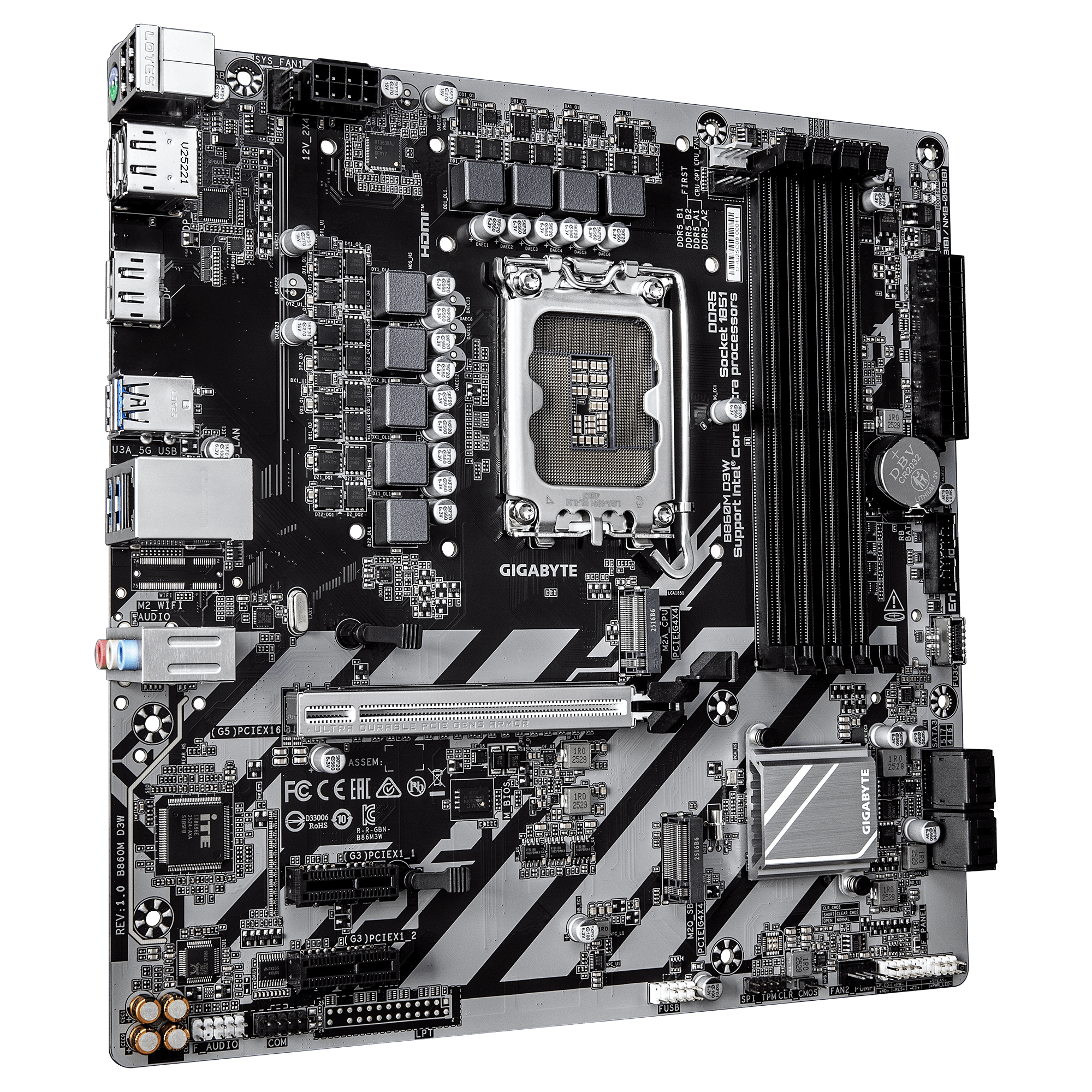

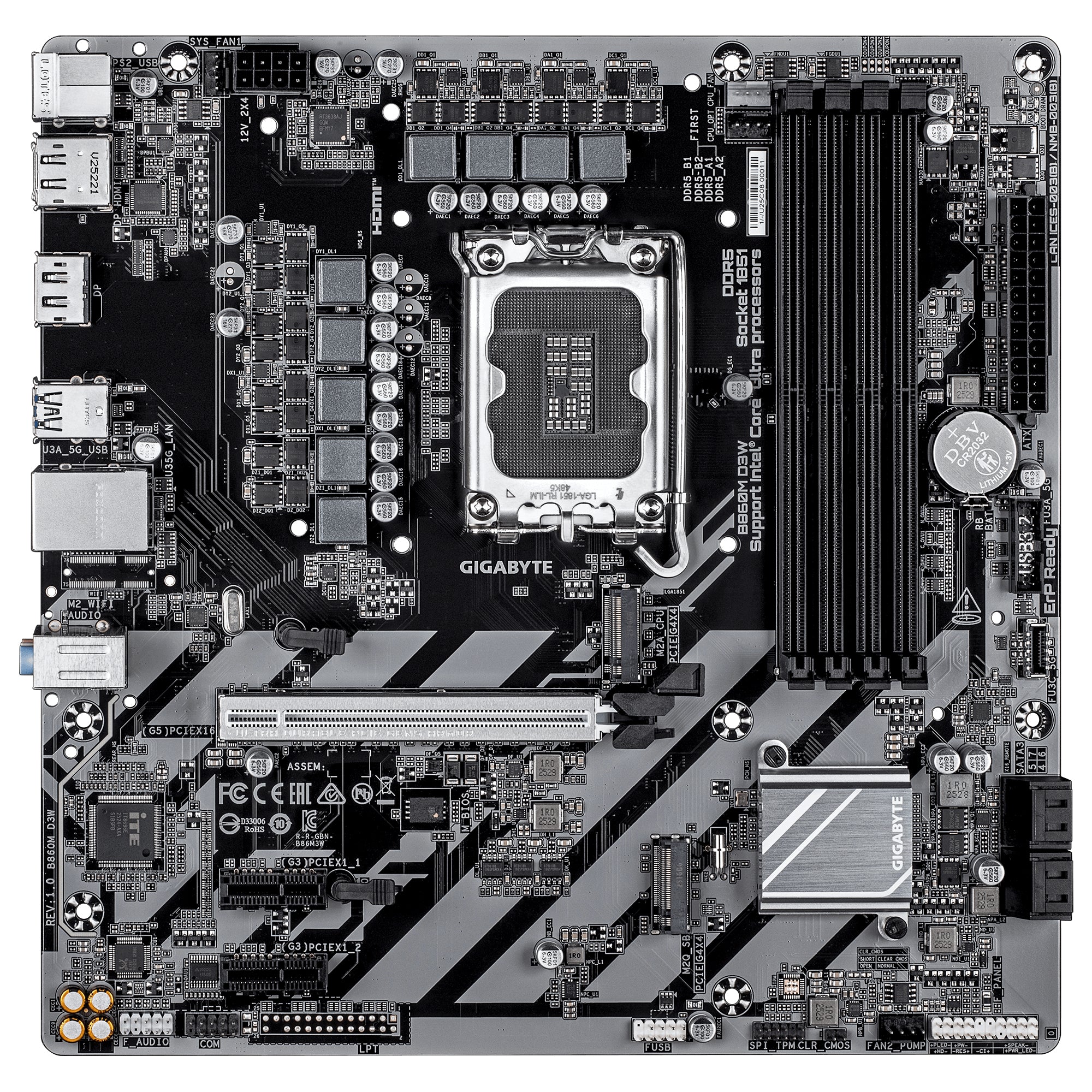

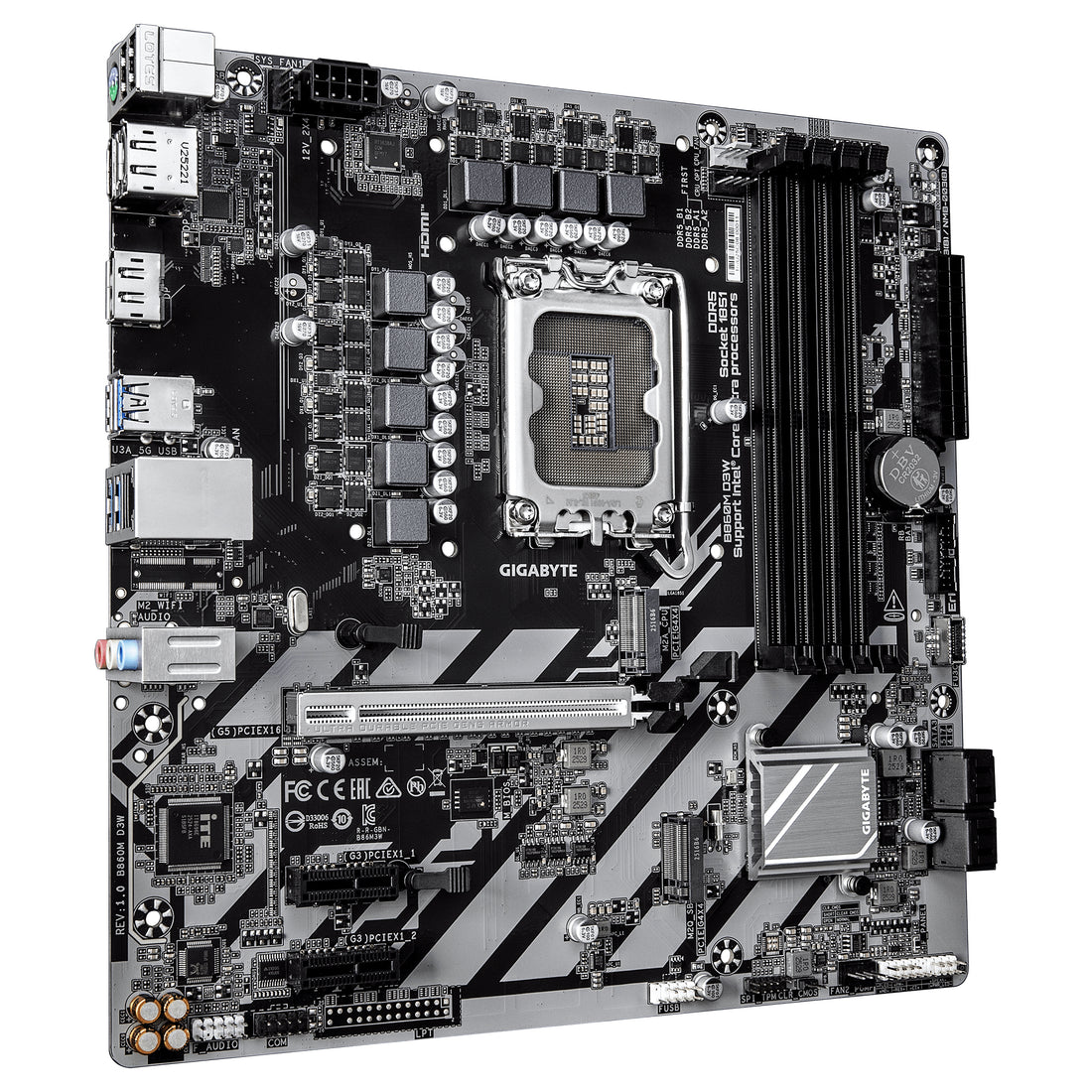

The Gigabyte B860M D3W is a micro ATX motherboard designed for Intel processors, suitable for users building a versatile PC for everyday tasks or gaming. It supports the latest DDR5 memory and provides flexible storage options with multiple interfaces.
- Supports DDR5 memory, allowing for high-speed performance with clock speeds up to 9066 MHz.
- Equipped with 4 SATA connectors and M.2 interfaces, enabling diverse storage configurations for HDDs and SSDs.
- Accommodates up to 256 GB of internal memory across 4 DIMM slots, providing ample capacity for demanding applications.
- Compatible with Intel Core Ultra processors, ensuring reliable performance for various computing needs.
- Supports RAID configurations for data redundancy or performance improvements, enhancing storage management.
Internal I/O (2)
- Supported hard disk drive interfaces: M.2, SATA
- Number of SATA connectors: 4
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: Intel
- Processor socket: LGA1851
Technical details (2)
- Producer product name: B860M D3W
- Net weight: 2.30 kg
Specifications (1)
- Warranty: 36 month(s)
Additional specifications (92)
- Processor manufacturer: Intel
- Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 5600,6400,9066,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
- Supported memory clock speed (max): 9066 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- HDCP version: 2.3
- DirectX version: 12.0
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- Number of water pump connectors: 2

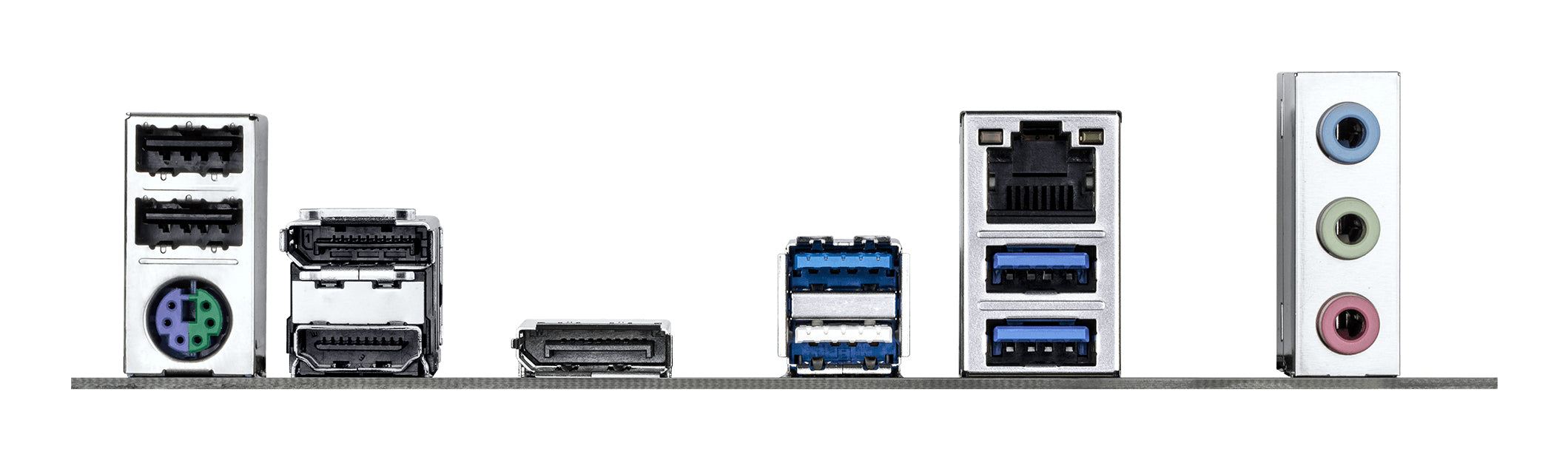

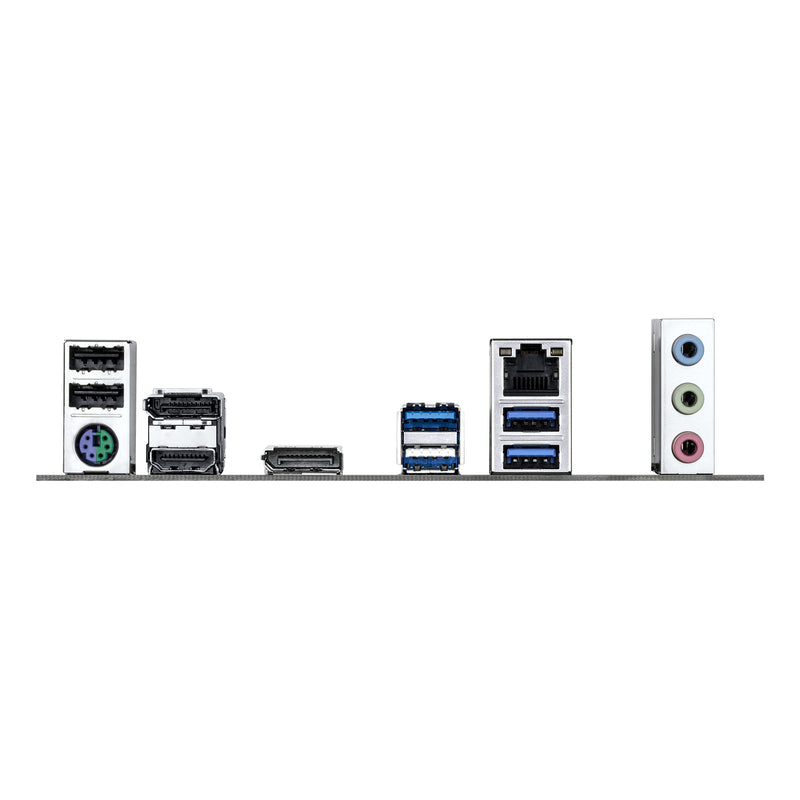

- USB 2.0 ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 2.1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: No
- Motherboard chipset: Intel B860
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Dark brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery capacity: 220 mAh
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 244 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version)
- Weight: 1.35 kg
- Warranty period: 3 year(s)
