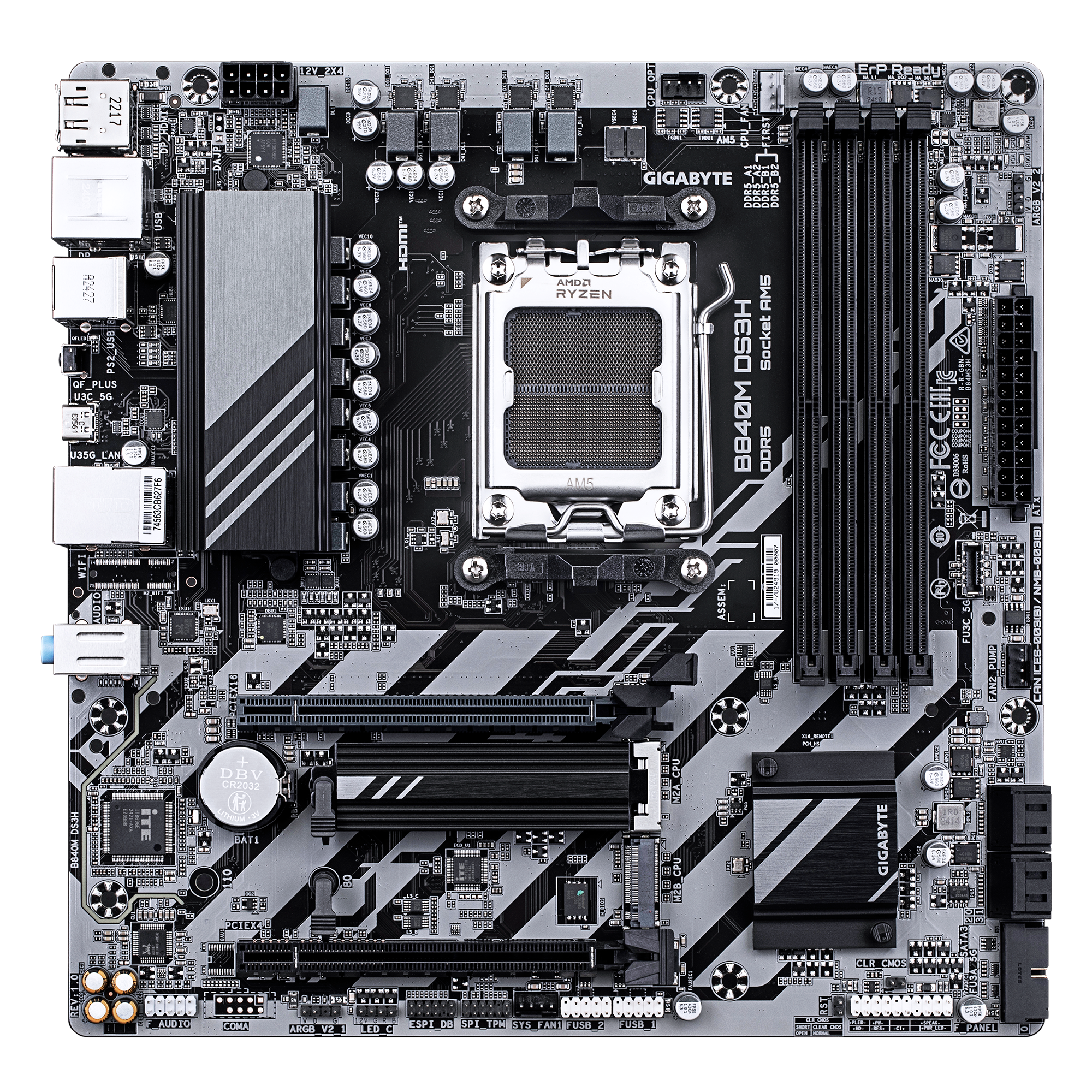

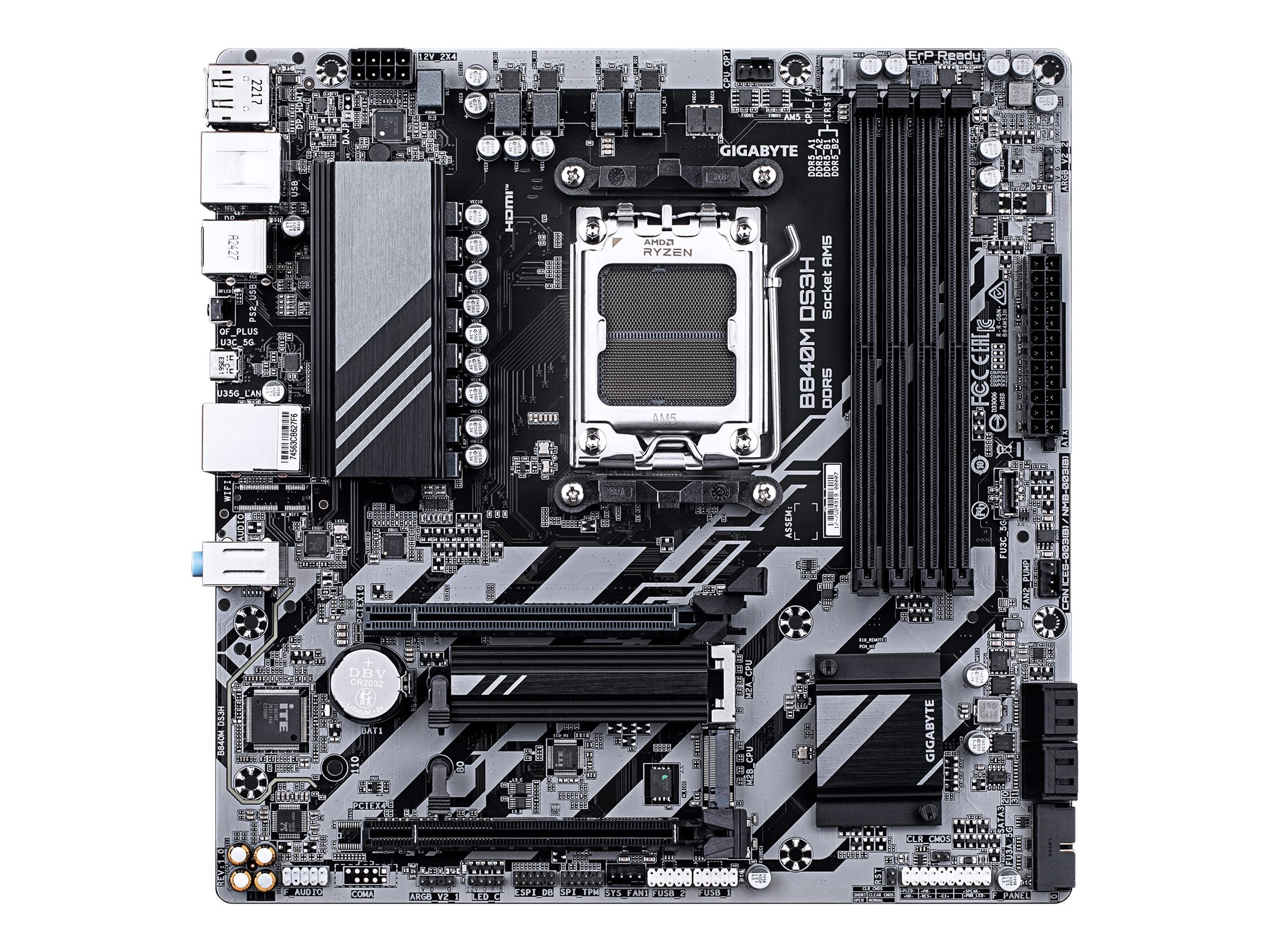

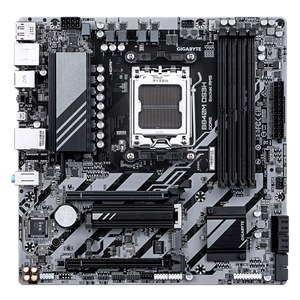

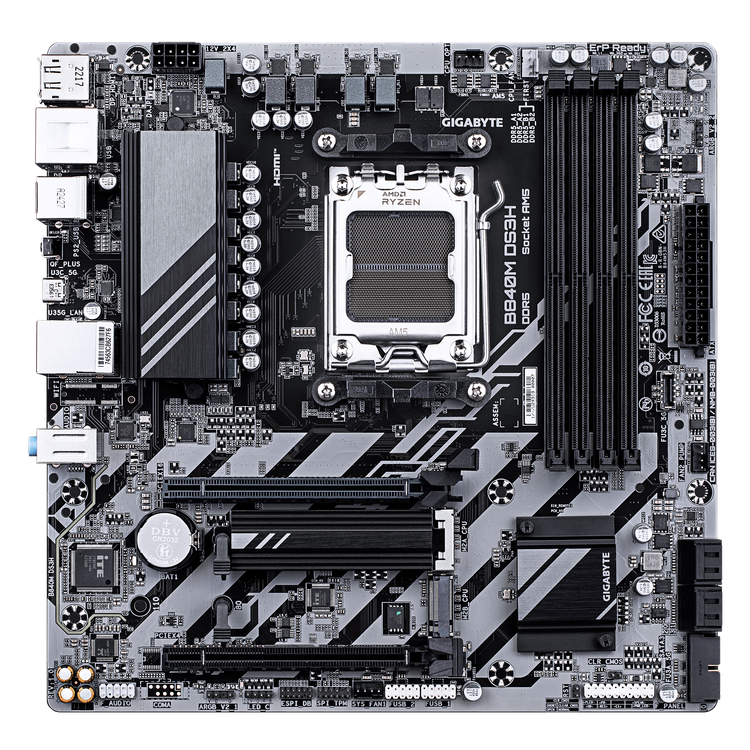

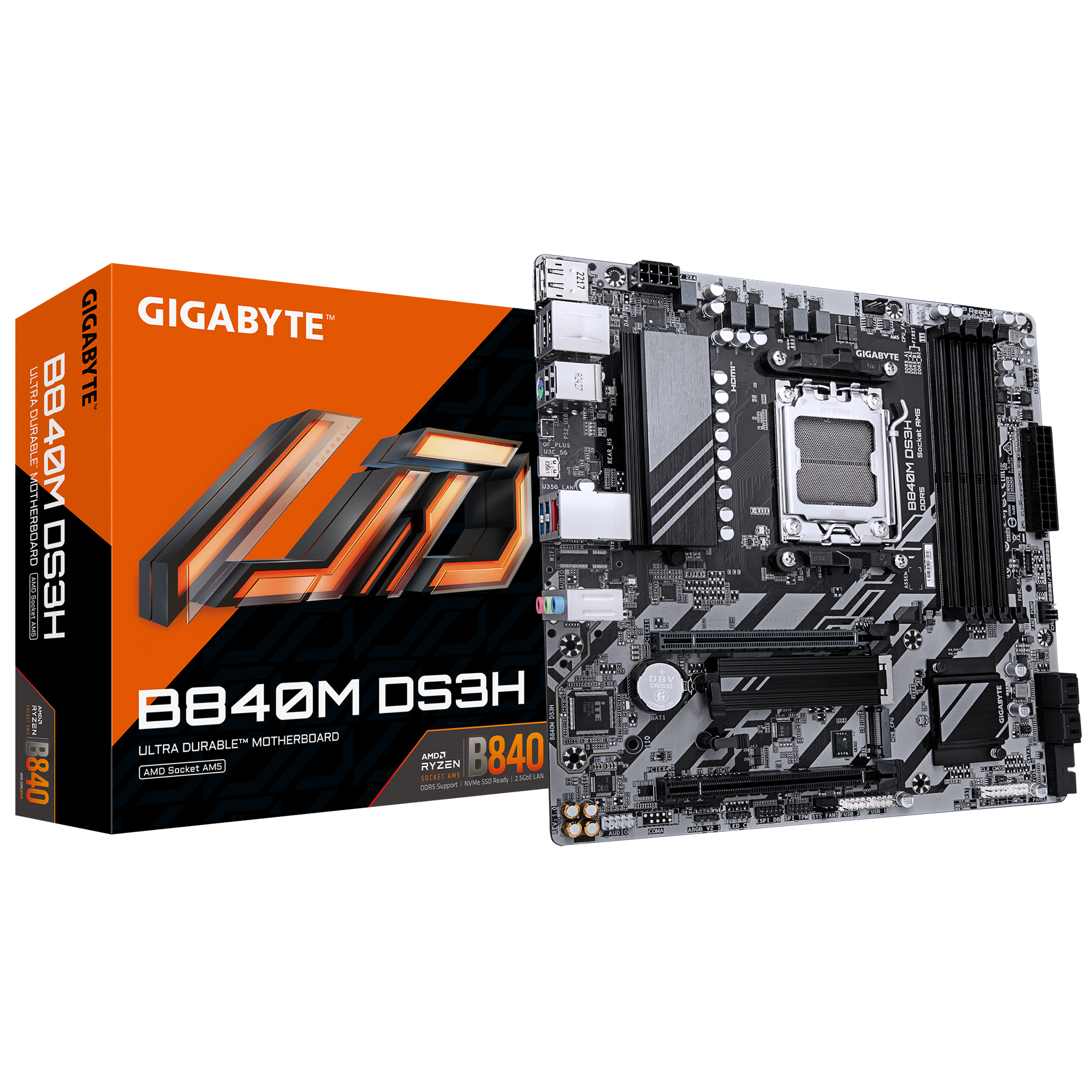

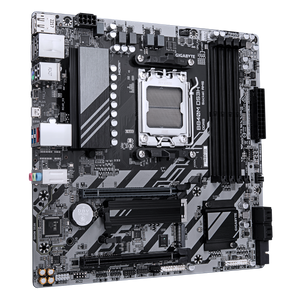

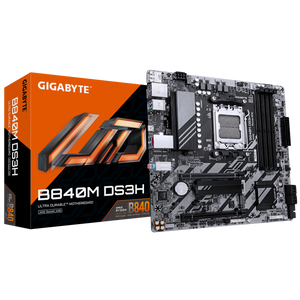

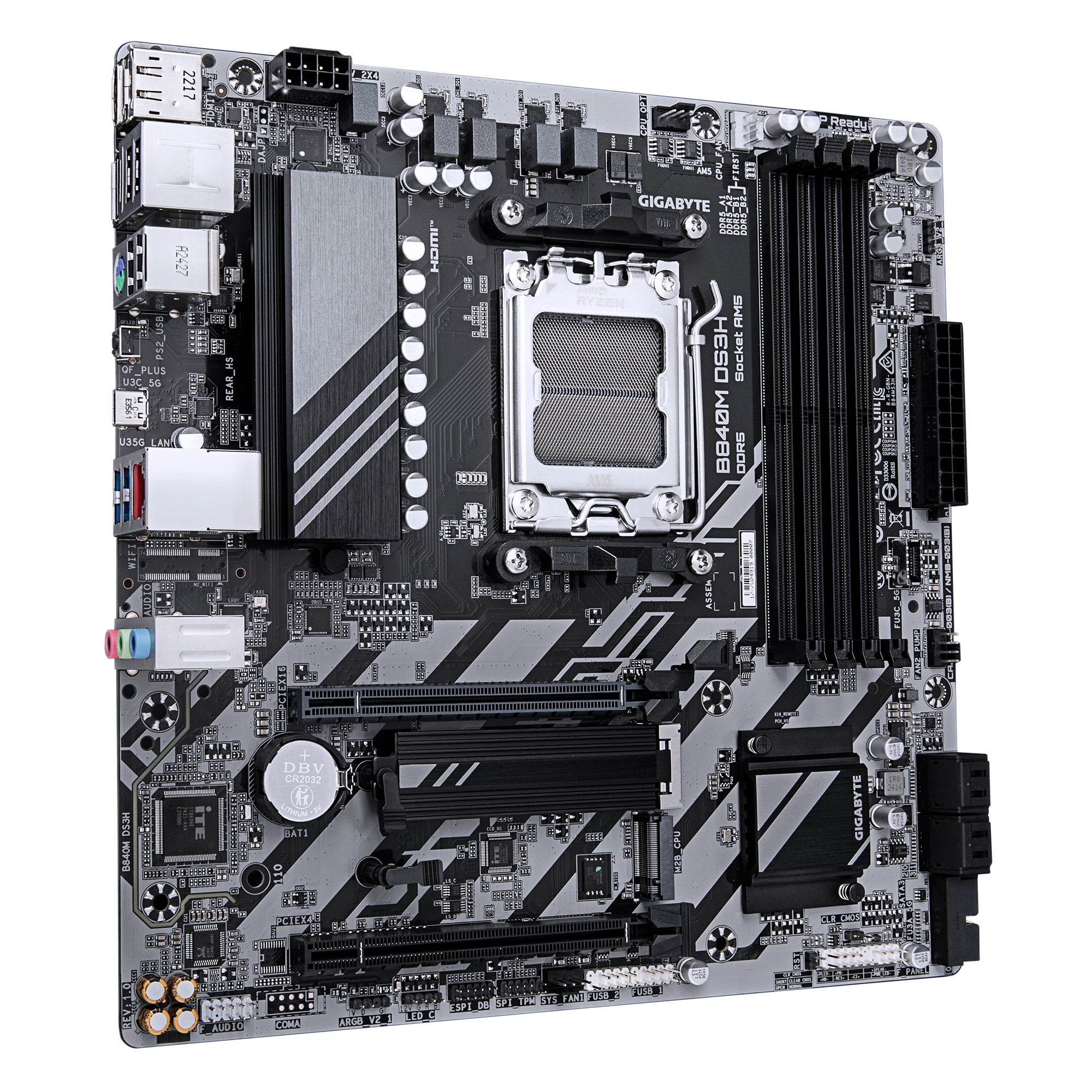

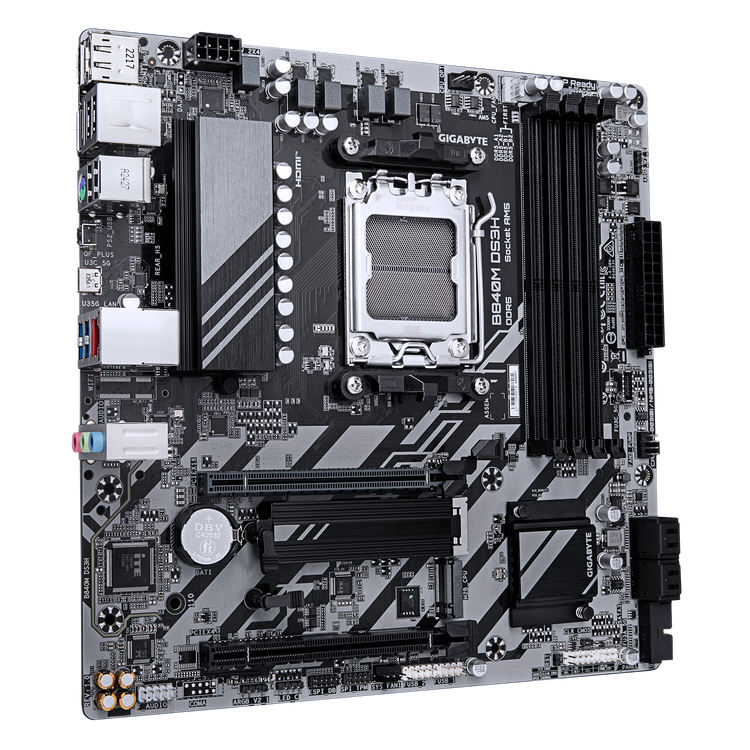

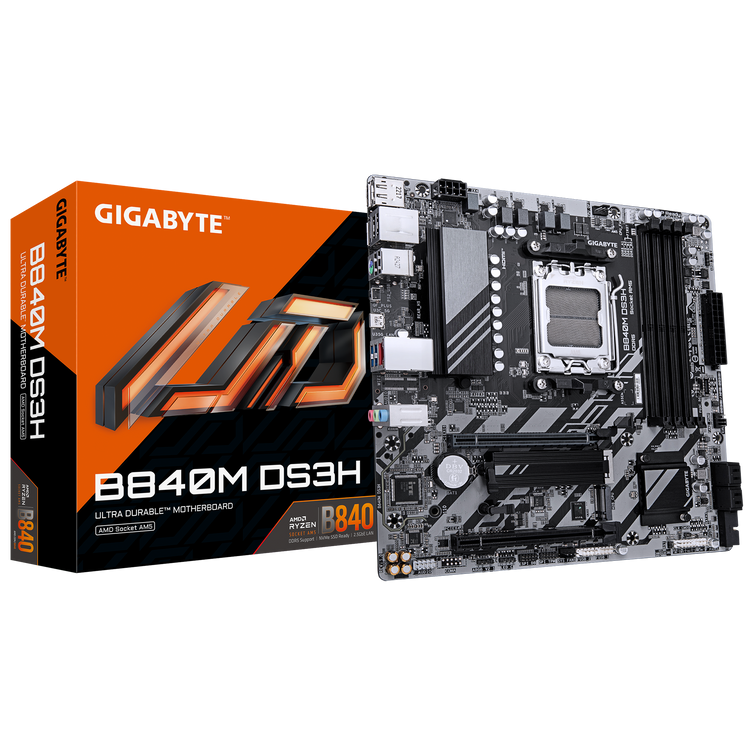

The Gigabyte B840M DS3H is a motherboard designed for users looking to build a versatile and high-performance PC with AMD processors. It supports the latest DDR5 memory and offers multiple storage options for enhanced data management.
Key features
| Dimensions | 244 × 35 × 244 mm |
|---|---|
| Producer product name | B840M DS3H |
| Warranty | 36 month(s) |
| Number of SATA connectors | 4 |
| Supported hard disk drive interfaces | SATA, M.2 |
| Supported memory types | DDR5 |
| Processor family | AMD |
| Processor socket | AM5 |
All specifications (99)
| Technical details | |
|---|---|
| Producer product name | B840M DS3H |
| Specifications | |
| Warranty | 36 month(s) |
| Internal I/O | |
| Number of SATA connectors | 4 |
| Supported hard disk drive interfaces | SATA, M.2 |
| Memory | |
| Supported memory types | DDR5 |
| Processor | |
| Processor family | AMD |
| Processor socket | AM5 |
| Additional specifications | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
| Motherboard chipset | AMD B840 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Batteries included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Warranty period | 3 year(s) |
| Dimensions & weight | |
| Net weight | 1.00 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Weight | 1.05 kg |
Gigabyte B840M DS3H, Processor family AMD, Processor socket AM5, DDR5
- Regular price
- €147,55
- Sale price
- €147,55
- Regular price
-
147,55
118,99
VAT included.Shipping calculated at checkout.
Usually dispatched in about a weekSee delivery times
- The motherboard supports AMD Ryzen processors from the 7000, 8000, and 9000 series, providing flexibility in processor choice.
- With four DIMM slots, it allows for a maximum of 256 GB of DDR5 memory, enabling efficient multitasking and demanding applications.
- It features four SATA connectors and supports M.2 interfaces, accommodating a variety of HDD and SSD storage solutions.
- RAID support enhances data protection and speed, allowing for configurations up to RAID 10.
- The board supports high memory clock speeds up to 8200 MHz, optimizing performance for intensive tasks.
