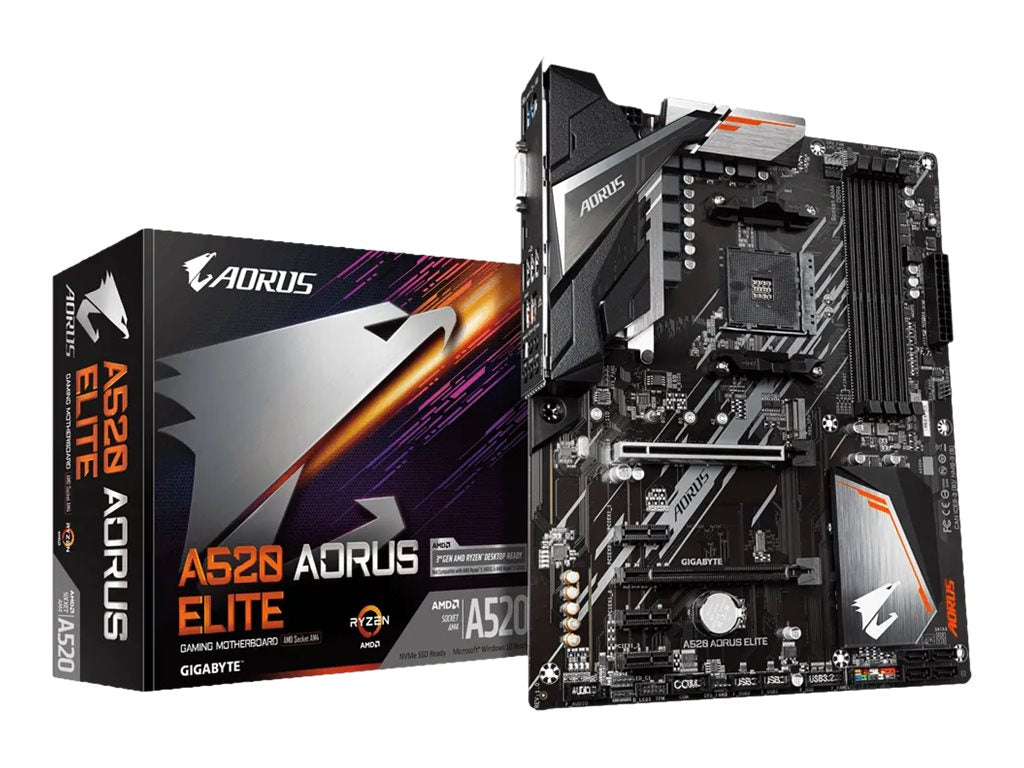

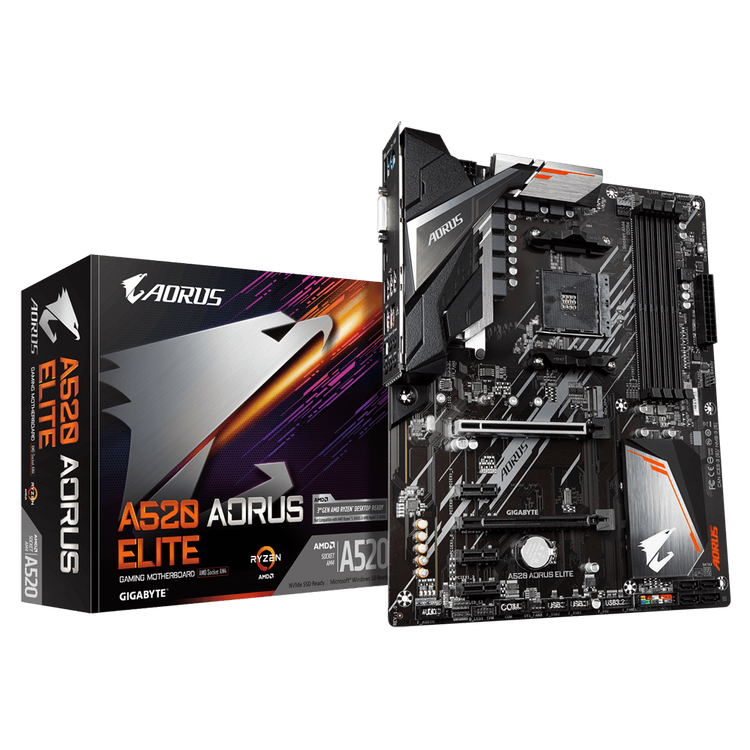

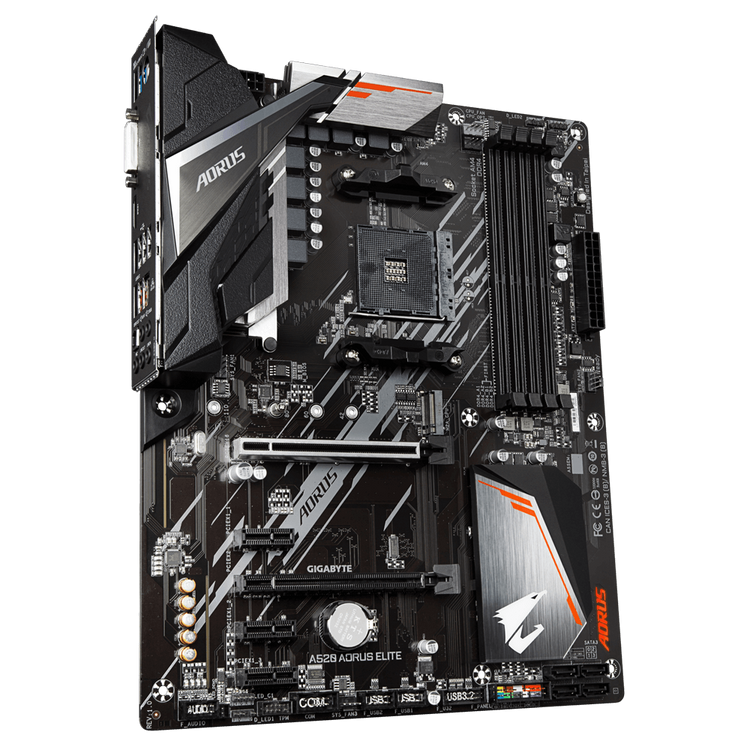

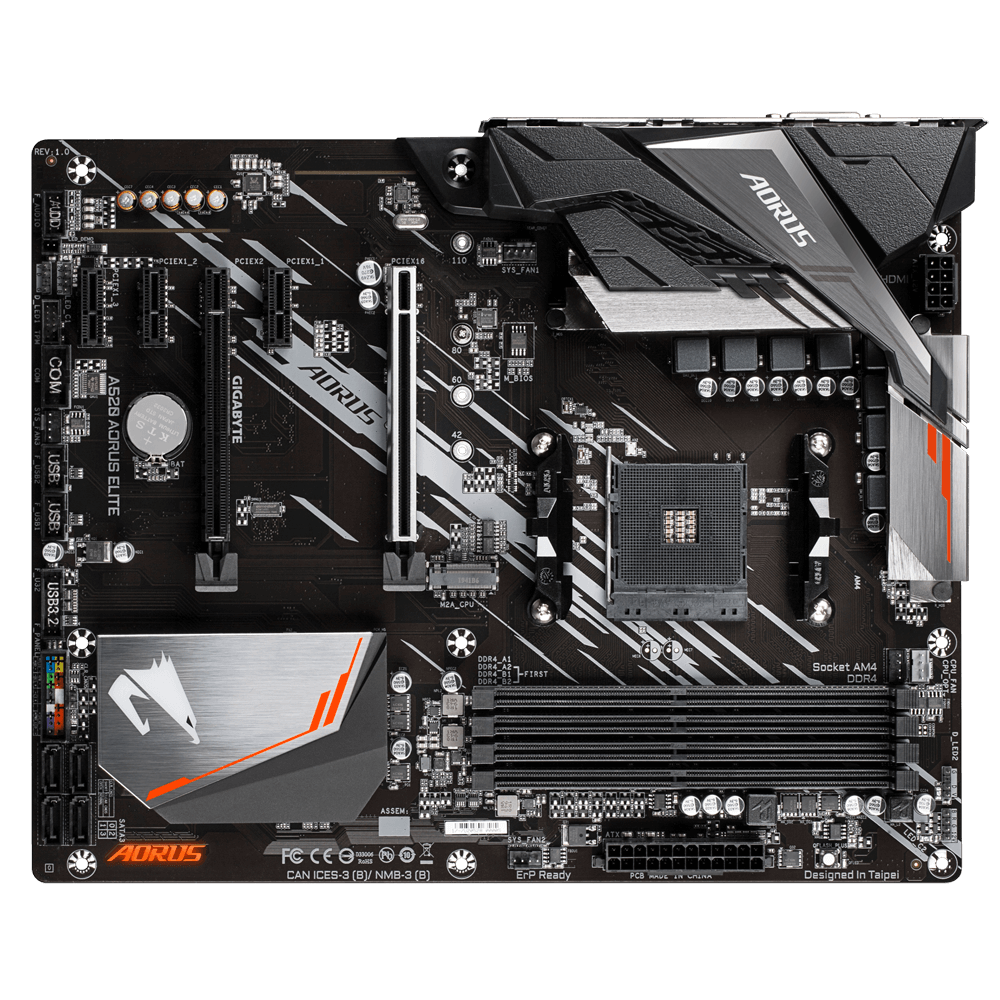

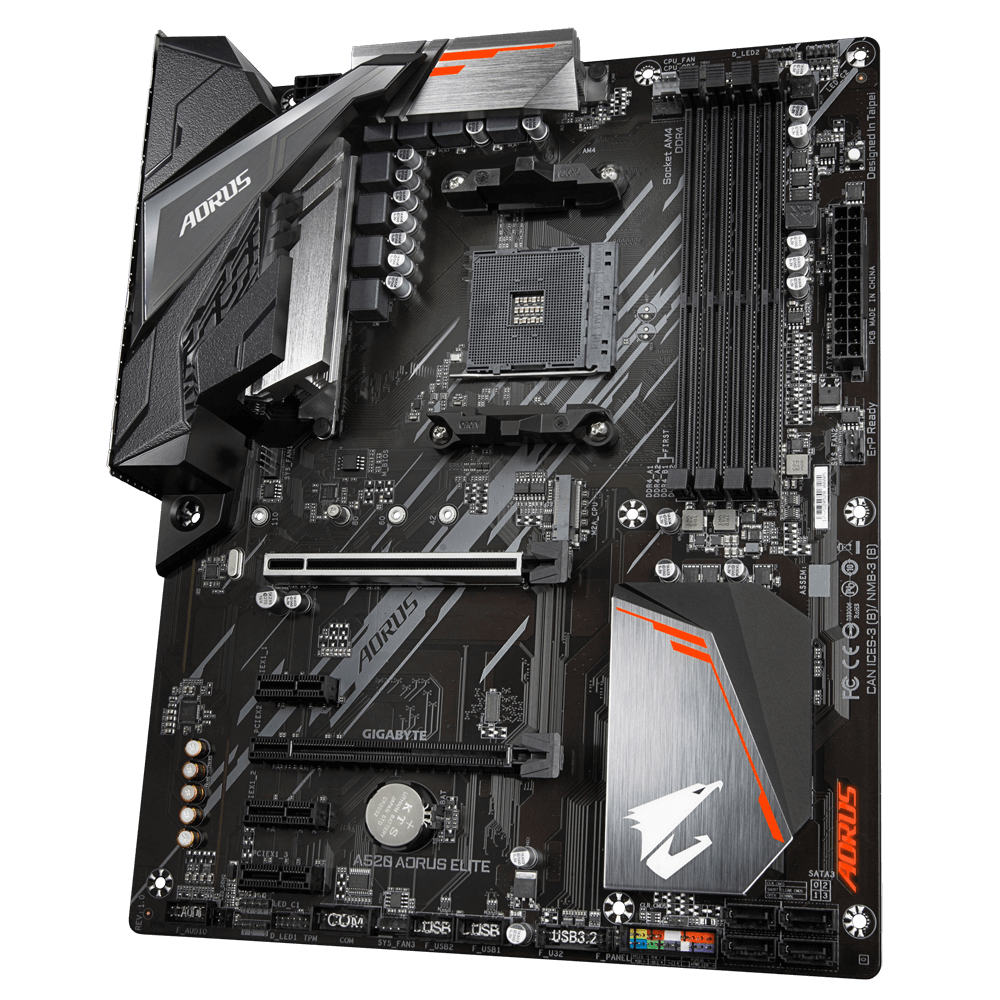

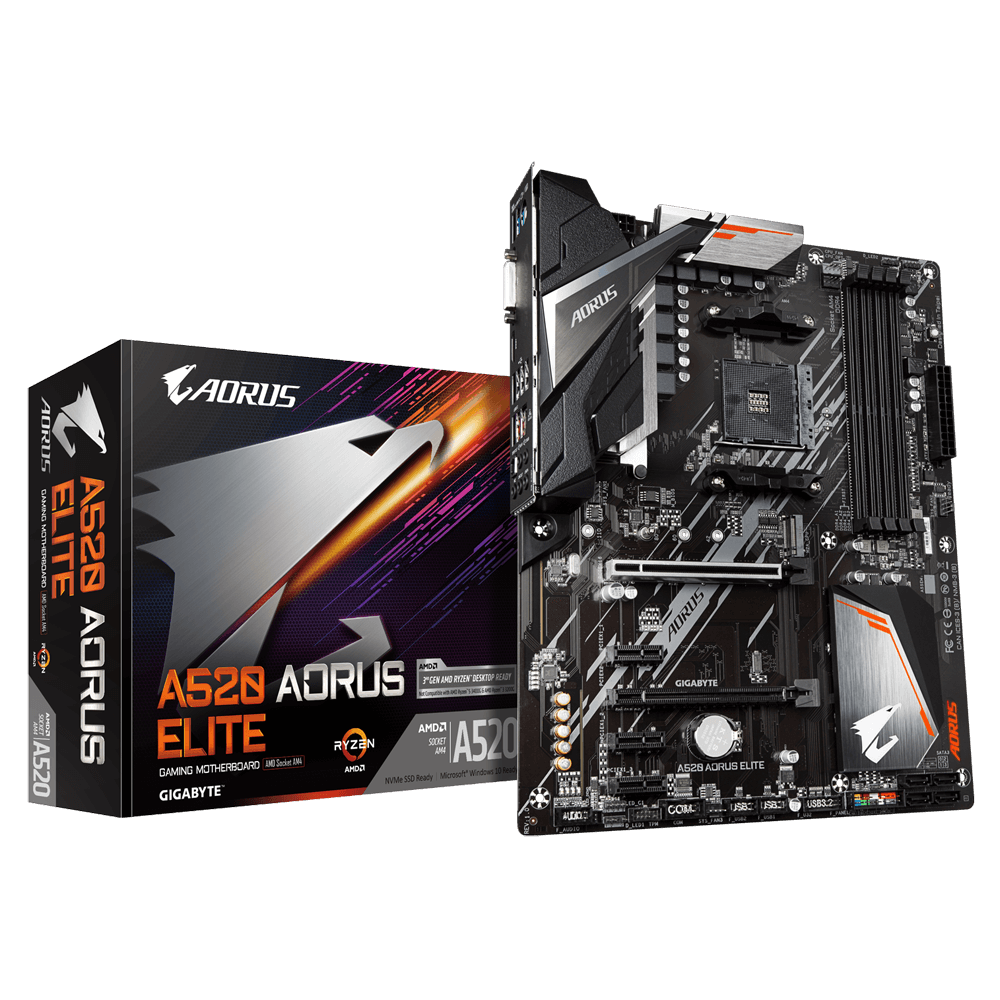

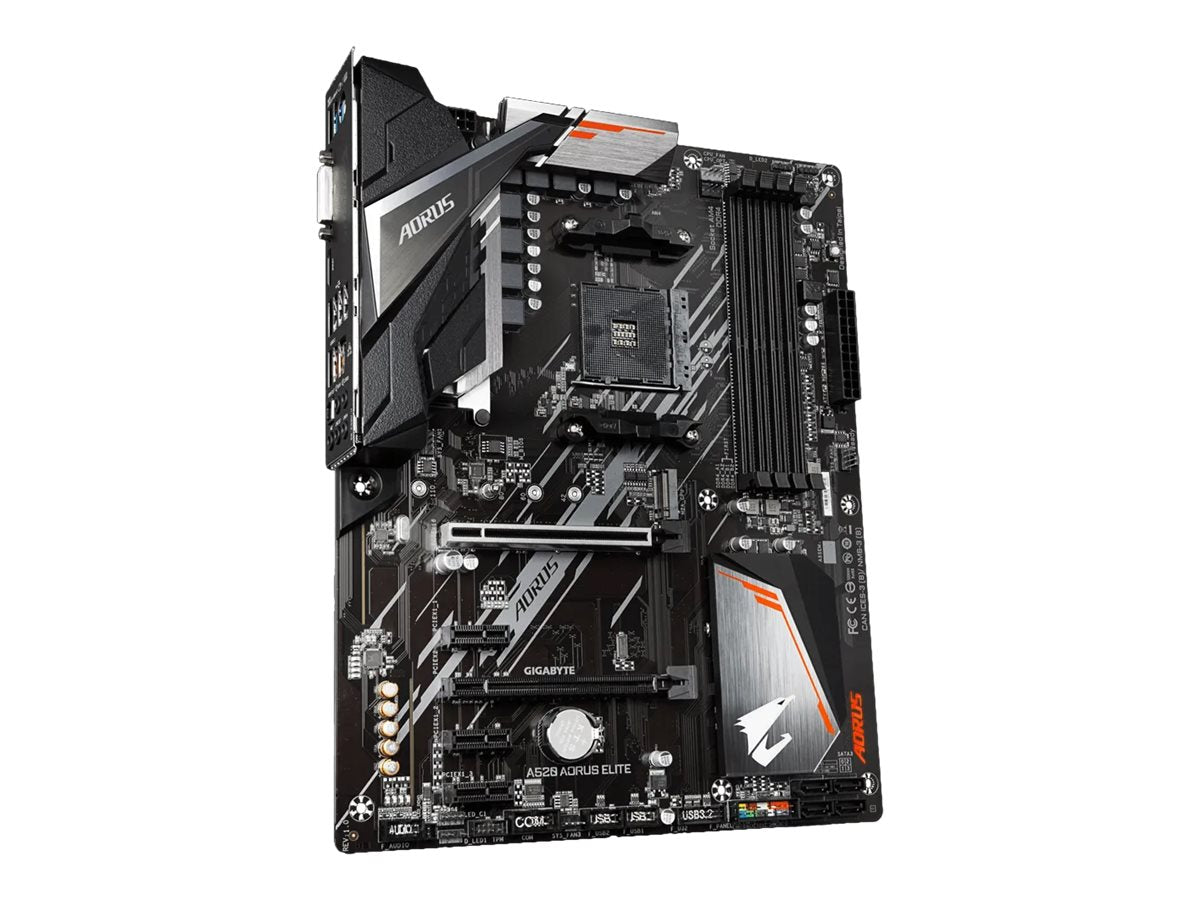

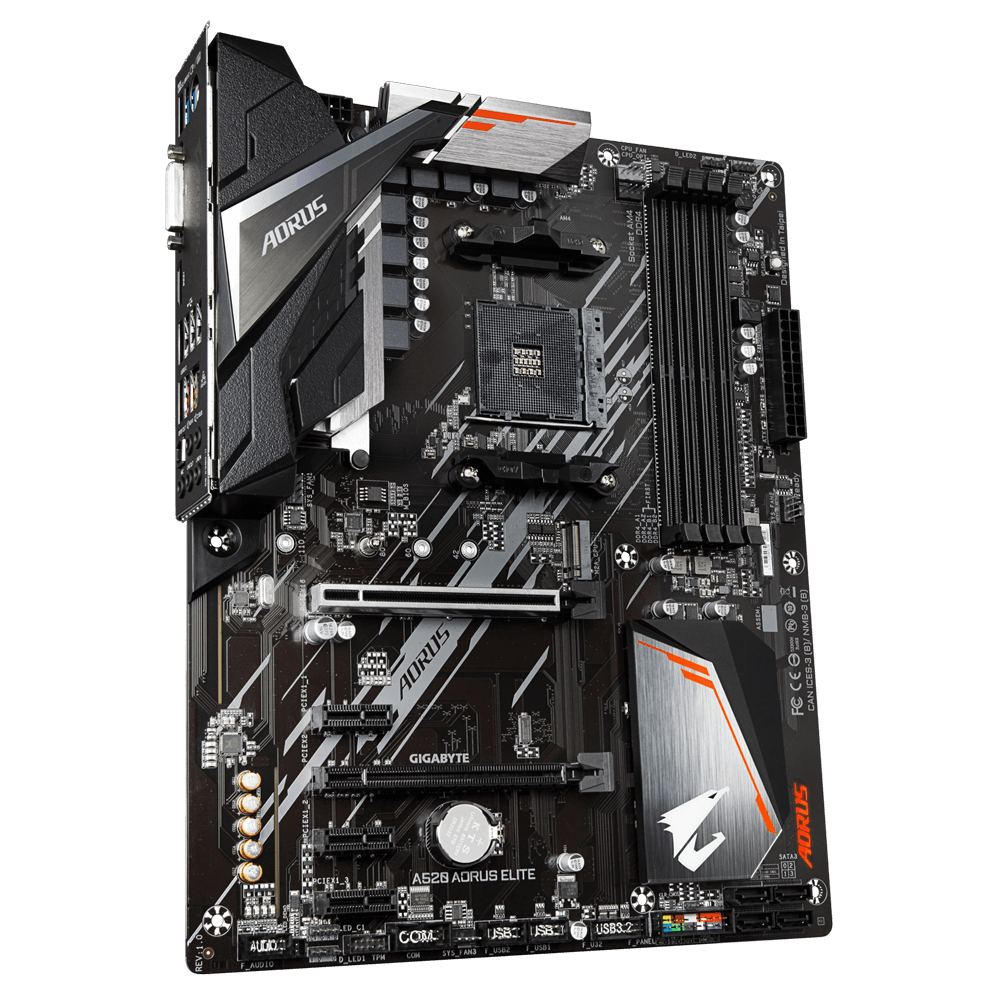

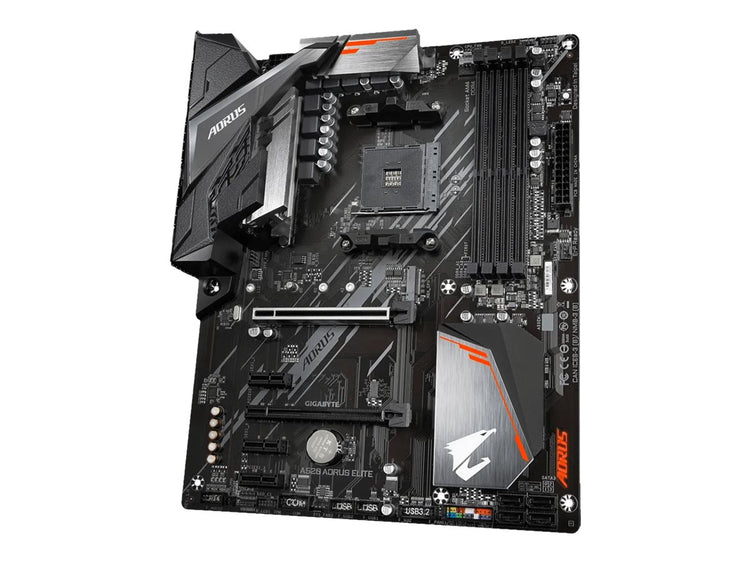

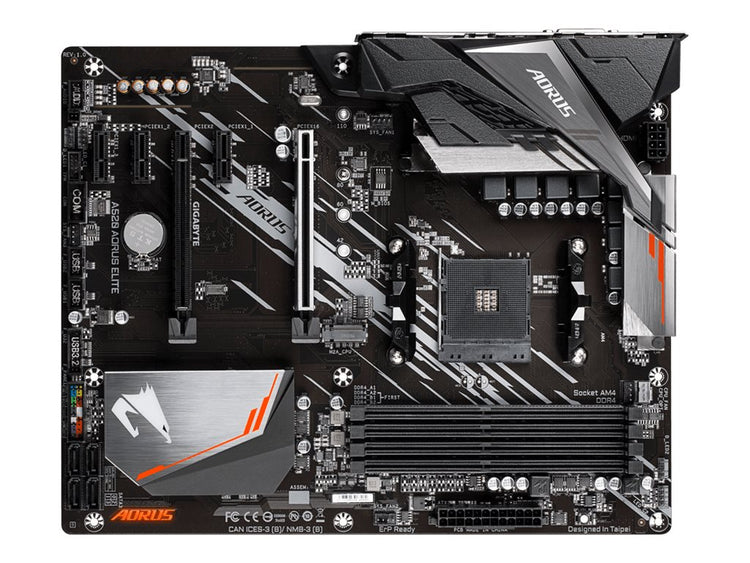

The Gigabyte A520 AORUS ELITE 1.0 is an ATX motherboard designed for users seeking to build or upgrade a PC with an AMD processor. It offers ample connectivity and memory options, making it suitable for gaming, content creation, or general computing tasks.

Supports up to 128 GB of DDR4 memory across four DIMM slots, accommodating demanding applications.
Includes four SATA 6Gb/s connectors for connecting multiple storage devices, enhancing data transfer speeds.
Compatible with AMD Ryzen processors, providing flexibility for users looking to build with the latest technology.
Features M.2 support for SSDs, allowing for faster boot and load times.
Supports various RAID configurations including RAID 0, 1, and 10 for improved performance and data redundancy.

Internal I/O (1)

Number of SATA connectors: 4 x SATA 6Gb/s connectors

Memory (2)

Memory slots: 4
Supported memory types: DDR4 DIMM

Performance (2)

Chipset: AMD A
Motherboard form factor: ATX

Processor (3)

Processor family: AMD
Processor socket: AM4
Compatible processor series: AMD Ryzen 5000 Series/3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors

Technical details (2)

Producer product name: A520 AORUS ELITE 1.0
Net weight: 1.38 kg

Specifications (1)

Warranty: 36 month(s)

Additional specifications (69)

Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 5
RAID levels: 0, 1, 10
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
Power fan connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
Serial port headers: 1
RGB LED pin header: Yes

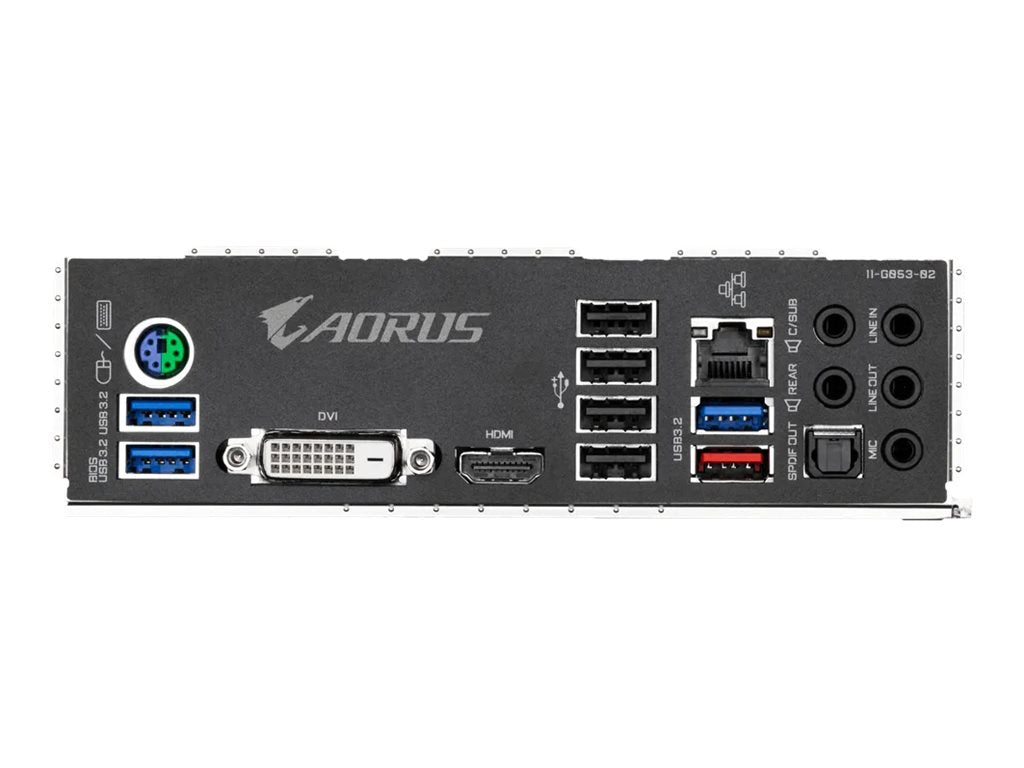

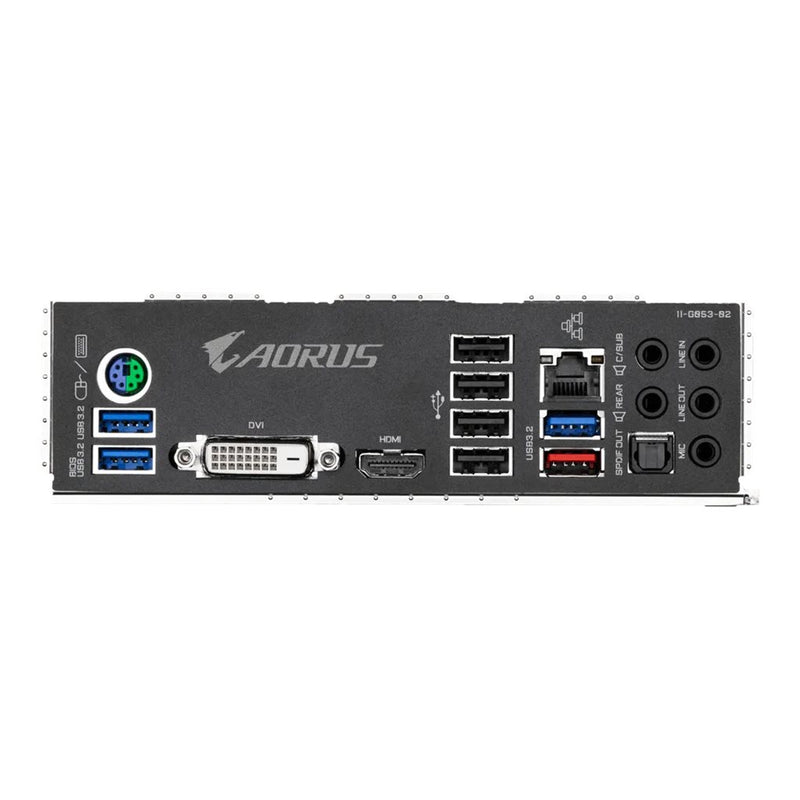

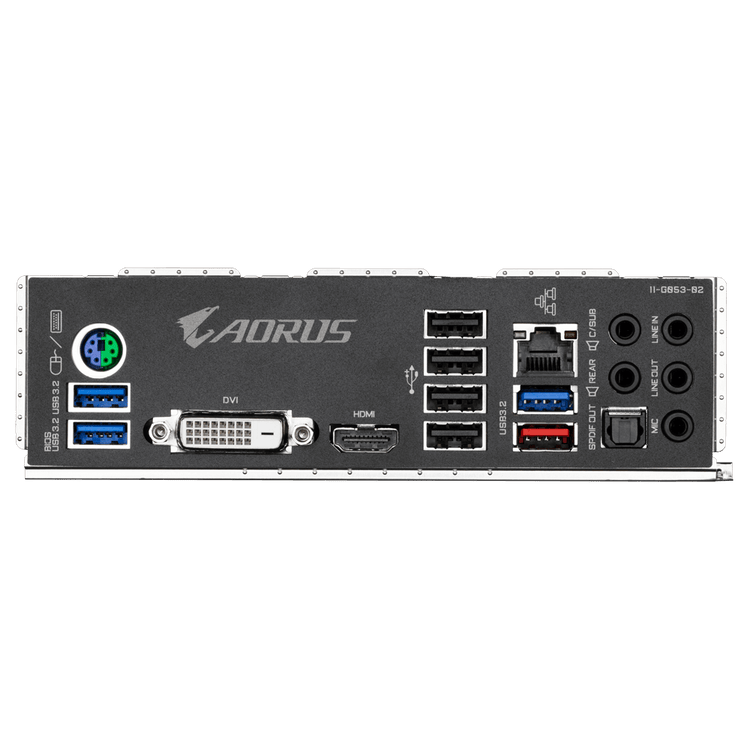

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DVI-D ports quantity: 1
Headphone outputs: 5
S/PDIF out port: Yes
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Motherboard chipset: AMD A520
Audio chip: Realtek ALC1200
Audio output channels: 7.1 channels
PC health monitoring: Fan, Temperature, Voltage
Component for: PC
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64
PCI Express x1 slots: 3
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Harmonized System (HS) code: 84733020
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery capacity: 220 mAh
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Warranty period: 3 year(s)
