About

Description

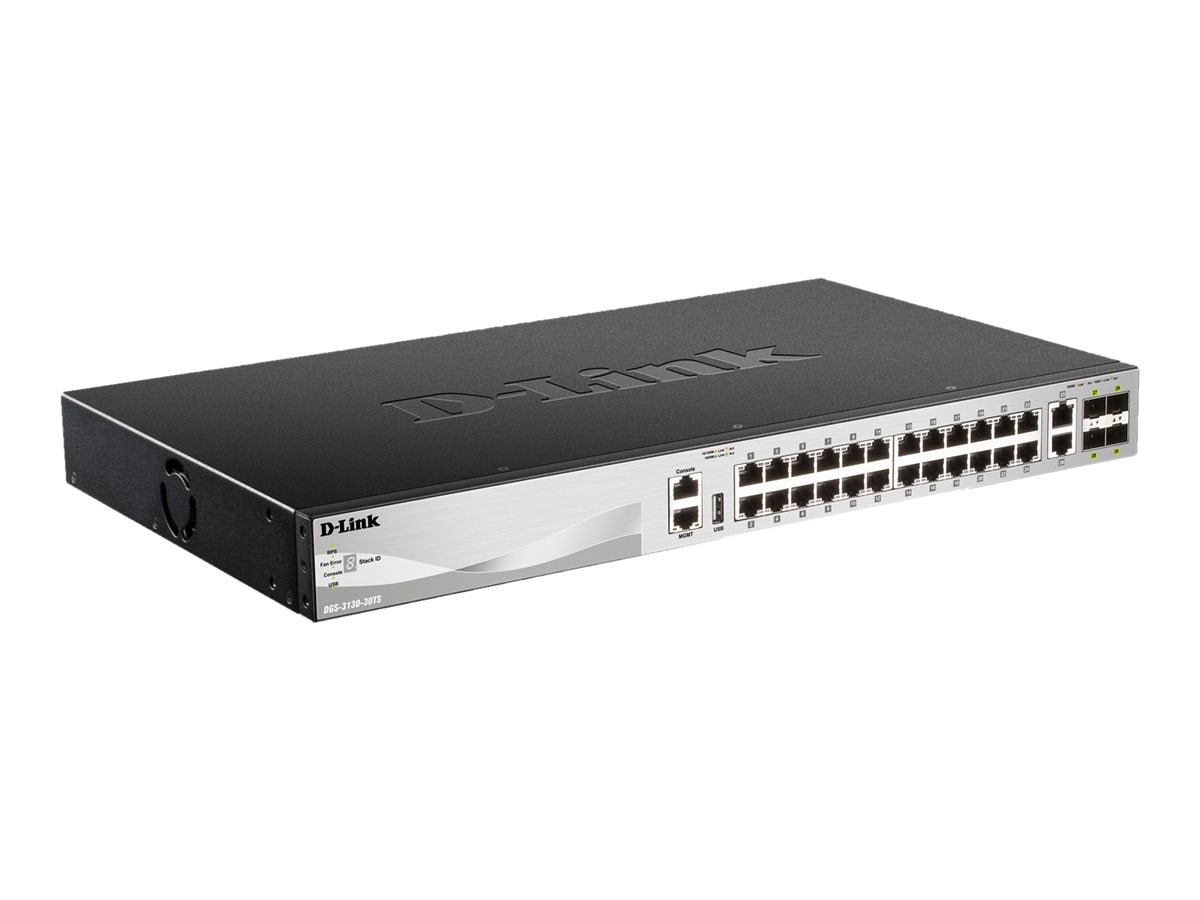

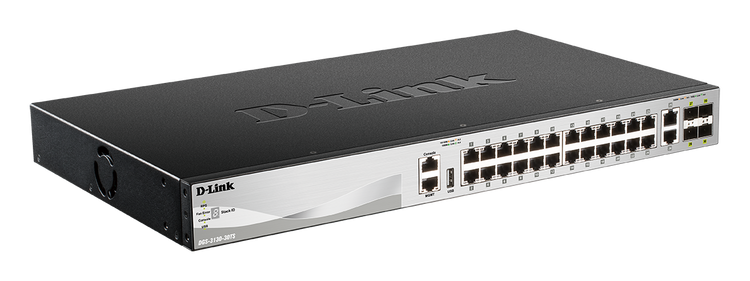

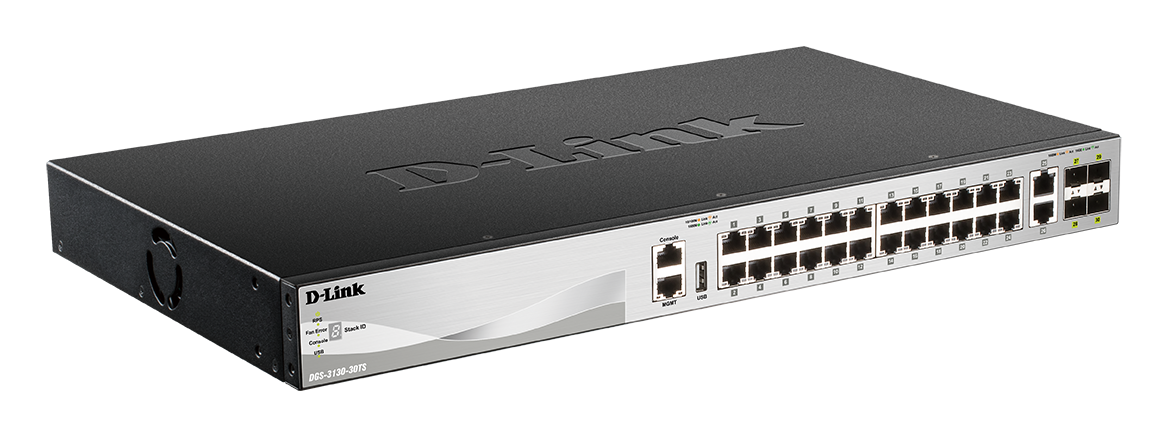

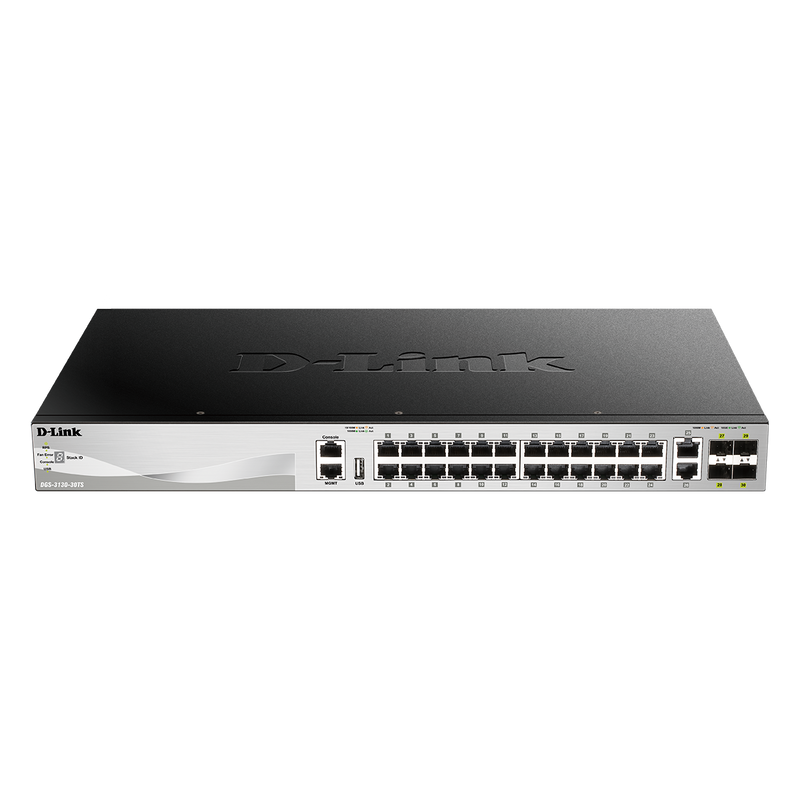

The D-Link DGS-3130-30TS is a managed L3 switch suitable for businesses needing robust network management and connectivity. It is designed for rack mounting, making it a practical choice for data centers and server rooms.

  • Equipped with 24 Gigabit Ethernet ports to provide high-speed connectivity for multiple devices.
  • Includes 2 additional 10 Gbps RJ-45 ports for faster connections where needed.
  • Offers 4 SFP+ ports for flexible fiber optic connections, enhancing network scalability.
  • Features web-based management for easy configuration and monitoring of network settings.
  • Supports Quality of Service (QoS) capabilities to prioritize network traffic efficiently.
Specifications (3)
  • Producer product family: DGS-3130-30TS
  • Producer product name: Switch
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Rack mountable
Management features (1)
  • Switch type: Managed L3
Other features (1)
  • Power supply type: Optional redundant
Ports & interfaces (5)
  • 10 Gbps (RJ-45) ports quantity: 2
  • Gigabit Ethernet (copper) ports quantity: 24
  • SFP+ ports quantity: 4
  • POE: No
  • Predominant port type: 1 Gbps (RJ-45)
Technical details (1)
  • Net weight: 2.448 kg
Additional specifications (65)
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • MIB support: RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • 10G Ethernet (copper) ports quantity: 2
  • SFP+ module slots quantity: 4
  • Fiber optic connector: SFP+
  • USB 2.0 ports quantity: 1
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
  • 10G support: Yes
  • Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4000
  • Switching capacity: 168 Gbit/s
  • Forwarding rate: 125 Mpps
  • MAC address table: 16384 entries
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 2 MB
  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
  • Access Control List (ACL): Yes
  • Access Control List (ACL) egress: 512
  • Access Control List (ACL) ingress: 2048
  • IGMP snooping: Yes
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • BPDU filtering/protection: Yes
  • Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
  • Queue scheduling algorithms: Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
  • Multicast support: Yes
  • Routing protocols: RIP
  • Stackable: Yes
  • Product colour: Grey
  • LED indicators: Yes
  • Number of fans: 1 fan(s)
  • Physical stacking (units): 9
  • Virtual stacking (units): 32
  • Noise level: 47 dB
  • Mean time between failures (MTBF): 388361 h
  • Power source: DC
  • Redundant power supply (RPS) support: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 30.36 W
  • Power over Ethernet (PoE): No
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 103.59 BTU/h
  • Width: 440 mm
  • Depth: 250 mm
  • Height: 44 mm
  • Weight: 3.2 kg
  • Certification: FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
