Description

The D-Link Multi-mode Transceiver DEM-QX10Q-LR4 is designed for high-speed networking, making it suitable for businesses and data centers requiring robust fiber optic connections. This transceiver supports single-mode fiber to enable long-distance data transfer.

  • Achieves a maximum transfer distance of up to 10,000 meters, allowing for extensive network setups.
  • Supports data transfer rates of up to 40,000 Mbit/s, ensuring rapid communication between devices.
  • Equipped with a QSFP+ connector for easy integration into existing network systems.
  • Features a full duplex system for simultaneous data transmission and reception, enhancing efficiency.
  • Includes Digital Diagnostics Monitoring (DDM) for real-time monitoring of performance and status.
Specifications (3)
  • Producer product family: Multi-mode Transceiver
  • Producer product name: DEM-QX10Q-LR4
  • Warranty: 24 month(s)
Features (1)
  • Media type: Single-mode
Performance (2)
  • Maximum transfer distance: 10000 m
  • Wavelength: 1271 nm, 1291 nm, 1311 nm, 1331 nm
Technical details (2)
  • Connector type: QSFP+ Connector
  • Net weight: 0.00 kg
Additional specifications (39)
  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 40000 Mbit/s
  • Interface type: QSFP+
  • Single-mode fiber (SMF) supported: Yes
  • Multi-mode fiber (MMF) supported: No
  • Fiber optic connector: LC
  • Fiber cable diameters supported (core/cladding): 9/125 µm
  • SFP transceiver standard: LR4
  • Tx power (min): -4 dBmW
  • Tx power (max): 8.3 dBmW
  • Rx power (min): 3.5 dBmW
  • Rx power (max): -13.7 dBmW
  • Link budget: 19.8 dB
  • Ethernet interface type: 400 Gigabit Ethernet
  • Networking standards: IEEE 802.3ba
  • Fiber ethernet cabling technology: 40GBASE
  • Duplex system: Full
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Blue, Silver
  • Hot-Plug support: Yes
  • Maximum voltage: 3.3 V
  • Maximum current: 1.13 A
  • Compliance certificates: RoHS
  • Certification: FCC Class B CE Class B VCCI Class B FDA/CDRH TUV CSA MSA
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 0 - 85%
  • Storage relative humidity (H-H): 0 - 85%
  • Width: 18.4 mm
  • Depth: 118 mm
  • Height: 12.9 mm
  • Weight: 40 g
  • Quantity per pack: 1 pc(s)
  • Shipping (inner) case length: 36 cm
  • Shipping (inner) case width: 26 cm
  • Shipping (inner) case height: 31 cm
  • Shipping (inner) case net weight: 3.2 kg
  • Products per shipping (inner) case: 50 pc(s)
  • Harmonized System (HS) code: 85369010
Description

The D-Link Multi-mode Transceiver DEM-QX10Q-LR4 is designed for high-speed networking, making it suitable for businesses and data centers requiring robust fiber optic connections. This transceiver supports single-mode fiber to enable long-distance data transfer.

  • Achieves a maximum transfer distance of up to 10,000 meters, allowing for extensive network setups.
  • Supports data transfer rates of up to 40,000 Mbit/s, ensuring rapid communication between devices.
  • Equipped with a QSFP+ connector for easy integration into existing network systems.
  • Features a full duplex system for simultaneous data transmission and reception, enhancing efficiency.
  • Includes Digital Diagnostics Monitoring (DDM) for real-time monitoring of performance and status.
Specifications (3)
  • Producer product family: Multi-mode Transceiver
  • Producer product name: DEM-QX10Q-LR4
  • Warranty: 24 month(s)
Features (1)
  • Media type: Single-mode
Performance (2)
  • Maximum transfer distance: 10000 m
  • Wavelength: 1271 nm, 1291 nm, 1311 nm, 1331 nm
Technical details (2)
  • Connector type: QSFP+ Connector
  • Net weight: 0.00 kg
Additional specifications (39)
  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 40000 Mbit/s
  • Interface type: QSFP+
  • Single-mode fiber (SMF) supported: Yes
  • Multi-mode fiber (MMF) supported: No
  • Fiber optic connector: LC
  • Fiber cable diameters supported (core/cladding): 9/125 µm
  • SFP transceiver standard: LR4
  • Tx power (min): -4 dBmW
  • Tx power (max): 8.3 dBmW
  • Rx power (min): 3.5 dBmW
  • Rx power (max): -13.7 dBmW
  • Link budget: 19.8 dB
  • Ethernet interface type: 400 Gigabit Ethernet
  • Networking standards: IEEE 802.3ba
  • Fiber ethernet cabling technology: 40GBASE
  • Duplex system: Full
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Blue, Silver
  • Hot-Plug support: Yes
  • Maximum voltage: 3.3 V
  • Maximum current: 1.13 A
  • Compliance certificates: RoHS
  • Certification: FCC Class B CE Class B VCCI Class B FDA/CDRH TUV CSA MSA
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 0 - 85%
  • Storage relative humidity (H-H): 0 - 85%
  • Width: 18.4 mm
  • Depth: 118 mm
  • Height: 12.9 mm
  • Weight: 40 g
  • Quantity per pack: 1 pc(s)
  • Shipping (inner) case length: 36 cm
  • Shipping (inner) case width: 26 cm
  • Shipping (inner) case height: 31 cm
  • Shipping (inner) case net weight: 3.2 kg
  • Products per shipping (inner) case: 50 pc(s)
  • Harmonized System (HS) code: 85369010

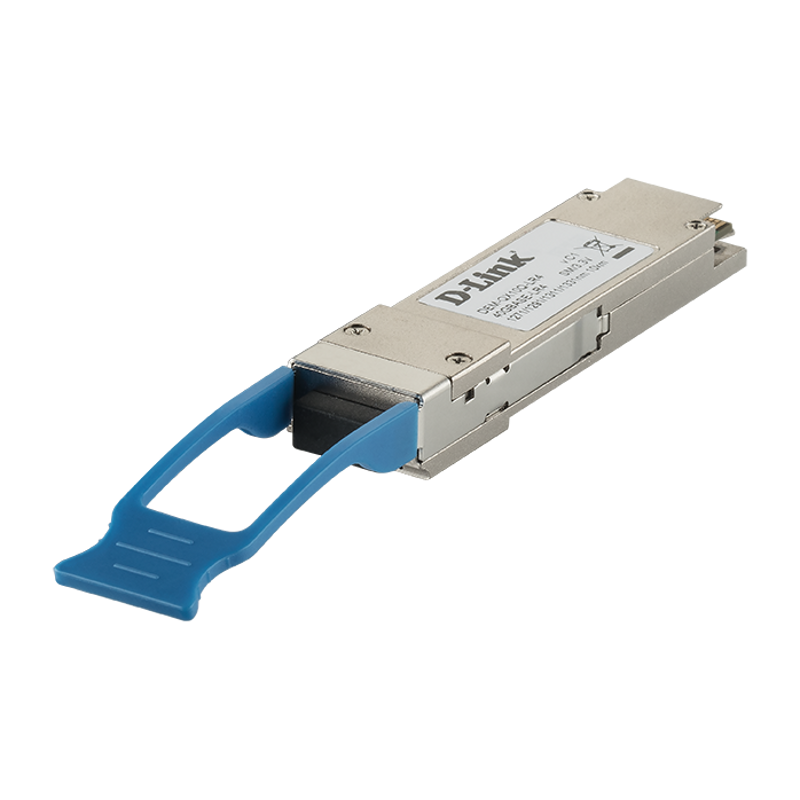

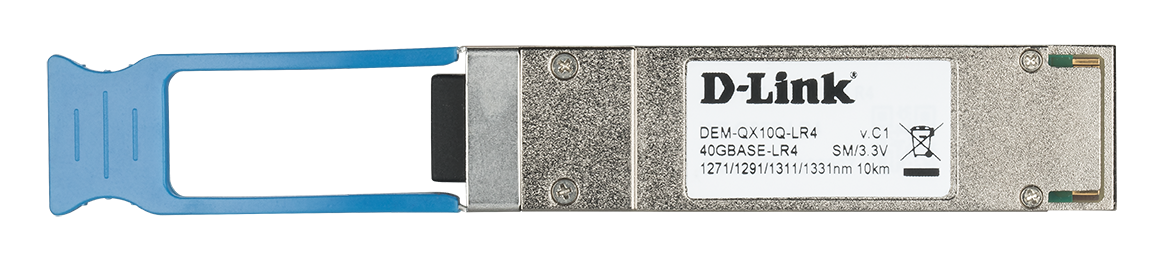

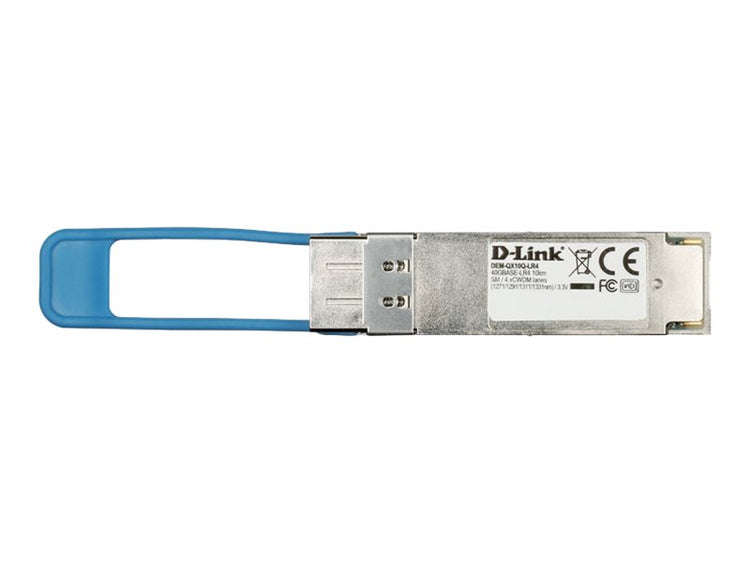

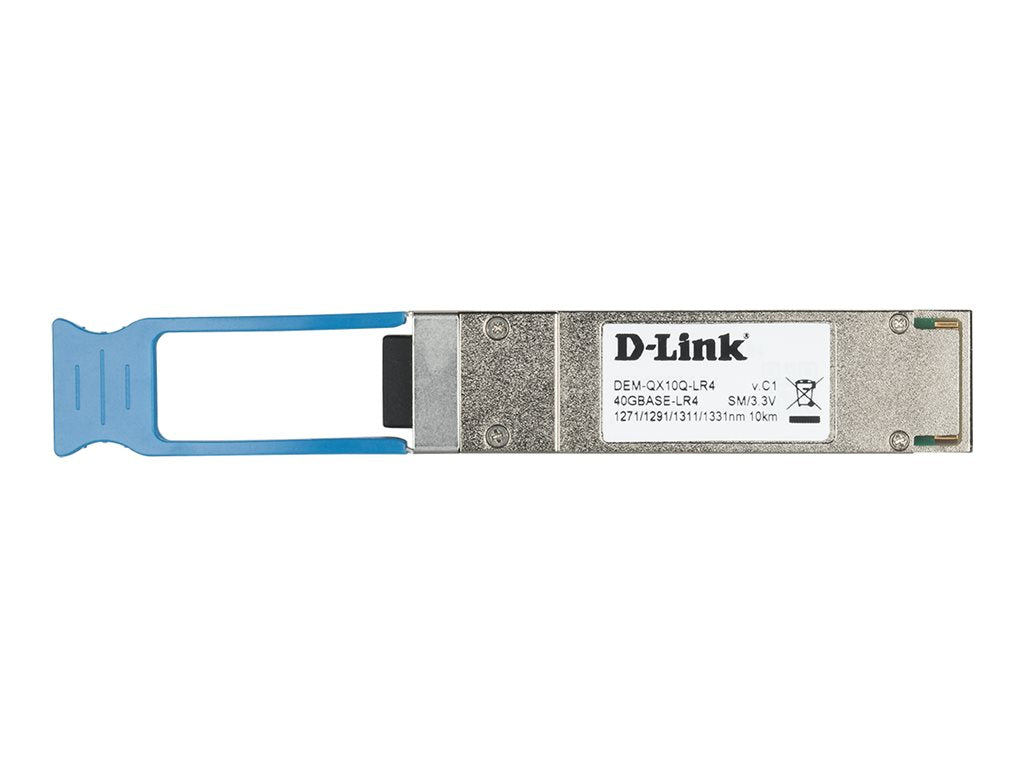

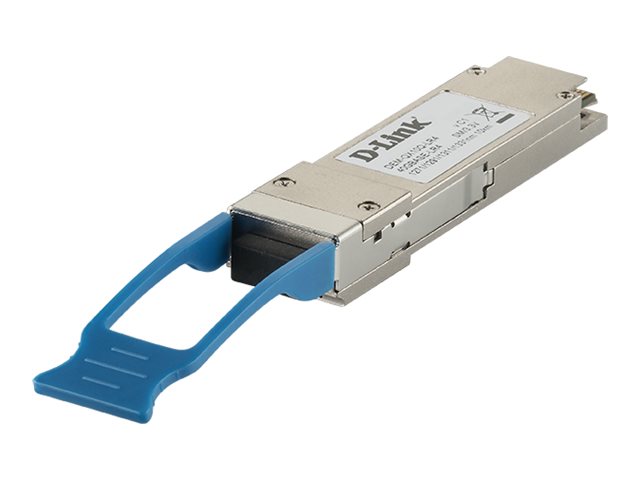

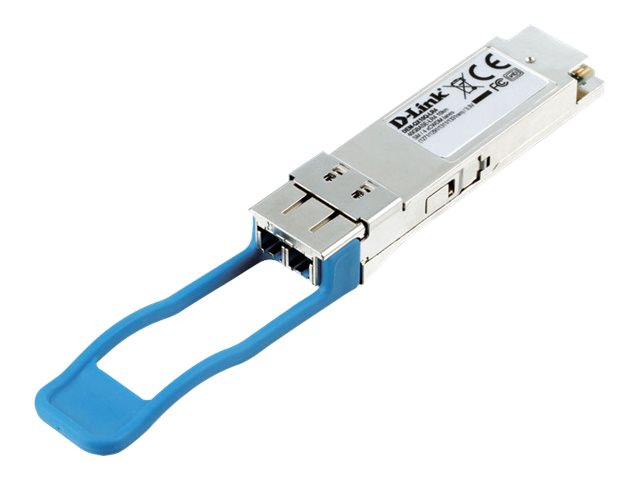

D-Link DEM-QX10Q-LR4 — Multi-mode Transceiver, Single-mode, QSFP+ Connector, Maximum transfer distance 10000 m

€2.682,11
€2.682,11
Tax included.
