Description

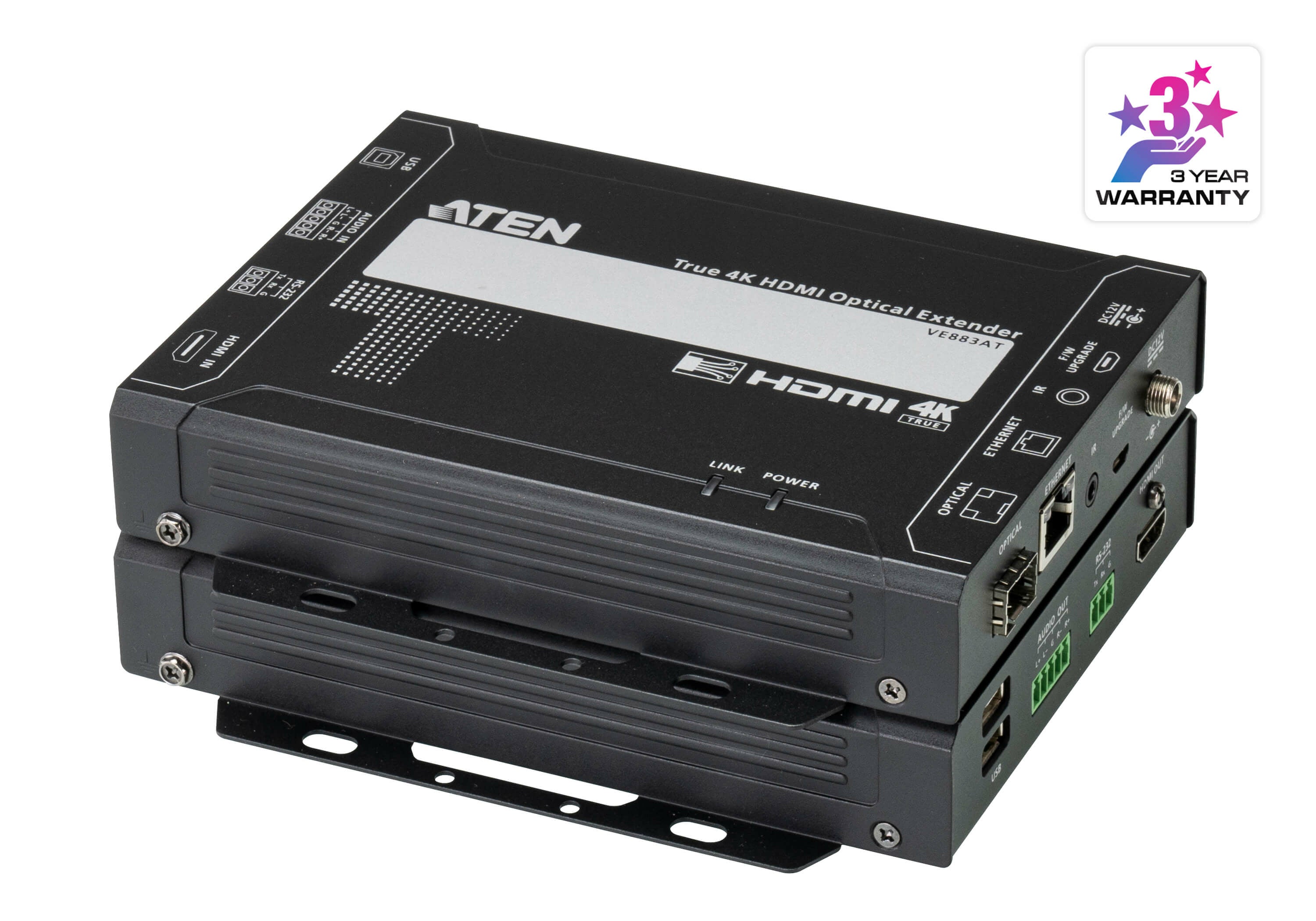

The Aten True 4K HDMI Optical Extender is designed for users seeking to transmit high-definition audio and video over long distances, reaching up to 300 meters. It is ideal for professionals in AV installations who require high-quality connectivity with simple setup.

  • Delivers 4K resolution at 4096 x 2160 pixels for crisp visuals.
  • Supports up to 300 meters of transmission distance via fiber optic, enhancing installation flexibility.
  • Bidirectional function allows for seamless data transmission in both directions.
  • Plug and Play capability simplifies setup, making it user-friendly.
  • Equipped with LED indicators for easy monitoring of connection status.
Technical details (3)
  • Net weight: 0.67 kg
  • Producer product family: True 4K HDMI Optical Extender (True 4K @ 985FT/300M - SFP+ Duplex Multi Mode)
  • Producer product name: VE883AK1
Additional specifications (49)
  • Type: AV transmitter & receiver
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Fiber
  • Maximum transfer distance: 300 m
  • Fiber optic wavelengths supported: 850 nm
  • Fiber mode structure: Multi-mode
  • Bidirectional: Yes
  • Electrostatic Discharge (ESD) protection: Yes
  • LED indicators: Yes
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Firmware upgradeable: Yes
  • Plug and Play: Yes
  • HDCP version: 2.2
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 1
  • RJ-45 output ports: 1
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • Fiber optic connector: LC
  • USB ports quantity: 1
  • USB version: 2.0
  • USB connector type: Micro-USB B
  • DC-in jack: Yes
  • Operating voltage: 5 V
  • Power consumption (transmitter) (max): 7.01 W
  • Power consumption (receiver) (max): 6.5 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Receiver dimensions (WxDxH): 146.9 x 169.4 x 30 mm
  • Receiver weight: 660 g
  • Transmitter dimensions (WxDxH): 146.9 x 169.4 x 30 mm
  • Transmitter weight: 670 g
  • AC adapter included: Yes
  • Cables included: USB
  • IR emitter included: Yes
  • IR receiver included: Yes
  • Country of origin: Taiwan
  • Compliance certificates: RoHS
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 375 mm
  • Master (outer) case length: 565 mm
  • Master (outer) case height: 258 mm
Description

The Aten True 4K HDMI Optical Extender is designed for users seeking to transmit high-definition audio and video over long distances, reaching up to 300 meters. It is ideal for professionals in AV installations who require high-quality connectivity with simple setup.

  • Delivers 4K resolution at 4096 x 2160 pixels for crisp visuals.
  • Supports up to 300 meters of transmission distance via fiber optic, enhancing installation flexibility.
  • Bidirectional function allows for seamless data transmission in both directions.
  • Plug and Play capability simplifies setup, making it user-friendly.
  • Equipped with LED indicators for easy monitoring of connection status.
Technical details (3)
  • Net weight: 0.67 kg
  • Producer product family: True 4K HDMI Optical Extender (True 4K @ 985FT/300M - SFP+ Duplex Multi Mode)
  • Producer product name: VE883AK1
Additional specifications (49)
  • Type: AV transmitter & receiver
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Fiber
  • Maximum transfer distance: 300 m
  • Fiber optic wavelengths supported: 850 nm
  • Fiber mode structure: Multi-mode
  • Bidirectional: Yes
  • Electrostatic Discharge (ESD) protection: Yes
  • LED indicators: Yes
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Firmware upgradeable: Yes
  • Plug and Play: Yes
  • HDCP version: 2.2
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 1
  • RJ-45 output ports: 1
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • Fiber optic connector: LC
  • USB ports quantity: 1
  • USB version: 2.0
  • USB connector type: Micro-USB B
  • DC-in jack: Yes
  • Operating voltage: 5 V
  • Power consumption (transmitter) (max): 7.01 W
  • Power consumption (receiver) (max): 6.5 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Receiver dimensions (WxDxH): 146.9 x 169.4 x 30 mm
  • Receiver weight: 660 g
  • Transmitter dimensions (WxDxH): 146.9 x 169.4 x 30 mm
  • Transmitter weight: 670 g
  • AC adapter included: Yes
  • Cables included: USB
  • IR emitter included: Yes
  • IR receiver included: Yes
  • Country of origin: Taiwan
  • Compliance certificates: RoHS
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 375 mm
  • Master (outer) case length: 565 mm
  • Master (outer) case height: 258 mm

Aten VE883AK1 — True 4K HDMI Optical Extender (True 4K @ 985FT/300M - SFP+ Duplex Multi Mode)

€1.673,99
€1.673,99
Tax included.
