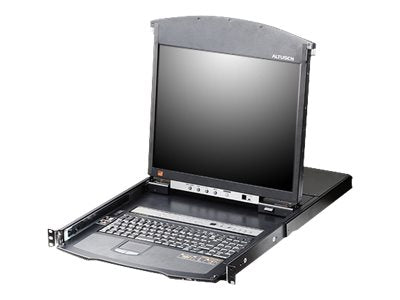

The Aten KL1508AIN is an 8-port KVM over IP switch designed for IT administrators needing local and remote access to multiple servers. It provides central management of up to eight computers through a single interface, making it suitable for data centers or server rooms.

  • Dual rail design allows independent use of the LCD monitor and keyboard, enhancing multitasking.
  • Supports video resolutions up to 1920 x 1200, ensuring clear display of content across various screen sizes.
  • Compatible with both USB and PS/2 interfaces for keyboards and mice, providing flexible connection options.
  • Includes a daisy chain feature for connecting additional KVM switches, increasing the control scope of your infrastructure.
  • LED illumination and indicators offer clear visual feedback for easy operation and monitoring.
Specifications (3)
  • Producer product family: 1-Local/Remote Share Access 8-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP switch
  • Producer product name: KL1508AIN
  • Warranty: 24 month(s)
Other features (3)
  • Dimensions (WxDxH): 48.00 x 70.12 x 4.40 cm

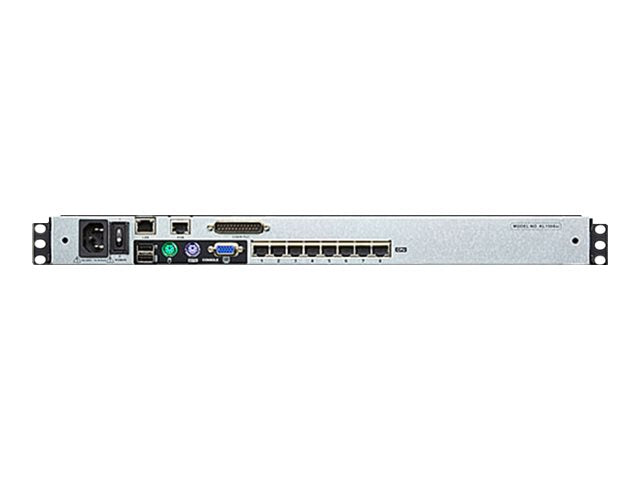

  • I/O ports: 2 x USB Type-A Female (White), 1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green), 1 x HDB-15 Female (Blue), External Mouse Port: 1 x USB Type-A Female, KVM Ports: 8 x RJ-45 Female, Daisy Chain Ports: 1 x DB-25 Male, PON: 1 x RJ-45 Female, Firmware Upgrade: 1 x RJ-11 Female, LAN Ports: 1 x RJ-45 Female
  • Resolution: 1280 x 1024 @ 75Hz
Technical details (2)
  • Net weight: 15.39 kg
  • Other features: LED illumination light; Dual Rail – LCD monitor slides independently of the keyboard/touchpad; One local/remote share access bus – allowing IT administrators to monitor and control up to 8 servers; Supports input video resolutions up to 1920 x 1200 @ 60Hz up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @ 75Hz up to 50 meters
Additional specifications (37)
  • Display diagonal: 48.3 cm (19")
  • Display: LCD
  • On Screen Display (OSD): Yes
  • Product colour: Black
  • Operating relative humidity (H-H): 0 - 80%
  • Maximum resolution: 1920 x 1200 pixels
  • Rack mounting: Yes
  • Daisy chain: Yes
  • Number of computers controlled: 8
  • LED indicators: Yes
  • Push button: Yes
  • Compliance certificates: RoHS
  • Rack capacity: 1U
  • VGA (D-Sub) ports quantity: 1
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Serial ports quantity: 1
  • Keyboard language: US English
  • Keyboard layout: QWERTY
  • Hot keys: Yes
  • Power consumption (typical): 27.5 W
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Windows operating systems supported: Yes
  • Width: 480 mm
  • Height: 44 mm
  • Depth: 701.2 mm
  • Weight: 15.6 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 15.6 kg
  • Master (outer) case width: 668 mm
  • Master (outer) case length: 833 mm
  • Master (outer) case height: 135 mm
  • Products per master (outer) case: 1 pc(s)
