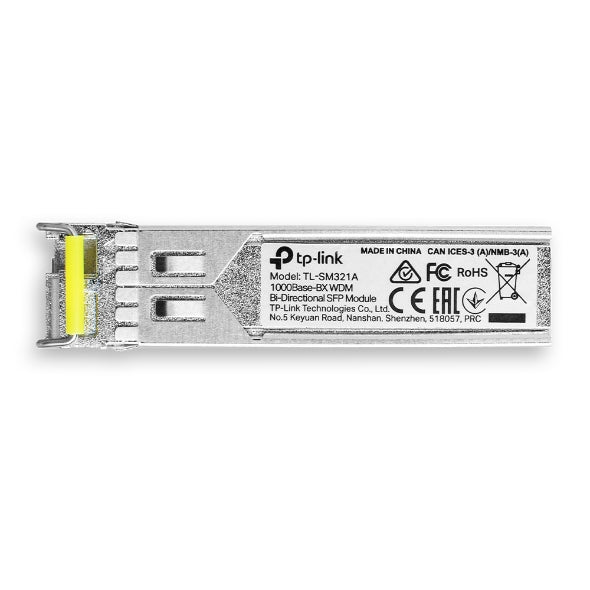

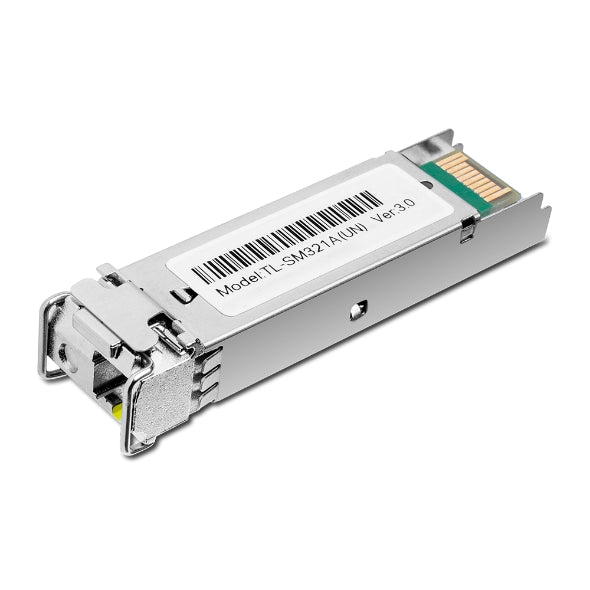

The TP-LINK TL-SM321A-2 is a 1000Base-BX WDM Bi-Directional SFP module designed for users who need reliable fiber optic connectivity. It is suitable for networking applications requiring high-speed data transfer over longer distances using single-mode fiber.

  • Extends fiber distance up to 2 kilometers for improved network coverage.
  • Supports a maximum data transfer rate of 1250 Mbit/s for efficient data handling.
  • Hot-swap capability allows for easy module replacement without powering down the system.
  • Complies with IEEE 802.3z standards, ensuring compatibility with various networking equipment.
  • Operating temperature range from 0 to 70 °C supports diverse environmental conditions.
Specifications (3)
  • Producer product family: 1000Base-BX WDM Bi-Directional SFP Module
  • Producer product name: TL-SM321A-2
  • Warranty: 60 month(s)
Networking (2)
  • Converter input interface: 9/125 μm SMF (Single-Mode Fiber)
  • Converter output interface: 9/125 μm SMF (Single-Mode Fiber)
Technical details (2)
  • Net weight: 0.05 kg
  • Other features: Complies with IEEE 802.3z, Extends fiber distance up to 2km
Additional specifications (25)
  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 1250 Mbit/s
  • Interface type: SFP
  • Single-mode fiber (SMF) supported: Yes
  • Multi-mode fiber (MMF) supported: No
  • Fiber optic connector: LC (UPC)
  • Fiber cable diameters supported (core/cladding): 9/125 µm
  • SFP transceiver standard: BX
  • Maximum transfer distance: 1000 m
  • Tx wavelength (max): 1550 nm
  • Rx wavelength (max): 1310 nm
  • Networking standards: IEEE 802.3z
  • Fiber ethernet cabling technology: 1000BASE
  • Wavelength-division multiplexing (WDM): Yes
  • Product colour: Metallic
  • Hot-swap: Yes
  • Input voltage: 3.3 V
  • Compliance certificates: RoHS
  • Certification: CE, FCC
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 80 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Quantity per pack: 1 pc(s)
  • Harmonized System (HS) code: 85369010

TP-LINK TL-SM321A-2 — 1000Base-BX WDM Bi-Directional SFP Module, 9/125 μm SMF (Single-Mode Fiber), 9/125 μm SMF (Single-Mode Fiber)

€22,31
€22,31
IVA incluido.
