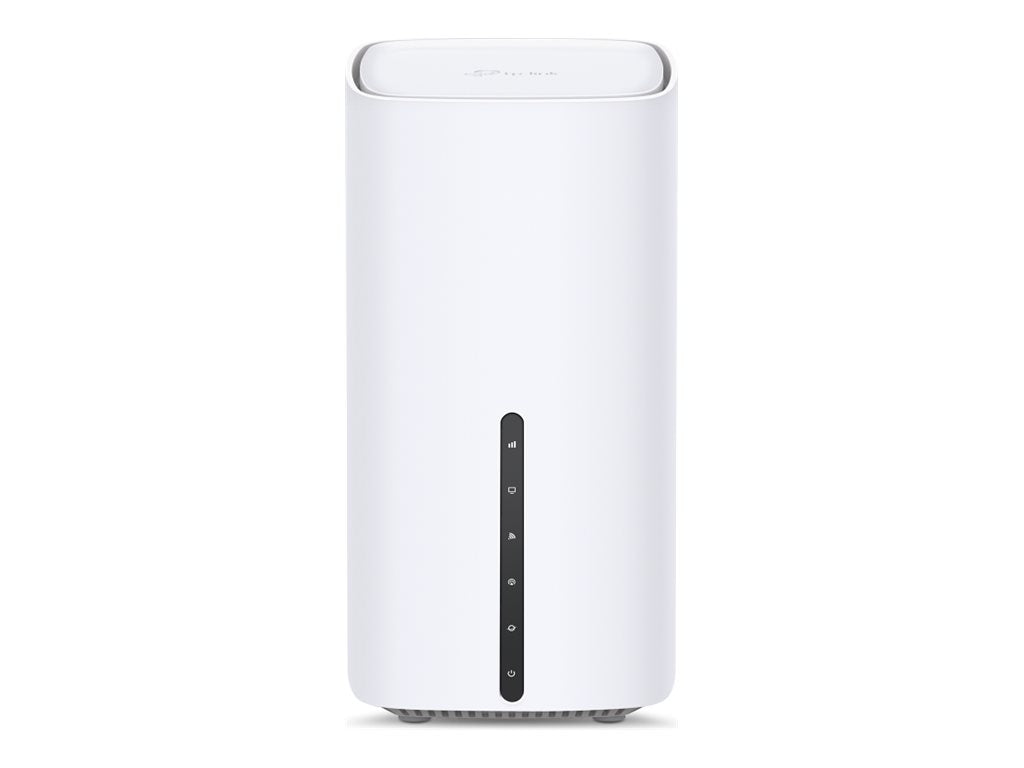

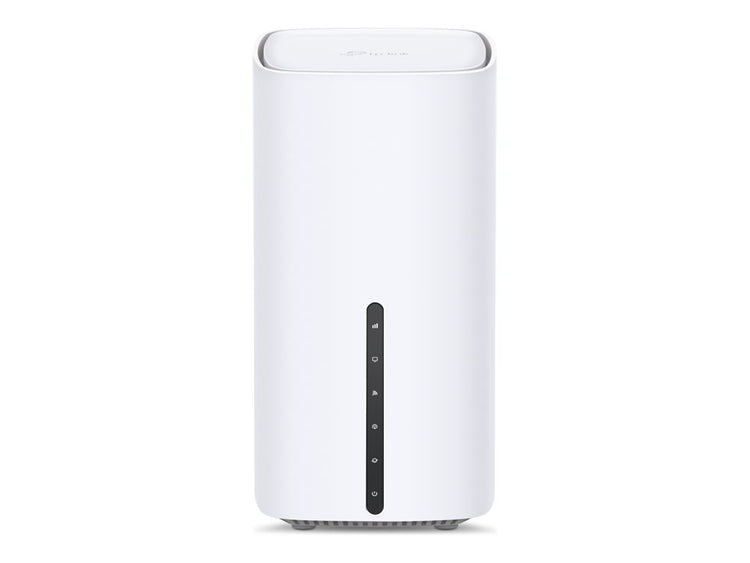

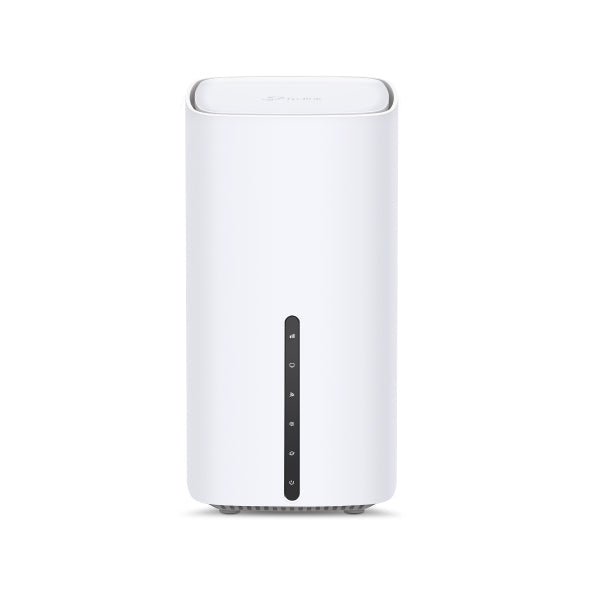

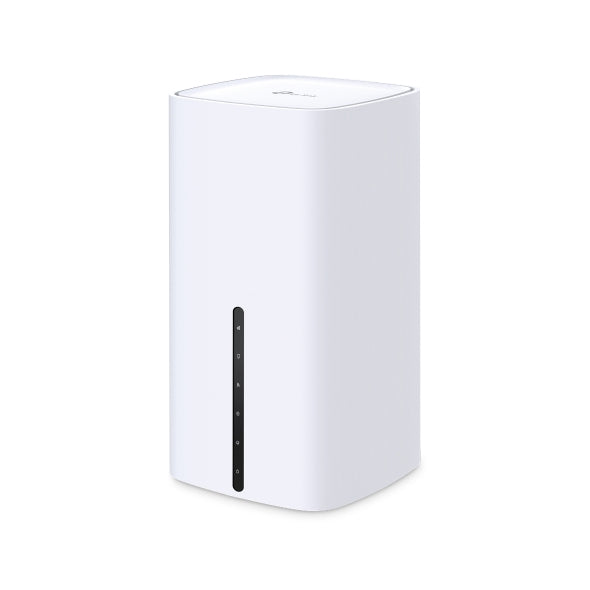

The TP-LINK Archer NX505 is a wireless dual-band gigabit router suitable for those needing high-speed internet access at home or in small offices. It supports 5G mobile broadband and provides robust connectivity options.

  • Enjoy high-speed internet with a maximum WLAN data transfer rate of 3000 Mbit/s.
  • Connect multiple devices effortlessly with three Gigabit Ethernet LAN ports offering flexible wired connections.
  • Access your mobile network seamlessly with a built-in SIM card slot for 5G connectivity.
  • Create secured guest networks on both 2.4 GHz and 5 GHz bands for added convenience.
  • Leverage features like port forwarding and dynamic DNS for advanced network management.
Features (3)
  • Mobile Broadband: 5G
  • Mesh Support: No
  • MU-MiMO: No
Other features (1)

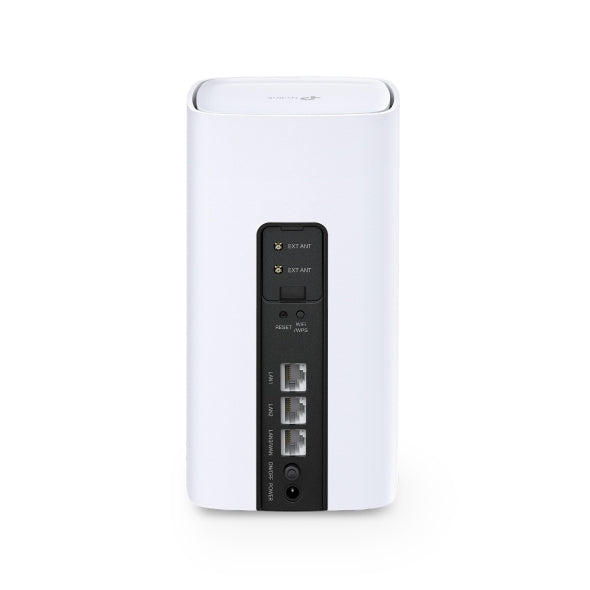

  • Ethernet LAN (RJ-45) ports: 3
Technical details (3)
  • Producer product name: Archer NX505
  • Net weight: 0.55 kg
  • Producer product family: 5G AX3000 Wireless Dual-Band Gigabit Router
Wireless LAN features (2)
  • Wi-Fi band: 802.11ax
  • Wi-Fi standards: 802.11a/b/g/n/ac/ax
Specifications (1)
  • Warranty: 36 month(s)
Performance (1)
  • Ethernet LAN data rates: 10/100/1000 Mbit/s
Additional specifications (67)
  • Ethernet WAN: Yes
  • DSL WAN: No
  • SIM card slot: Yes
  • WAN connection type: RJ-45
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • WLAN data transfer rate (max): 3000 Mbit/s
  • WLAN data transfer rate (first band): 574 Mbit/s
  • WLAN data transfer rate (second band): 2402 Mbit/s
  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Gigabit Ethernet
  • Cabling technology: 10/100/1000Base-T(X)
  • Port forwarding: Yes
  • Port triggering: Yes
  • Dynamic DNS (DDNS): Yes
  • Number of guest networks (2.4 GHz): 1
  • Number of guest networks (5 GHz): 1
  • Mobile network generation: 5G
  • 3G standards: DC-HSDPA, HSPA, HSPA+, UMTS
  • 4G standard: LTE-TDD & LTE-FDD
  • 5G bands supported: 700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz
  • 4G bands supported: 700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz
  • 3G bands supported: 850,900,2100 MHz
  • SIM card type: NanoSIM
  • USB port: No
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Quality of Service (QoS) support: Yes
  • Reset button: Yes
  • WPS push button: Yes
  • Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
  • Guest access: Yes
  • DoS attack prevention: Yes
  • Parental control: Yes
  • Filtering: Yes
  • IP address filtering: Yes
  • URL filtering: Yes
  • DMZ support: Yes
  • DHCP client: Yes
  • DHCP server: Yes
  • Universal Plug and Play (UPnP): Yes
  • Supported network protocols: IPv4, IPv6
  • Product colour: White
  • Built-in display: No
  • Product type: Desktop/pole router
  • Compliance certificates: CE, RoHS
  • Cables included: LAN (RJ-45)
  • AC adapter included: Yes
  • Quick installation guide: Yes
  • Antenna design: Internal & external
  • Antenna connector type: SMA
  • Power source type: AC
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Output voltage: 12 V
  • Output current: 2 A
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows NT, Windows RT 8.1, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Mac compatibility: Yes
  • Width: 99 mm
  • Depth: 190 mm
  • Height: 99 mm
  • Weight: 610 g
  • Country of origin: China

TP-LINK Archer NX505 — 5G AX3000 Wireless Dual-Band Gigabit Router, 802.11ax, Ethernet LAN (RJ-45) ports 3, 10/100/1000 Mbit/s
