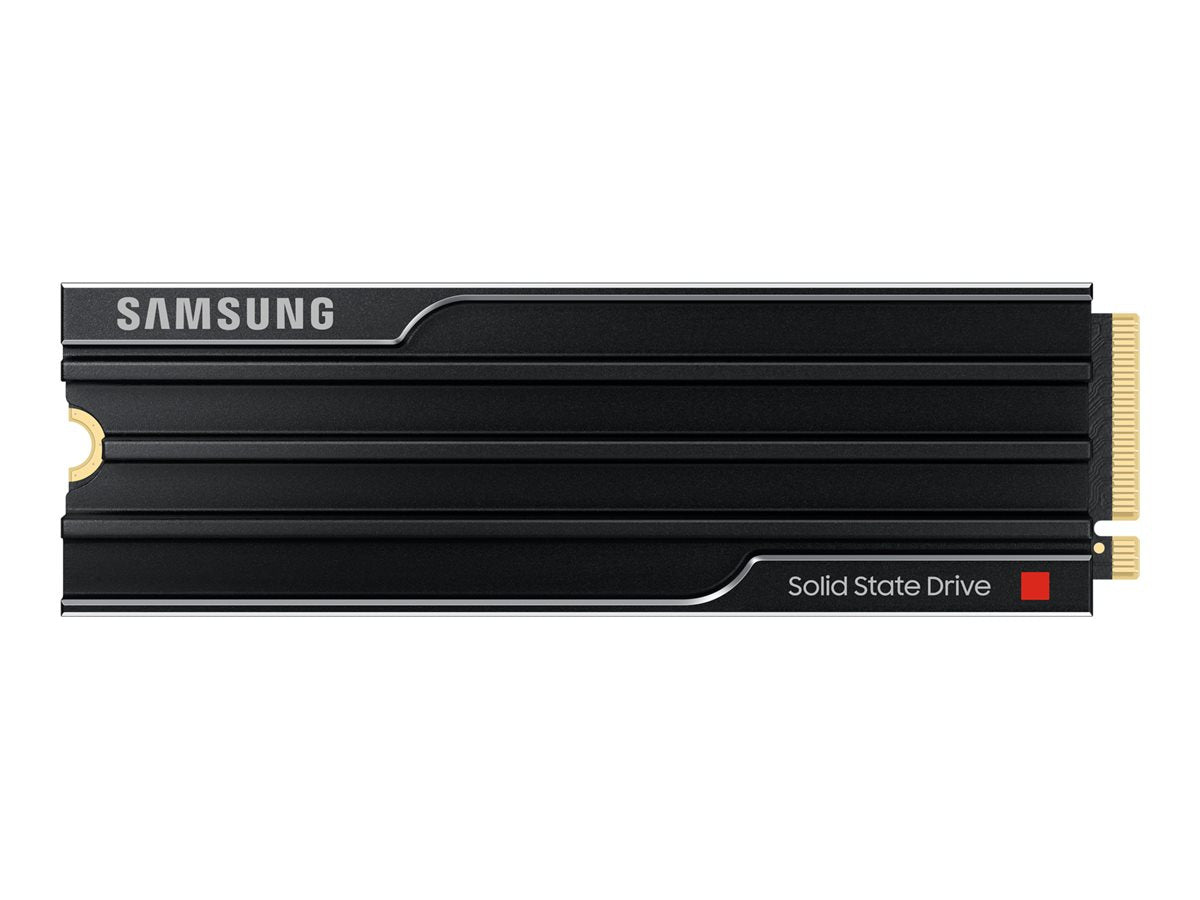

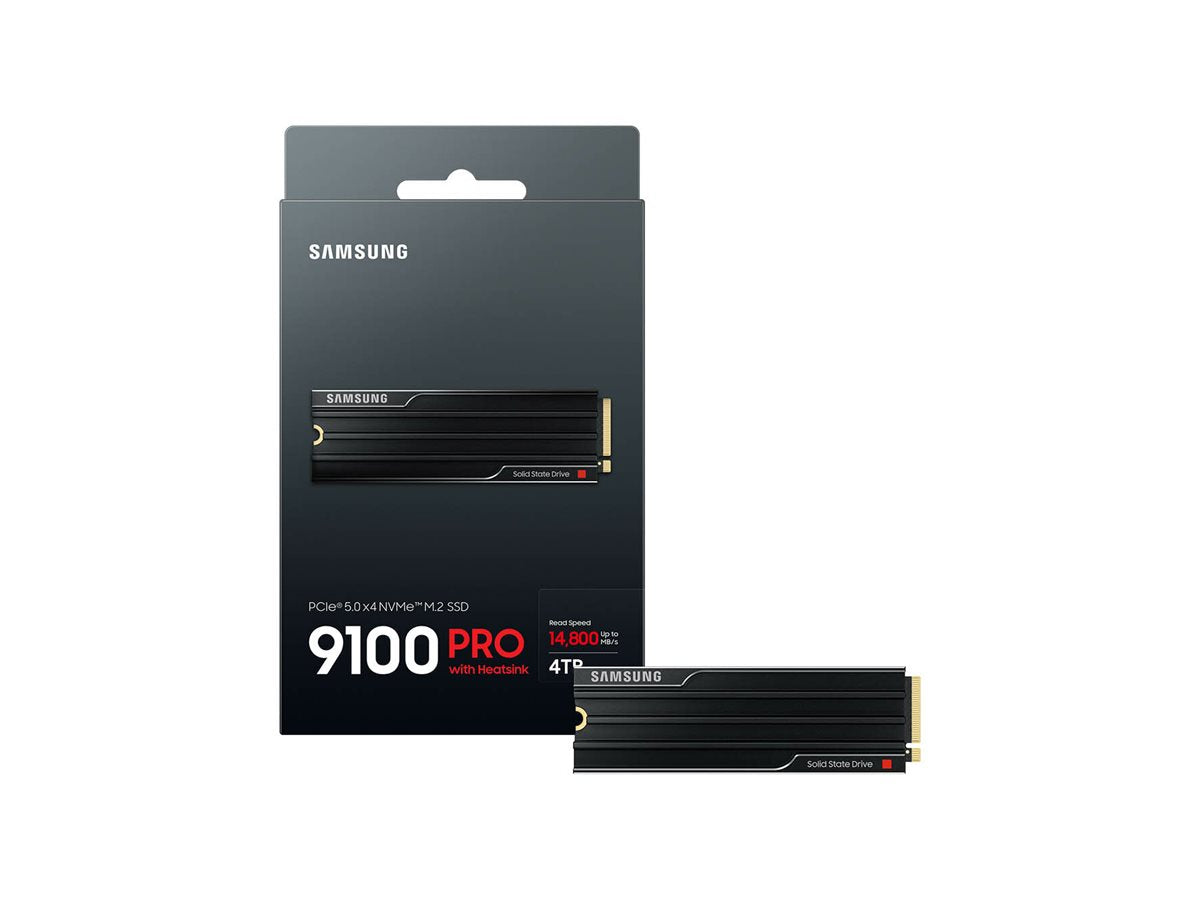

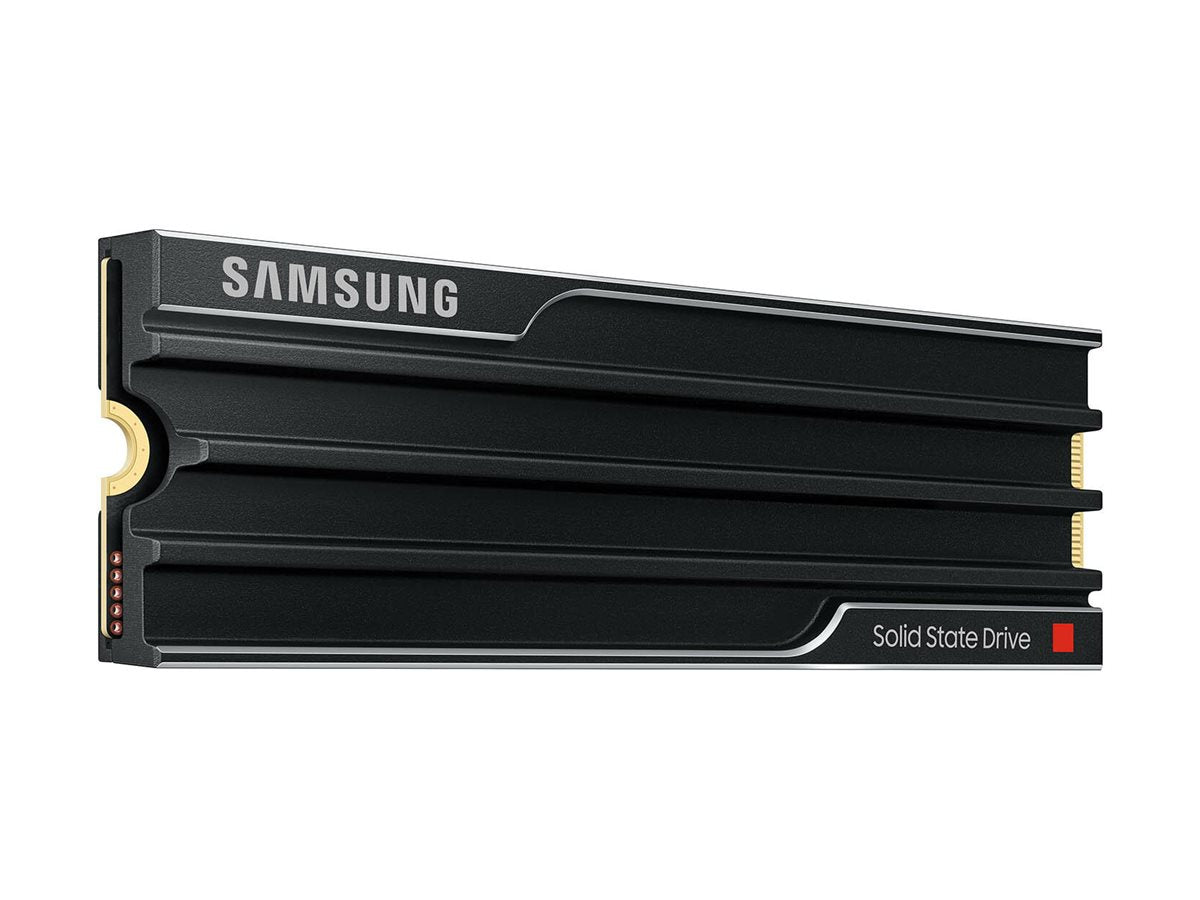

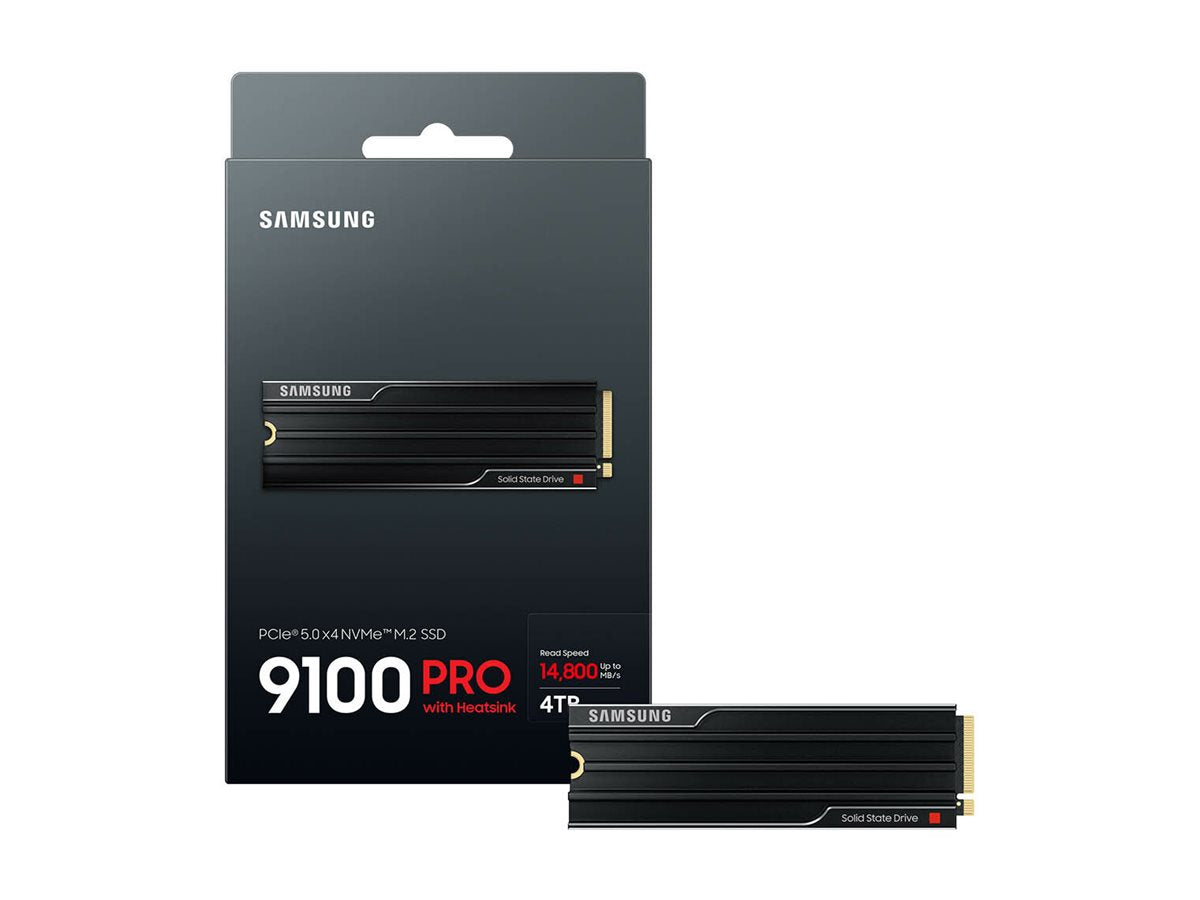

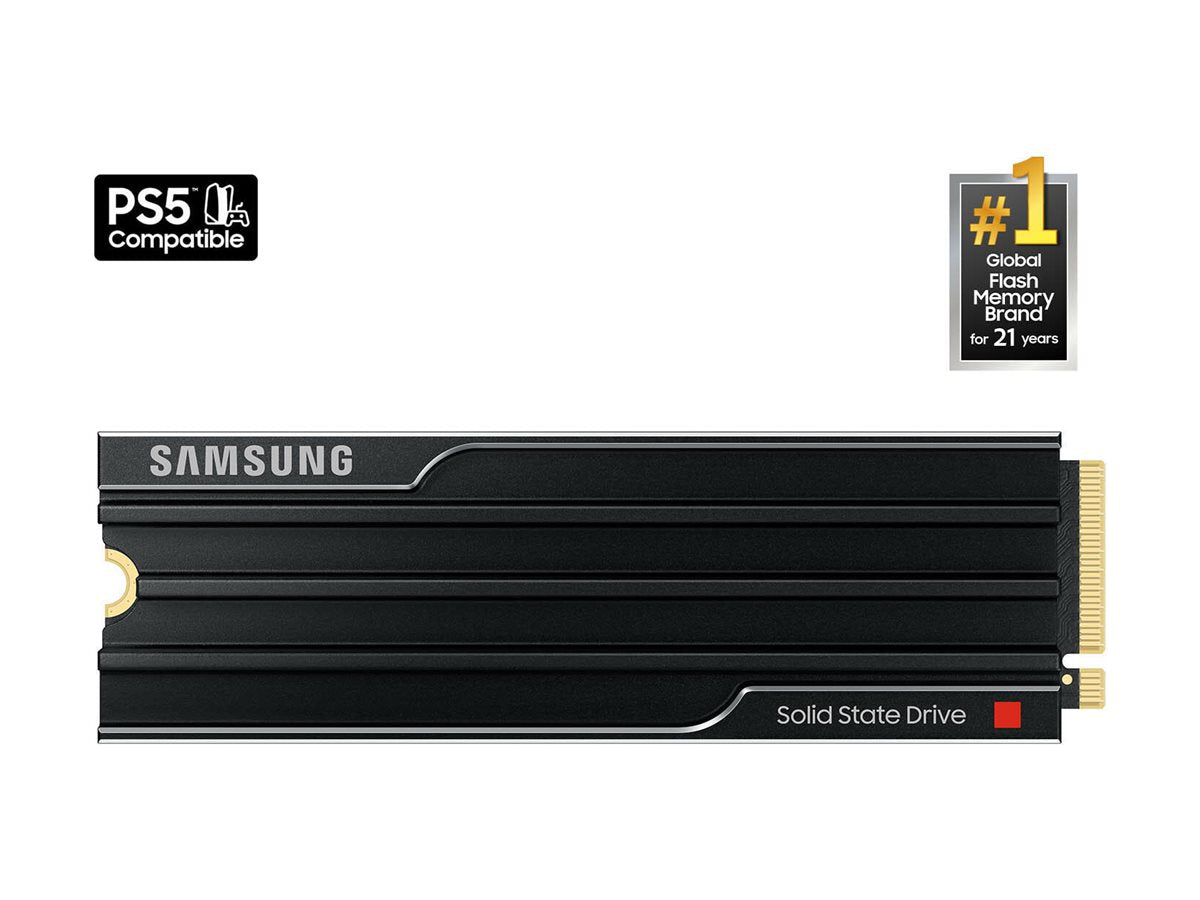

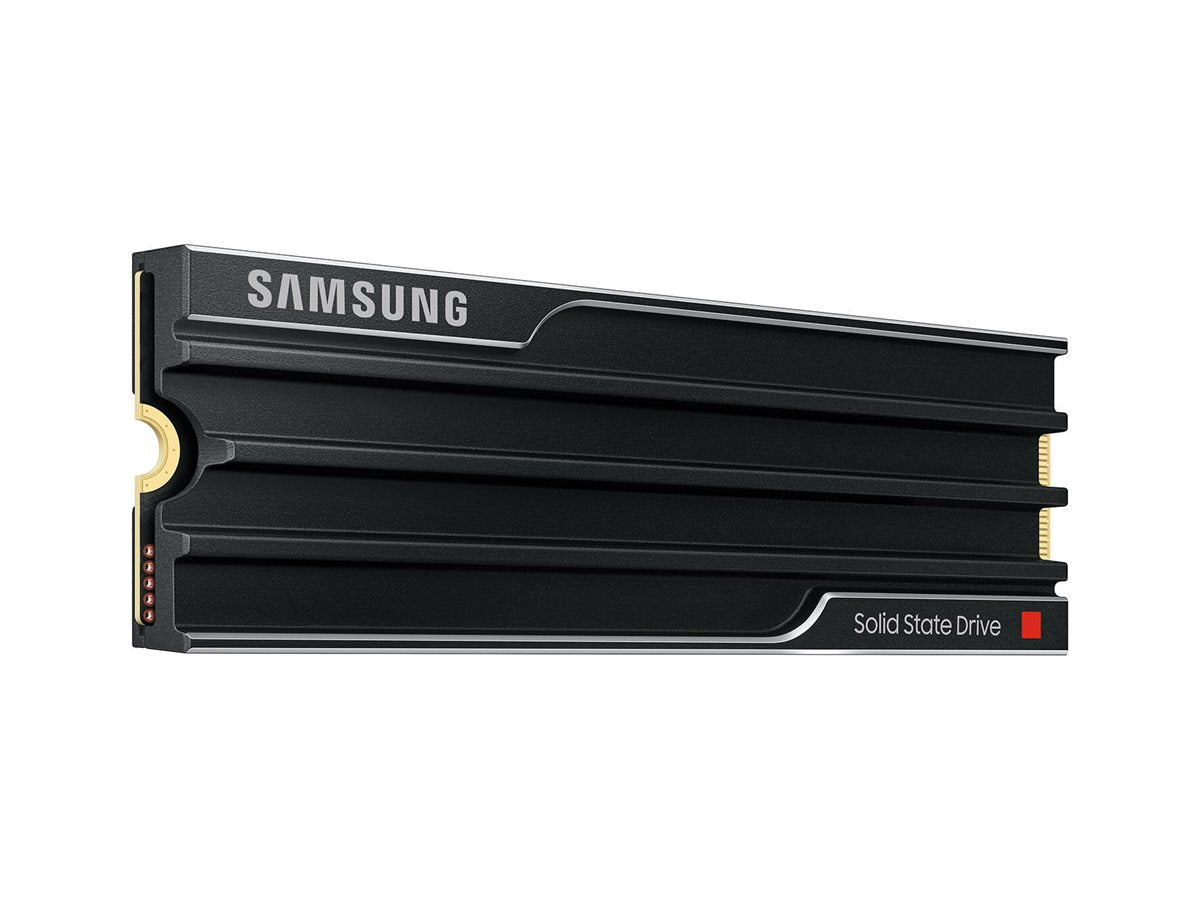

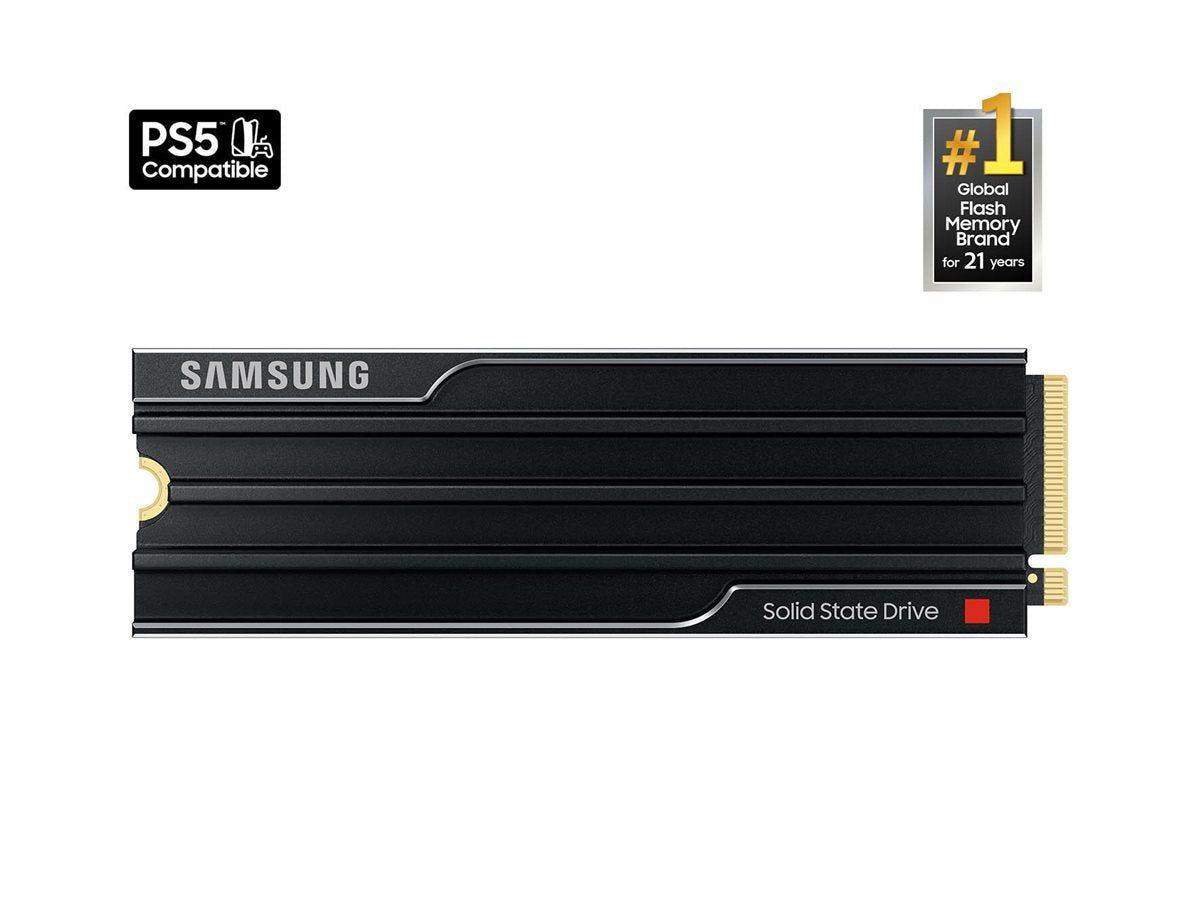

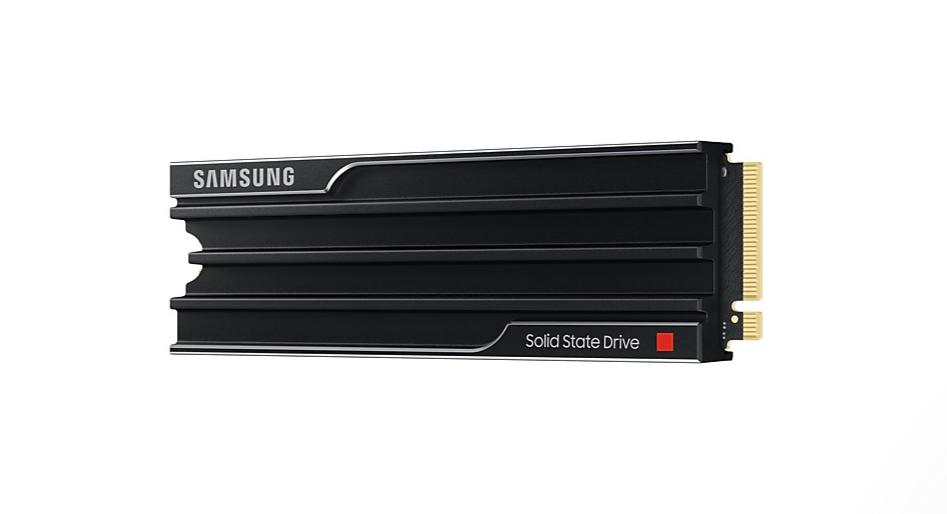

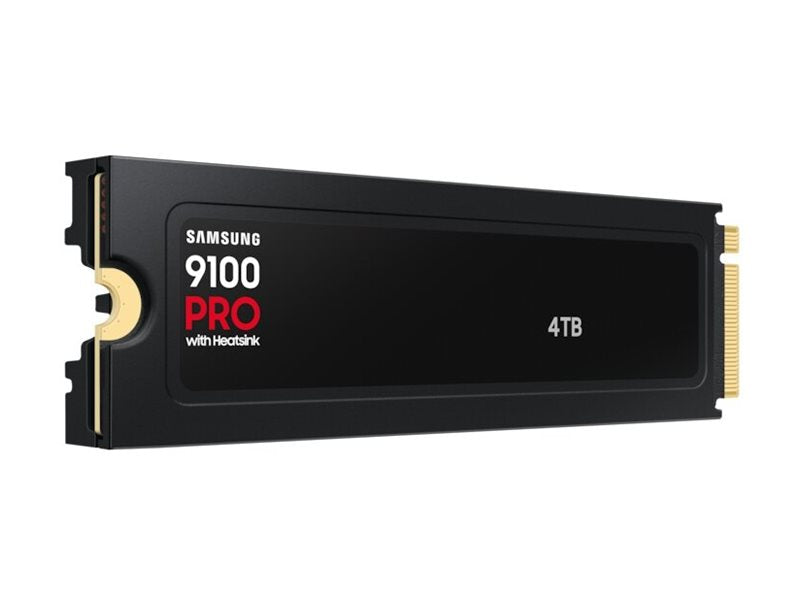

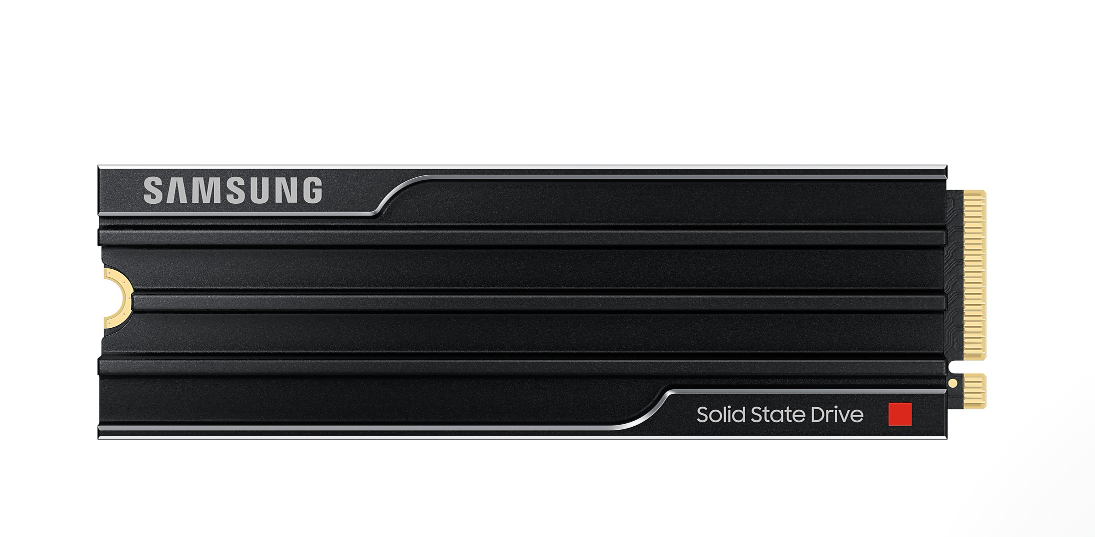

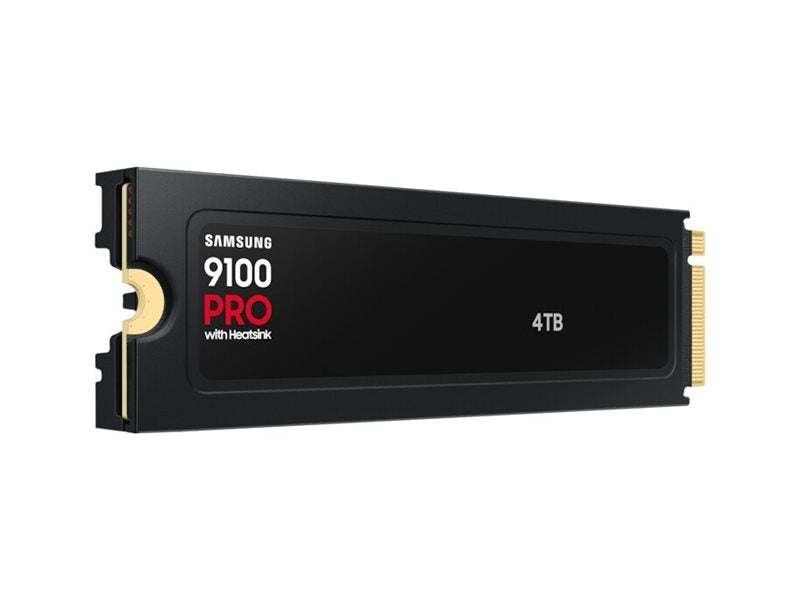

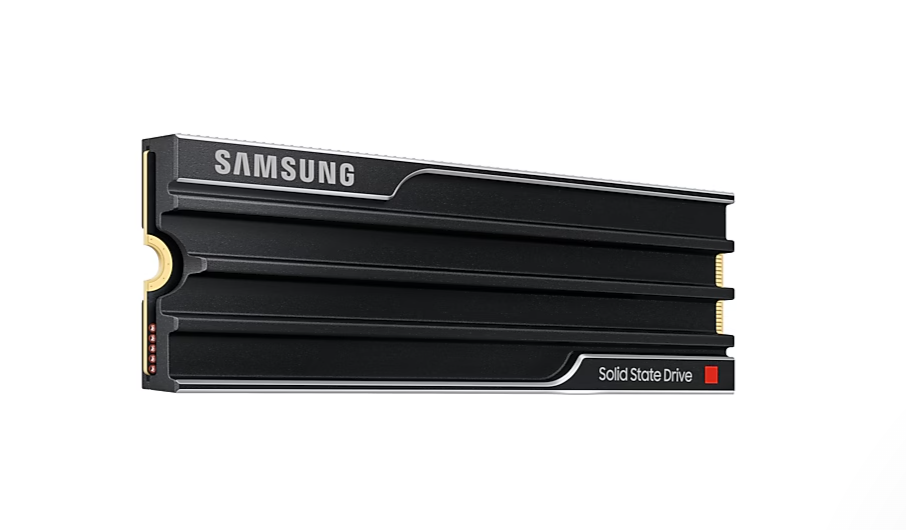

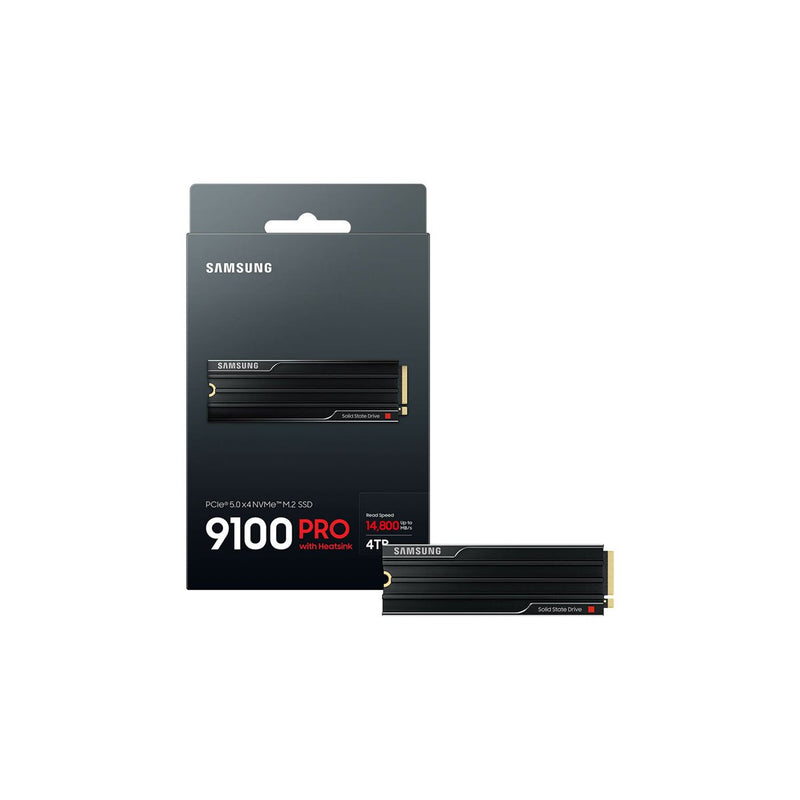

The Samsung 9100 PRO is a high-performance M.2 2280 solid-state drive with a capacity of 4000 GB. Featuring a PCIe 5.0x4 interface, it delivers impressive read speeds of up to 14800 MB/s and write speeds of 13400 MB/s, making it suitable for both PC and game console use.

• Form factor: M.2 2280
• Read speed: 14800 MB/s
• Write speed: 13400 MB/s
• Supports NVMe 2.0
• Equipped with 256-bit AES hardware encryption

Specifications

• Warranty: 60 month(s)

Design

• SSD form factor: M.2 2280

Performance

• Read speed: 14800 MB/s
• Solid-state drive capacity: 4000 GB
• Solid-state drive interface: PCIe 5.0x4
• Write speed: 13400 MB/s

Technical details

• Net weight: 0.03 kg
• Producer product name: 9100 PRO

Additional specifications

• NVMe version: 2.0
• Security algorithms: 256-bit AES
• SSD capacity: 4 TB
• Interface: PCI Express 5.0
• NVMe: Yes
• Memory type: V-NAND TLC
• Component for: PC/Game console
• Hardware encryption: Yes
• M.2 SSD size: 2280 (22 x 80 mm)
• Random read (4KB): 2200000 IOPS
• Random write (4KB): 2600000 IOPS
• PCI Express interface data lanes: x4
• DevSlp (device sleep) support: Yes
• S.M.A.R.T. support: Yes
• TRIM support: Yes
• Mean time between failures (MTBF): 1500000 h
• Operating voltage: 3.3 V
• Power consumption (read): 9 W
• Power consumption (write): 8.2 W
• Average power consumption (read): 9 W
• Average power consumption (write): 8.2 W
• Power consumption (idle): 0.007 W
• Power consumption DevSlp (device sleep): 5.7 mW
• Width: 80.2 mm
• Depth: 8.88 mm
• Height: 80.2 mm
• Weight: 30 g
• Operating temperature (T-T): 0 - 70 °C
• Operating shock: 1500 G
• Warranty period: 5 year(s)
