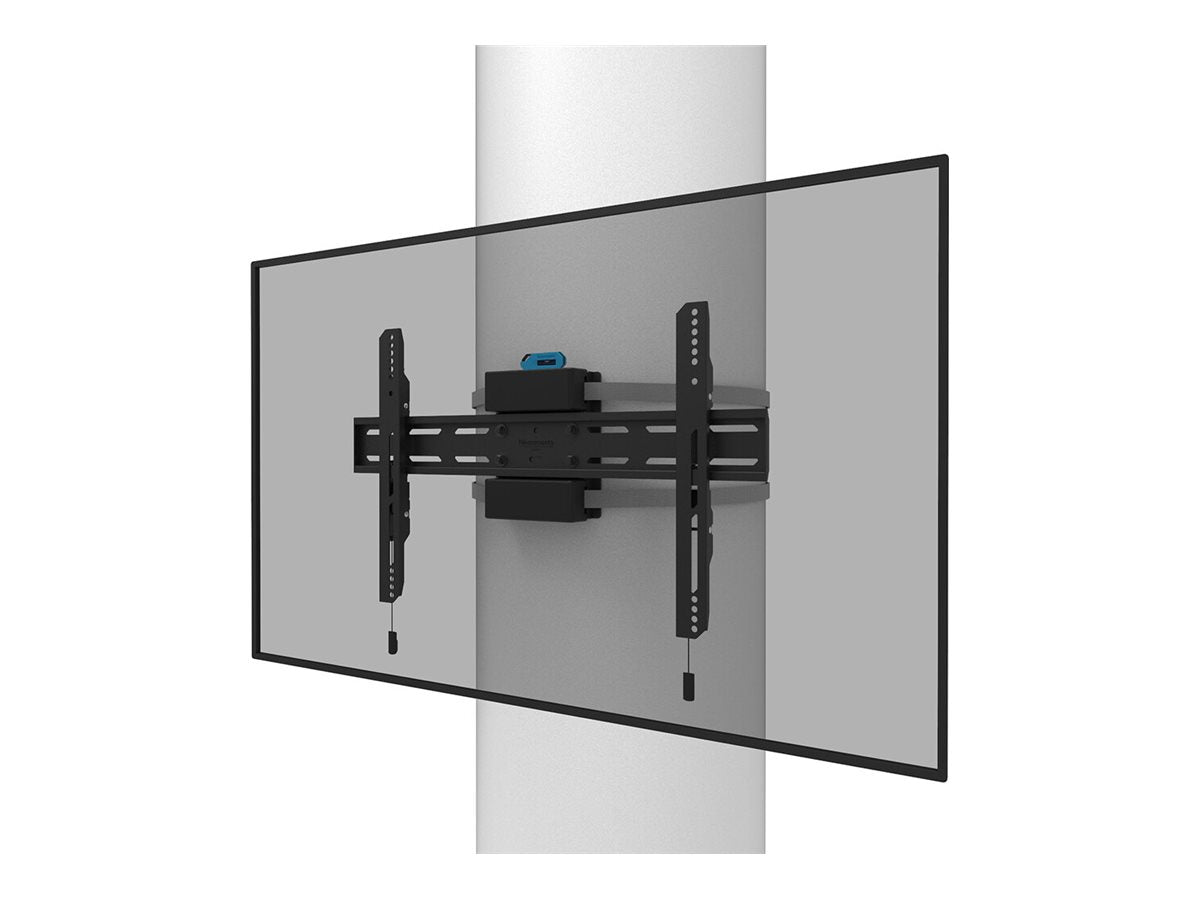

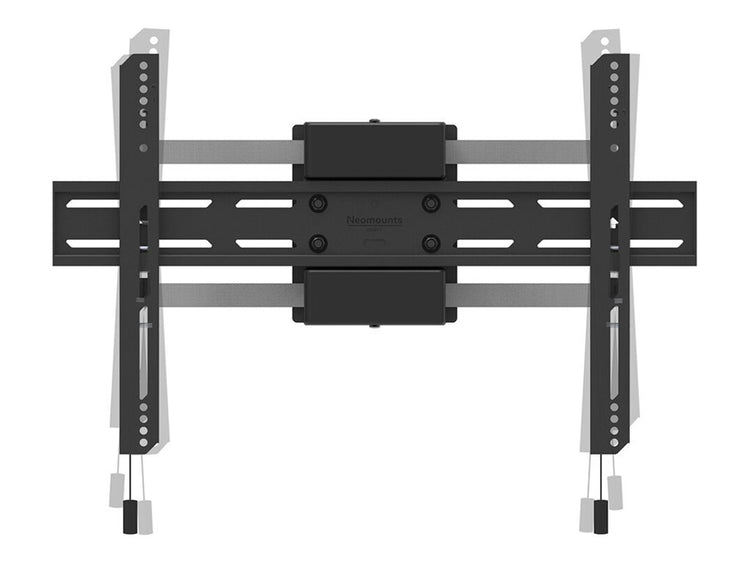

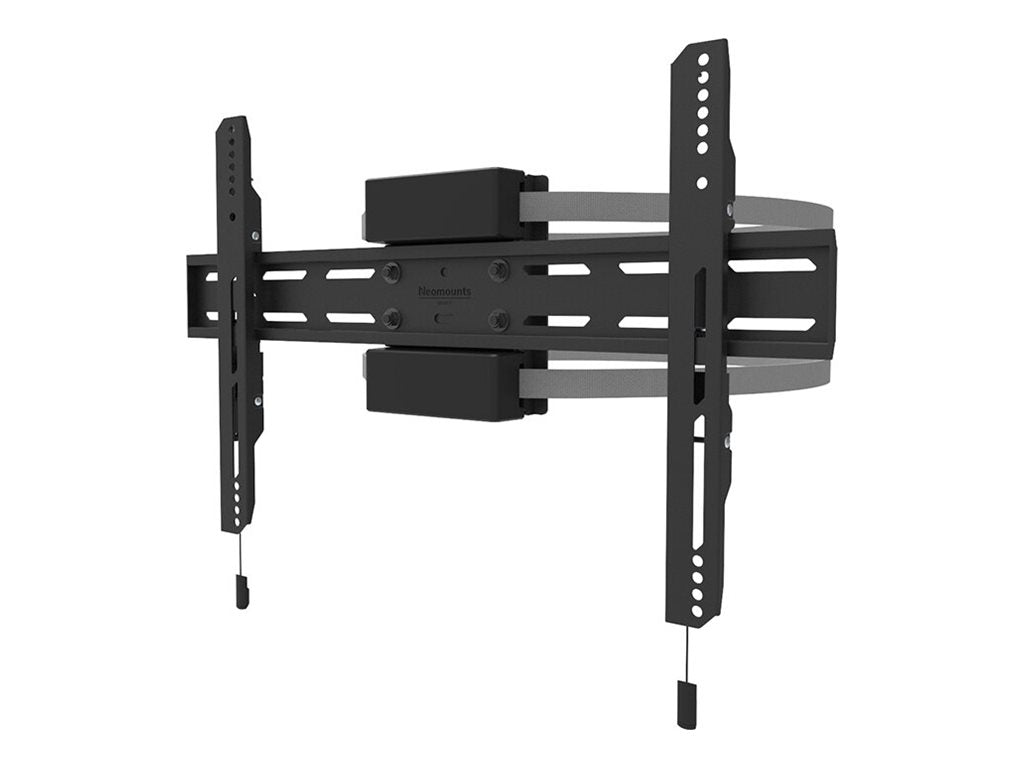

The Neomounts Pillar Mount WL30S-910BL16 is designed for screens between 40 to 75 inches. It features level adjustment capabilities and supports a maximum weight of 50 kg.

• Compatible with VESA mounting interfaces from 200x100 mm to 600x400 mm
• Constructed from durable steel for stability
• Allows for an angle of rotation of 6° and a pivot angle of -3 to 3°
• Pillar mount type with a maximum distance from the wall of 6.7 cm
• Supports one display with a net weight of 4.20 kg

Design

• Colour of product: Black

Mounting

• Maximum weight (capacity): 50 kg
• Maximum screen size compatibility: 75 "
• Mounting interface compatibility (max): 600x400 mm
• Mounting interface compatibility (min): 200x100 mm
• VESA mounting interfaces: 200x100, 300x100, 300x200, 300x300, 350x350, 400x200, 400x300, 400x400, 440x400, 500x400, 600x200, 600x300, 600x400 mm

Technical details

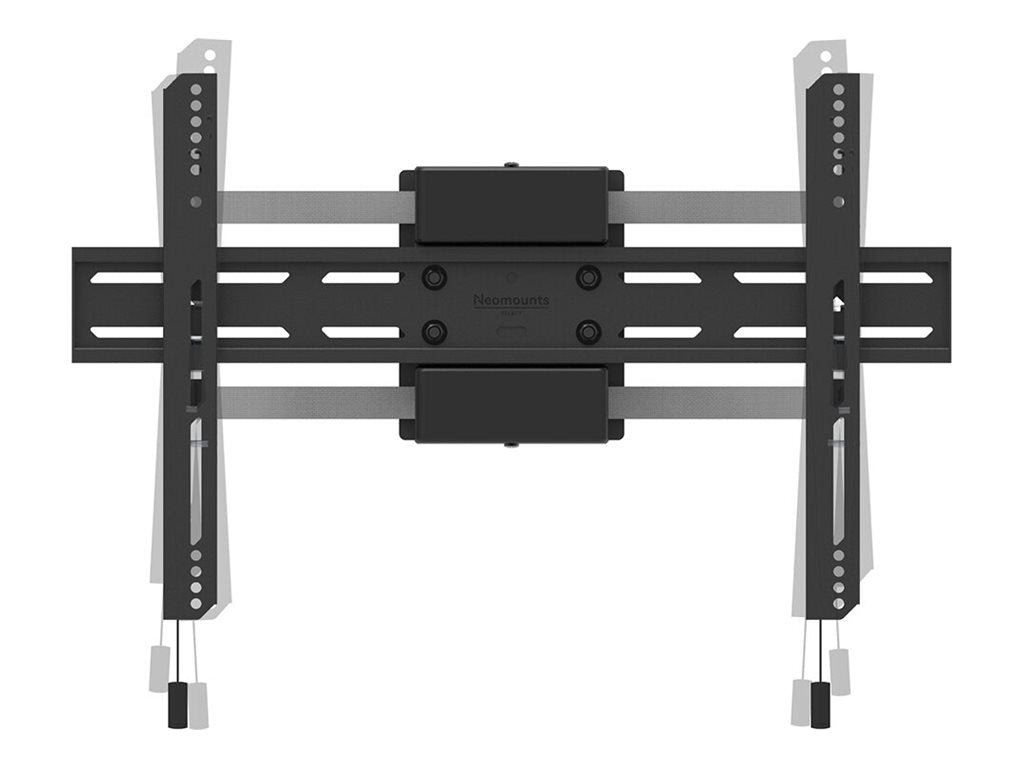

• Functions: Level adjustment
• Product name: WL30S-910BL16
• Screen size compatibility: 40-75 "
• Net weight: 4.20 kg

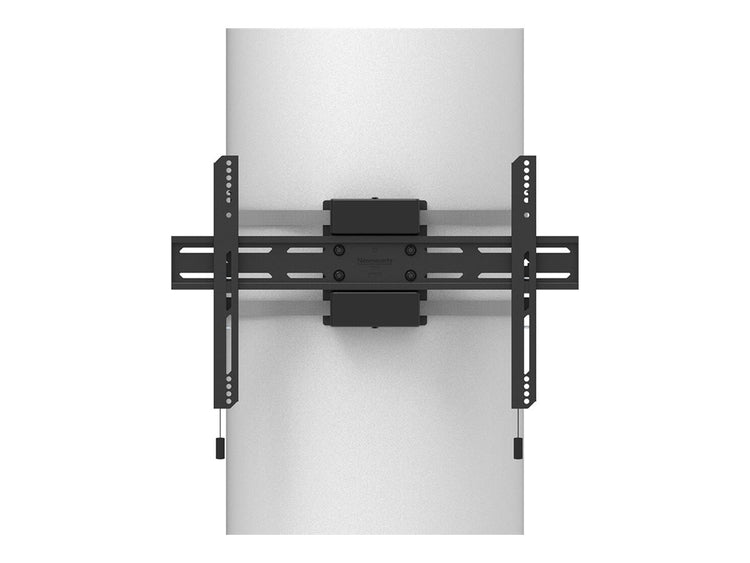

• Placement: Pillar Mount

Specifications

• Warranty: 60 month(s)

Additional specifications

• Maximum weight capacity: 50 kg
• Minimum screen size: 101.6 cm (40")
• Number of displays supported: 1
• Maximum weight capacity (per display): 50 kg
• Maximum screen size: 190.5 cm (75")
• Minimum VESA mount: 200 x 100 mm
• Maximum VESA mount: 600 x 400 mm
• Panel mounting interface: 200 x 100,200 x 150,200 x 300,200 x 400,300 x 100,300 x 300,300 x 400,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400
• Mounting type: Pole
• Angle of rotation: 6°
• Pivot angle: -3 - 3°
• Cable management: No
• Type: Fixed

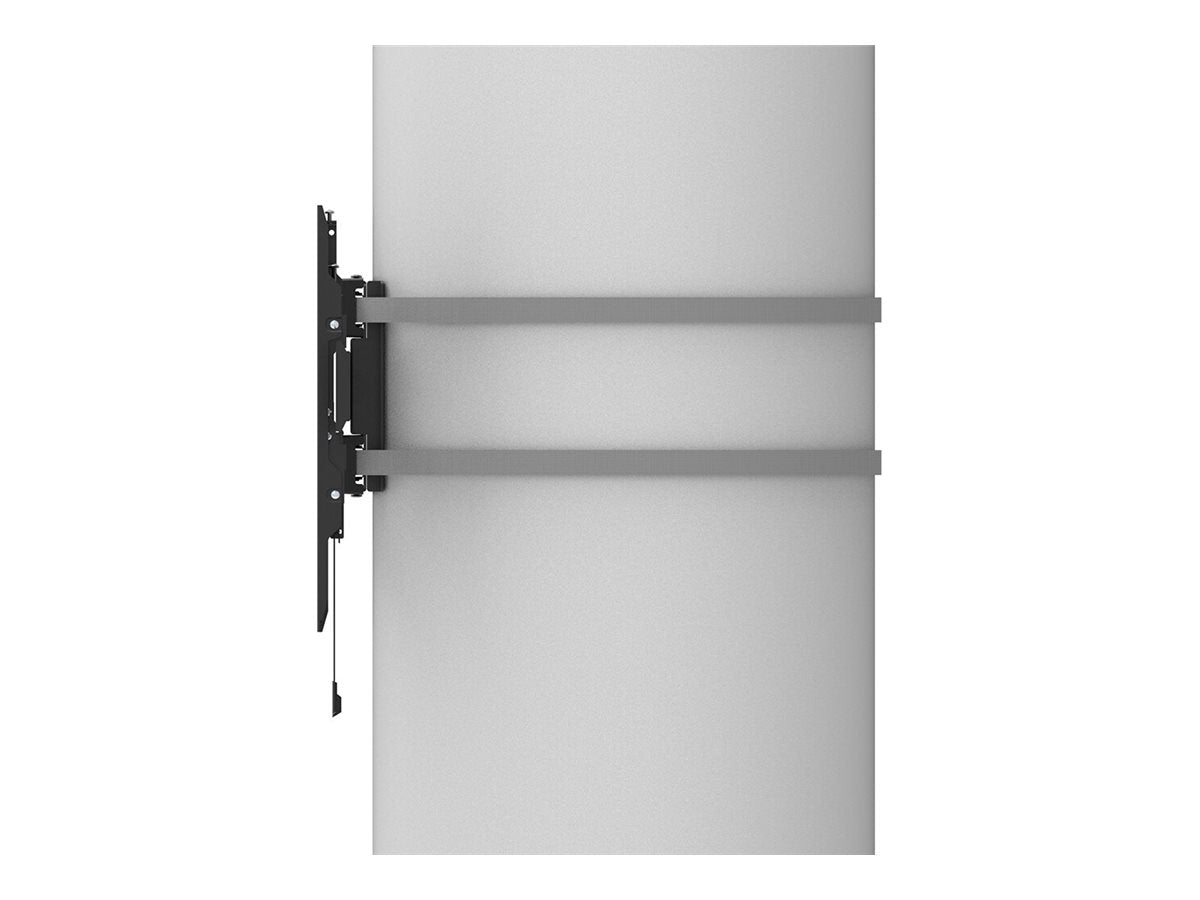

• Distance to the wall (max): 6.7 cm
• Product colour: Black
• Housing material: Steel
• Accepts padlock: Yes
• Country of origin: China
• Package net weight: 5.3 kg

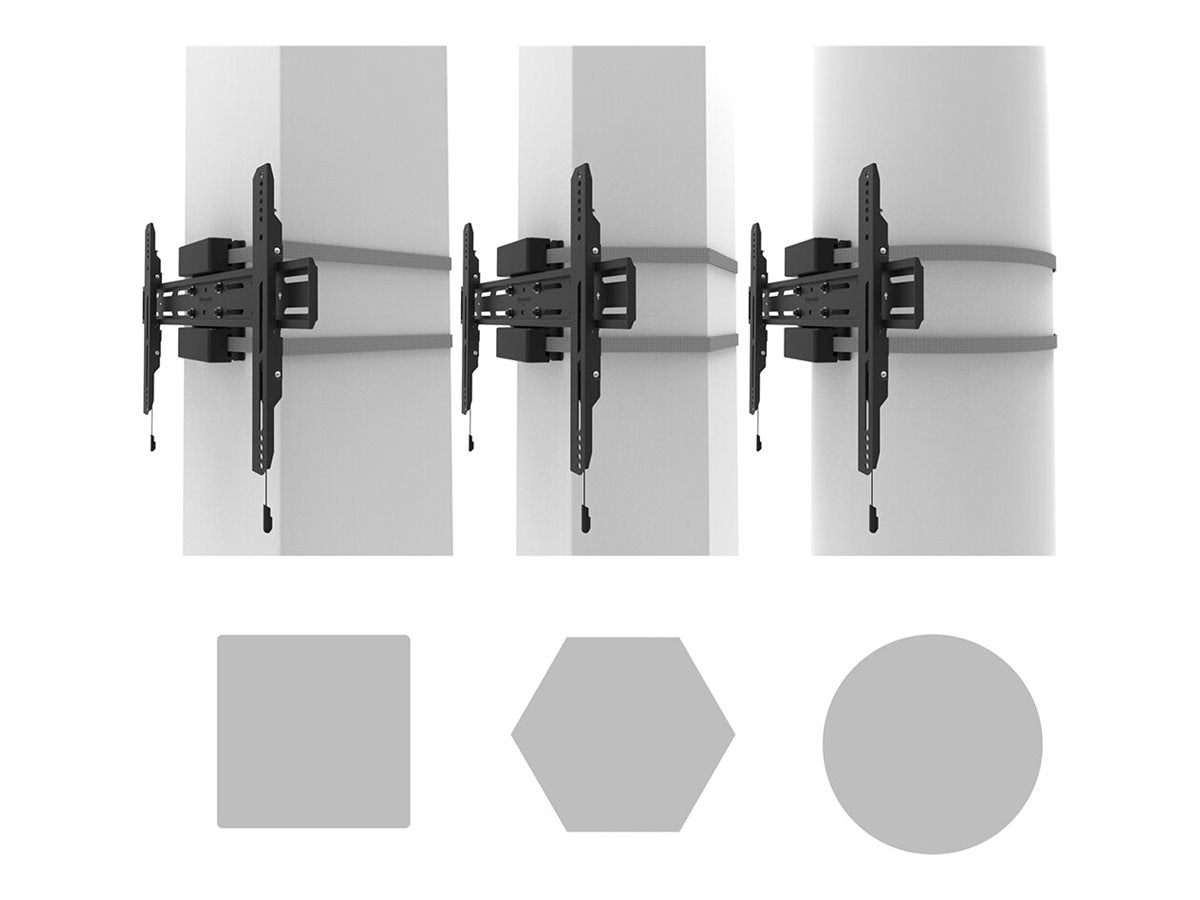

• Compatible pole diameter (min): 25 cm
• Compatible pole diameter (max): 100 cm
• Warranty period: 5 year(s)
• Lockable: Security screw included
• Width: 684 mm
• Depth: 67 mm
• Depth (max): 6.7 cm
• Height: 425 mm
• Weight: 4.2 kg
• Master (outer) case width: 315 mm
• Master (outer) case length: 258 mm
• Master (outer) case height: 920 mm
• Master (outer) case net weight: 16.8 kg
• Products per master (outer) case: 4 pc(s)
• Harmonized System (HS) code: 7326909890
