About

Description

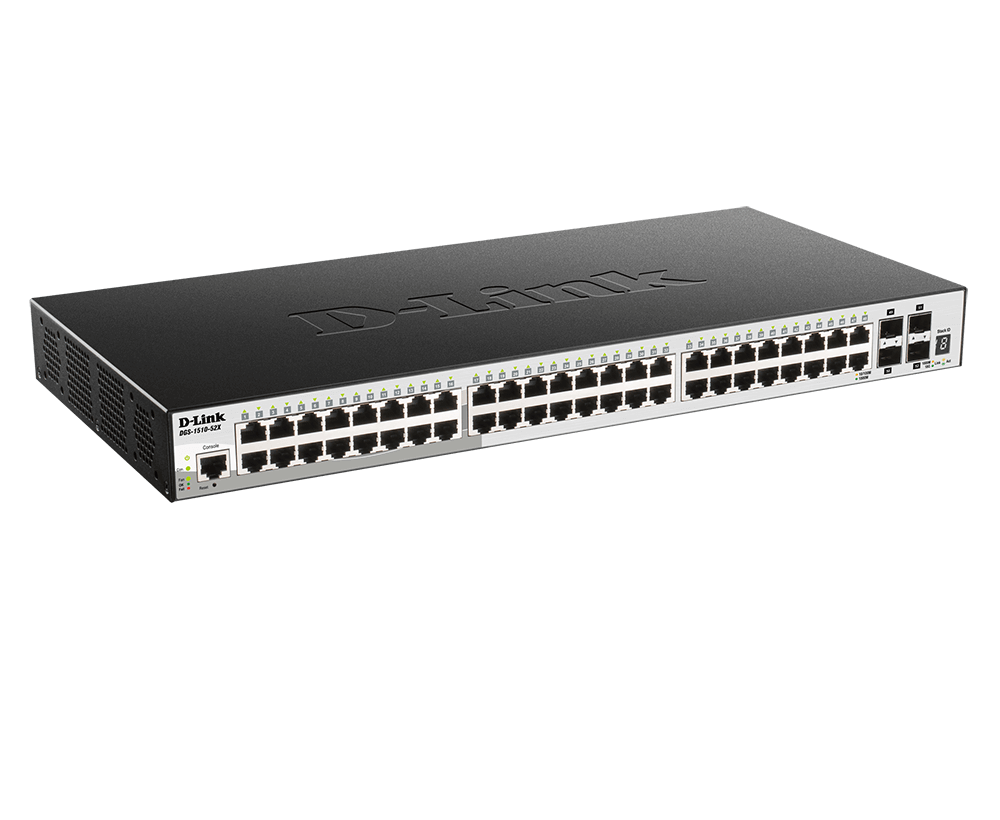

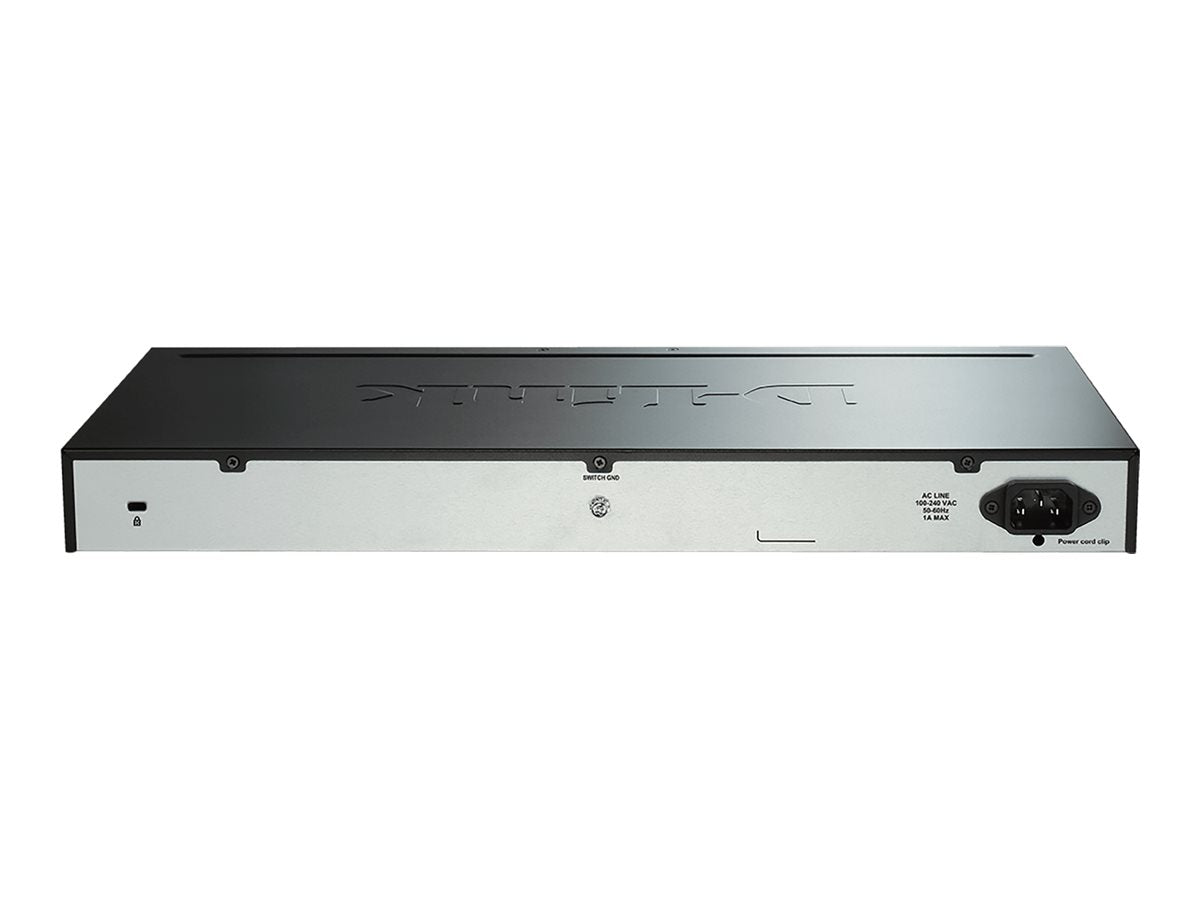

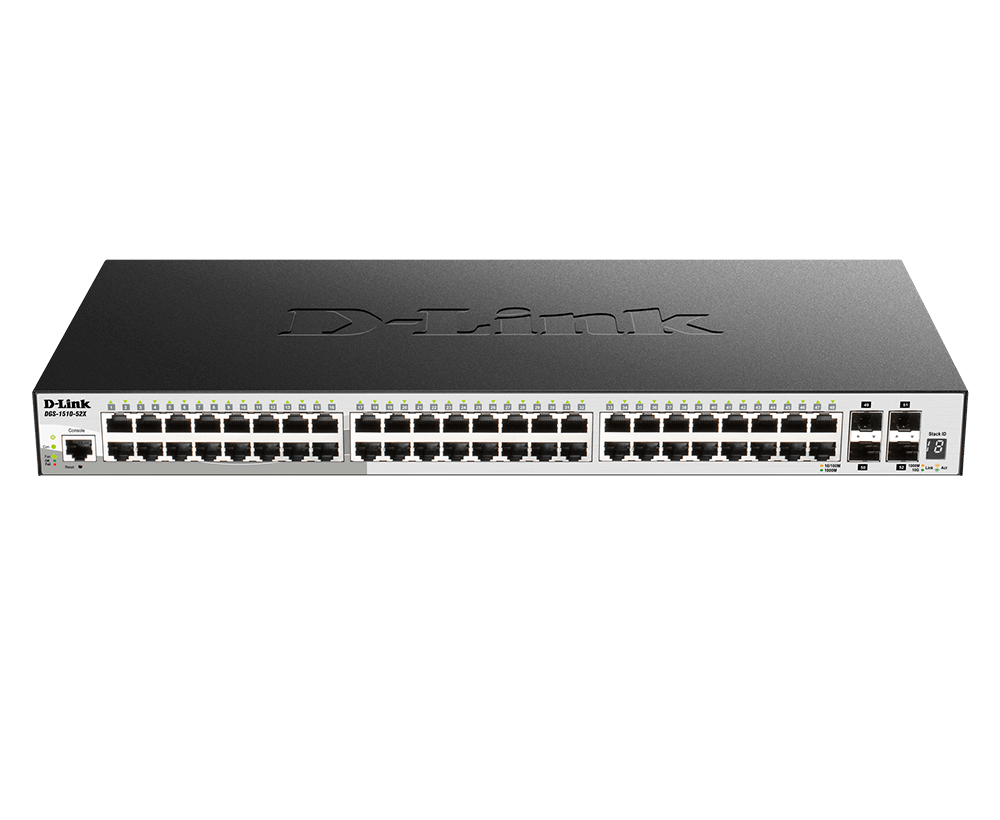

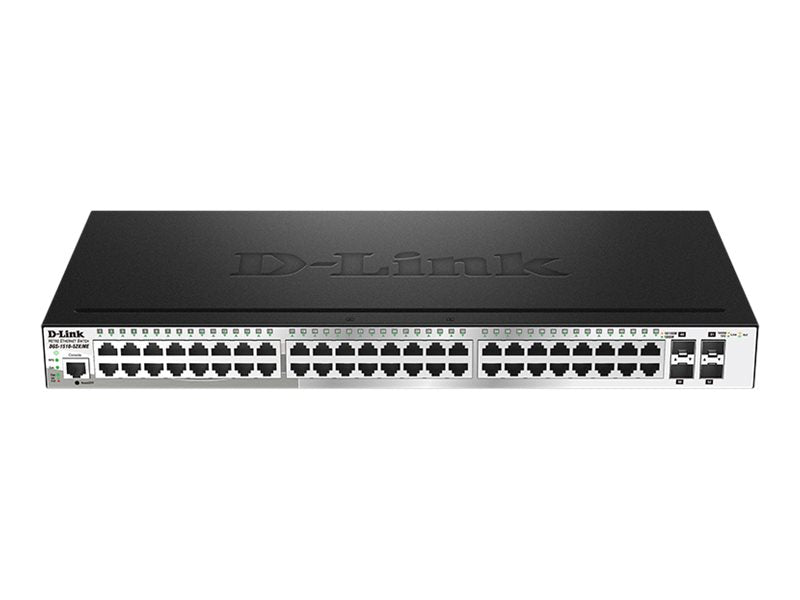

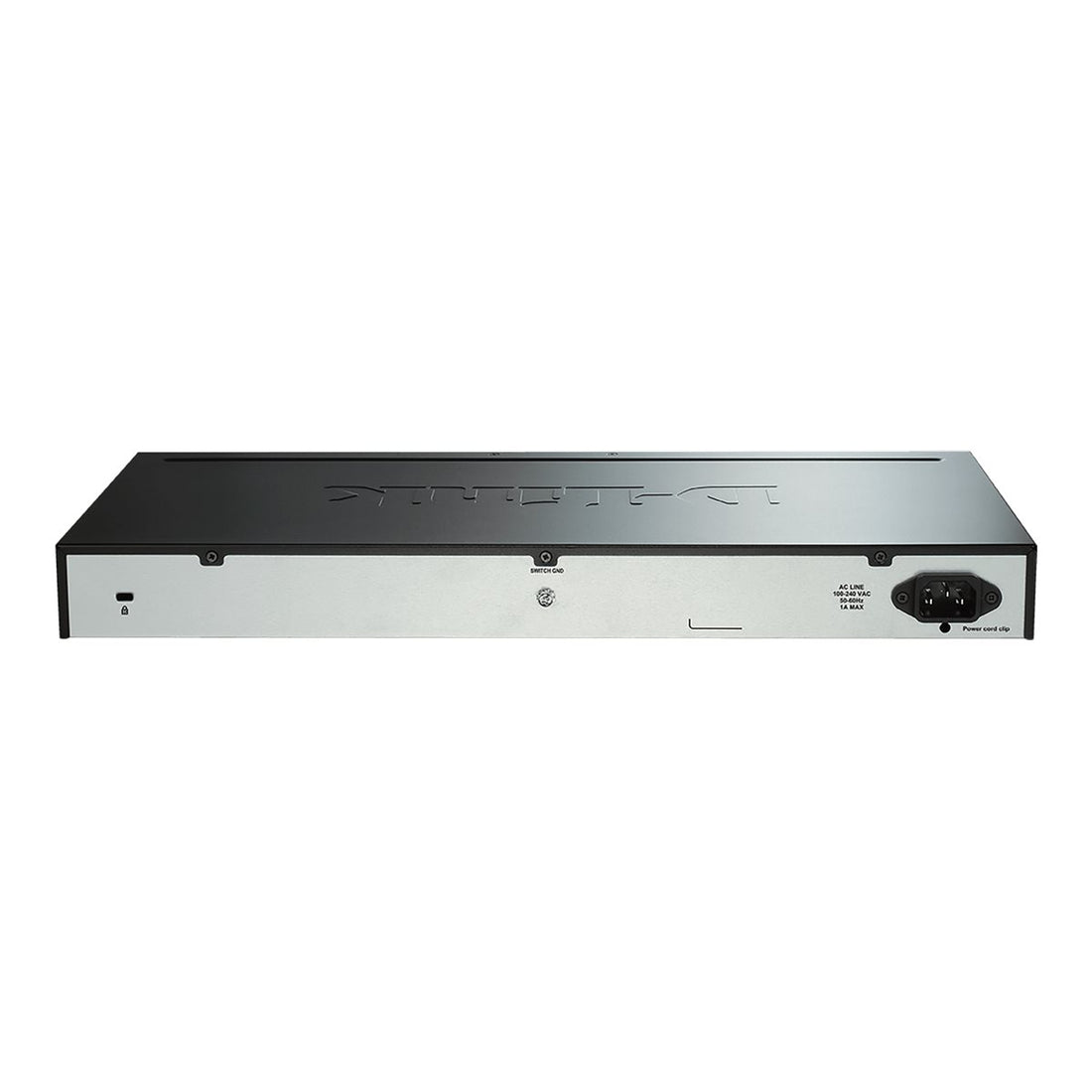

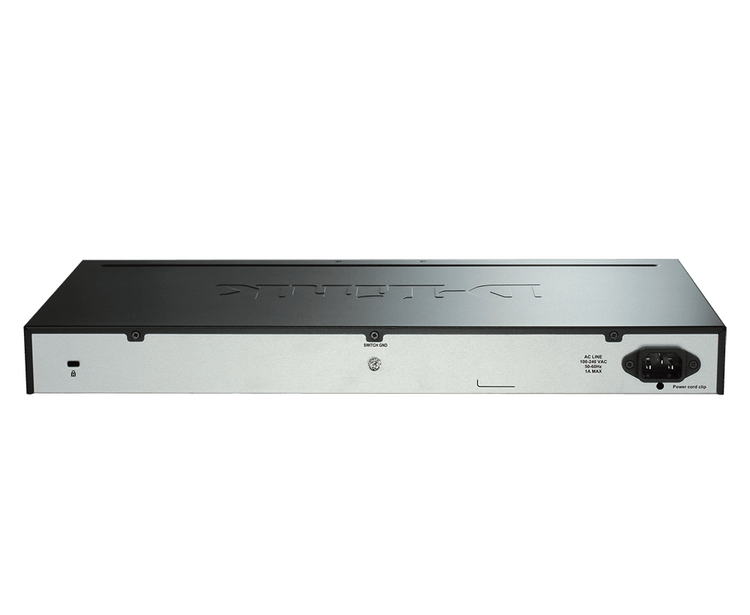

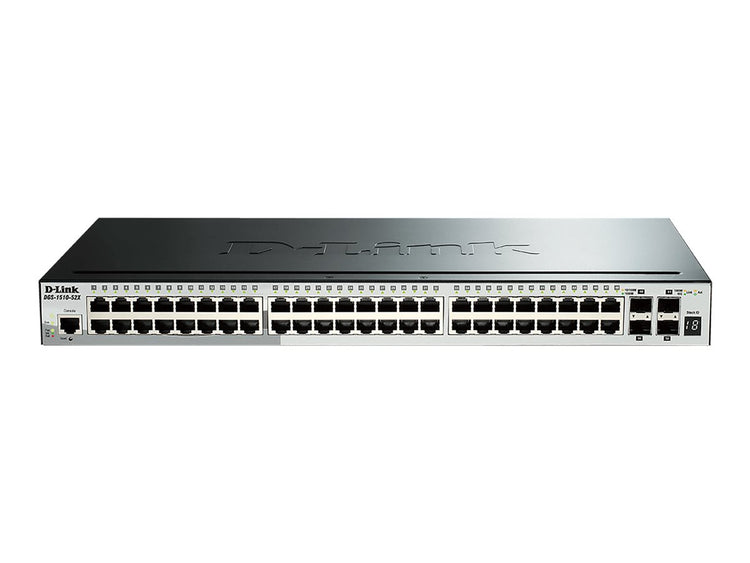

The D-Link DGS-1510-52X/E is a managed layer 2 stackable smart switch designed for network environments requiring robust performance and flexibility. It is suitable for businesses needing high-capacity and efficient networking solutions with extensive connectivity options.

Supports 48 Gigabit Ethernet ports for extensive device connectivity.
Includes 4 SFP+ slots for 10G uplink options, enhancing network flexibility.
Features web-based management for intuitive control of network settings.
Supports Quality of Service (QoS) to prioritize important network traffic.
Provides VLAN support for network segmentation and improved traffic management.

Specifications (3)

Producer product family: Stackable Smart Managed Switch with 10G Uplinks
Producer product name: DGS-1510-52X/E
Warranty: 60 month(s)

Design (1)

Form factor: Rackmountable

Management features (1)

Switch type: Managed L2

Ports & interfaces (3)

Gigabit Ethernet (copper) ports quantity: 48
POE: No
Predominant port type: 10/100/1000 Mbps (RJ-45)

Technical details (1)

Net weight: 2.652 kg

Additional specifications (56)

Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: No
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Power connector: DC-in jack
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
10G support: Yes
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes
Switching capacity: 176 Gbit/s
Throughput: 130.95 Mpps
MAC address table: 16000 entries
Store-and-forward: Yes
Packet buffer memory: 3 MB
DHCP features: DHCP server, DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
SSH/SSL support: Yes
Multicast support: Yes
Rack mounting: Yes
Stackable: Yes
Product colour: Black
LED indicators: Activity, Link, Power
Number of fans: 2 fan(s)
Safety: cUL, CB
Noise level: 45.8 dB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 44.2 W
Power over Ethernet (PoE): No
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 138.8 BTU/h
Width: 440 mm
Depth: 250 mm
Height: 44 mm
Weight: 5.3 kg
Shipping (inner) case height: 39.8 cm
Shipping (inner) case width: 32.4 cm
Shipping (inner) case length: 57.3 cm
Shipping (inner) case net weight: 11.4 kg
Products per shipping (inner) case: 3 pc(s)
Certification: CE, FCC, C-Tick, VCCI, BSMI, CCC
Harmonized System (HS) code: 85176990
