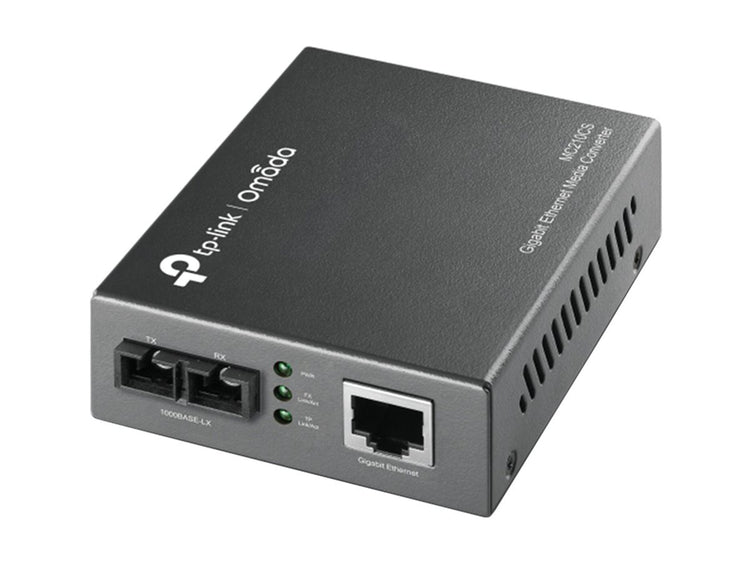

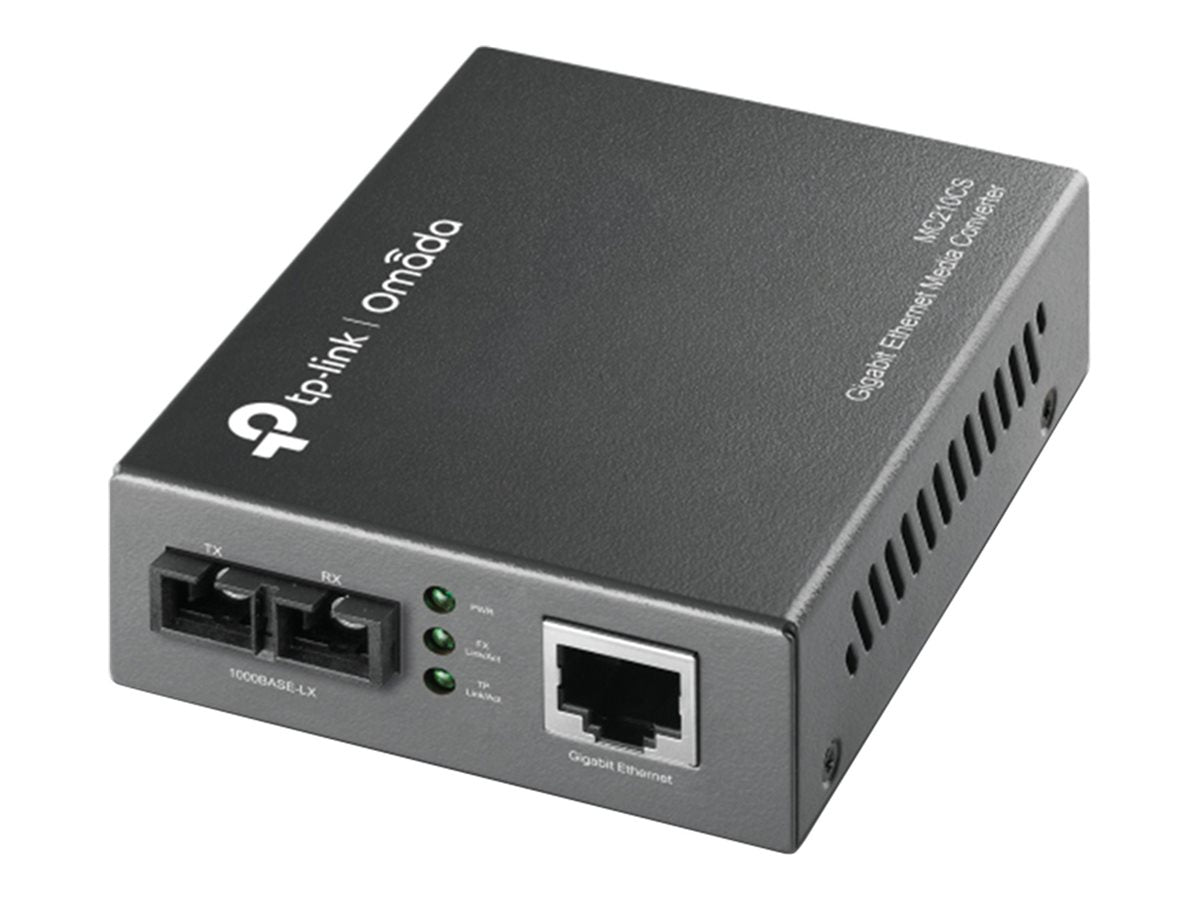

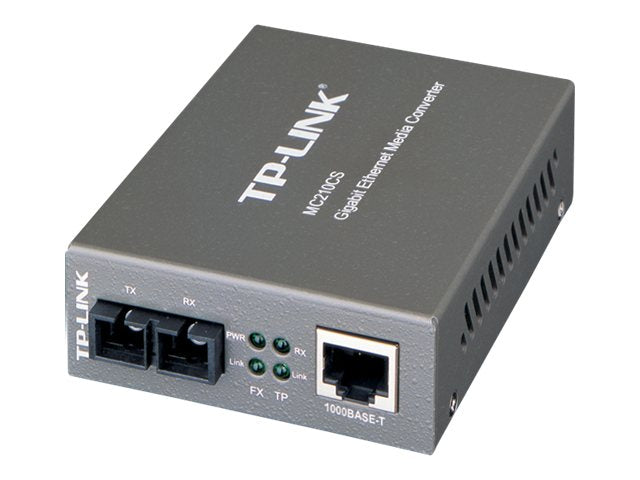

The TP-LINK Gigabit Single-Mode Media Converter (MC210CS) is designed for users who need to connect a Gigabit Ethernet network to a fiber optic network. It is suitable for extending network reach and facilitating high-speed data transmission over longer distances.

  • Supports data rates up to 1000 Mbit/s for fast network performance.
  • Extends fiber distance up to 9.3 miles (15 km), ideal for connecting remote locations.
  • Automatically negotiates setup with Auto-MDI/MDIX for easy connectivity.
  • Compatible with Cat6 cables, ensuring reliable wired connections.
  • Features LED indicators for active status and power, providing clear visibility of operation.
Specifications (3)
  • Producer product family: Gigabit Single-Mode Media Converter
  • Producer product name: MC210CS
  • Warranty: 24 month(s)
Technical details (2)
  • Net weight: 0.40 kg
  • Other features: 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX, Complies with IEEE 802.3ab and IEEE 802.3z, Extends fiber distance up to 9.3 miles (15km)
Additional specifications (27)
  • Maximum data transfer rate: 1000 Mbit/s
  • Networking standards: IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 1000 Mbit/s
  • Auto MDI/MDI-X: Yes
  • Duplex system: Full
  • Cable types supported: Cat6
  • Maximum transfer distance: 15000 m
  • Wavelength: 1310 nm
  • Fiber mode structure: Single-mode
  • Internal: No
  • LED indicators: Activity, Power
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 1
  • Fiber optic connector: SC
  • Power consumption (max): 5.5 W
  • Width: 94.5 mm
  • Depth: 73 mm
  • Height: 27 mm
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Compliance certificates: RoHS
  • Certification: FCC, CE
