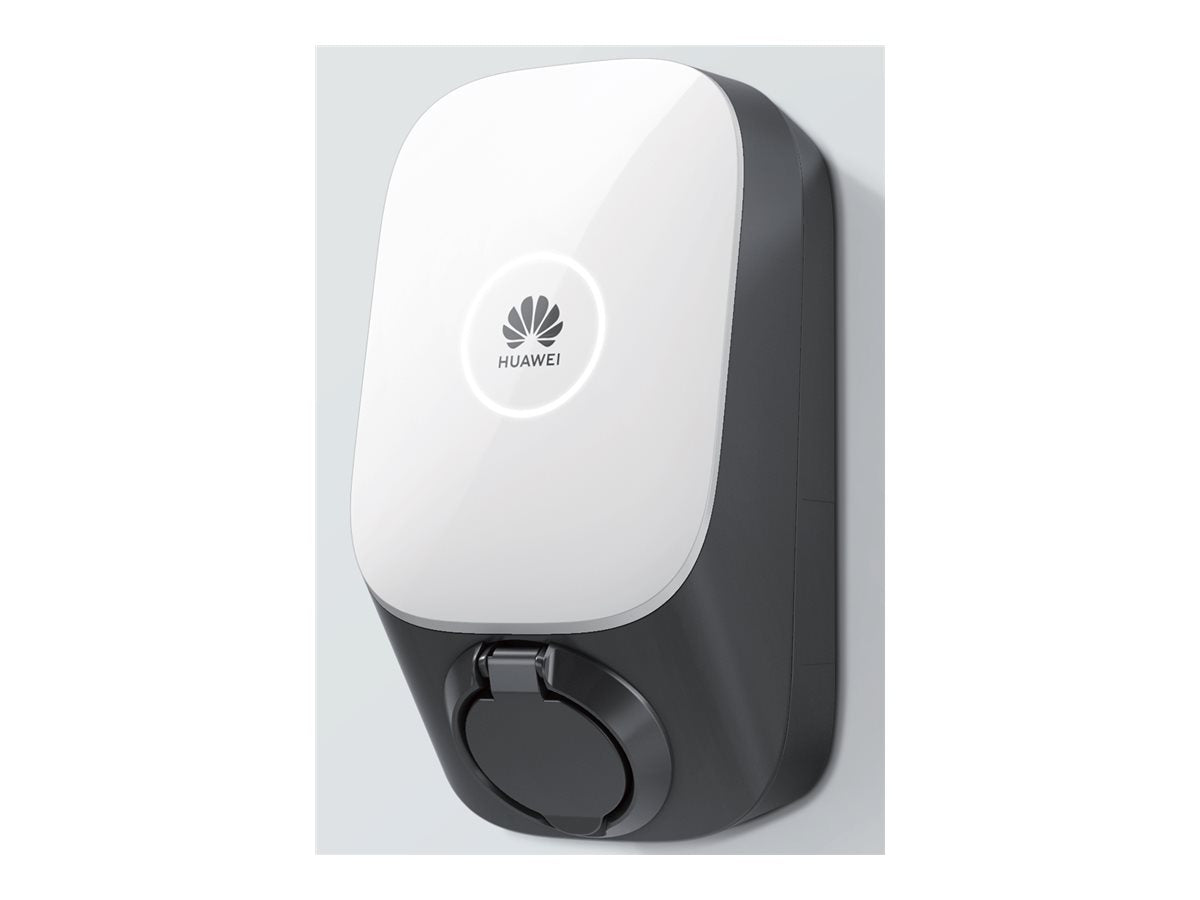

The Huawei FusionCharge AC is a versatile three-phase charger with a charging capacity of 22 kW. It features automatic switching between 1 phase and 3 phase, ensuring optimal efficiency and performance in various applications.

• Wireless connectivity via Wi-Fi and Ethernet
• Supports three authentication methods: Bluetooth, RFID, and App
• Fast installation in just 16 minutes with wiring-free maintenance
• Wall-mounted design with a cable width of up to 10 mm²
• IP54 rated for protection against dust and water

Design

• Colour of product: White/Black

Other features

• Technical features: Automatic Switch between 1 Phase and 3 Phase; More Usable Green Power; 3 Ways Authentication: Bluetooth, RFID and APP Avoid Accidental Charging; Dynamic Charging Power; Fast Installation in 16 Minutes Wiring-free Maintenance; Wall-mounted; Cable width Up to 10 mm2

Technical details

• Charging capacity: 22 kW
• Producer product family: FusionCharge AC
• Producer product name: Three Phase
• Wireless connectivity: Wi-Fi/Ethernet
• Authorization: RFID (ISO-14443-A), App, Bluetooth
• Charging protocol: Modbus TCP
• Connector options: Type 2 socket
• IP class: IP54
• Net weight: 5.11 kg
• Operating temperature: -35°C to +45°C

Specifications

• Warranty: 36 month(s)
