Eigenschaften

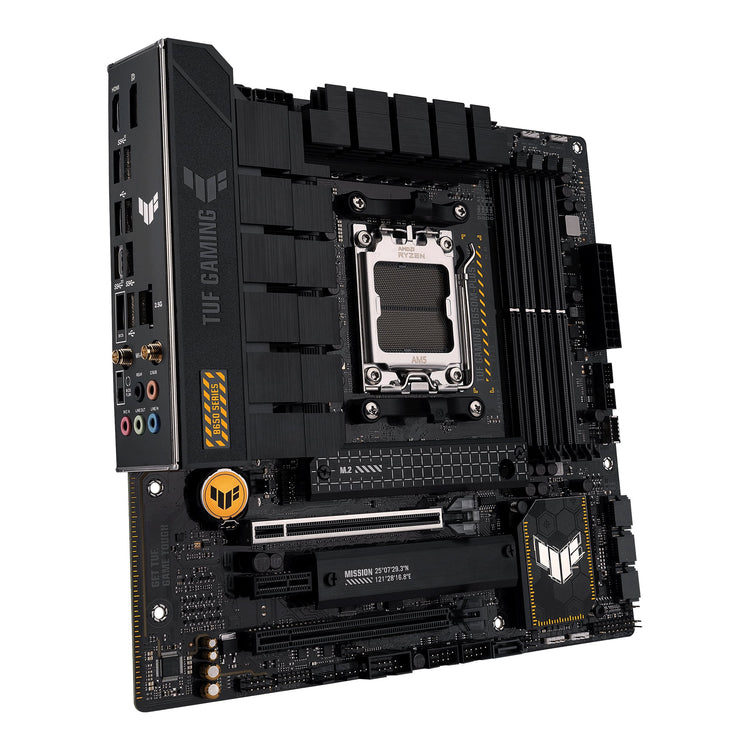

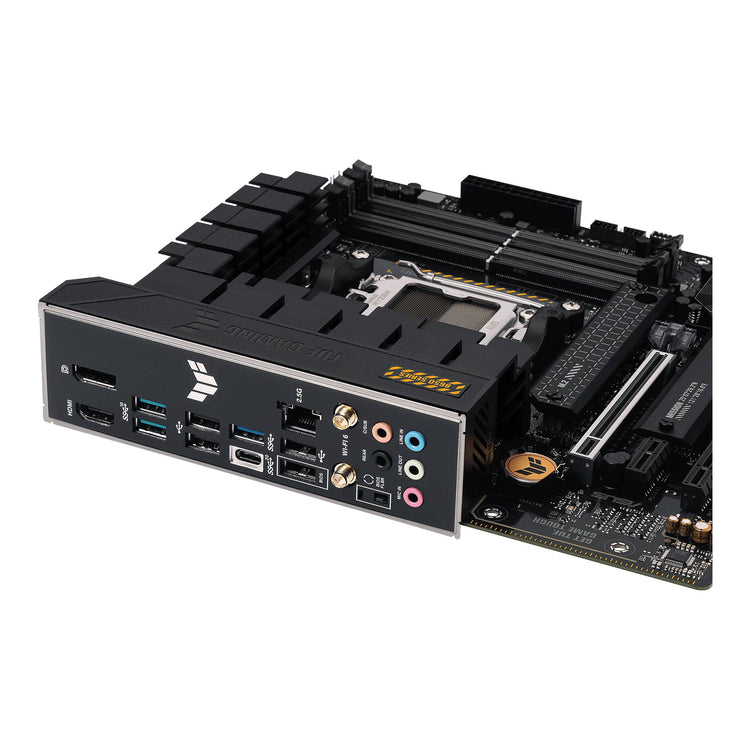

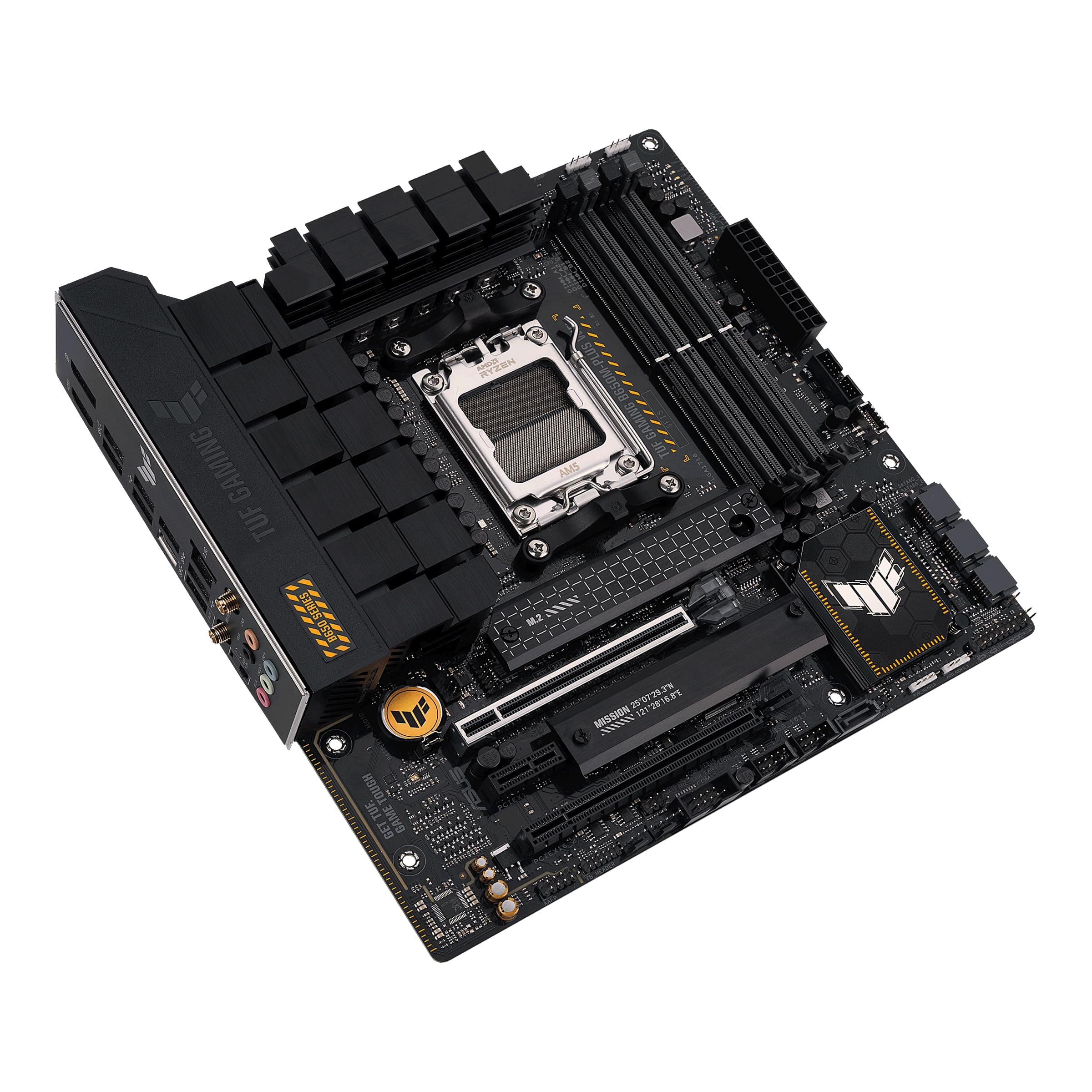

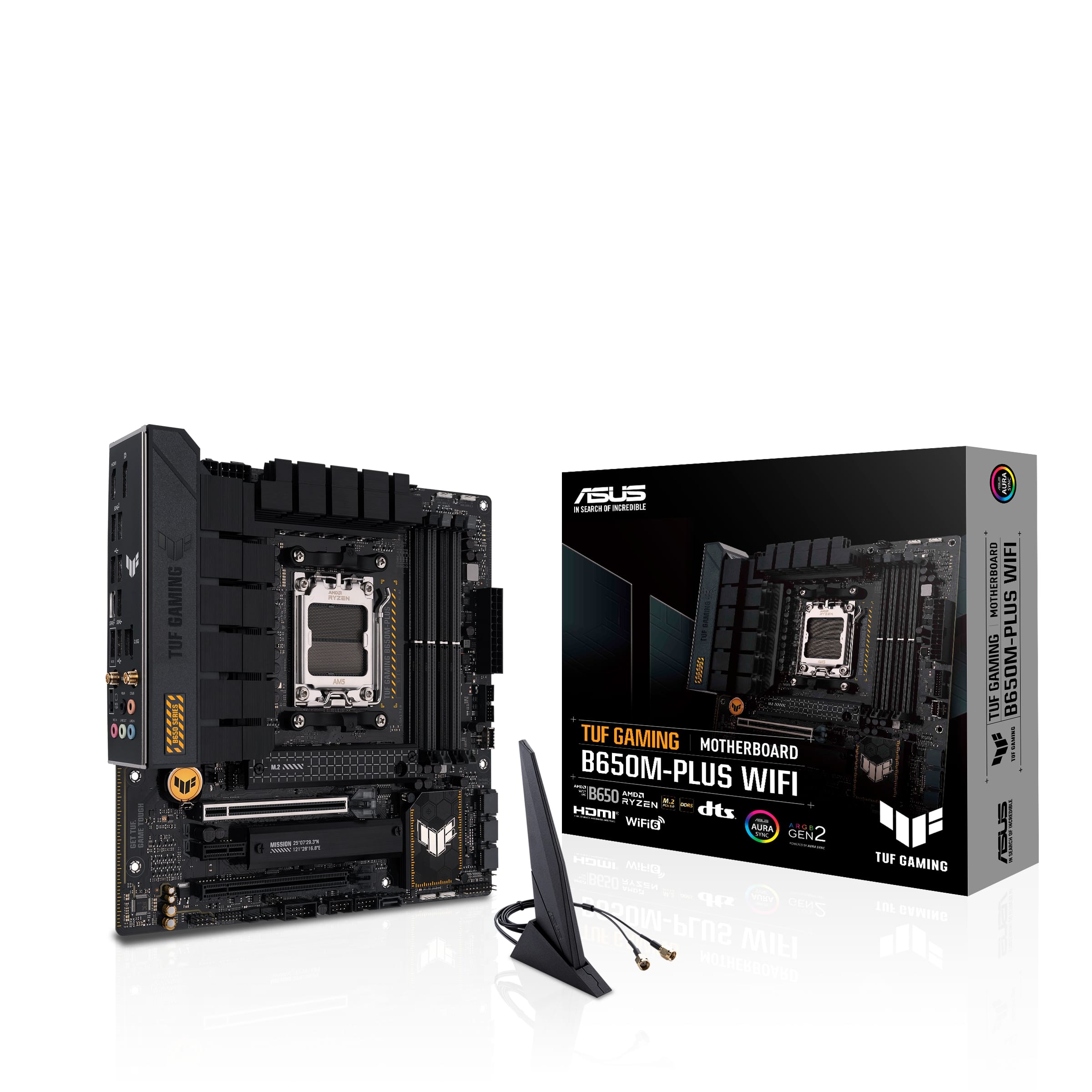

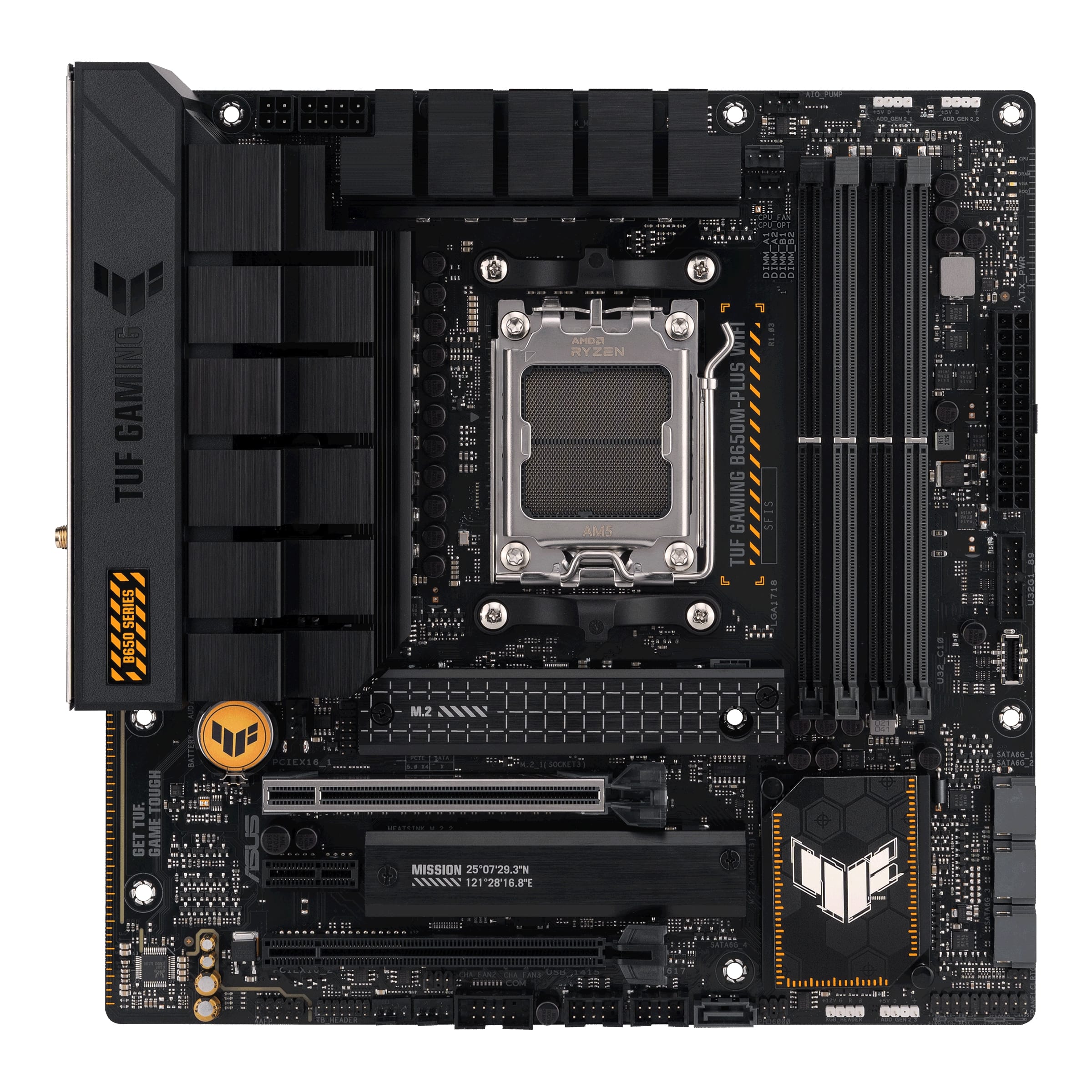

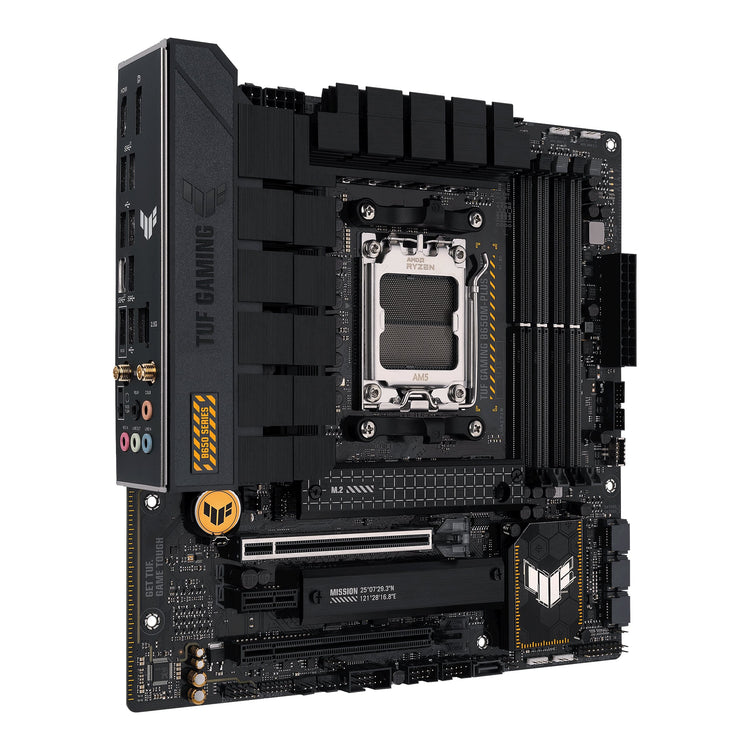

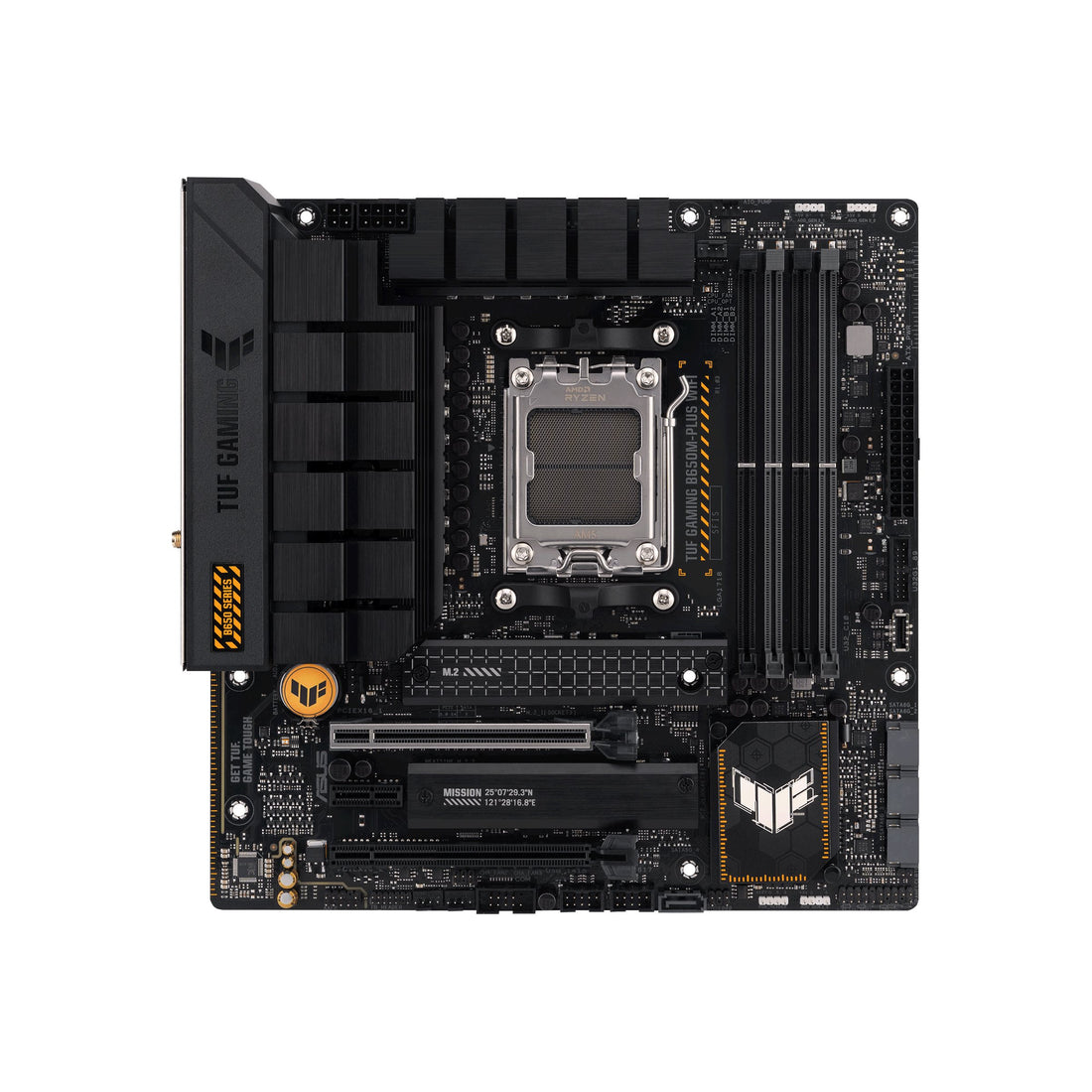

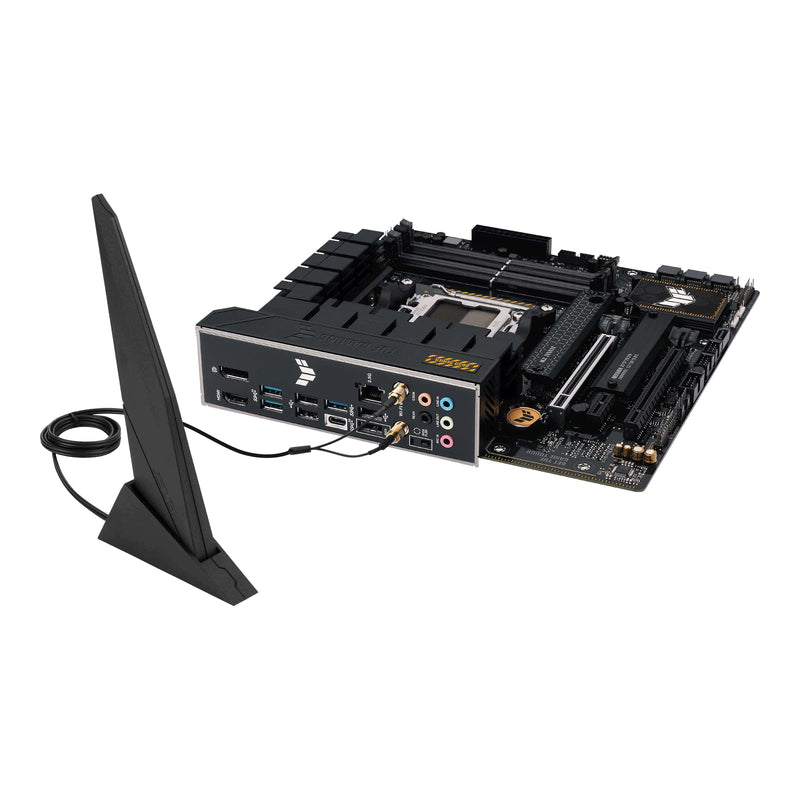

The Asus TUF GAMING B650M-PLUS WIFI is a micro-ATX motherboard designed for gamers and PC builders who use AMD processors. It provides robust compatibility with AMD Ryzen 7000 Series processors and supports the latest DDR5 memory for enhanced performance.
- Four memory slots allow for dual-channel configurations, supporting up to 128 GB of DDR5 RAM.
- Flexible storage options with four SATA connectors and M.2, accommodating up to six storage drives.
- Equipped with RAID support for configuration options such as mirror and striping.
- Two USB 3.2 Gen 1 and two USB 2.0 connectors provide multiple connectivity options for peripherals.
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (2)
- Memory slots: 4
- Supported memory types: DDR5 DIMM
Performance (2)
- Chipset: AMD B650
- Motherboard form factor: micro-ATX
Processor (3)
- Processor family: AMD
- Processor socket: AM5
- Compatible processor series: Supports AMD Ryzen 7000 Series Desktop Processors
Technical details (3)
- Producer product name: TUF GAMING B650M-PLUS WIFI
- Net weight: 1.82 kg
- Warranty: 36 month(s)
Additional specifications (54)
- Processor manufacturer: AMD
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10
- On-board graphics card: No
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 3
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- Thunderbolt headers: 1
- RGB LED pin header: Yes

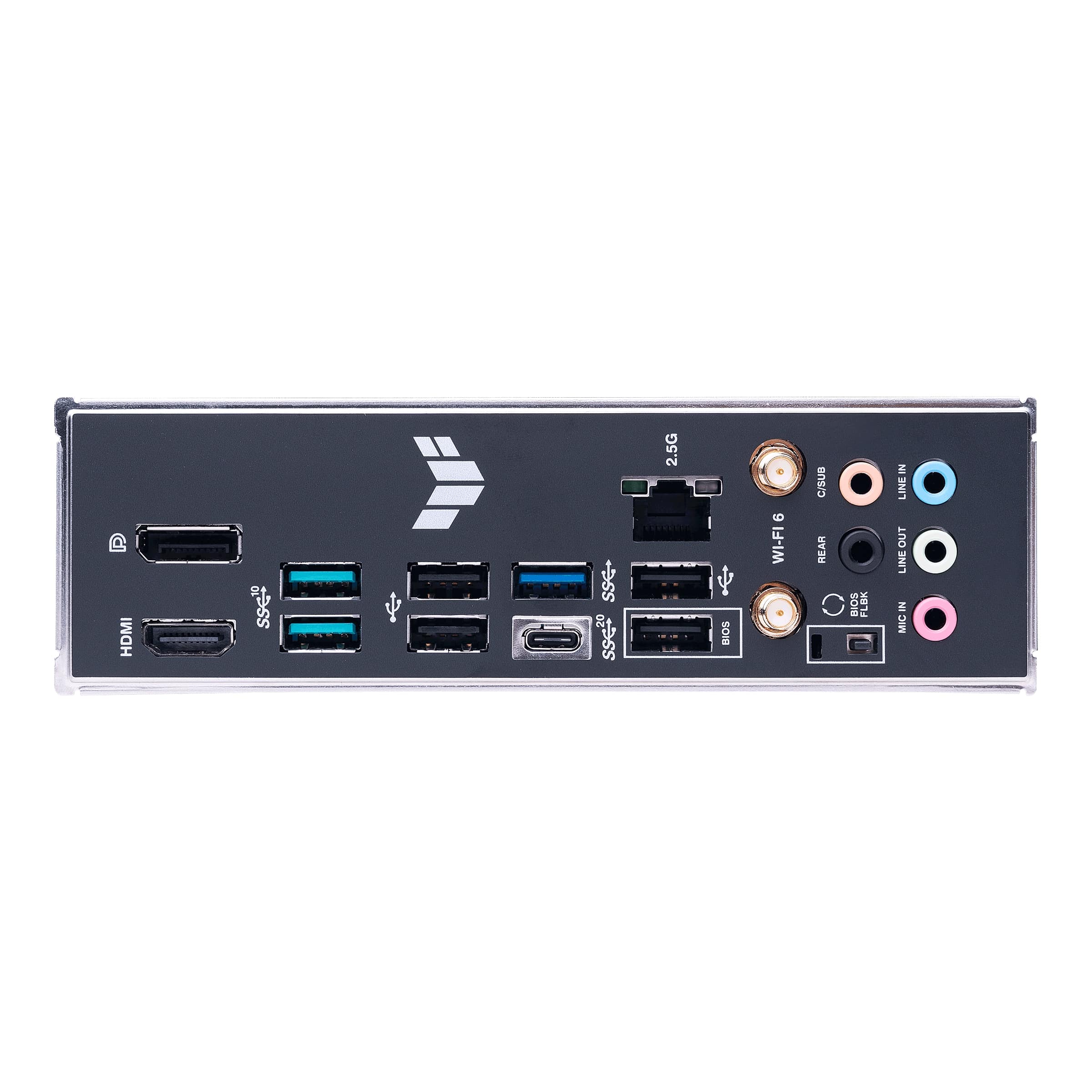

- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Line-in: Yes
- Microphone in: Yes
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
- Motherboard chipset: AMD B650
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 2
- Number of M.2 (M) slots: 2
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Width: 244 mm
- Depth: 244 mm
