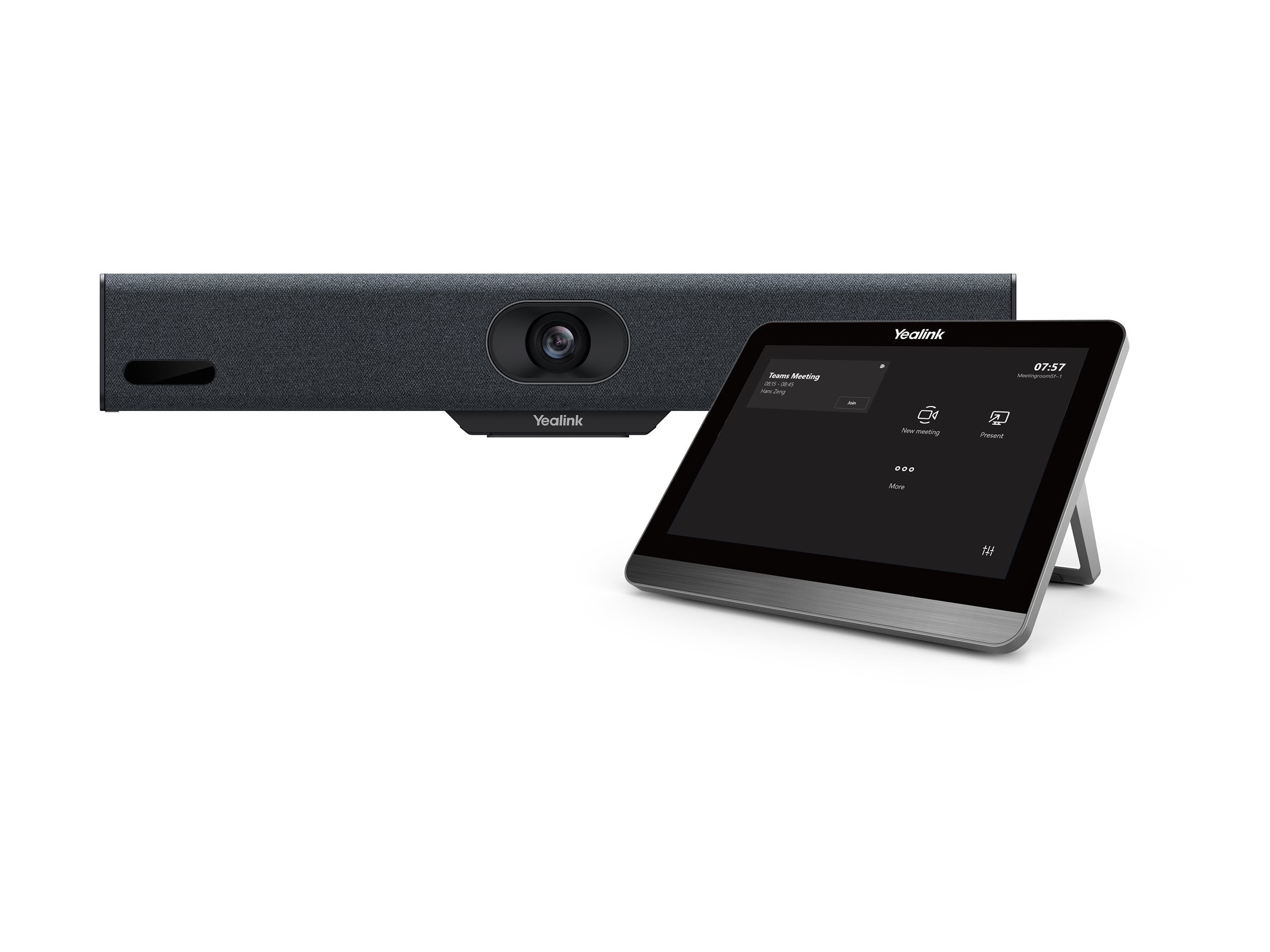

The Yealink Meeting Bar A10-020 is a video collaboration bar designed for seamless remote meetings, suitable for small to medium-sized conference rooms. With an 8-inch touchscreen and various connectivity options, it enhances team communication and productivity.

The 4K Ultra HD video capability ensures high-resolution visuals for clear virtual meetings.
Wireless connectivity via Bluetooth and Wi-Fi allows for easy integration with other devices.
Auto framing and tracking features ensure all participants are focused and included in the discussion.
The built-in speakers and echo cancellation technology provide clear audio quality during calls.
Wall mountable design offers flexibility in setup, keeping your meeting space organized.

Specifications (1)

Warranty: 24 month(s)

Design (1)

Colour of product: Black

Display (2)

Display diagonal: 8 "
Touchscreen: Yes

Networking (3)

Bluetooth: Yes
Bluetooth version: 4.2
Wi-Fi: Yes

Other features (1)

Compatible operating systems: Android 11

Technical details (3)

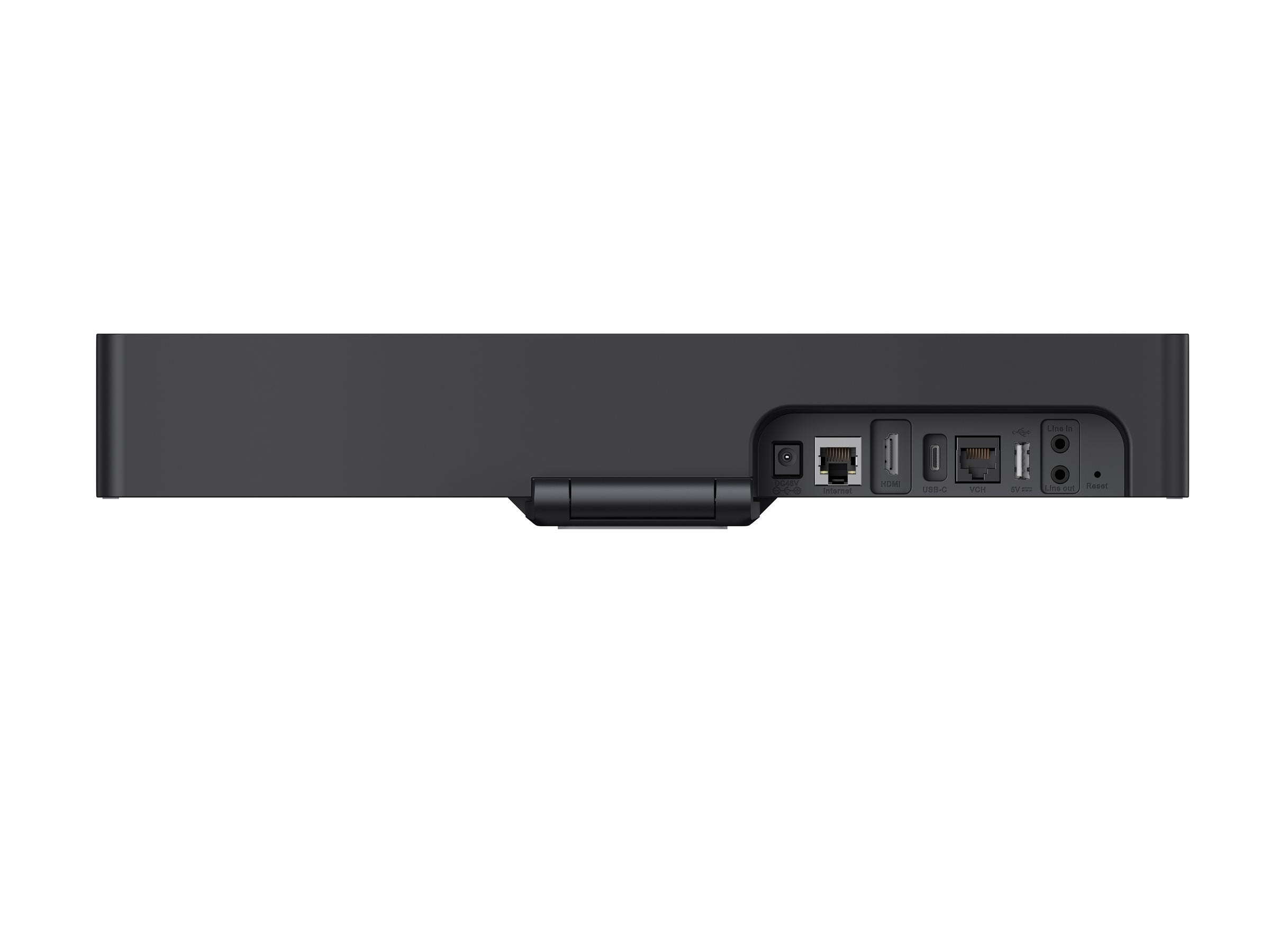

Connections: 1x HDMI output (CEC supported), 1x USB-A, 1x USB-C for content sharing, 1x 10 M/100 M/1000 M Ethernet port, 1x Yealink VCH port (RJ-45), 1x Power port, 1x Security lock slot, 1x Reset slot
Net weight: 1.80 kg
Producer product name: Meeting Bar A10-020

Additional specifications (65)

Number of cameras: 1
Product colour: Black, Grey
Auto framing: Yes
Auto-tracking: Yes
Tracking modes: Presenter mode
Meeting features: Add participates, Calendar, Content sharing, Hold/Resume, One-click join
Product type: Video collaboration bar
Wall mountable: Yes
PTZ control: Yes
HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 30 fps
Video codecs: H.264 High profile, H.264 SVC, H.264
Built-in speaker(s): Yes
Audio system full duplex: Yes
Echo cancellation: Yes
Speaker power: 5 W
HDMI output ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Line-in: Yes
Line-out: Yes
Microphone in: Yes
Reset slot: Yes
Ethernet LAN: Yes
Ethernet LAN data rates: 10,1000,100 Mbit/s
Security algorithms: 256-bit AES, EAP-TLS, MSCHAPv2, PEAP, TLS
Camera type: Single camera
Horizontal field of view: 105°
Diagonal field of view: 120°
Auto Focus (AF) object detection: People
Remote control interface: Ethernet
Camera privacy shutter: Yes
Display resolution: 1280 x 800 pixels
Microphone sensitivity: 88 dB
Microphone mute: Yes
Number of microphone arrays: 8
Motion sensor: Yes
Cable lock slot: Yes
Country of origin: China
Operating system installed: Android 10
Mobile operating systems supported: Android 11.0
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -30 - 70 °C
Power source type: AC
AC input voltage: 100 - 240 V
DC output voltage: 48 V
DC output current: 0.7 A
Power consumption (typical): 10.5 W
Power consumption (max): 14 W
Power consumption (idle): 10 W
Certification: CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM
Width: 380 mm
Depth: 68 mm
Height: 82 mm
Weight: 3.59 kg
Cables included: HDMI, LAN (RJ-45)
Networking cable length: 3 m
HDMI cable length: 1.8 m
AC adapter included: Yes
Quick start guide: Yes
