About

Description

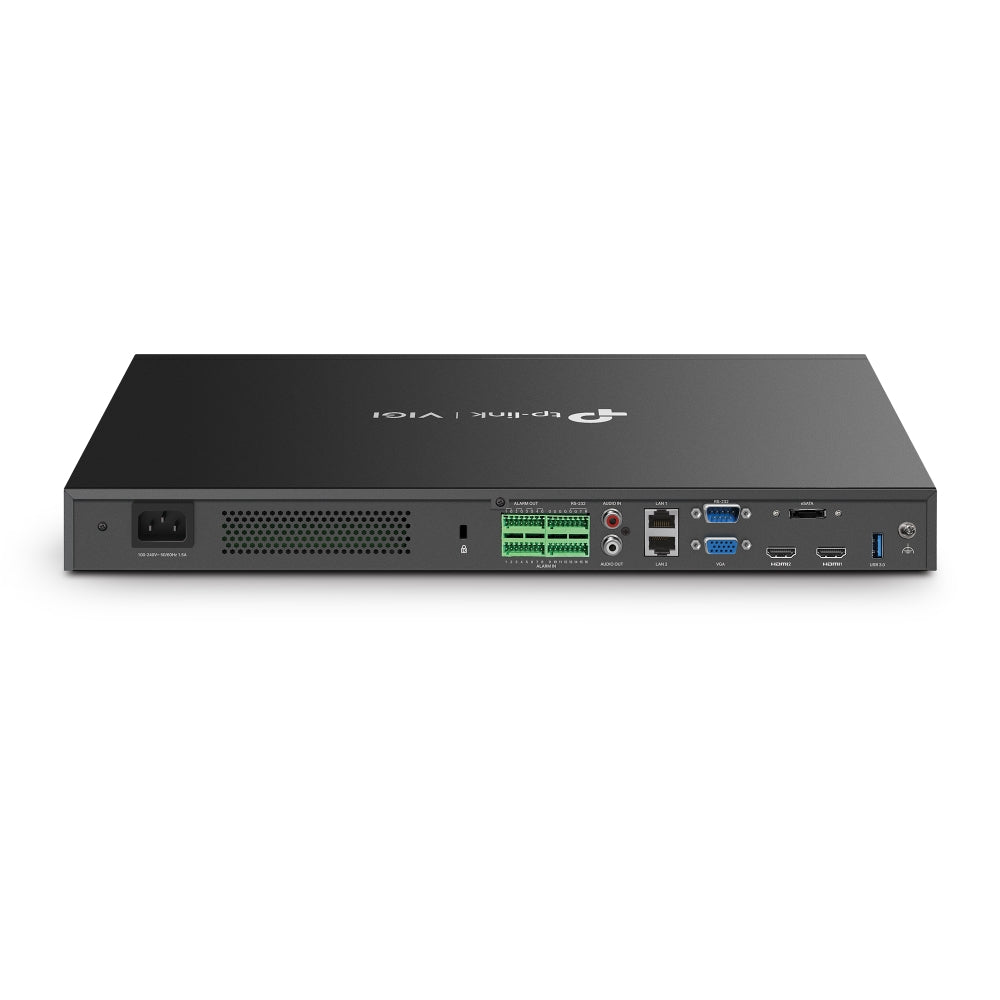

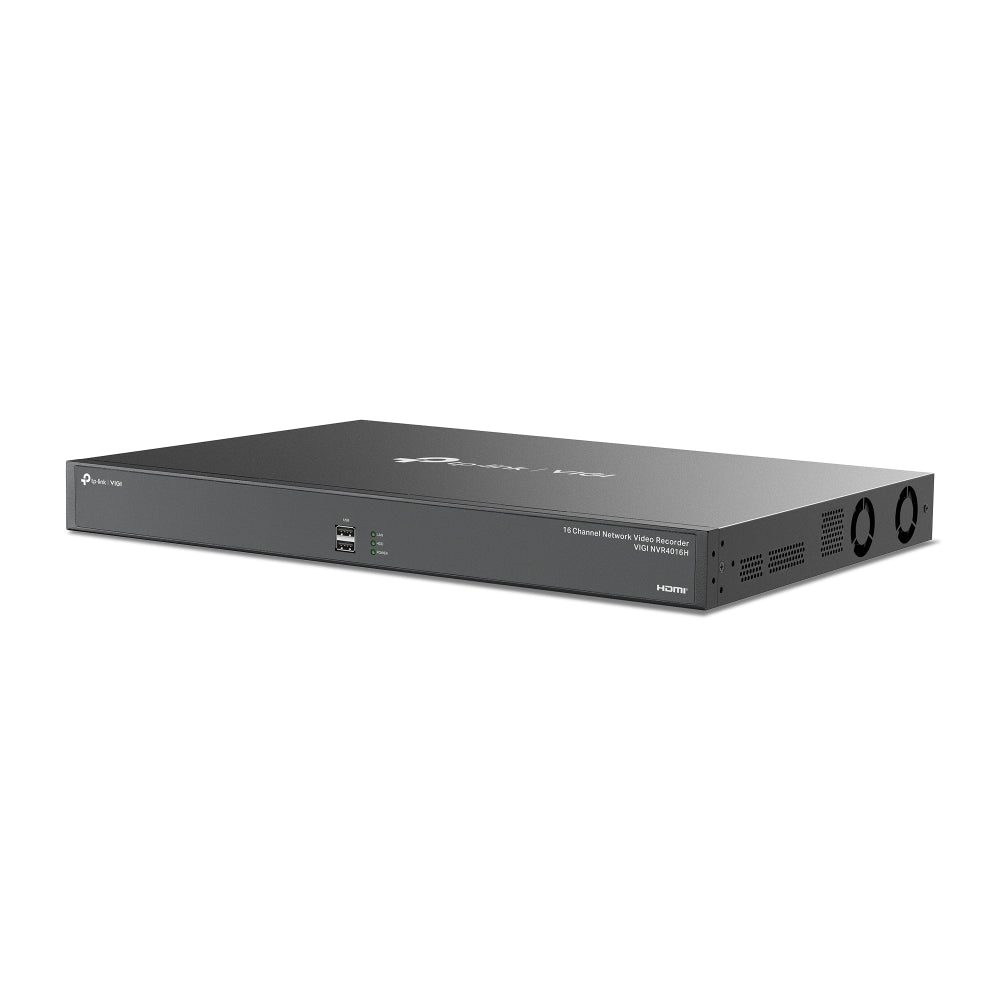

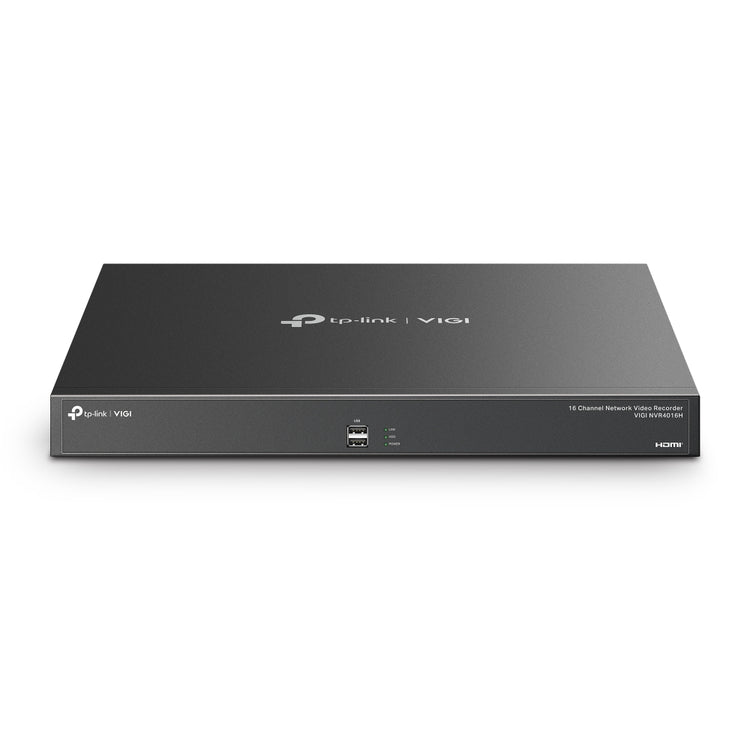

The TP-LINK VIGI NVR4016H is a 16 Channel Network Video Recorder designed for users needing robust surveillance solutions. Ideal for both commercial and residential use, it supports multiple recording modes and high-resolution playback.

  • Connect up to 4 HDDs with a maximum capacity of 64 TB for extensive video storage.
  • Record video in various resolutions, including 4K, 1080p, and 720p for clear surveillance footage.
  • Simultaneously playback up to 16 channels, allowing for comprehensive monitoring and review.
  • Includes H.265+/H.265 video compression to optimize storage while maintaining quality.
  • Offers video motion and loss detection for proactive security management.
Specifications (1)
  • Warranty: 36 month(s)
Other features (1)
  • Number of SATA connectors: 4 SATA Interfaces
Performance (2)
  • Capacity: Up to 16 TB Capacity for Each HDD
  • Video compression formats: H.265+/H.265/ H.264+/H.264
Technical details (4)
  • Net weight: 5.65 kg
  • Output interface: 2 HDMI and 1 VGA Video Output
  • Producer product family: 16 Channel Network Video Recorder
  • Producer product name: VIGI NVR4016H
Additional specifications (57)
  • Video input channels: 16 channels
  • Alarm input channels: 16
  • Alarm output channels: 4
  • Number of simultaneously playbacked channels: 16 channels
  • Video recording modes: 720p, 1080p
  • Maximum resolution: 3840 x 2160 pixels
  • Supported resolutions: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
  • Video motion detection: Yes
  • Video loss detection: Yes
  • Audio formats supported: G.711, G.711u, G.726
  • Video formats supported: H.264, H.264+, H.265, H.265+
  • Backup function: Yes
  • Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
  • Input bandwidth: 320 Mbit/s
  • Output bandwidth: 320 Mbit/s
  • Recording modes: Manual, Schedule
  • Audio system: 2-way
  • HDD capacity: 0 GB
  • Number of HDDs supported: 4
  • Maximum storage capacity: 64 TB
  • HDD interface: SATA
  • Ethernet LAN (RJ-45) ports: 2
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • HDMI ports quantity: 2
  • VGA (D-Sub) output ports: 1
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • Audio RCA inputs: 1
  • Audio RCA outputs: 1
  • eSATA ports quantity: 1
  • eSATA: Yes
  • RS-232 ports: 1
  • Supported network protocols: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
  • Rack mounting: Yes
  • Reset button: Yes
  • Buzzer off: Yes
  • Product colour: Black
  • Power consumption (max): 45 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Output current: 1.5 A
  • Mobile operating systems supported: Android, iOS
  • Browser supported: Chrome (57+), Firefox (52+), Edge (91+)
  • Operating temperature (T-T): -10 - 55 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage temperature (T-T): -40 - 70 °C
  • Storage relative humidity (H-H): 10 - 90%
  • Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI
  • Width: 440 mm
  • Depth: 330 mm
  • Height: 44 mm
  • Weight: 4 kg
  • Package width: 440 mm
  • Package depth: 528 mm
  • Package height: 100 mm
  • Package weight: 5 kg
  • Packaging content: - Mouse - Installation Guide - Power Cord - HDD Power Cables - HDD Data Cables - Terminal Blocks - Mounting Brackets - Screws - Rubber Feet
Description

The TP-LINK VIGI NVR4016H is a 16 Channel Network Video Recorder designed for users needing robust surveillance solutions. Ideal for both commercial and residential use, it supports multiple recording modes and high-resolution playback.

  • Connect up to 4 HDDs with a maximum capacity of 64 TB for extensive video storage.
  • Record video in various resolutions, including 4K, 1080p, and 720p for clear surveillance footage.
  • Simultaneously playback up to 16 channels, allowing for comprehensive monitoring and review.
  • Includes H.265+/H.265 video compression to optimize storage while maintaining quality.
  • Offers video motion and loss detection for proactive security management.
Specifications (1)
  • Warranty: 36 month(s)
Other features (1)
  • Number of SATA connectors: 4 SATA Interfaces
Performance (2)
  • Capacity: Up to 16 TB Capacity for Each HDD
  • Video compression formats: H.265+/H.265/ H.264+/H.264
Technical details (4)
  • Net weight: 5.65 kg
  • Output interface: 2 HDMI and 1 VGA Video Output
  • Producer product family: 16 Channel Network Video Recorder
  • Producer product name: VIGI NVR4016H
Additional specifications (57)
  • Video input channels: 16 channels
  • Alarm input channels: 16
  • Alarm output channels: 4
  • Number of simultaneously playbacked channels: 16 channels
  • Video recording modes: 720p, 1080p
  • Maximum resolution: 3840 x 2160 pixels
  • Supported resolutions: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
  • Video motion detection: Yes
  • Video loss detection: Yes
  • Audio formats supported: G.711, G.711u, G.726
  • Video formats supported: H.264, H.264+, H.265, H.265+
  • Backup function: Yes
  • Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
  • Input bandwidth: 320 Mbit/s
  • Output bandwidth: 320 Mbit/s
  • Recording modes: Manual, Schedule
  • Audio system: 2-way
  • HDD capacity: 0 GB
  • Number of HDDs supported: 4
  • Maximum storage capacity: 64 TB
  • HDD interface: SATA
  • Ethernet LAN (RJ-45) ports: 2
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • HDMI ports quantity: 2
  • VGA (D-Sub) output ports: 1
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • Audio RCA inputs: 1
  • Audio RCA outputs: 1
  • eSATA ports quantity: 1
  • eSATA: Yes
  • RS-232 ports: 1
  • Supported network protocols: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
  • Rack mounting: Yes
  • Reset button: Yes
  • Buzzer off: Yes
  • Product colour: Black
  • Power consumption (max): 45 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Output current: 1.5 A
  • Mobile operating systems supported: Android, iOS
  • Browser supported: Chrome (57+), Firefox (52+), Edge (91+)
  • Operating temperature (T-T): -10 - 55 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage temperature (T-T): -40 - 70 °C
  • Storage relative humidity (H-H): 10 - 90%
  • Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI
  • Width: 440 mm
  • Depth: 330 mm
  • Height: 44 mm
  • Weight: 4 kg
  • Package width: 440 mm
  • Package depth: 528 mm
  • Package height: 100 mm
  • Package weight: 5 kg
  • Packaging content: - Mouse - Installation Guide - Power Cord - HDD Power Cables - HDD Data Cables - Terminal Blocks - Mounting Brackets - Screws - Rubber Feet

TP-LINK VIGI NVR4016H — 16 Channel Network Video Recorder, 4 SATA Interfaces

€824,59
€824,59
Tax included.
