The TP-LINK VIGI NVR1104H-4P is a PoE+ Network Video Recorder designed for users looking to enhance their security system with continuous recording and easy monitoring. It supports up to 4 video channels and allows remote access, making it suitable for both residential and small commercial environments.
- 24/7 continuous recording provides peace of mind by ensuring constant monitoring of your premises.

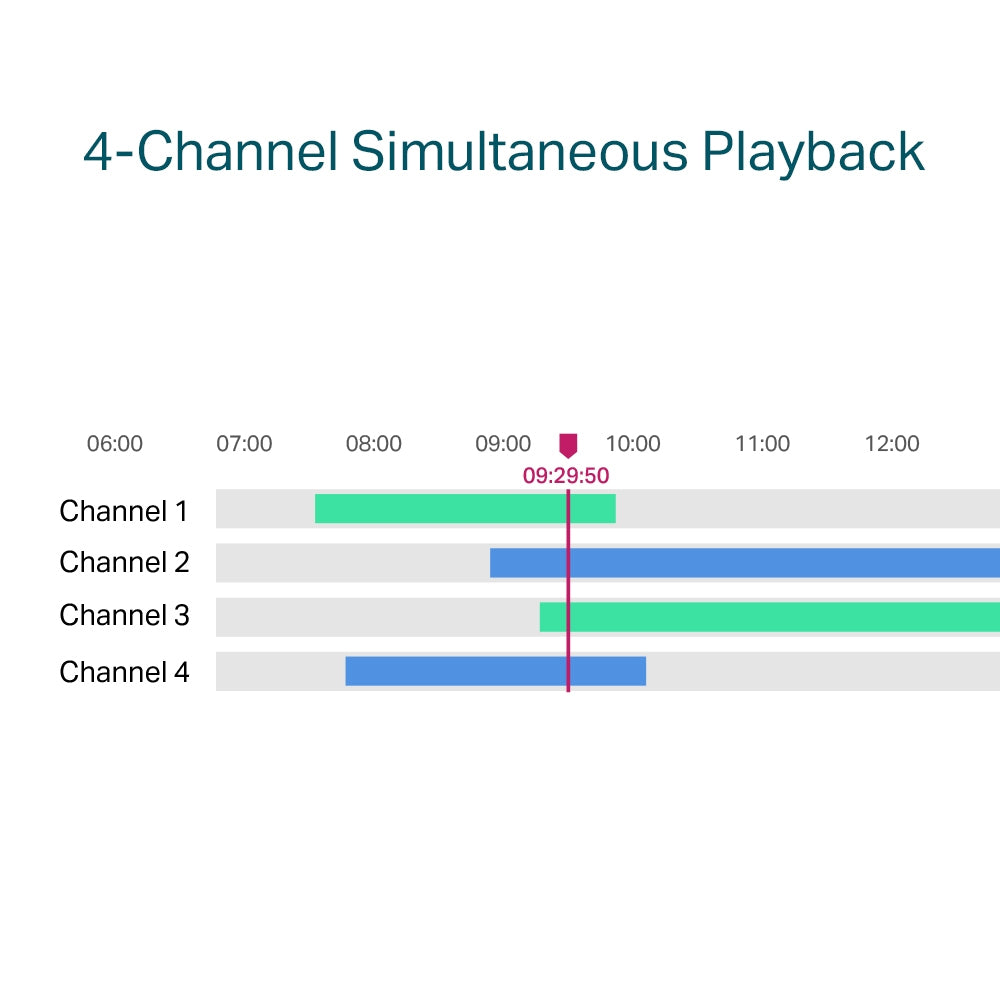

- 4-channel simultaneous playback allows you to review different camera feeds at the same time.
- Remote monitoring capability lets you access your security system from anywhere via supported devices.
- Onvif compatibility ensures that you can connect and use a variety of camera brands seamlessly.
- Supports high resolutions up to 3840 x 2160 pixels for clear and detailed video recordings.
Specifications (4)
- Producer product family: PoE+ Network Video Recorder
- Producer product name: VIGI NVR1104H-4P
- Video input channels: 4 Channel
- Warranty: 36 month(s)
Other features (1)
- Number of SATA connectors: 1
Technical details (2)
- Net weight: 0.40 kg
- Other features: 24/7 Continuous Recording. 4-Channel Simultaneous Playback. Remote Monitoring. Onvif Ensure Compatibility. 80 Mbps Video Access Bandwidth
Additional specifications (49)
- Number of simultaneously playbacked channels: 4 channels
- Video recording modes: 720p, 1080p
- Maximum resolution: 3840 x 2160 pixels
- Supported resolutions: HDMI^ 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
- On Screen Display (OSD): Yes

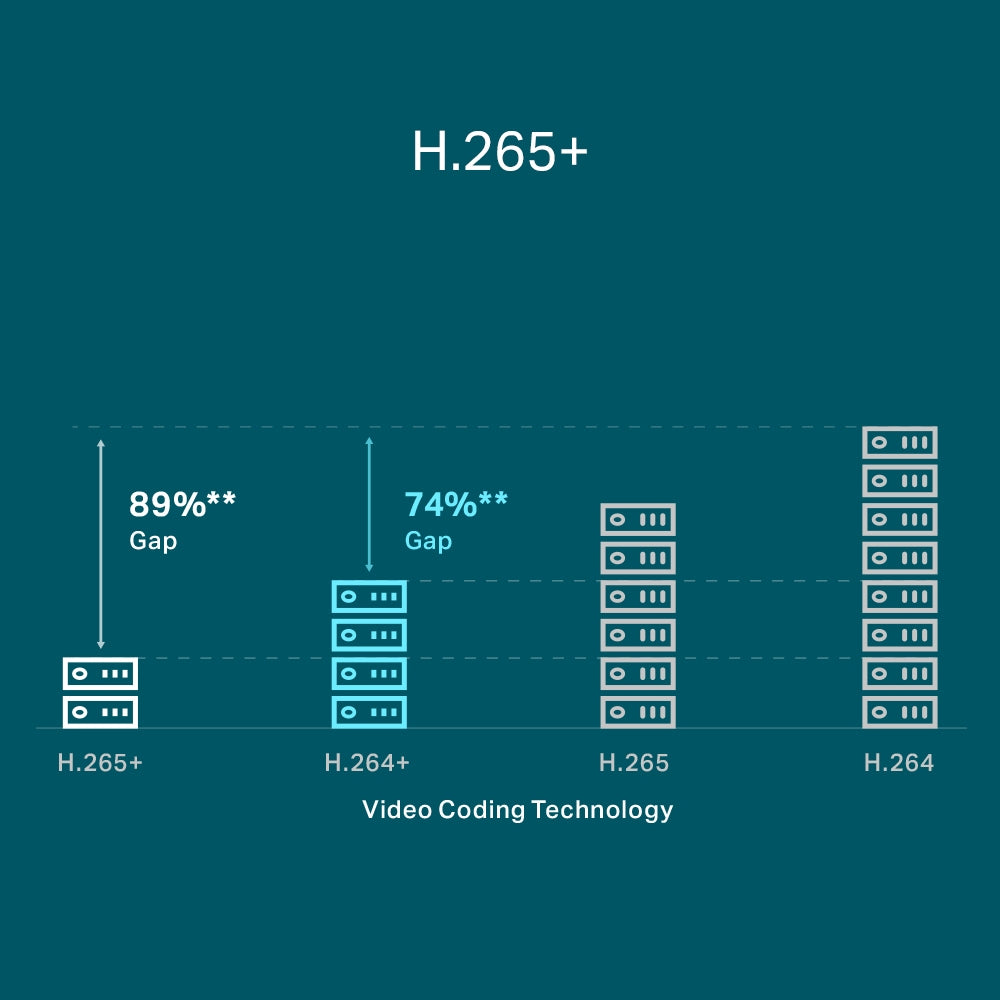

- Video formats supported: H.264, H.264+, H.265, H.265+
- Syslog: Yes
- DHCP client: Yes
- Input bandwidth: 80 Mbit/s
- Output bandwidth: 60 Mbit/s
- Wi-Fi: No
- Number of HDDs supported: 1
- Maximum storage capacity: 10 TB
- HDD interface: SATA

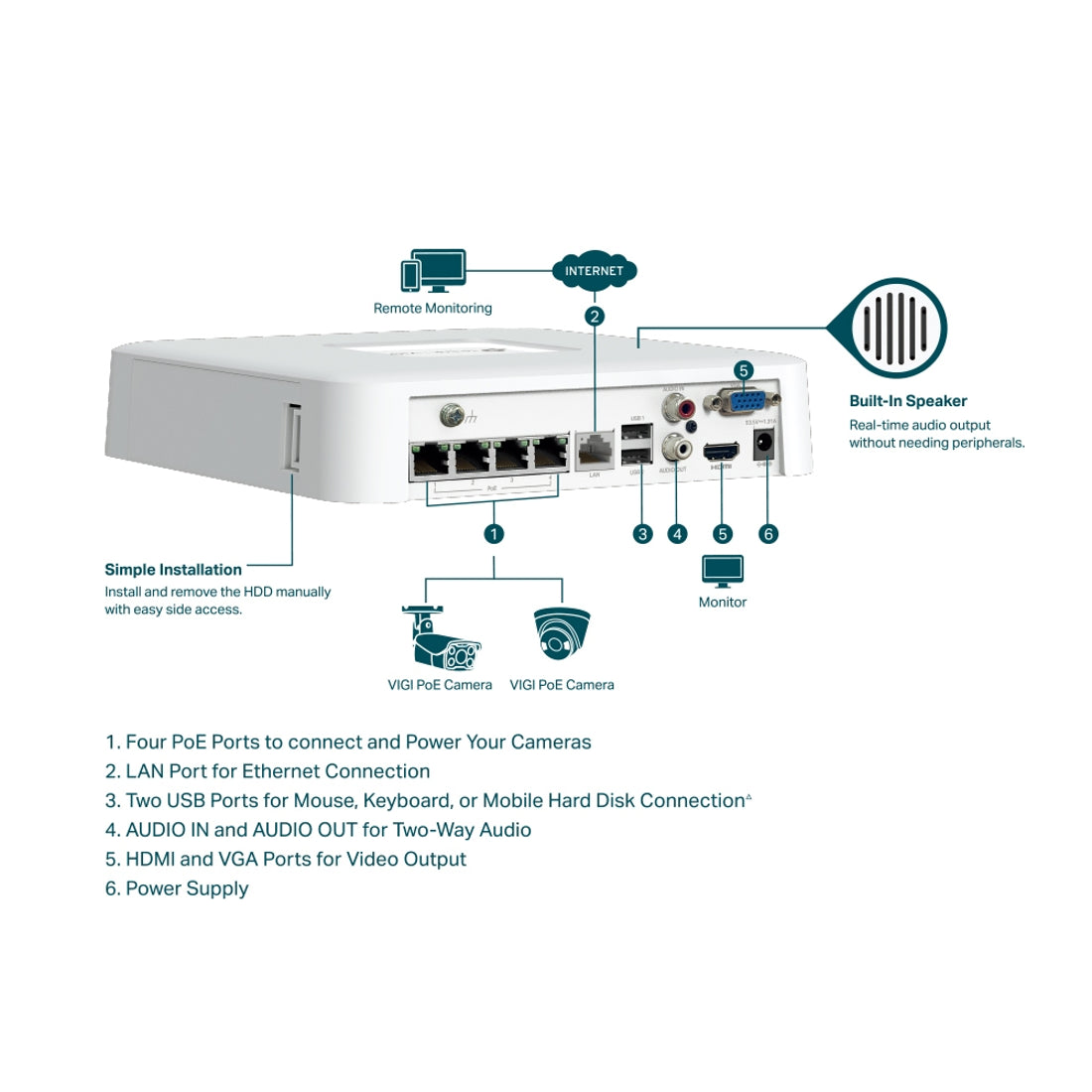

- Ethernet LAN (RJ-45) ports: 5
- Power over Ethernet (PoE): Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Ethernet LAN data rates: 10,100 Mbit/s
- Power over Ethernet (PoE) ports quantity: 4
- Ethernet WAN: Yes
- HDMI output: Yes
- HDMI ports quantity: 1
- VGA (D-Sub) output ports: 1
- USB 2.0 ports quantity: 2
- Line-in: Yes
- Audio output: 1
- Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
- Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP
- Rack mounting: No
- LED indicators: Yes
- Product colour: White
- Built-in display: No
- Power consumption (typical): 4.82 W
- Output current: 1.31 A
- Output voltage: 53.5 V
- Total Power over Ethernet (PoE) budget: 53 W
- Redundant power supply (RPS) support: Yes
- Operating temperature (T-T): -10 - 55 °C
- Sustainability compliance: Yes
- Compliance certificates: CE, EAC, Federal Communications Commission (FCC)
- Width: 200.3 mm
- Depth: 200.3 mm
- Height: 43 mm
- Package width: 251.5 mm
- Package depth: 401.5 mm
- Package height: 64.5 mm
- Package weight: 1.37 kg
- AC adapter included: Yes
- Quick installation guide: Yes
