Description

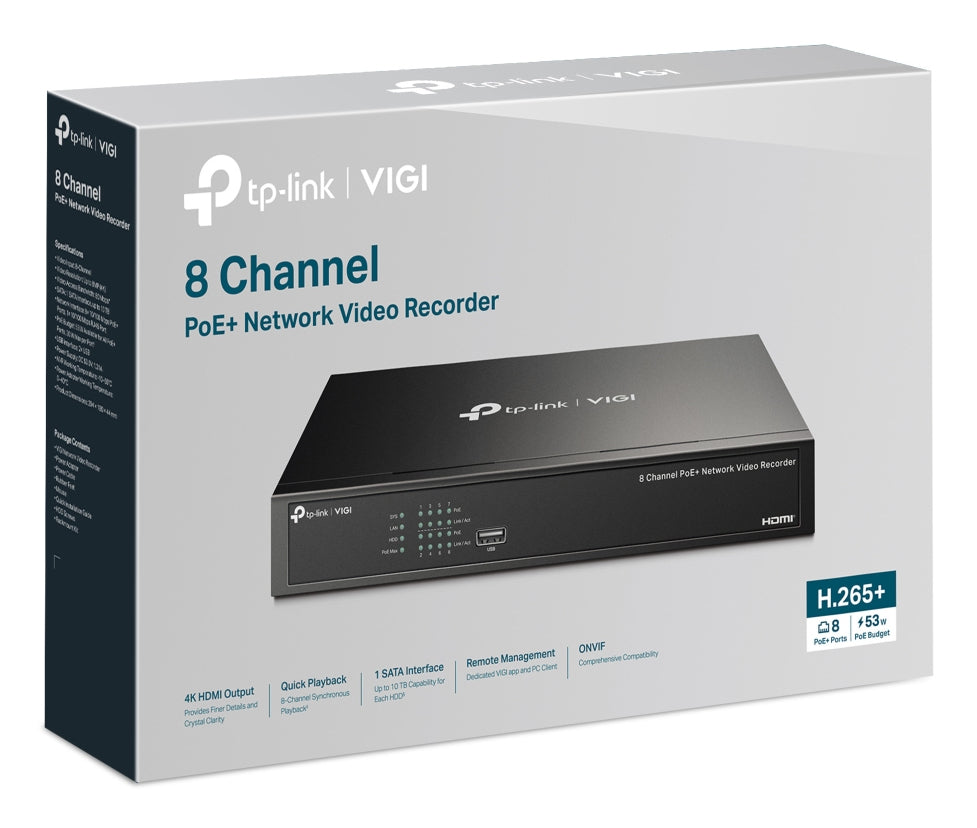

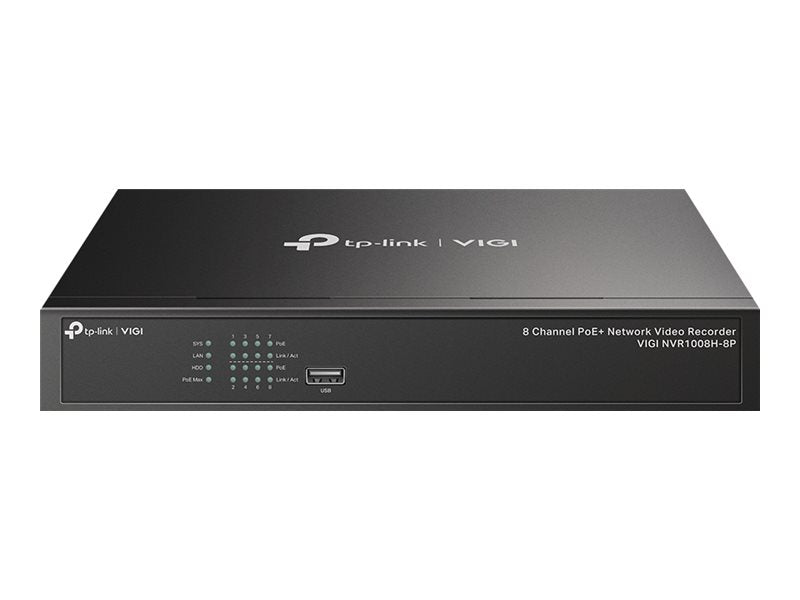

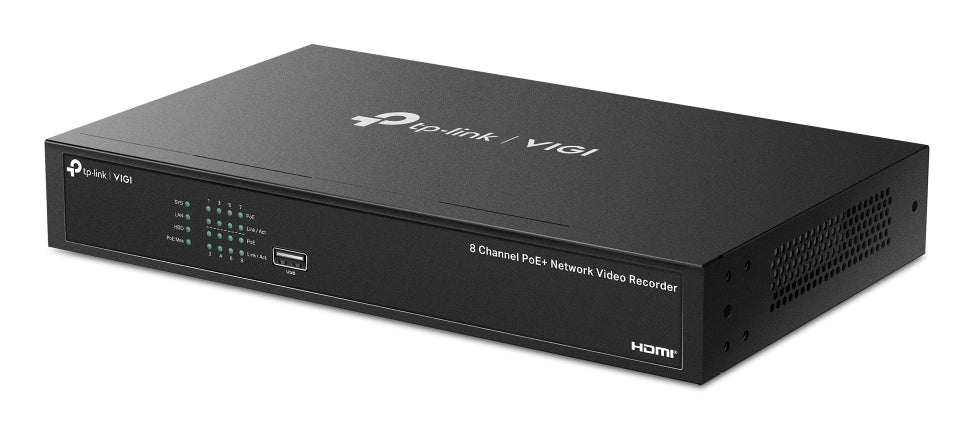

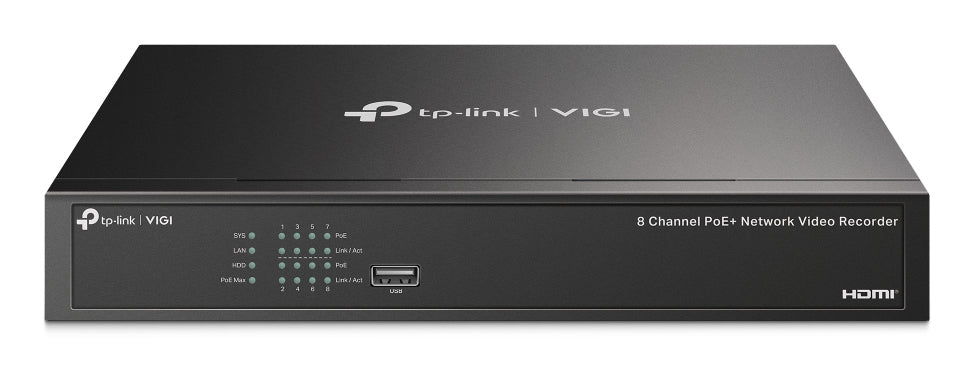

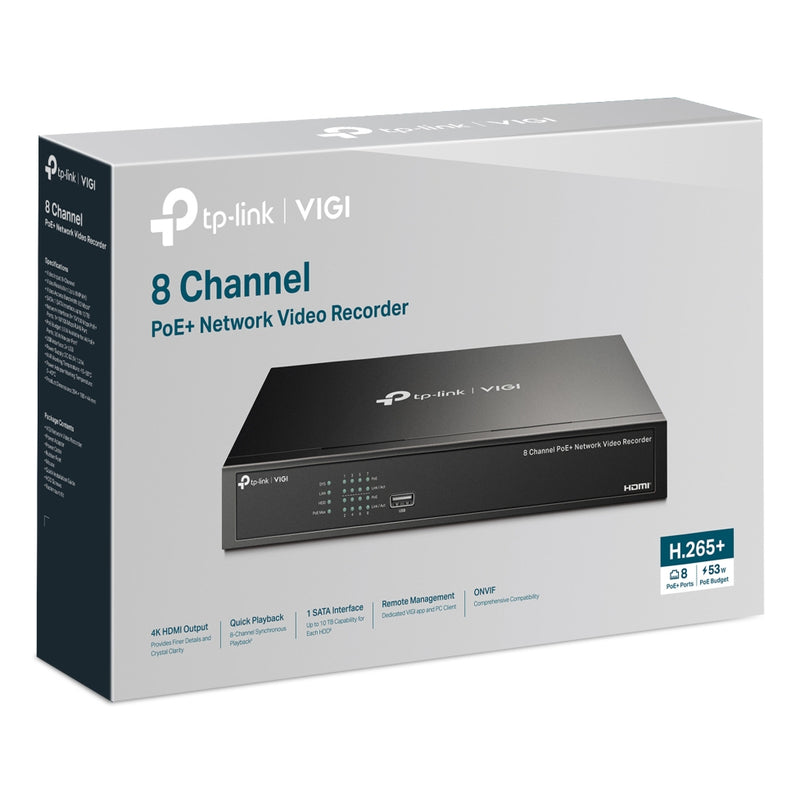

The TP-LINK VIGI NVR1008H-8P is an 8-channel network video recorder designed for users seeking to enhance their security surveillance systems. It is suitable for homes and businesses wanting reliable video monitoring with high-definition output.

  • Supports sharp image definition up to 8MP for detailed visuals.
  • Simplifies installation by allowing PoE cameras to connect and power through one cable.
  • Features 8-channel simultaneous playback for concurrent monitoring of multiple feeds.
  • Offers up to 10 TB storage capacity to accommodate extensive video recordings.
  • Includes 4K HDMI output for high-resolution display options.
Specifications (4)
  • Producer product family: VIGI 8 Channel PoE+ Network Video Recorder
  • Producer product name: VIGI NVR1008H-8P
  • Video input channels: 8-Channel
  • Warranty: 36 month(s)
Other features (1)
  • Number of SATA connectors: 1
Performance (1)
  • Capacity: Up to 10 TB
Technical details (2)
  • Net weight: 2.50 kg
  • Other features: 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle. Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed. 8-Channel Simultaneous Playback: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
Additional specifications (38)
  • Number of simultaneously playbacked channels: 8 channels
  • Video recording modes: 720p, 1080p
  • Maximum resolution: 3840 x 2160 pixels
  • Supported resolutions: 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 102 4x 768, 1280 x 720
  • Video formats supported: H.264, H.264+, H.265, H.265+
  • Input bandwidth: 80 Mbit/s
  • Output bandwidth: 60 Mbit/s
  • Audio system: 2-way
  • HDD capacity: 0 GB
  • Number of HDDs supported: 1
  • Maximum storage capacity: 10 TB
  • HDD interface: SATA

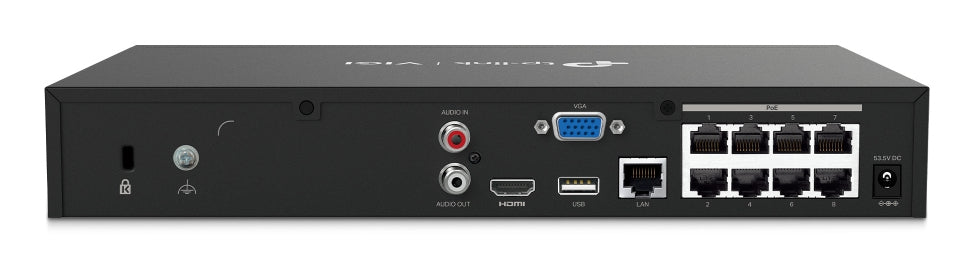

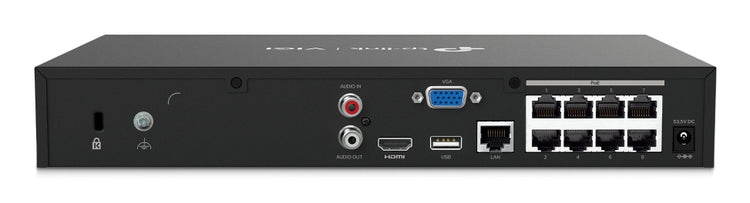

  • Ethernet LAN (RJ-45) ports: 1
  • Power over Ethernet (PoE): Yes
  • Ethernet LAN data rates: 10,100 Mbit/s
  • Power over Ethernet (PoE) ports quantity: 8
  • HDMI ports quantity: 1
  • VGA (D-Sub) output ports: 1
  • USB 2.0 ports quantity: 2
  • Audio RCA inputs: 1
  • Audio RCA outputs: 1
  • DC-in jack: Yes
  • Networking standards: IEEE 802.3af, IEEE 802.3at
  • Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP
  • Rack mounting: Yes
  • LED indicators: HDD, LAN, PoE, System
  • Product colour: Black
  • Power consumption (max): 12.94 W
  • Output current: 1.31 A
  • Output voltage: 53.5 V
  • Total Power over Ethernet (PoE) budget: 53 W
  • Operating temperature (T-T): -10 - 55 °C
  • Width: 294 mm
  • Depth: 180 mm
  • Height: 44 mm
  • Package type: Box
  • AC adapter included: Yes
  • Quick installation guide: Yes
Description

The TP-LINK VIGI NVR1008H-8P is an 8-channel network video recorder designed for users seeking to enhance their security surveillance systems. It is suitable for homes and businesses wanting reliable video monitoring with high-definition output.

  • Supports sharp image definition up to 8MP for detailed visuals.
  • Simplifies installation by allowing PoE cameras to connect and power through one cable.
  • Features 8-channel simultaneous playback for concurrent monitoring of multiple feeds.
  • Offers up to 10 TB storage capacity to accommodate extensive video recordings.
  • Includes 4K HDMI output for high-resolution display options.
Specifications (4)
  • Producer product family: VIGI 8 Channel PoE+ Network Video Recorder
  • Producer product name: VIGI NVR1008H-8P
  • Video input channels: 8-Channel
  • Warranty: 36 month(s)
Other features (1)
  • Number of SATA connectors: 1
Performance (1)
  • Capacity: Up to 10 TB
Technical details (2)
  • Net weight: 2.50 kg
  • Other features: 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle. Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed. 8-Channel Simultaneous Playback: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
Additional specifications (38)
  • Number of simultaneously playbacked channels: 8 channels
  • Video recording modes: 720p, 1080p
  • Maximum resolution: 3840 x 2160 pixels
  • Supported resolutions: 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 102 4x 768, 1280 x 720
  • Video formats supported: H.264, H.264+, H.265, H.265+
  • Input bandwidth: 80 Mbit/s
  • Output bandwidth: 60 Mbit/s
  • Audio system: 2-way
  • HDD capacity: 0 GB
  • Number of HDDs supported: 1
  • Maximum storage capacity: 10 TB
  • HDD interface: SATA
  • Ethernet LAN (RJ-45) ports: 1
  • Power over Ethernet (PoE): Yes
  • Ethernet LAN data rates: 10,100 Mbit/s
  • Power over Ethernet (PoE) ports quantity: 8
  • HDMI ports quantity: 1
  • VGA (D-Sub) output ports: 1
  • USB 2.0 ports quantity: 2
  • Audio RCA inputs: 1
  • Audio RCA outputs: 1
  • DC-in jack: Yes
  • Networking standards: IEEE 802.3af, IEEE 802.3at
  • Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP
  • Rack mounting: Yes
  • LED indicators: HDD, LAN, PoE, System
  • Product colour: Black
  • Power consumption (max): 12.94 W
  • Output current: 1.31 A
  • Output voltage: 53.5 V
  • Total Power over Ethernet (PoE) budget: 53 W
  • Operating temperature (T-T): -10 - 55 °C
  • Width: 294 mm
  • Depth: 180 mm
  • Height: 44 mm
  • Package type: Box
  • AC adapter included: Yes
  • Quick installation guide: Yes

TP-LINK VIGI NVR1008H-8P — VIGI 8 Channel PoE+ Network Video Recorder, 8-Channel

$214.00
