About

Description

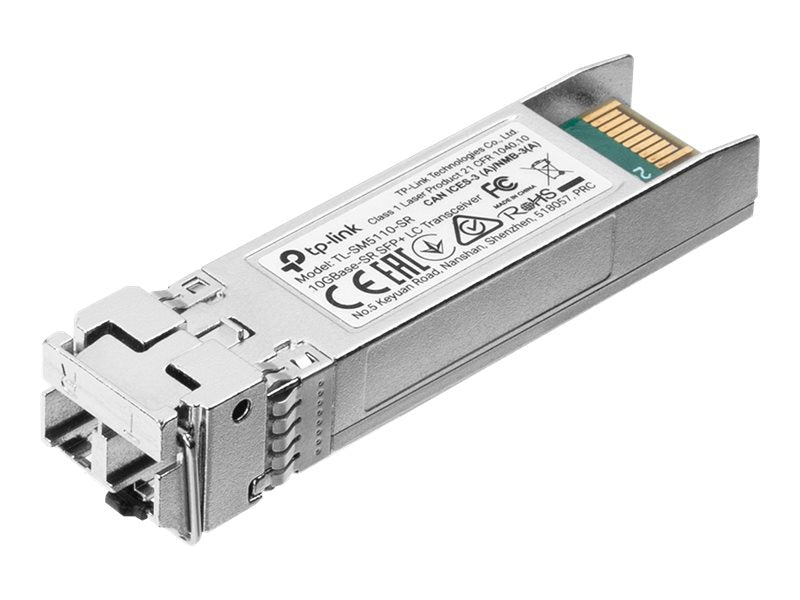

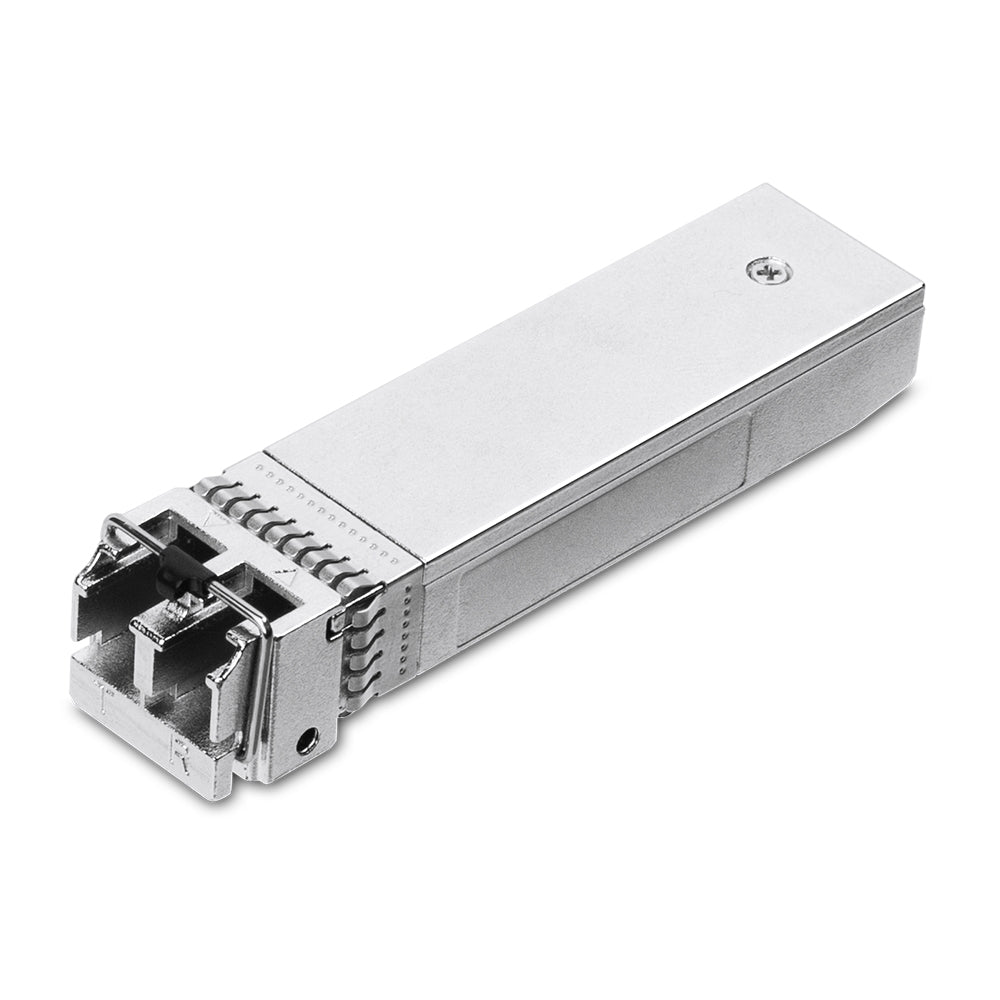

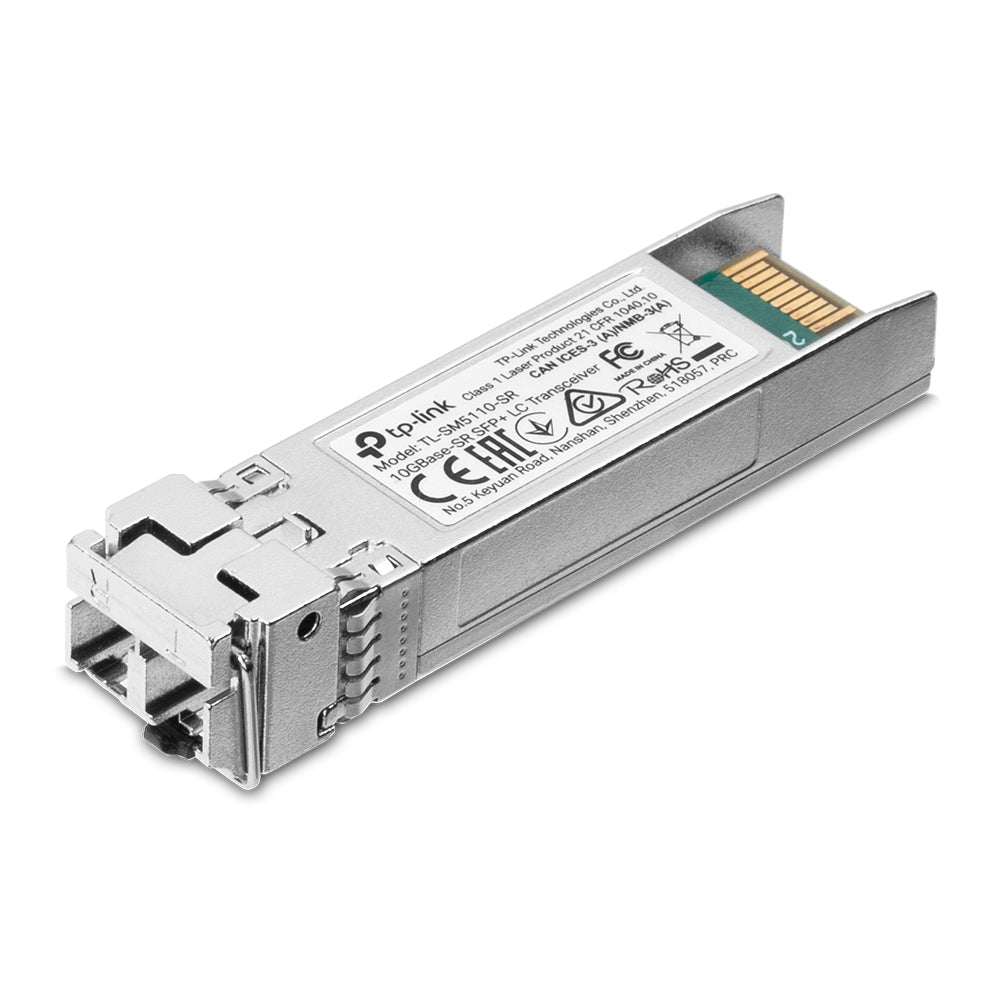

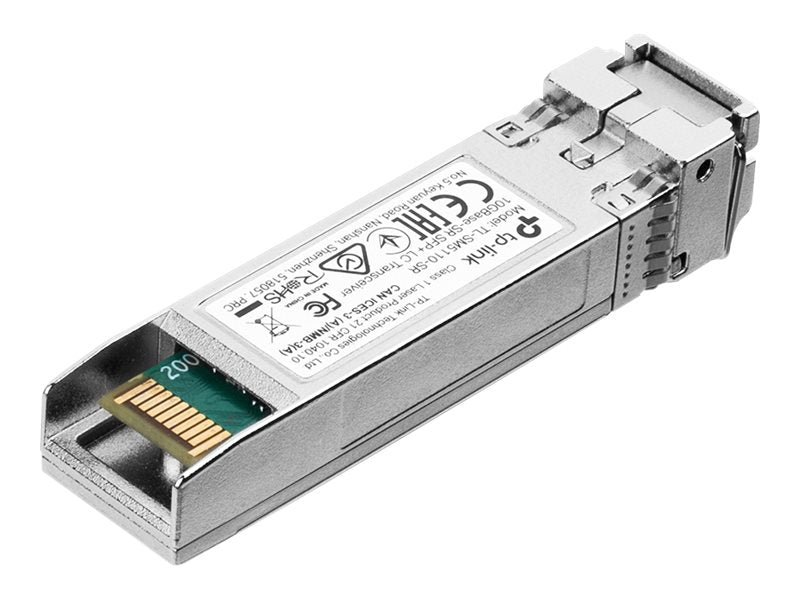

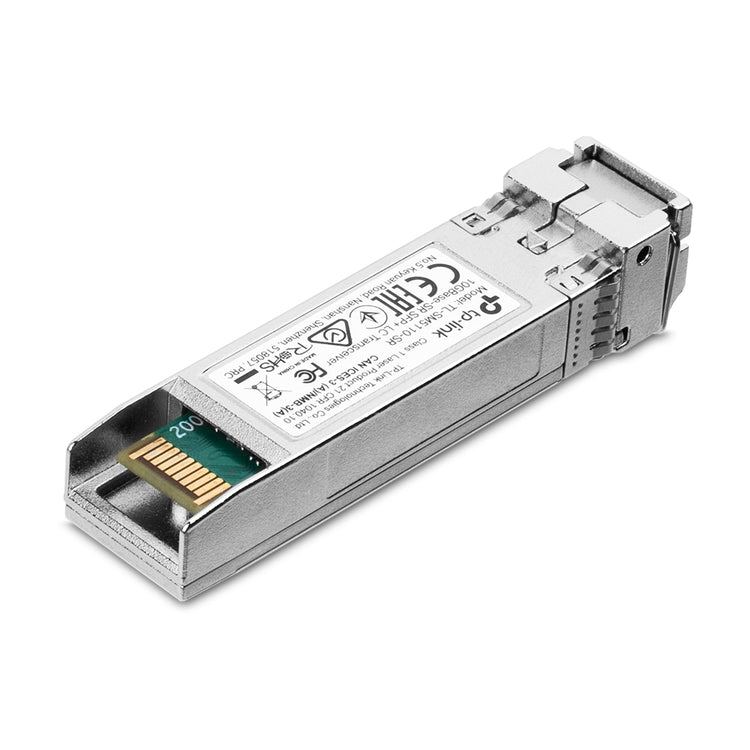

The TP-LINK TL-SM5110-SR is a 10GBase-SR SFP+ transceiver designed for users needing high-speed connections in networking setups, especially in multi-mode fiber environments. It's suitable for switches with 10G SFP+ ports, making it ideal for enhancing data transfer capabilities in a variety of professional settings.

  • Offers a data transfer rate of up to 10000 Mbit/s, enabling fast data communication.
  • Supports a maximum operating distance of 300 meters over multi-mode fiber, providing flexibility in network design.
  • Features a wavelength of 850 nm, which is optimal for short-distance data transmission.
  • Includes an LC/UPC connector type for reliable and efficient fiber connections.
  • Equipped with Digital Diagnostics Monitoring (DDM) for enhanced performance monitoring.
Specifications (4)
  • Operating temperature: 0 to 70
  • Producer product family: 10GBase-SR SFP+ LC Transceiver
  • Producer product name: TL-SM5110-SR
  • Combined (other): 29.0000 g
Design (1)
  • Form factor: SFP+ Transceiver
Features (3)
  • Data transfer rate: 10000 Mbit/s
  • Media type: Multi-Mode Fiber
  • Compatibility: Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP
Performance (3)
  • Wavelength: 850 nm
  • Auto MDI/MDI-X: No
  • Cable type: Multi-mode
Technical details (4)
  • Connector type: LC/UPC
  • Net weight: 0.04 kg
  • Type: SFP+ module
  • Warranty: 60 month(s)
Networking (2)
  • Interface type: SFP+
  • Maximum operating distance: 300 m
Packaging content (1)
  • Number of products included: 1 pc(s)
Additional specifications (19)
  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 10000 Mbit/s
  • Multi-mode fiber (MMF) supported: Yes
  • Fiber optic connector: LC (UPC)
  • Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
  • Maximum transfer distance: 300 m
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Silver
  • Hot-swap: Yes
  • Input voltage: 3.3 V
  • Certification: FCC, CE
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 80 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Width: 14.5 mm
  • Depth: 61.3 mm
  • Height: 12.2 mm
  • Harmonized System (HS) code: 85369010
Description

The TP-LINK TL-SM5110-SR is a 10GBase-SR SFP+ transceiver designed for users needing high-speed connections in networking setups, especially in multi-mode fiber environments. It's suitable for switches with 10G SFP+ ports, making it ideal for enhancing data transfer capabilities in a variety of professional settings.

  • Offers a data transfer rate of up to 10000 Mbit/s, enabling fast data communication.
  • Supports a maximum operating distance of 300 meters over multi-mode fiber, providing flexibility in network design.
  • Features a wavelength of 850 nm, which is optimal for short-distance data transmission.
  • Includes an LC/UPC connector type for reliable and efficient fiber connections.
  • Equipped with Digital Diagnostics Monitoring (DDM) for enhanced performance monitoring.
Specifications (4)
  • Operating temperature: 0 to 70
  • Producer product family: 10GBase-SR SFP+ LC Transceiver
  • Producer product name: TL-SM5110-SR
  • Combined (other): 29.0000 g
Design (1)
  • Form factor: SFP+ Transceiver
Features (3)
  • Data transfer rate: 10000 Mbit/s
  • Media type: Multi-Mode Fiber
  • Compatibility: Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP
Performance (3)
  • Wavelength: 850 nm
  • Auto MDI/MDI-X: No
  • Cable type: Multi-mode
Technical details (4)
  • Connector type: LC/UPC
  • Net weight: 0.04 kg
  • Type: SFP+ module
  • Warranty: 60 month(s)
Networking (2)
  • Interface type: SFP+
  • Maximum operating distance: 300 m
Packaging content (1)
  • Number of products included: 1 pc(s)
Additional specifications (19)
  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 10000 Mbit/s
  • Multi-mode fiber (MMF) supported: Yes
  • Fiber optic connector: LC (UPC)
  • Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
  • Maximum transfer distance: 300 m
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Silver
  • Hot-swap: Yes
  • Input voltage: 3.3 V
  • Certification: FCC, CE
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 80 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Width: 14.5 mm
  • Depth: 61.3 mm
  • Height: 12.2 mm
  • Harmonized System (HS) code: 85369010

TP-LINK TL-SM5110-SR — 10GBase-SR SFP+ LC Transceiver, SFP+ Transceiver, Multi-Mode Fiber, LC/UPC

€34,71
€34,71
Tax included.
