About

Description

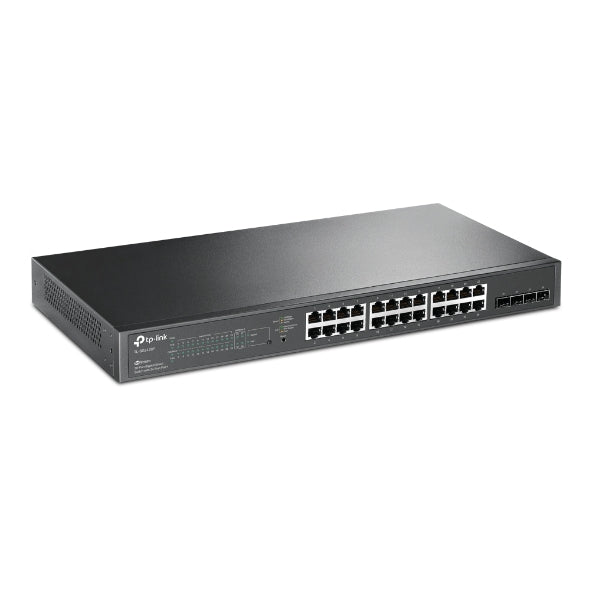

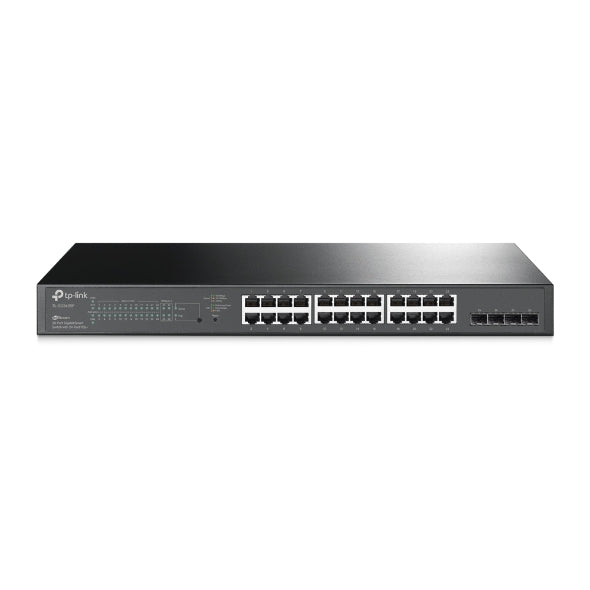

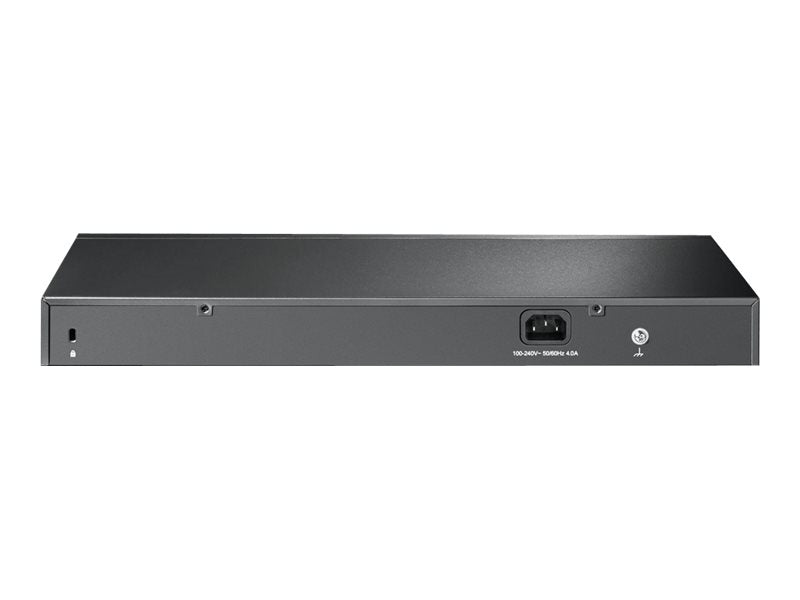

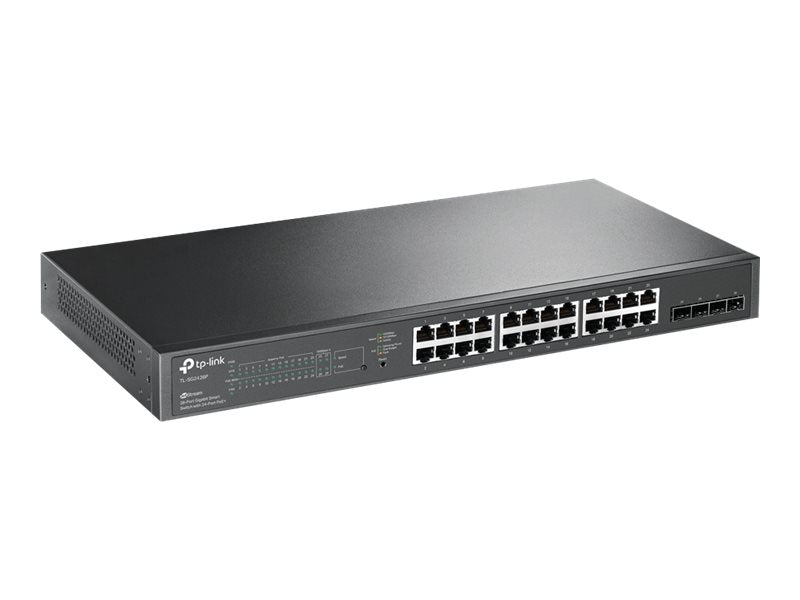

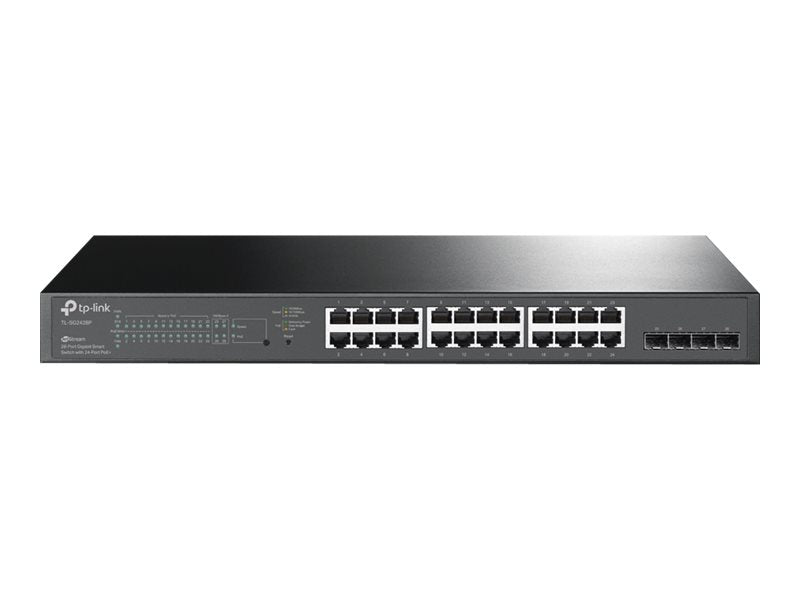

The TP-LINK JetStream TL-SG2428P is a web-managed 28-port Gigabit smart switch ideal for small to medium-sized networks. Its PoE+ capability makes it suitable for powering cameras and access points directly through the LAN cable, minimizing additional wiring needs.

  • Equipped with 24 PoE+ ports, this switch can power devices like IP cameras and VoIP phones directly from the network cable.
  • Includes 4 SFP module slots for flexible additional connectivity options, allowing for high-speed network expansions.
  • Web-based management allows users to easily configure and monitor settings through a user-friendly interface.
  • Supports Quality of Service (QoS) to ensure that critical applications receive the necessary bandwidth for optimal performance.
  • Offers advanced network features such as ARP inspection and port mirroring for improved security and traffic analysis.
Specifications (3)
  • Producer product family: JetStream 28-Port Gigabit Smart Switch
  • Producer product name: TL-SG2428P
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Rackmountable
Management features (1)
  • Switch type: Web Managed
Other features (1)
  • Power supply type: Single
Ports & interfaces (5)
  • PoE+ ports quantity: 24
  • SFP ports quantity: 4
  • Ethernet LAN (RJ-45) ports: 24
  • POE: PoE 802.3 af and PoE 802.3 at
  • Predominant port type: 1 Gbps (RJ-45)
Technical details (1)
  • Net weight: 2.8 kg
Additional specifications (67)
  • Switch layer: L2/L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • System event log: Yes
  • MIB support: Y
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • SFP module slots quantity: 4
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
  • Number of VLANs: 4000
  • Fiber ethernet cabling technology: 1000BASE-X
  • Switching capacity: 56 Gbit/s
  • Forwarding rate: 41.66 Mpps
  • MAC address table: 8000 entries
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1 MB
  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
  • SSH/SSL support: Yes
  • BPDU filtering/protection: Yes
  • IP-MAC-Port binding: Yes
  • Authentication type: RADIUS
  • Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
  • Multicast support: Yes
  • Management protocols: SNMPv1/v2c/v3, SNTP
  • Rack mounting: Yes
  • Product colour: Black
  • Number of fans: 2 fan(s)
  • Firmware upgradeable: Yes
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 301.1 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 250 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 1052.94 BTU/h
  • Width: 440 mm
  • Depth: 220 mm
  • Height: 44 mm
  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes
  • Certification: CE, FCC, RoHS
Description

The TP-LINK JetStream TL-SG2428P is a web-managed 28-port Gigabit smart switch ideal for small to medium-sized networks. Its PoE+ capability makes it suitable for powering cameras and access points directly through the LAN cable, minimizing additional wiring needs.

  • Equipped with 24 PoE+ ports, this switch can power devices like IP cameras and VoIP phones directly from the network cable.
  • Includes 4 SFP module slots for flexible additional connectivity options, allowing for high-speed network expansions.
  • Web-based management allows users to easily configure and monitor settings through a user-friendly interface.
  • Supports Quality of Service (QoS) to ensure that critical applications receive the necessary bandwidth for optimal performance.
  • Offers advanced network features such as ARP inspection and port mirroring for improved security and traffic analysis.
Specifications (3)
  • Producer product family: JetStream 28-Port Gigabit Smart Switch
  • Producer product name: TL-SG2428P
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Rackmountable
Management features (1)
  • Switch type: Web Managed
Other features (1)
  • Power supply type: Single
Ports & interfaces (5)
  • PoE+ ports quantity: 24
  • SFP ports quantity: 4
  • Ethernet LAN (RJ-45) ports: 24
  • POE: PoE 802.3 af and PoE 802.3 at
  • Predominant port type: 1 Gbps (RJ-45)
Technical details (1)
  • Net weight: 2.8 kg
Additional specifications (67)
  • Switch layer: L2/L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • System event log: Yes
  • MIB support: Y
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • SFP module slots quantity: 4
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
  • Number of VLANs: 4000
  • Fiber ethernet cabling technology: 1000BASE-X
  • Switching capacity: 56 Gbit/s
  • Forwarding rate: 41.66 Mpps
  • MAC address table: 8000 entries
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1 MB
  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
  • SSH/SSL support: Yes
  • BPDU filtering/protection: Yes
  • IP-MAC-Port binding: Yes
  • Authentication type: RADIUS
  • Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
  • Multicast support: Yes
  • Management protocols: SNMPv1/v2c/v3, SNTP
  • Rack mounting: Yes
  • Product colour: Black
  • Number of fans: 2 fan(s)
  • Firmware upgradeable: Yes
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 301.1 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 250 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 1052.94 BTU/h
  • Width: 440 mm
  • Depth: 220 mm
  • Height: 44 mm
  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes
  • Certification: CE, FCC, RoHS

TP-LINK TL-SG2428P — JetStream 28-Port Gigabit Smart Switch, Web Managed, Rackmountable, SFP ports quantity 4

€374,47
€374,47
Tax included.
