About

Description

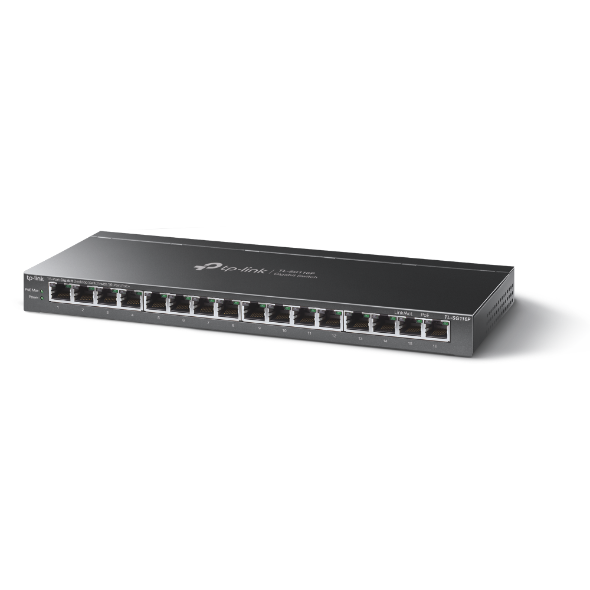

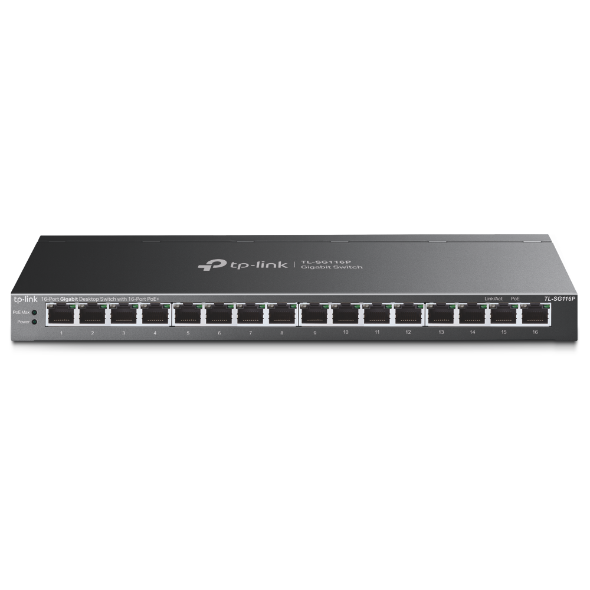

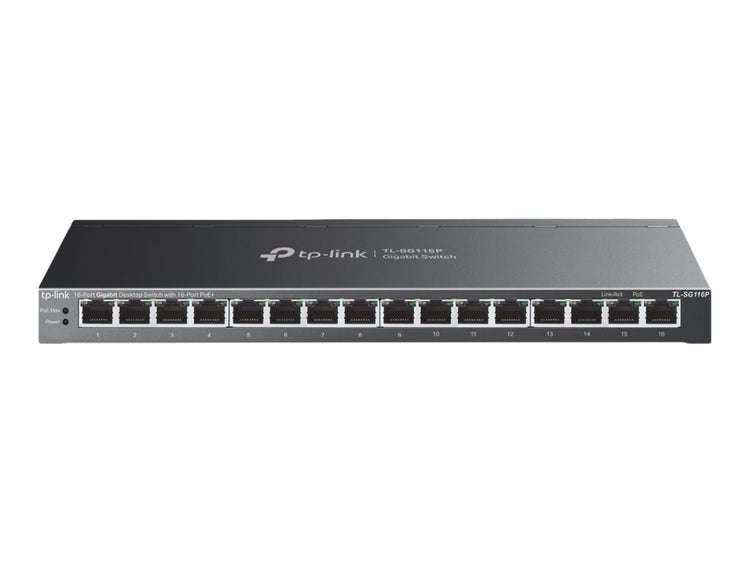

The TP-LINK TL-SG116P is a 16-Port Gigabit Desktop Switch ideal for small businesses or home networks needing multiple connections. This unmanaged switch offers seamless operation without the need for configuration, making it suitable for users who want straightforward networking solutions.

  • Connect up to 16 devices easily with Gigabit Ethernet ports, ensuring fast data transfer rates.
  • Supports Power over Ethernet (PoE) for powering devices like IP cameras and phones directly through the network cable.
  • Features quality of service (QoS) support to prioritize network traffic for smoother performance.
  • Includes advanced networking features such as link aggregation and broadcast storm control for enhanced efficiency.
  • Designed for flexible installation with a desktop form factor and robust build to endure various operating conditions.
Specifications (3)
  • Producer product family: 16-Port Gigabit Desktop Switch
  • Producer product name: TL-SG116P
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Desktop
Management features (1)
  • Switch type: Unmanaged
Operational conditions (4)
  • Operating relative humidity (H-H): 10–90 (non-condensing) %
  • Operating temperature (T-T): 0–40 °C
  • Storage relative humidity (H-H): 5–90 (non-condensing) %
  • Storage temperature (T-T): -40–70 °C
Ports & interfaces (4)
  • Ethernet LAN (RJ-45) ports: 16
  • Interface: 16 × 10/100/1000Mbps Ports Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • POE: PoE 802.3 af and PoE 802.3 at
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Technical details (1)
  • Net weight: 6.00 kg
Additional specifications (47)
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 16
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Cable length detection: Yes
  • VLAN support: Yes
  • Virtual LAN features: Protocol-based VLAN, Tagged VLAN
  • Number of VLANs: 32
  • Switching capacity: 32 Gbit/s
  • Forwarding rate: 23.81 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1 MB
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Stackable: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Wall mountable: Yes
  • Power supply included: Yes
  • AC input voltage: 220 V
  • AC input frequency: 50 Hz
  • DC input voltage: 9 V
  • Input current: 0.6 A
  • Power consumption (typical): 11.72 W
  • Power consumption (max): 144.28 W
  • Power over Ethernet (PoE): Yes
  • Heat dissipation: 490.55 BTU/h
  • Width: 286 mm
  • Depth: 111.7 mm
  • Height: 25.4 mm
  • Quick start guide: Yes
Description

The TP-LINK TL-SG116P is a 16-Port Gigabit Desktop Switch ideal for small businesses or home networks needing multiple connections. This unmanaged switch offers seamless operation without the need for configuration, making it suitable for users who want straightforward networking solutions.

  • Connect up to 16 devices easily with Gigabit Ethernet ports, ensuring fast data transfer rates.
  • Supports Power over Ethernet (PoE) for powering devices like IP cameras and phones directly through the network cable.
  • Features quality of service (QoS) support to prioritize network traffic for smoother performance.
  • Includes advanced networking features such as link aggregation and broadcast storm control for enhanced efficiency.
  • Designed for flexible installation with a desktop form factor and robust build to endure various operating conditions.
Specifications (3)
  • Producer product family: 16-Port Gigabit Desktop Switch
  • Producer product name: TL-SG116P
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Desktop
Management features (1)
  • Switch type: Unmanaged
Operational conditions (4)
  • Operating relative humidity (H-H): 10–90 (non-condensing) %
  • Operating temperature (T-T): 0–40 °C
  • Storage relative humidity (H-H): 5–90 (non-condensing) %
  • Storage temperature (T-T): -40–70 °C
Ports & interfaces (4)
  • Ethernet LAN (RJ-45) ports: 16
  • Interface: 16 × 10/100/1000Mbps Ports Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • POE: PoE 802.3 af and PoE 802.3 at
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Technical details (1)
  • Net weight: 6.00 kg
Additional specifications (47)
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 16
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Cable length detection: Yes
  • VLAN support: Yes
  • Virtual LAN features: Protocol-based VLAN, Tagged VLAN
  • Number of VLANs: 32
  • Switching capacity: 32 Gbit/s
  • Forwarding rate: 23.81 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1 MB
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Stackable: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Wall mountable: Yes
  • Power supply included: Yes
  • AC input voltage: 220 V
  • AC input frequency: 50 Hz
  • DC input voltage: 9 V
  • Input current: 0.6 A
  • Power consumption (typical): 11.72 W
  • Power consumption (max): 144.28 W
  • Power over Ethernet (PoE): Yes
  • Heat dissipation: 490.55 BTU/h
  • Width: 286 mm
  • Depth: 111.7 mm
  • Height: 25.4 mm
  • Quick start guide: Yes

TP-LINK TL-SG116P — 16-Port Gigabit Desktop Switch, Unmanaged

€147,55
€147,55
Tax included.
